Paragon Knife Oven - Double Barrel KM18
$3,732.75Regular price$3,950.00
Save $217.25- Talk to a kiln expert before you buy. Call or text: 470-264-3563
Configure your kiln
Not sure? Call 470-264-3563
Add it to this order Upgrades & add-ons
Kiln Controller
A digital controller in its own wall-mounted box. It runs the kiln through a power cord, away from the kiln's heat.
Who needs it: Kilns with a manual or worn-out controller, or studios that want a different interface. Pick the voltage and amperage that match your kiln.
Skip it if this kiln already has a programmable controller built in. Most buyers do not need a second one; ask us about the factory touchscreen upgrade instead.
Full details → · Not sure? Call 470-264-3563
A digital controller in its own wall-mounted box. It runs the kiln through a power cord, away from the kiln's heat.
Who needs it: Kilns with a manual or worn-out controller, or studios that want a different interface. Pick the voltage and amperage that match your kiln.
Skip it if this kiln already has a programmable controller built in. Most buyers do not need a second one; ask us about the factory touchscreen upgrade instead.
Full details → · Not sure? Call 470-264-3563
A digital controller in its own wall-mounted box. It runs the kiln through a power cord, away from the kiln's heat.
Who needs it: Kilns with a manual or worn-out controller, or studios that want a different interface. Pick the voltage and amperage that match your kiln.
Skip it if this kiln already has a programmable controller built in. Most buyers do not need a second one; ask us about the factory touchscreen upgrade instead.
Full details → · Not sure? Call 470-264-3563
Your add-onsNone selected
$0
See your delivered price
Enter your ZIP to see freight and your delivered total, including anything ticked above.
Secure checkout · No sales tax outside Georgia
Buy with confidence
When it ships & how it's delivered · freight to your door
Paragon builds most kilns to order once your order is placed. We email your confirmed ship date and tracking.
- The freight carrier calls you to book a delivery window.
- Delivery is curbside with a liftgate. Have a helper or hand truck to move it inside.
- Check the crate before you sign. Note any damage on the receipt and send us photos.
Enter your ZIP in "See your delivered price" above the Add to cart button to see freight and your delivered total.
Authorized Paragon dealer · full factory warranty
Brand new and shipped direct from Paragon, so it carries Paragon's full factory warranty. If something goes wrong, call us and we handle the claim with the factory for you.
Warranty terms are in the Warranty and support section below.
Returns: request within 15 days, unused
Because kilns are heavy and often built to order, returns are limited, so we'd rather help you pick the right one up front:
- Ask within 15 days of purchase or 2 days after delivery, whichever comes first. We issue a return authorization (RA).
- It must be new, unused (beyond the factory test fire) and in its original packaging.
- A restocking fee of at least 25% applies, up to 50% on custom, 3-phase or made-to-order units. Return freight is on the buyer unless we made an error.
- Damaged in transit? Note it on the delivery receipt, send us photos and we'll help with the freight claim.
Will it work in my space? Power check
Not included: Paragon Knifemaking Heat Treating Kit (gloves, tongs, blade holders, firebrick supports) and gas inlet/flowmeter, both optional upgrades. Requires 240V, 13 amps, with a NEMA 6-20 receptacle. Call us to confirm the plug type for your shop before ordering.
Most 240V kilns need their own circuit and the matching outlet, installed by an electrician. Homes are usually 240V; schools and commercial buildings are often 208V, so pick the voltage that matches your panel.
Send us a photo of your breaker panel or outlet and we'll confirm before your kiln is built: 470-264-3563 (call or text).
More ways to save · wire, school & military pricing
- Pay by bank wire: 3% off the subtotal, freight included.
- Schools, studios & bulk orders: purchase orders welcome, quoted before funding is approved.
- Military, veterans & first responders: 5% off your whole order.
- Price match: found a lower delivered price online? We'll match it.
Not ready yet? Email me this build + a delivered quote
Talk to a kiln expertGet your exact delivered price
- Freight to your ZIP and the current lead time on this model
- Found a lower delivered price online? We'll match it
- Voltage, breaker and venting answers before you order
Real people, 8am-8pm ET, 7 days. Texts and messages answered within the hour.
Prefer email? Get a written delivered quote →Paragon Knife Oven - Doub...
$3,732.75
Overview
Paragon · Heat Treating Oven · Front-Loading Double Barrel

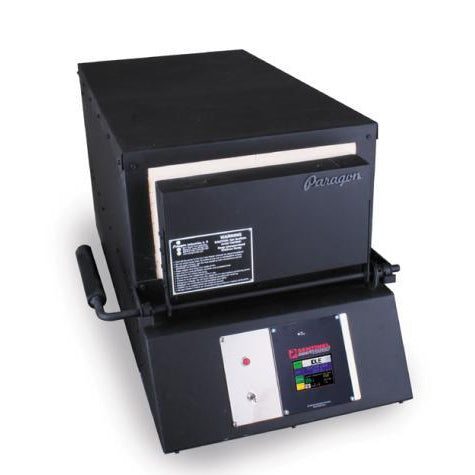

Paragon Knife Oven – Double Barrel KM18
The double-barrel front-loading design gives you one chamber that is wider and taller than the standard KM18, so you can heat treat larger batches of blades in a single cycle. The 18-inch chamber depth accommodates longer blade profiles including swords, machetes, and large hunting knives, while the 2350°F maximum firing temperature provides the high heat necessary for proper hardening and tempering of carbon steel and high-alloy tool steels commonly used in professional knifemaking. Precision-engineered by Paragon in the USA for consistent, repeatable heat treating results in high-volume production environments.
Maximum temperature2350°F (Cone 10)
Chamber depth18 inches
DesignDouble barrel front-loading
Power240V
What’s included
The oven, assembled and wiredParagon builds and wires it at the factory. The door style you chose is already fitted: a spring-assisted drop door or a side-swing door, both standard at the same price.
Digital controller, factory-installedParagon fits and wires the controller before the kiln leaves the factory. Paragon has been renaming and replacing its controller line and dealer listings are out of date at different dates, so we do not print a model name here. We confirm the exact controller with Paragon when you order.
Type-K thermocouple, installedFitted at the factory and wired to the controller. Type-K is standard across the current Paragon range.
Door safety switchWired in at the factory. It cuts power to the elements the moment you open the door, so you are not reaching into a live chamber.
Cord and plugParagon ships this kiln with a cord and plug. The receptacle type changes with the voltage option you order, so we confirm the exact plug — or whether your configuration is wired direct instead — with Paragon before the order goes in.
Printed manualsA printed instruction manual for the kiln and a separate guide for the controller. Warranty registration is done online at Paragon, and we do not promise a printed warranty card in the crate because we could not confirm one is packed.
Paragon limited warranty — one yearOne year from purchase on this model, per Paragon's published warranty schedule. Paragon does not warrant the Type-K thermocouple, so treat that as a wear part. Keep your proof of purchase.
Not includedNo shelves, posts or kiln furniture ship with a knife oven. The Knifemaker's Heat Treating Kit — four knife holders, eight firebrick supports, a heat treating fork and hot gloves — is a separate purchase, and so are the upgraded touchscreen controller and the gas-inlet option.
Key features
Double barrel chamber system
One extra-wide 18-inch deep chamber, wider and taller than the standard KM18, for heat treating larger blade batches
Sentinel Touch Xpress controller
Single-zone touchscreen controller with ramp/hold programming for accurate hardening and tempering cycles
High-temperature heating elements
Industrial-grade elements rated to 2350°F for consistent heat distribution and proper treatment of high-alloy tool steels
Drop-down front door
Front-loading drop-down door provides easy loading and unloading (side-swing door available on request)
Insulated firebrick construction
Heavy-duty insulating firebrick walls retain heat efficiently and protect exterior housing during extended firing cycles
Gas inlet option
Order with the optional gas inlet and flowmeter to connect an inert gas atmosphere system for controlled heat treating
Technical specifications
Model numberKM18
Chamber depth18 inches
Number of chambers1 extra-wide chamber (double barrel)
Maximum firing temperature2350°F (1288°C) – Cone 10
Voltage options240V single-phase
Loading styleFront-loading drop-down door
ConstructionInsulating firebrick with metal housing
Controller typeSentinel Touch Xpress touchscreen (single zone)
Atmosphere capabilityOptional gas inlet and flowmeter for controlled atmosphere heat treating
Production capacityLarger batches in one extra-wide chamber
ApplicationKnife and blade heat treating, tool hardening
Country of originMade in USA
Optional accessories
Inert gas atmosphere system
Argon or nitrogen gas delivery system connects to the optional gas inlet for controlled atmosphere heat treating to prevent oxidation and decarburization
Additional blade racks
Custom-sized stainless steel racks maximize chamber capacity and organize multiple blades during heat treating cycles
Type K thermocouple replacement
High-temperature backup thermocouple rated to 2350°F ensures continuous operation and accurate temperature monitoring
Quench tank system
Separate quenching vessel for oil or water quenching immediately after hardening cycle for optimal blade hardness
Emergency replacement parts kit
Includes backup heating elements, thermocouple, door gaskets, and relays to minimize production downtime
Rolling stand with casters
Heavy-duty welded steel stand with locking casters allows mobility in workshop while providing stable support during operation
Controller upgrade
Genesis Touchscreen — Bartlett InstrumentsRecommended
Upgrade to the Genesis touchscreen controller for advanced programming capabilities including multi-step heat treating profiles, soak times, and precise ramp rates critical for complex metallurgy work. The full-color 7-inch interface provides real-time temperature graphing, cycle documentation, and USB data export for quality control records.
- 7-inch full-color touchscreen with intuitive programming interface
- Store up to 250 custom heat treating profiles for different steel types and blade geometries
- Real-time temperature curve display shows actual vs. target temperature throughout entire cycle
- Multi-segment programming with independent ramp rates, soak times, and hold temperatures
- USB data export for production documentation and quality assurance records
- Advanced alarm system alerts for temperature deviations, element failure, and cycle completion
Common questions
What types of steel can I heat treat in the KM18?
The 2350°F maximum temperature handles all common blade steels including 1095, 5160, 52100, O1, A2, D2, and high-alloy stainless steels like 440C and AEB-L. The temperature range covers both hardening (typically 1450-2100°F depending on alloy) and tempering cycles (300-1000°F). For high-speed steels and some exotic alloys requiring temperatures above 2200°F, verify your specific steel's austenitizing temperature falls within the oven's range. The optional gas inlet allows connection of argon or nitrogen atmosphere systems to prevent oxidation during hardening of reactive steels.
Do I need to add a gas atmosphere system, or can I heat treat in air?
Many carbon steels can be successfully heat treated in air atmosphere for forged blades that will be ground post-hardening, though some surface scaling and decarburization will occur. For stock removal blades with finished grinds, stainless steels, or when minimal scale is critical, connecting an inert gas system (argon or nitrogen) to the optional gas inlet creates a protective atmosphere that prevents oxidation and decarburization. The gas inlet and flowmeter are an optional upgrade on the KM18; the external gas supply and regulators are purchased separately based on your quality requirements and production volume.
What controller comes standard, and can I program custom heat treating cycles?
The KM18 includes a Sentinel Touch Xpress touchscreen controller with ramp-hold-cool programming suitable for standard hardening and tempering cycles. You can set target temperatures, ramp rates, and soak times for typical two-step heat treating (austenitizing followed by tempering). For more complex metallurgy requiring multi-step thermal cycles, precise ramp control, or data logging for quality documentation, the Genesis touchscreen upgrade provides advanced programming with up to 250 stored profiles and USB export capability.
How does the double barrel design compare to single chamber knife ovens?
The Double Barrel keeps the 18-inch depth of the standard KM18 but has one wider, taller chamber, so you can heat treat more blades per cycle or fit wider pieces. It is still a single chamber with one single-zone controller, so all blades in a load run the same program. If you want to harden and temper at the same time, you would need a second oven.
Is this oven backed by a manufacturer warranty when purchased through Peach State Pottery?
Yes. The KM18 includes Paragon's one-year limited warranty covering defects in materials and workmanship when purchased through authorized dealers like Peach State Pottery. You must register your oven within 30 days of delivery to activate warranty coverage. Purchasing through unauthorized resellers or used markets typically voids manufacturer warranty. Peach State Pottery can assist with warranty registration and any service needs during your warranty period.
Not sure if the KM18 double barrel is the right heat treating oven for your production needs?
Our kiln specialists can discuss your blade lengths, production volume, steel types, and atmosphere requirements to recommend the best Paragon knife oven configuration.
