Overview
Olympic Kilns · Glass Kiln · Front-Loading
Olympic Square 149GFE Glass Fusing Kiln
The Square 149GFE is a front-loading glass kiln designed specifically for fusing, slumping, and annealing projects up to 14.5″ square. With a 9″ chamber height and 1700°F maximum temperature, this kiln provides precise heat control for detailed glass work while the front-loading design allows easy shelf access and project monitoring. The KilnStar controller includes glass-specific firing programs and cone-fire modes for consistent results.
Max Temperature1700°F
Chamber Size14.5″ × 14.5″ × 9″
Voltage240V or 208V
Loading StyleFront-loading door
What’s included
The kiln, with its elements installedThe chamber arrives with Olympic's heavy gauge coiled elements already set in the brick and wired to the control panel. Olympic does not put this model in either its ready-to-fire list or its reassemble-on-the-stand list, so we confirm the delivered state with the factory before your order goes in.
Bartlett KilnStar controller, fitted and wiredThe KilnStar is the standard controller on this kiln and it is installed and wired at the factory. The Genesis touchscreen is a paid upgrade taken at order time, and Olympic's 2026 range no longer offers the RTC-1000, Kiln Sitter, 3-key or V6-CF, so nothing legacy ships here.
One Type K thermocouple and the pilot lightA single Type K thermocouple comes installed and wired to the controller. The control panel also carries a pilot indicator light that comes on whenever the kiln is live. Extra thermocouples only arrive with the 2-zone or 3-zone option, and a Type S is a paid substitution.
Stand or bench, confirmed per orderOlympic publishes stand details for its stackable, oval, studio front loading and large capacity lines, but not for this glass firing model, so we will not print one here. Tell us how you plan to site it and we confirm the stand with Olympic before your order goes in.
Observation plugsHollow ceramic peephole plugs ship with the kiln. Olympic publishes no count for any model, in its manuals or on its site, so we will not print a number here. Ask and we will confirm yours with the factory. Replacements are a stock part.
The operating manual and a two-year warrantyOlympic's printed operating manual travels with the kiln. Olympic's limited warranty runs two years and drops to one year only on Kiln-Sitter models and kilns rated at cone 10. This one is not rated at cone 10, so the full two years apply. Register with Olympic within 30 days of delivery.
Cord and plug, or direct wired, set by your buildOlympic's plug configuration row gives a NEMA 6-30 or 6-50 plug on lower-amperage builds and Direct Wired on higher-amperage ones, and several models are listed as either. The manual hedges the same way, with “If your kiln is equipped with a power cord...”. Tell us your voltage, phase and service and we confirm which one you get before the order goes in.
Not included: glass options, furniture and hookupThe bead door, the quartz viewing window, the flash arm and lid elements in quartz rods are all paid Olympic options. No kiln furniture, shelves or posts ship with the kiln, and stilts, gloves, kiln wash, a pyrometer and all electrical hookup are separate.
Key features

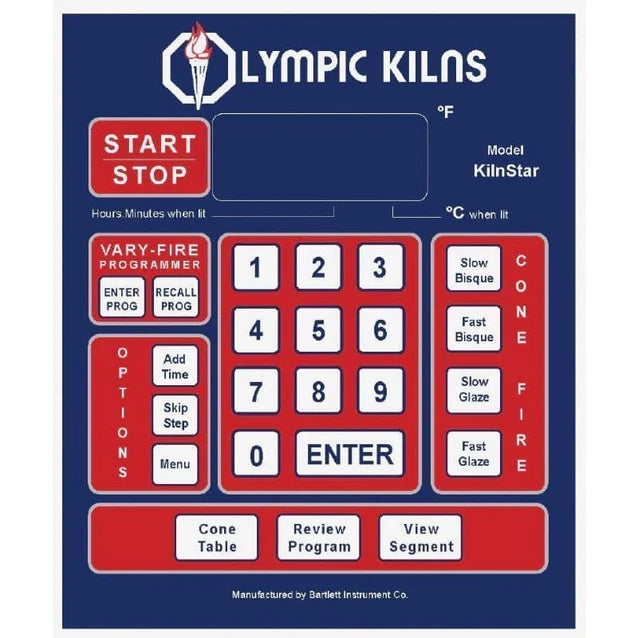

KilnStar™ Digital Controller
Multi-zone programmable controller with glass fusing programs, cone-fire modes, and 8-segment programming capability for precise temperature control.
3-inch Firebrick Construction
High-quality 2300°F rated insulating firebrick provides excellent heat retention and energy efficiency for consistent firing results.
Front-Loading Door Design
Hinged front door with spring-loaded counterweight system allows easy access to shelves and simplifies loading and unloading of glass projects.
Stainless Steel Jacket
Durable stainless steel exterior provides lasting protection and professional appearance while maintaining cooler exterior temperatures.
18″ Metal Stand
Sturdy 18″ tall metal stand positions the kiln at a comfortable working height.
Balanced Element System
Premium heavy gauge coiled elements positioned for even heat distribution throughout the chamber, critical for uniform glass fusing.
Technical specifications
ModelSquare 149GFE
Interior dimensions14.5″ W × 14.5″ D × 9″ H
Chamber capacity1.09 cubic feet
Shelf size14″ × 14″
Brick thickness3 inches
Maximum temperature1700°F
Voltage options240V single phase or 208V single phase
Amperage draw (240V)15 amps (17 amps at 208V)
Wattage (240V)3,600 watts
Recommended breaker20 amp at 240V · 30 amp at 208V
Plug configurationNEMA 6-30
Wire size required#12 copper (#10 for runs over 40 ft)
ControllerKilnStar™ digital with glass programs
Element typeHeavy gauge coil
Loading styleFront-loading with hinged door
Stand includedYes, 18″ metal stand
Shipping weightApproximately 180 lbs
Optional accessories
Glass Kiln Furniture Kit
Includes kiln-washed ceramic shelves, shelf posts in various heights, and fiber paper specifically sized for glass fusing applications in the Square 149GFE.
Solid State Relay (SSR) Upgrade
Replaces mechanical contactors with silent solid-state switching for quieter operation, extended element life, and more precise temperature control during critical annealing phases.
Orton Kiln Vent System
Downdraft ventilation system removes fumes from glass binders, coatings, and inclusions while maintaining temperature uniformity and creating a safer studio environment.
Type K Thermocouple Replacement
Precision-grade spare thermocouple for accurate temperature measurement. Recommended to keep on hand for minimal downtime during critical production schedules.
Power Interrupt Module
Automatically shuts down the kiln if power is interrupted and restored, preventing uncontrolled reheating that could damage glass projects or create safety hazards.
Emergency Parts Kit
Includes critical spare parts like relays, thermocouple, fuses, and element connectors to minimize downtime and keep your kiln operational during urgent production needs.
Digital Pyrometer
Independent temperature monitoring device for verification of controller accuracy and peace of mind during extended annealing cycles and valuable glass projects.
Kiln Sitter Cone Kit for Glass
Assortment of low-temperature pyrometric cones suitable for glass work, providing visual temperature verification and backup safety for fusing and slumping firings.
Controller upgrade

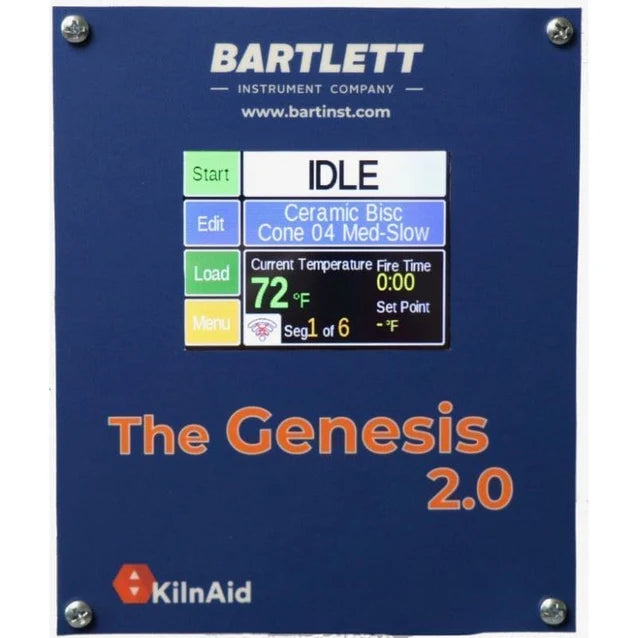

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis controller brings modern touchscreen convenience to glass firing with expanded programming capacity, real-time firing graphs, and advanced features specifically beneficial for complex fusing and annealing schedules. The large color display shows heating rate, target temperature, and current progress at a glance.
- 6-segment programming per step with up to 32 steps for complex glass schedules including controlled cooling and precise annealing
- Full-color touchscreen with intuitive interface displays firing curves in real-time for immediate feedback on heating and cooling rates
- Store up to 100 custom programs for different glass types, project sizes, and firing techniques including fusing, slumping, and annealing
- Delay start and time-of-day firing let you schedule firings to complete overnight or during off-peak electricity hours
- Alarm notifications and program completion alerts with detailed diagnostic information for troubleshooting and safety monitoring
- USB port allows firmware updates and program backup/transfer between kilns for consistent results across multiple studios
Common questions
What types of glass projects can I fire in the Square 149GFE?
This kiln is designed for fusing, slumping, annealing, and casting projects up to 14″ square. The 1700°F maximum temperature handles all standard fusible glass including Bullseye, Spectrum, and Uroboros, as well as borosilicate annealing. The 9″ chamber height accommodates multiple shelf levels for small jewelry pieces or single-layer work for larger plates, bowls, and art panels. The front-loading design makes it particularly convenient for slumping operations where you need to check mold alignment.
Do I need an electrician to install this kiln?
Yes, professional installation by a licensed electrician is required. The Square 149GFE draws 15 amps at 240V and requires a dedicated 20-amp circuit with #12 copper wire (#10 for runs over 40 ft). Your electrician will need to install the appropriate breaker and a NEMA 6-30 receptacle. The kiln can also operate on 208V single phase (17 amps on a 30-amp breaker). Always follow local electrical codes and obtain necessary permits.
Does the kiln come with shelves and posts for glass work?
The kiln does not include kiln furniture in the base price. You'll need to purchase an optional glass kiln furniture kit that includes properly sized ceramic shelves (14″ × 14″), shelf posts in various heights for stacking, and fiber paper. It's essential to use kiln wash or fiber paper between glass and shelves to prevent fusion. We recommend purchasing the furniture kit at the same time as your kiln so you're ready to fire immediately upon installation.
How does the front-loading design compare to top-loading for glass work?
Front-loading kilns like the Square 149GFE offer significant advantages for glass artists. You can easily view your work at eye level when loading, check shelf alignment for slumping molds, and access projects without reaching down into a hot chamber. The door design also allows you to crack it open slightly to check firing progress during critical stages. The trade-off is a slightly smaller chamber capacity compared to equivalent top-loaders, and the door hinge requires occasional maintenance to ensure proper sealing.
How is the warranty activated and what does it cover?
Olympic Kilns provides a one-year limited warranty that must be registered within 30 days of delivery to be valid. The warranty covers manufacturing defects in materials and workmanship but does not cover normal wear items like elements, thermocouples, and firebrick, which degrade naturally with use. The warranty is only valid when purchased through authorized dealers like Peach State Pottery. Keep your purchase receipt and register online at Olympic's website immediately after delivery. Damage from improper installation, incorrect voltage, or misuse is not covered.
