Olympic Kilns MAS1823HE Electric Kiln
Save $870.00
Original Price
$2,950.00
Current Price
$2,080.00
Free Freight Delivery Included
✓ No sales tax outside GA
✓ Liftgate included free
✓ Authorized dealer
Made to Order: Kilns are built after ordering to your exact specifications. Current estimate is 8–12 weeks.
Need it sooner? Quick-Ship models ship in 2–3 weeks
View Quick-Ship
Questions? Call or text us at (470) 264-3563
Olympic Kilns · Electric Kiln · Stackable Top-Loading

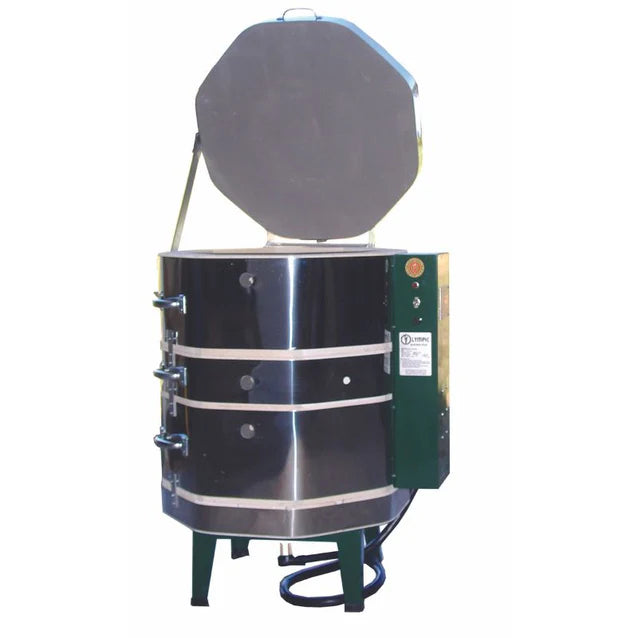

Olympic Medallion Artist Series 1823HE Electric Kiln
The MAS1823HE delivers high-fire capability in a compact stackable design, making it ideal for studios with limited floor space but demanding ceramics requirements. This energy-efficient model fires to Cone 10 with 3-inch brick insulation and comes standard with the KilnStar digital controller for precise firing control. The stackable 3-section construction allows you to adjust kiln height by adding or removing rings as your work evolves.
Max TemperatureCone 10 / 2350°F
Firing Chamber17.5″ W × 22.5″ D / 4.0 cu ft
Voltage208/240V single-phase
Breaker Required50 amp
What’s included

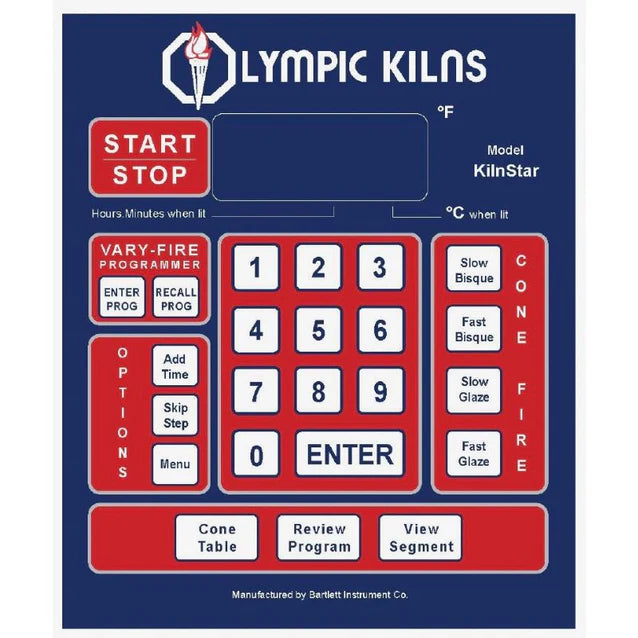

KilnStar Digital Controller
Pre-programmed with Cone Fire and Ramp/Hold modes. Features delay start, alarm, and thermocouple offset adjustment.

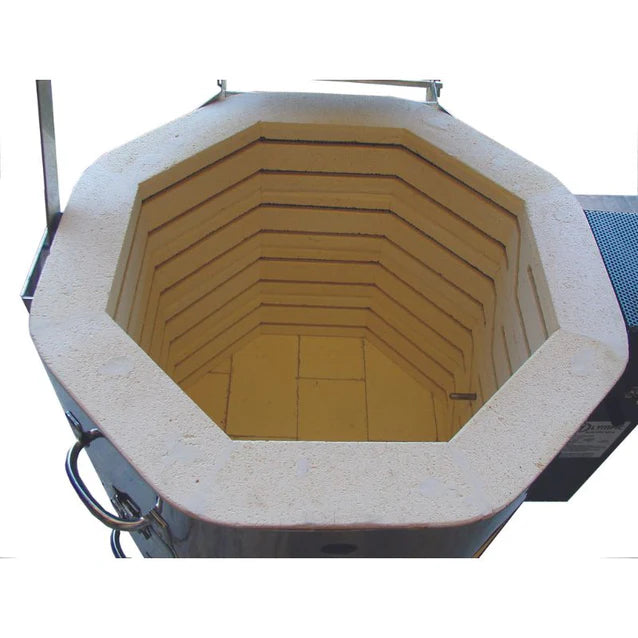

3-Inch Brick Insulation
High-efficiency firebrick construction reduces energy consumption and improves firing performance to Cone 10.
Stackable 3-Section Design
Top, middle, and bottom sections can be reconfigured or expanded. Add sections as your studio needs grow.
Stainless Steel Jacket
Durable outer shell with corrosion resistance. Provides structural support and professional appearance.
Balanced Element Design
Kanthal A-1 heating elements arranged for even heat distribution throughout the firing chamber.
Metal Stand with Casters
Heavy-duty steel stand with locking wheels. Elevates kiln to comfortable loading height and allows repositioning.
Pilot Light
External indicator shows when kiln is receiving power and heating elements are energized.
Type K Thermocouple
Industrial-grade temperature sensor positioned for accurate chamber temperature reading.
Technical specifications
ModelMAS1823HE
Interior Dimensions17.5″ diameter × 22.5″ depth
Firing Chamber Volume4.0 cubic feet
Brick Thickness3 inches
Maximum TemperatureCone 10 / 2350°F
Voltage208V or 240V single-phase
Amperage at 240V41.7 amps
Amperage at 208V48.1 amps
Wattage10,000 watts
Breaker Required50 amp
Plug ConfigurationHardwired (no plug included)
Wire Size Required6 AWG copper
Element TypeKanthal A-1 coil elements
Sections3 (top, middle, bottom)
Shipping WeightApproximately 350 lbs
Optional accessories
Solid State Relay (SSR) Upgrade
Replaces mechanical contactors for silent operation and extended element life. Reduces electrical noise and wear on heating elements.
Kiln Furniture Kit
Shelves, posts, and stilts sized for this 17.5″ chamber. Essential for stacking ware efficiently during firing.
Orton Kiln Vent System
Downdraft venting system removes fumes and moisture during firing. Improves studio air quality and glaze results.
Automatic Lid Lift
Spring-assisted lid opener reduces physical strain. Makes loading and unloading safer and easier on your back.
Heavy-Duty Rolling Stand
Upgraded steel stand with larger locking casters. Provides enhanced stability and easier repositioning for heavier kiln configurations.
Power Interrupt Safety System
Automatically shuts down kiln if lid is opened during firing. Adds safety protection in multi-user studio environments.
Dual Media Lid
Allows firing of both ceramics and glass in the same kiln. Includes insulated lid with slower cooling profile for glass work.
Multi-Zone Control Upgrade
Independent control of top, middle, and bottom element sections. Compensates for natural heat rise and enables advanced firing schedules.
Emergency Parts Kit
Spare thermocouple, element connectors, and relay components. Minimizes downtime if component failure occurs during critical production.
Type S Thermocouple Upgrade
Platinum-based sensor for improved accuracy and longevity at high temperatures. Recommended for frequent Cone 8-10 firings.
Controller upgrade

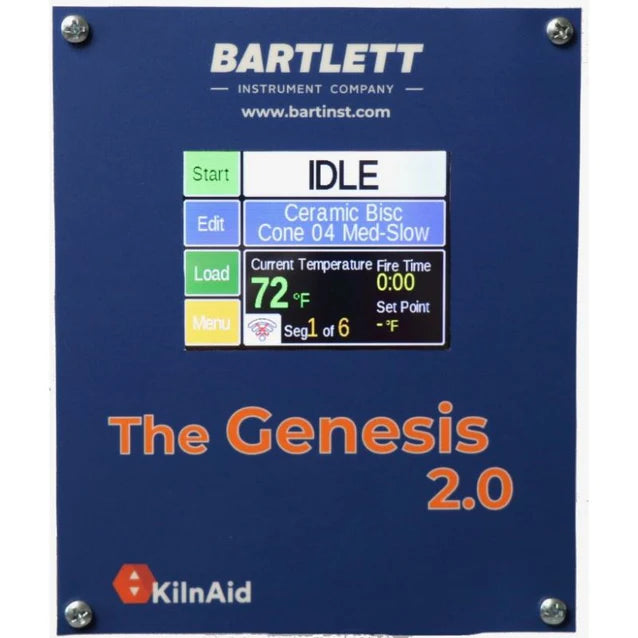

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis controller replaces the standard KilnStar with a full-color touchscreen interface and expanded programming capabilities. Store unlimited custom firing schedules with up to 32 segments each, monitor real-time temperature graphs, and access diagnostic data through the intuitive menu system.
- 4.3-inch full-color touchscreen with graphical temperature display
- Unlimited program storage with cloud backup capability via USB
- Up to 32 segments per program for complex firing schedules
- Real-time graphing shows temperature curve during firing
- Advanced diagnostics including element resistance tracking and firing history logs
- Cone Fire mode with Orton cone temperature equivalents pre-programmed
Common questions
Do I need an electrician to install this kiln?
Yes. The MAS1823HE requires a dedicated 50-amp, 240V circuit with 6 AWG copper wire. This kiln is hardwired (no plug) and must be installed by a licensed electrician according to local electrical codes. The electrical supply must be single-phase with proper grounding. Installation by anyone other than a qualified electrician may void your warranty and create serious safety hazards.
Does this kiln come with shelves and posts?
No. Kiln furniture is sold separately because different users have different needs based on the work they're firing. We recommend ordering a furniture kit sized for the 17.5″ chamber when you purchase the kiln. A typical starter kit includes 3-4 full shelves, 1-2 half shelves, assorted posts in multiple heights, and stilts for glazed pieces.
Can I add sections to make this kiln taller?
Yes. The stackable design allows you to add middle sections to increase firing chamber depth. When adding sections, you must also recalculate your electrical requirements, as additional elements will increase amperage draw. Consult Olympic Kilns or Peach State Pottery before modifying your kiln configuration to ensure your electrical circuit can handle the increased load.
What's the difference between 208V and 240V operation?
The MAS1823HE can operate on either 208V or 240V single-phase power. At 240V, the kiln draws 41.7 amps and reaches full temperature faster. At 208V (common in commercial buildings), it draws 48.1 amps and heats slightly slower but still reaches Cone 10. Both require a 50-amp breaker. Your electrician will determine which voltage is available in your location.
How do I register my warranty?
Register your kiln at the Olympic Kilns website within 30 days of delivery. You'll need your serial number (located on the control panel label), purchase date, and proof of purchase from an authorized dealer. Warranty registration is required for coverage and must be completed within the 30-day window. Peach State Pottery can assist with registration if needed.
Not sure if the MAS1823HE is the right kiln for your space?
Our team can help you evaluate electrical requirements, compare models, and coordinate delivery in the Atlanta area.
