Olympic 1814HE Electric Kiln
Save $329.00
Original Price
$2,615.00
Current Price
$2,286.00
Free Freight Delivery Included
✓ No sales tax outside GA
✓ Liftgate included free
✓ Authorized dealer
Made to Order: Kilns are built after ordering to your exact specifications. Current estimate is 8–12 weeks.
Need it sooner? Quick-Ship models ship in 2–3 weeks
View Quick-Ship
Questions? Call or text us at (470) 264-3563
Olympic Kilns · Electric Kiln · Stackable Top-Loading

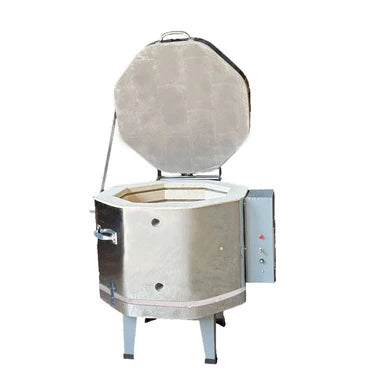

Olympic 1814HE Electric Kiln
The 1814HE is a compact stackable kiln designed for high-fire ceramics in studios with limited space. At 17.5 inches wide and 13.5 inches tall, it fires to Cone 10 (2350°F) for stoneware and porcelain while drawing under 30 amps on 240V. The stackable design allows you to add sections later to increase chamber height without replacing the entire kiln.
Max temperatureCone 10 / 2350°F
Chamber size17.5″ W × 13.5″ H
Power requirement240V / 27.1A
Capacity1.8 cubic feet
What’s included

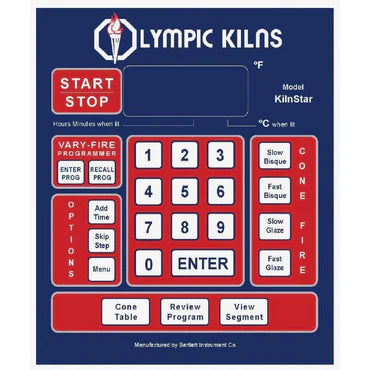

KilnStar digital controller
User-friendly controller with 8-segment programming, cone fire mode, and delay start function for flexible firing schedules.
3-inch firebrick insulation
High-duty K23 firebrick provides excellent heat retention and energy efficiency for Cone 10 firing capability.
Stainless steel jacket
Durable 20-gauge stainless steel construction resists corrosion and maintains structural integrity through repeated high-fire cycles.
Metal stand with pilot light
Sturdy steel stand elevates the kiln to working height and includes a pilot light to indicate when power is on.
Balanced element system
Kanthal A-1 heating elements distributed throughout chamber walls for even heat distribution and consistent firing results.
Stackable ring design
Modular construction allows you to add 9-inch or 13.5-inch ring sections to increase chamber height as your production needs grow.
Technical specifications
Model number1814HE
Chamber dimensions17.5″ diameter × 13.5″ height
Chamber capacity1.8 cubic feet
Firebrick thickness3 inches (K23 high-duty)
Maximum temperatureCone 10 / 2350°F / 1288°C
Voltage options240V single-phase or 208V single-phase
Amperage (240V)27.1 amps
Wattage (240V)6,500 watts
Recommended breaker40-amp double-pole
Plug configurationNEMA 6-50P or hardwire
Wire size required8 AWG copper (3-wire with ground)
Heating elementsKanthal A-1, balanced distribution
Shipping weightApproximately 240 lbs
Optional accessories
Solid-State Relay (SSR) upgrade
Replaces mechanical relay with solid-state switching for silent operation, extended controller lifespan, and smoother power delivery to elements.
Furniture kit
Includes kiln shelves, posts, and stilts sized specifically for the 1814HE chamber to maximize loading capacity and support ware during firing.
Orton KilnVent downdraft system
Professional ventilation system removes fumes, reduces glaze surface defects, and creates a safer studio environment. Recommended for indoor installations.
Lid lift assistor
Spring-loaded mechanism reduces effort required to open the kiln lid, making loading and unloading safer and more ergonomic.
Rolling stand
Heavy-duty wheeled stand with locking casters allows you to reposition the kiln for maintenance, cleaning, or studio reorganization.
Power interrupt module
Automatically pauses firing if power is lost and safely resumes when power returns, protecting your work from thermal shock and incomplete firings.
Dual media lid
Allows low-temperature glass fusing and slumping in addition to ceramic work by providing optimal heat distribution for glass applications.
Multi-zone control
Independent control of top and bottom heating zones for improved temperature uniformity in tall loads or specialized firing profiles.
Emergency parts kit
Includes backup heating elements, thermocouples, and other wear items to minimize downtime if replacement parts are needed.
Type S thermocouple
Upgrade to Type S platinum thermocouple for improved accuracy and longevity at high firing temperatures, especially beneficial for repeated Cone 10 firings.
Controller upgrade

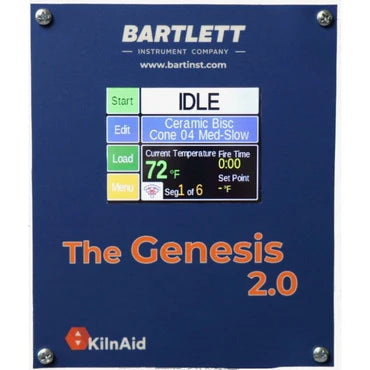

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis touchscreen controller offers advanced programming, data logging, and real-time firing graphs on a full-color display. Wi-Fi connectivity lets you monitor and control firings remotely through the KilnLink app, with automatic notifications when firing stages complete or issues arise.
- Full-color 4.3-inch touchscreen with intuitive menu navigation
- Wi-Fi enabled with KilnLink app for iOS and Android remote monitoring
- Stores up to 200 custom firing programs with unlimited segments per program
- Real-time temperature graphing and automatic firing data logging
- Email or push notifications for firing milestones and alert conditions
- Thermocouple offset calibration and predictive Cone 10 firing algorithms
Common questions
Do I need an electrician to install the 1814HE?
Yes. The 1814HE requires a dedicated 240V, 40-amp circuit with 8 AWG wire. A licensed electrician should install the circuit from your breaker panel to the kiln location, either with a NEMA 6-50 receptacle or hardwired connection. This is not a plug-and-play appliance.
Does this kiln come with shelves and posts?
No. Kiln furniture is sold separately because potter needs vary widely based on the work being fired. We recommend purchasing a furniture kit sized for the 1814HE that includes round shelves, posts of various heights, and stilts.
Can I add height to this kiln later?
Yes. The 1814HE is part of Olympic's stackable system. You can purchase additional 9-inch or 13.5-inch ring sections to increase chamber height without replacing the kiln. The controller and stand remain the same; you simply add rings between the base and lid.
How do I register the warranty?
Complete the warranty registration on Olympic Kilns' website within 30 days of delivery. You'll need the kiln serial number (located on the metal nameplate), purchase date, and proof of purchase from an authorized dealer. Registration must be completed for warranty coverage to be valid.
What's the difference between the standard controller and the Genesis upgrade?
The standard KilnStar controller offers 8-segment programming and cone fire modes, which is sufficient for most studio ceramics. The Genesis touchscreen adds Wi-Fi monitoring, unlimited program storage, real-time graphing, and remote notifications—valuable for production studios or if you want to monitor firings from another location.
Not sure if the 1814HE is the right kiln for your space?
Our team can help you evaluate electrical requirements, compare chamber sizes, and choose the right Olympic model for your work.
Talk to an expert →
