Orton VentMaster Kiln Vent System
$785.00
- 15-day returns
- No sales tax outside Georgia
- Made in USA
Ways to save
Choose your build
Built to order.
Already built, not made to order, so there is nothing else to configure. We confirm the lead time in writing before you are charged.
Orton VentMaster Kiln Ven...
$785.00
Overview
Orton · Kiln Accessories · Venting
Orton VentMaster Kiln Vent System
The VentMaster holds your kiln under slight negative pressure while it fires. Fumes are pulled down out of the chamber and ducted outside the building, and a small amount of fresh air is drawn in behind them. Firing clay and glaze releases sulphur, carbon monoxide and fluorine compounds, and a kiln in a garage, basement, spare room or classroom is a kiln in a room you breathe in. The side benefit is firing quality: moving air evens out the chamber and softens the hot and cold spots. Firing times do not change. Worth saying plainly — this removes fumes from inside the kiln. It does not cool the room.
TypeDowndraft vent
Motor73 CFM
RemovesFumes, not heat
MakerOrton

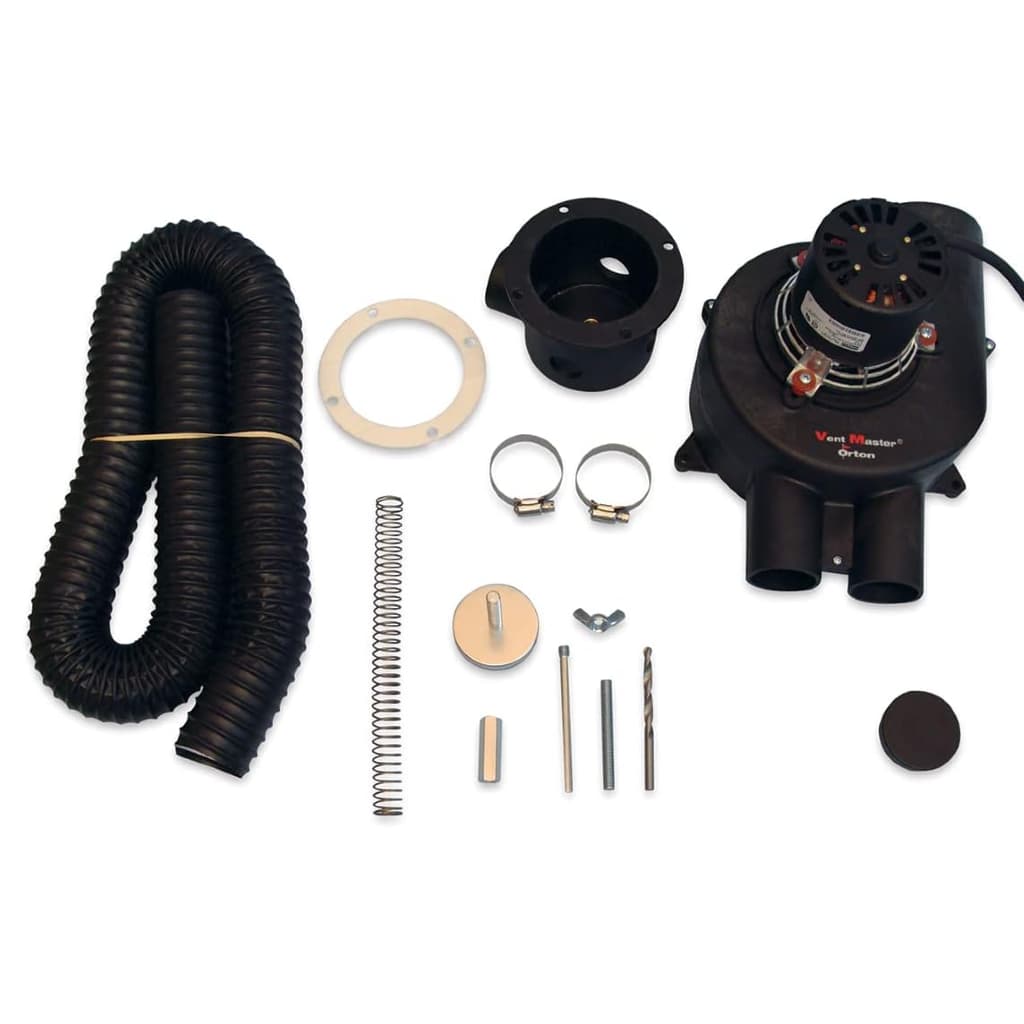

What’s in the box
Fan assemblyBlower housing rated 73 CFM, with a 6 ft power cord and an in-line on/off switch.
Collection cupCast cup with an adjustable-height foot and a high-temperature gasket, sits under the kiln.
Hose and clamps3 ft of 2 in high-temperature flexible hose with two 2 in hose clamps.
Drill bit, stud and manualA 1/4 in drill bit, a 3 in stud, sample Orton cones, two booklets and the printed manual with hole-placement diagrams.
Not included — the duct runThe run from the fan to the outside wall is not supplied. A standard dryer vent kit — flexible aluminium hose and a 4 in clamp — is what you need, and it is cheaper locally than shipped. We do not sell termination caps; any 4 in cap will mount on the end.
Not included — installationDrilling the kiln, mounting the fan and any electrical work. No drilling template is supplied, only diagrams in the manual.
Add-ons for this vent
VentMaster Expansion KitA second collection cup and hose. Runs a second kiln off this same fan, or adds the second cup that Orton specifies on larger chambers.
$288.90
Hose Extension Kit — 4 ftExtra high-temperature hose with coupler and clamps, for when the fan cannot sit close to the kiln.
$95.00
Hose Extension Kit — 3 ftThe shorter extension. Enough for most repositioning.
$80.64
Not sure which you need? Send us your kiln model and a rough idea of where the fan and the outside wall sit. We will tell you the hose length and whether your kiln is a one-cup or two-cup installation before you order.
Technical specifications
SystemOrton VentMaster downdraft kiln vent
Motor airflow73 CFM
Electrical115V, 60 Hz, 1.1 amp — or 208–240V, 50/60 Hz, 0.5 amp
Weight10 lb (4.5 kg)
Hose supplied3 ft of 2 in high-temperature hose, with two clamps
Make-up airNot required — normal room conditions replenish the air
Effect on firing timeNone
Second kilnSupported with the Expansion Kit — two electric kilns on one vent
ManufacturerThe Edward Orton Jr. Ceramic Foundation
Common questions
Do I actually need a vent?If the kiln is anywhere you spend time — a garage you work in, a basement, a spare room, a classroom — then yes, seriously consider one. Bisque firing in particular drives off organics and sulphur. An open window is not a vent system.
Will it cool the room down?No, and we would rather say that plainly than let you find out. It removes fumes from inside the kiln. The kiln still radiates heat into the room exactly as it did before.
Does it fit my kiln?The VentMaster is the vent that Olympic, Jen-Ken, Evenheat and Paragon all sell for their electric kilns, so the odds are good. What varies is the hole placement and whether your kiln already has the vent hole drilled. Send us the model and we will confirm before you order.
Can it vent two kilns?Yes, with the Expansion Kit above — two electric kilns on one fan, as long as they sit close enough together for the hose run. Larger single kilns are specified with two collection cups rather than one, and that is the same Expansion Kit. Tell us the setup and we will work out which applies.
What about the duct to the outside?That part is not in the box, by design. The run from the fan to the wall is ordinary 4 in flexible aluminium dryer duct, and you will pay less for it at a hardware store than we could ship it to you for. The shaft is 4 in, so any 4 in termination cap will mount on the end.
Venting a kiln in a garage or basement?
Tell us your kiln model and where it lives. We will tell you what venting it actually needs — and whether you need this system at all.
Talk to an expert →
