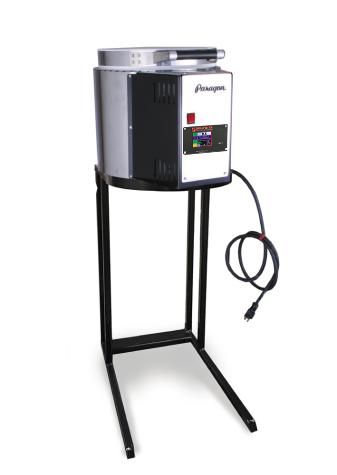

Paragon Vitrigraph Crucible Kiln

ParagonElectric KilnSKU VITRIGRAPH
$2,819.00Regular price$2,900.00
Save $81.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Paragon Vitrigraph Crucib...
    $2,819.00
    Call

    Overview

    Paragon · Electric Kiln · Glass Lampworking Paragon Vitrigraph Crucible Kiln Vitrigraph · 120V · 1200°F The Vitrigraph opens the door to a unique and endlessly fascinating glassworking technique: pulling hot stringers directly from the kiln. This compact crucible kiln lets glass artists melt custom color blends and draw molten glass lines onto projects for one-of-a-kind detailing, all from a standard 120V outlet.
    Maximum temperature1200°F
    Crucible chamber20" W x 6" D x 2.75" H
    Power120V Single-Phase
    Stand31.25" stainless steel
    What’s included
    The kiln, assembled and wiredParagon builds, wires and tests it at the factory, so it arrives ready to connect to power.
    The 31-1/4" stand with the 3" drip holeThe tall stand ships with the kiln. The 3" hole lines up with it so glass can run down into whatever you set below.
    Sentinel TouchXpress controller, factory-installedParagon's touchscreen controller, fitted and wired at the factory. We re-confirm the controller with Paragon at order time, because Paragon has been renaming this line.
    Fast-response 1/4" exposed-tip thermocoupleFitted at the factory. The exposed tip reads the chamber faster than a sheathed probe.
    Lift-out ceramic fiber bottomThe chamber bottom lifts out, which is how you get at the drip setup.
    Cord and plug — NEMA 5-15RParagon fits a cord with a NEMA 5-15R plug. The plug changes with the voltage option you order, so tell us your service and we confirm the receptacle before the order goes in.
    Paragon limited warrantyParagon limited warranty — we confirm the term for your model before you order. Paragon's published schedule and its dealers' listings disagree on the term for this kiln, so we will not print a number here that we cannot stand behind.
    Not included — and no crucibleNo crucible or pot is listed as shipping with this kiln by any source we could check, so we do not promise one. Ask us and we will confirm with Paragon before you order. No shelves or furniture either, and the solid-state relay is a paid upgrade.
    Key features
    SENTINEL Touch Xpress controller
    Touchscreen control with fully customizable ramp/hold programs
    Stainless steel stand
    31.25" stand with integrated 3" opening for pulling stringers
    Ceramic fiber insulation
    Lightweight insulation for fast heat-up to stringer-pulling temperature
    Fast-response thermocouple
    Accurate, quick temperature feedback for consistent glass viscosity
    Standard NEMA 5-15R plug
    Plugs into a standard 120V household outlet, no electrician required
    Compact crucible design
    Purpose-built for the vitrigraph stringer-pulling technique
    Technical specifications
    ModelVitrigraph
    Crucible chamber20" wide x 6" deep x 2.75" high (0.19 cu ft)
    Maximum temperature1200°F (648°C)
    Voltage120V, single-phase, 13A, 1500W
    ControllerSENTINEL Touch Xpress touchscreen
    Outlet typeNEMA 5-15R
    Made inUSA (Mesquite, Texas)
    Warranty: One-year limited kiln warranty from Paragon. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Stringer-pulling tool kit
    Handles and tools for drawing stringers from the crucible opening
    Color glass frit and rod sets
    For creating custom stringer color blends
    Replacement thermocouple
    Backup temperature sensor for the controller
    Heat-resistant gloves
    Protection when working near the open crucible chamber
    Common questions
    What is vitrigraph stringer pulling?
    Vitrigraph is a technique where molten glass is drawn directly from a heated crucible into thin stringers, which artists then use for fine detailing, custom color work, and unique surface effects on glass projects.
    Why does this kiln only reach 1200°F?
    1200°F is the working temperature for keeping glass in the right viscosity range for stringer pulling — this is a specialized tool for that technique, not a general fusing or annealing kiln.
    Can this run on a standard household outlet?
    Yes — the Vitrigraph plugs into a standard 120V NEMA 5-15R outlet, no dedicated circuit or electrician required.
    Is the warranty valid if I buy from Peach State Pottery?
    Yes. Peach State Pottery is an authorized Paragon dealer, so your Vitrigraph comes with Paragon's full one-year manufacturer's warranty. Register your kiln within 30 days of delivery to activate coverage.
    Not sure if the Vitrigraph is right for your glass work? We'll help you compare techniques, chamber sizes, and power options to find the perfect fit.
    Talk to an expert →
