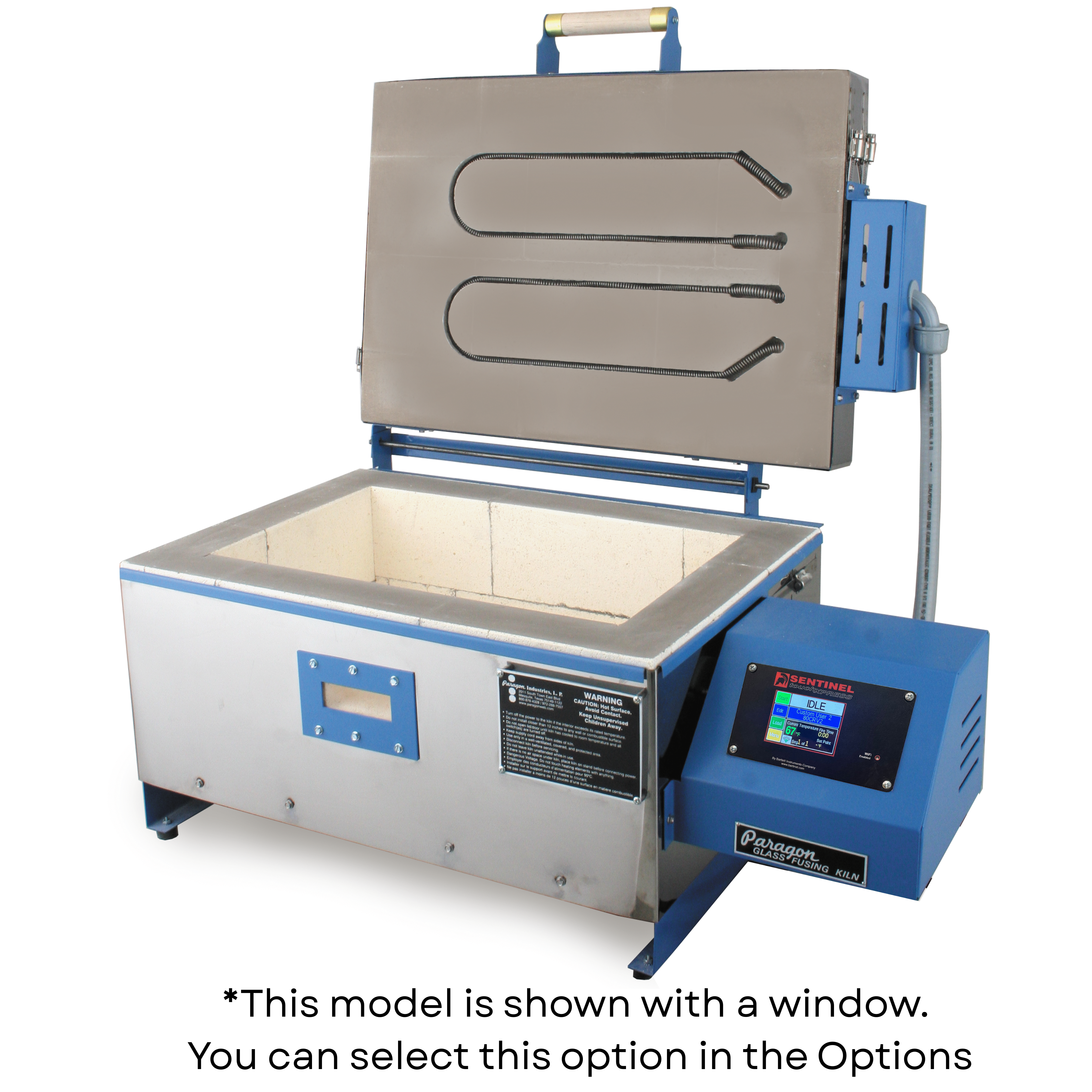

Paragon Fusion 17 Bottle Slump Glass Fusing Kiln - 240V, 1700°F, 17" x 17" x 6.5"

ParagonGlass KilnSKU FUSION17-BERRY
$2,669.00Regular price$2,750.00
Save $81.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Color Berry
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

Fusion 17 / S1310 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Paragon Fusion 17 Bottle ...
    $2,669.00
    Call

    Overview

    Paragon · Electric Kiln · Glass Fusing Paragon Fusion 17 Bottle Slump Glass Fusing Kiln Fusion 17 · 240V Single-Phase · 17" x 17" Square Chamber Purpose-built for bottle slumping and general glass fusing, the Fusion 17's 17"x17" square chamber and full steel base handle bottles, plates, and platters without needing a separate stand. The SENTINEL TouchXpress controller runs customizable schedules up to 1700°F, with top elements delivering even heat across the chamber.
    Chamber size17" W x 17" D x 6.5" H
    Max temperature1700°F
    Power240V Single-Phase, 16A
    Weight210 lbs
    What’s included
    The kiln, assembled and wiredParagon builds, wires and tests it at the factory, so it arrives ready to connect to power.
    Digital controller, factory-installedParagon fits and wires the controller before the kiln leaves the factory. Paragon has been renaming and replacing its controller line and dealer listings are out of date at different dates, so we do not print a model name here. We confirm the exact controller with Paragon when you order.
    Type-K thermocouple, installedFitted at the factory in a high-nickel sheath and wired to the controller.
    On/Off safety switchA hard On/Off switch on the kiln, separate from the controller, so you can cut power without going through a menu.
    Cord and plug — NEMA 5-15RParagon fits a cord with a NEMA 5-15R plug. The plug changes with the voltage option you order, so tell us your service and we confirm the receptacle before the order goes in.
    Printed manualsA printed instruction manual for the kiln and a separate guide for the controller. Warranty registration is done online at Paragon, and we do not promise a printed warranty card in the crate because we could not confirm one is packed.
    Paragon limited warranty — two yearsTwo years from purchase on this model, per Paragon's published warranty schedule. Paragon does not warrant the Type-K thermocouple, so treat that as a wear part. Keep your proof of purchase.
    Not includedA Fusion 17 does not include a bottle slump mold, despite the name. No shelves or posts either. The high-temp window, the bead door, the deluxe ceramic fiber top, shelf kits and the mercury relay are all separate options you add at order time.
    Key features
    SENTINEL TouchXpress controller
    Digital controller with customizable firing schedules
    Top-loading square design
    Top elements for even heat distribution
    Full steel base with rubber feet
    No stand required, stable on any studio floor
    Purpose-built for bottle slumping
    Sized and shaped for slumping bottles alongside general fusing work
    1.35 cubic foot capacity
    38.23 liter firing volume
    Standard 120V option available
    Configuration flexibility to match your studio's power
    Technical specifications
    ModelFusion 17
    Chamber17" wide x 17" deep x 6.5" high interior
    Volume1.35 cubic feet (38.23 liters)
    Voltage240V, single-phase, 16 amps, 3,840 watts
    ControllerSENTINEL TouchXpress digital controller
    Maximum temperature1700°F (926°C)
    Weight210 lbs
    Made inUSA (Mesquite, Texas)
    Warranty: One-year limited kiln warranty from Paragon. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Bottle slumping molds
    Molds sized for common bottle shapes and sizes
    Furniture kit
    Kiln shelf, posts, and glass separator sized for the 17" chamber
    Digital pyrometer
    Independent temperature monitoring for precise fusing and slumping
    Replacement heating elements
    Spare element set for future maintenance
    Common questions
    Is the Fusion 17 only for bottle slumping?
    No — while it's purpose-built for bottle slumping, its 17"x17" square chamber handles general glass fusing and slumping work just as well.
    Do I need a stand for the Fusion 17?
    No — it ships with a full steel base and rubber feet, so it's stable and ready to use on any studio floor without an additional stand.
    What's the maximum temperature?
    The Fusion 17 reaches up to 1700°F (926°C), covering both fusing and slumping temperature ranges.
    Is the warranty valid if I buy from Peach State Pottery?
    Yes. Peach State Pottery is an authorized Paragon dealer, so your Fusion 17 comes with Paragon's full one-year manufacturer's warranty. Register your kiln within 30 days of delivery to activate coverage.
    Not sure if the Fusion 17 is right for your studio? We'll help you compare chamber sizes, power requirements, and accessories to find the perfect fit.
