Paragon CS19S Clam Shell Glass Fusing Kiln

ParagonGlass KilnSKU CS19S-BERRY
$3,979.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Color Berry
Furniture kit

Fusion 19 / GL18 / CS 19 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Paragon CS19S Clam Shell ...
    $3,979.00
    Call

    Overview

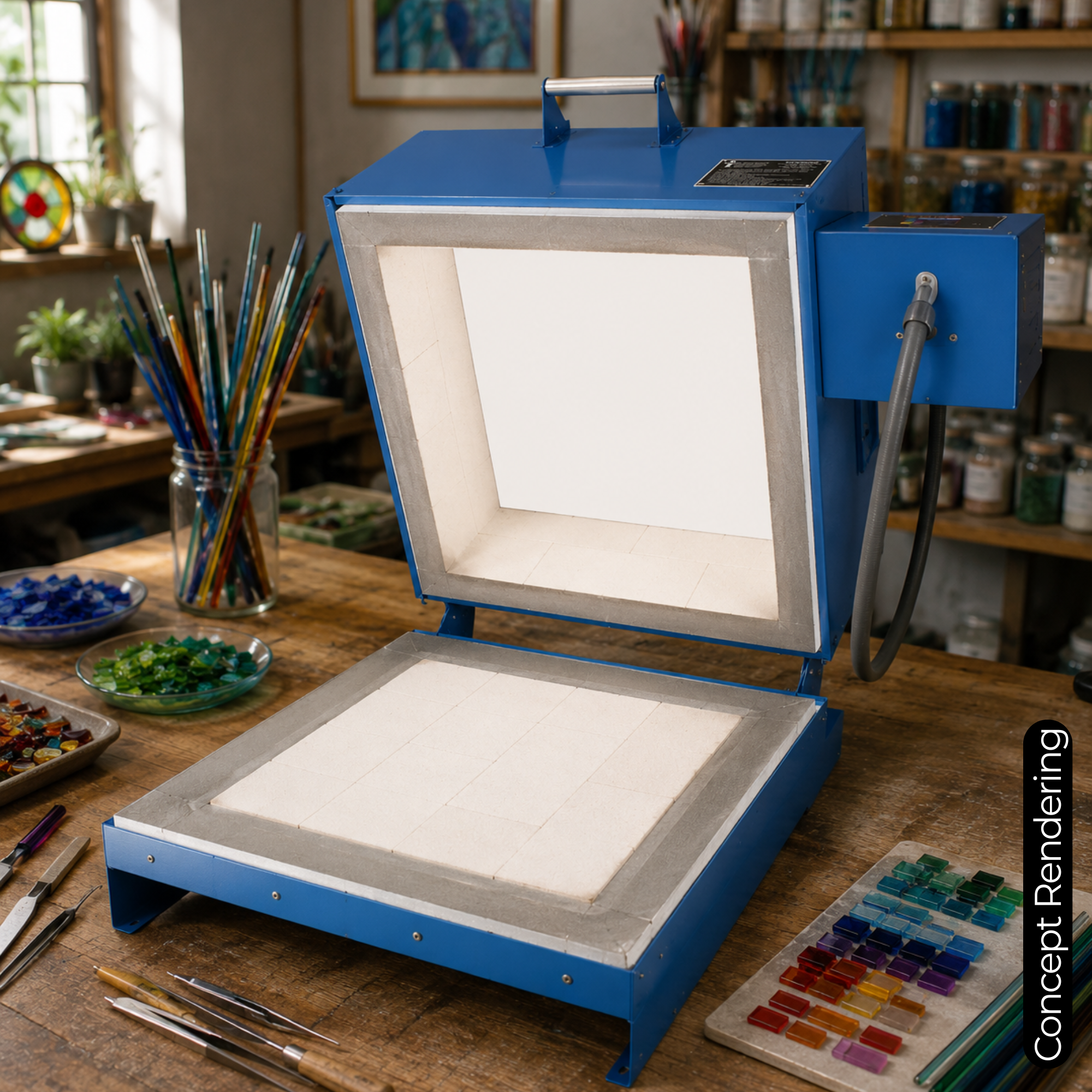

    Paragon · Electric Kiln · Glass Fusing Paragon CS19S Clam Shell Glass Fusing Kiln CS19S · 240V Single-Phase · 19" Square Clam Shell A lightweight ceramic fiber lid with embedded elements makes the CS19S quick to heat up despite its generous 19"x19" chamber, room for full-size plates, platters, and multi-piece layouts. Spring-assisted counterweight springs make the single clamshell opening easy to manage, with the SENTINEL Touch Xpress touchscreen controller handling your schedules.
    Chamber size19" W x 19" D x 6.5" H
    DesignSingle clam shell
    Power240V Single-Phase
    LidCeramic fiber, embedded elements
    What’s included
    The kiln, assembled and wiredParagon builds, wires and tests it at the factory, so it arrives ready to connect to power.
    Built-in base with mar-proof feetThe steel base is part of the kiln, with mar-proof feet underneath. Nothing separate ships for it.
    Digital controller, factory-installedParagon fits and wires the controller before the kiln leaves the factory. Paragon has been renaming and replacing its controller line and dealer listings are out of date at different dates, so we do not print a model name here. We confirm the exact controller with Paragon when you order.
    Type-K thermocouple, installedFitted at the factory in a high-nickel sheath and wired to the controller.
    Lid interrupt safety switchParagon fits a switch that cuts power to the elements when the kiln is opened, and the On/Off switch is on the kiln as well.
    Cord and plugParagon ships this kiln with a cord and plug. The receptacle type changes with the voltage option you order, so we confirm the exact plug — or whether your configuration is wired direct instead — with Paragon before the order goes in.
    Paragon limited warrantyParagon limited warranty — we confirm the term for your model before you order. Paragon's published schedule and its dealers' listings disagree on the term for this kiln, so we will not print a number here that we cannot stand behind.
    Not includedNo shelves or posts ship with a clam shell. The window, bead doors, the ceramic fiber top upgrade, shelf kits and the mercury relay are separate options at order time.
    Key features
    SENTINEL Touch Xpress controller
    Touchscreen controller for fusing and slumping schedules
    Lightweight ceramic fiber lid
    Embedded heating elements heat up quickly
    Spring-assisted clamshell opening
    Counterweight springs for smooth, controlled access
    Painted steel outer case
    Reversible firebrick bottom for extended service life
    Dual mechanical relays
    Reliable switching built for repeated daily firings
    Stainless steel-sheathed thermocouple
    Special-limit thermocouple for temperature accuracy
    Technical specifications
    ModelCS19S
    Chamber19" x 19" x 6.5" interior
    DesignSingle-opening clam shell
    Voltage240V, single-phase
    ControllerSENTINEL Touch Xpress touchscreen
    LidCeramic fiber with embedded top-mounted elements
    Made inUSA (Mesquite, Texas)
    Warranty: One-year limited kiln warranty from Paragon. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Glass view window
    1" x 3" window for watching firings without opening the lid
    Furniture kit
    Cordierite shelf, posts, and glass separator sized for the 19" chamber
    Digital pyrometer
    Independent temperature monitoring for precise fusing and slumping
    Replacement heating elements
    Spare element set for future maintenance
    Common questions
    Why a ceramic fiber lid instead of firebrick?
    Ceramic fiber is lighter and heats up faster than solid firebrick, which helps the CS19S's larger 19"x19" chamber reach temperature efficiently despite its size.
    What's the difference between the CS19S and CS19D?
    The CS19S has a single clamshell opening. The CS19D adds an independent top lid on top of the clamshell body, giving you two ways to access the chamber.
    What colors is the CS19S available in?
    It's available in 8 color options at no additional cost, so you can match your studio's look.
    Is the warranty valid if I buy from Peach State Pottery?
    Yes. Peach State Pottery is an authorized Paragon dealer, so your CS19S comes with Paragon's full one-year manufacturer's warranty. Register your kiln within 30 days of delivery to activate coverage.
    Not sure if the CS19S is right for your studio? We'll help you compare chamber sizes, power requirements, and accessories to find the perfect fit.
