Overview
Paragon · Electric Kiln · Glass Fusing

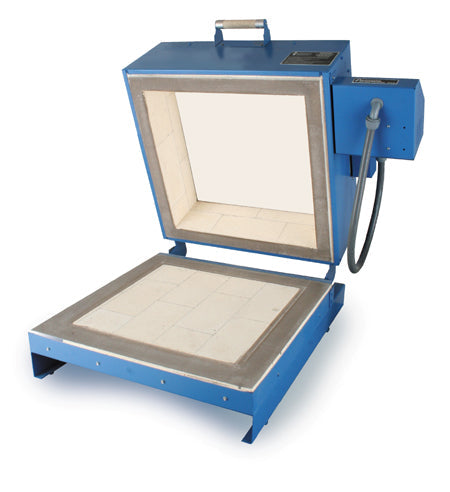

Paragon CS19D Dual Clam Shell Glass Fusing Kiln
Paragon's largest clamshell fusing kiln, the CS19D pairs an independent top lid with a full clamshell body on a 19"x19" chamber, room for full-size plates, platters, and multi-piece production runs. A ceramic fiber lid with embedded elements keeps heat-up times efficient despite the larger chamber, with a mercury relay available as an upgrade.
Chamber size19" W x 19" D x 6.5" H
DesignDual opening (lid + clamshell)
Power240V Single-Phase
LidCeramic fiber, embedded elements
What’s included
The kiln, assembled and wiredParagon builds, wires and tests it at the factory, so it arrives ready to connect to power.
Deluxe ceramic fiber lid and steel lid coverThe CS19D ships with the deluxe ceramic fiber lid and the protective steel cover over it. On the smaller clam shells that lid is a paid upgrade.
Built-in base with mar-proof feetThe steel base is part of the kiln, with mar-proof feet underneath. Nothing separate ships for it.
Digital controller, factory-installedParagon fits and wires the controller before the kiln leaves the factory. Paragon has been renaming and replacing its controller line and dealer listings are out of date at different dates, so we do not print a model name here. We confirm the exact controller with Paragon when you order.
Type-K thermocouple, installedFitted at the factory in a high-nickel sheath and wired to the controller.
Cord and plug — NEMA 6-20RParagon fits a cord with a NEMA 6-20R plug. The plug changes with the voltage option you order, so tell us your service and we confirm the receptacle before the order goes in.
Paragon limited warrantyParagon limited warranty — we confirm the term for your model before you order. Paragon's published schedule and its dealers' listings disagree on the term for this kiln, so we will not print a number here that we cannot stand behind.
Not includedNo shelves or posts ship with a clam shell. The window, bead doors, the ceramic fiber top upgrade, shelf kits and the mercury relay are separate options at order time.
Key features
SENTINEL Touch Xpress controller
Touchscreen controller for fusing and slumping schedules
Dual-opening design
Independent lid plus full clamshell access
Ceramic fiber lid with embedded elements
Top-mounted elements heat up efficiently despite the larger chamber
Heavy-duty steel base
Reversible firebrick floor with extended rear support
Counterweighted clamshell lift
Smooth, controlled opening for the full clamshell body
Dual mechanical relays
Mercury relay available as an upgrade
Technical specifications
ModelCS19D
Chamber19" x 19" x 6.5" square firing chamber
DesignDual-opening (independent top lid + full clamshell)
Voltage240V, single-phase
ControllerSENTINEL Touch Xpress touchscreen
LidCeramic fiber with embedded top-mounted elements
Made inUSA (Mesquite, Texas)
Optional accessories
Mercury relay upgrade
Upgrade from dual mechanical relays for extended relay life
Furniture kit
Kiln shelf, posts, and glass separator sized for the 19" chamber
Custom color finishes
8 custom color options at no extra cost
Replacement heating elements
Spare element set for future maintenance
Common questions
Is the CS19D the largest clamshell kiln Paragon makes?
Yes — at 19"x19", the CS19D is the largest clamshell-style fusing kiln in Paragon's current lineup, sized for full plates, platters, and production runs.
Why choose the CS19D over the CS19S?
The CS19D adds an independent top lid to the same 19" clamshell body, so you get quick top access for routine loads plus the full clamshell opening whenever you need it for larger pieces.
Can I upgrade the relay?
Yes — a mercury relay is available as an upgrade from the standard dual mechanical relays for studios running frequent, high-volume firings.
Is the warranty valid if I buy from Peach State Pottery?
Yes. Peach State Pottery is an authorized Paragon dealer, so your CS19D comes with Paragon's full one-year manufacturer's warranty. Register your kiln within 30 days of delivery to activate coverage.
