Paragon CS16S Clam Shell Glass Fusing Kiln

ParagonGlass KilnSKU CS16S-BERRY
$2,819.00Regular price$2,900.00
Save $81.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Color Berry
Furniture kit

Fusion 16 / CS 16 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Paragon CS16S Clam Shell ...
    $2,819.00
    Call

    Overview

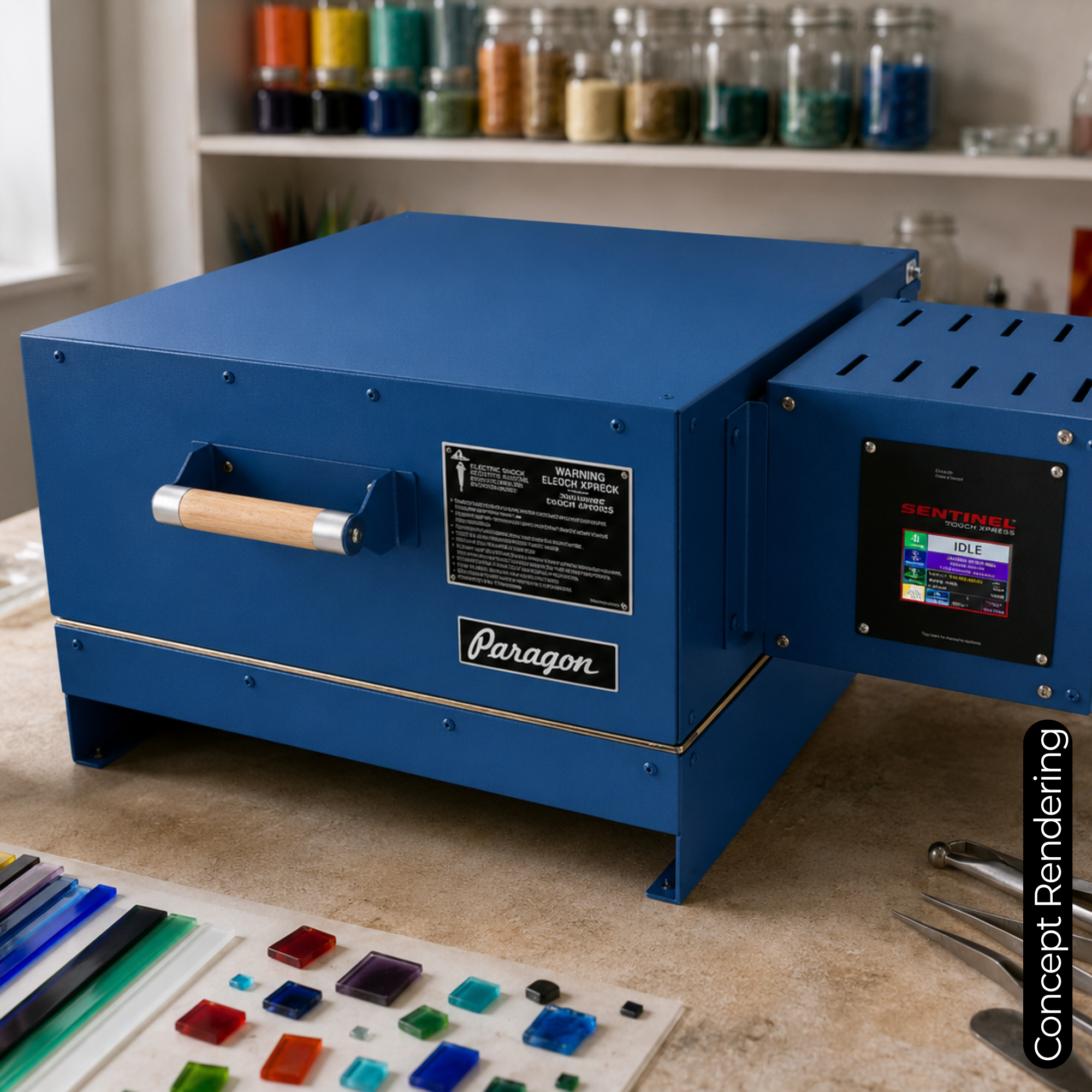

    Paragon · Electric Kiln · Glass Fusing Paragon CS16S Clam Shell Glass Fusing Kiln CS16S · 120V / 20-Amp · 16" Square Clam Shell The CS16S steps up from the CS14S with a roomier 16" square chamber, still self-supporting with no separate stand required. A spring-assisted clamshell lid and the SENTINEL Touch Xpress touchscreen controller make it easy to fire larger plates, platters, and multi-piece layouts on a standard 120V/20A circuit.
    Chamber size16" W x 16" D x 6.5" H
    DesignSingle clam shell
    Power120V / 20-Amp
    ControllerSENTINEL Touch Xpress
    What’s included
    The kiln, assembled and wiredParagon builds, wires and tests it at the factory, so it arrives ready to connect to power.
    Built-in base with mar-proof feetThe steel base is part of the kiln, with mar-proof feet underneath. Nothing separate ships for it.
    Digital controller, factory-installedParagon fits and wires the controller before the kiln leaves the factory. Paragon has been renaming and replacing its controller line and dealer listings are out of date at different dates, so we do not print a model name here. We confirm the exact controller with Paragon when you order.
    Type-K thermocouple, installedFitted at the factory in a high-nickel sheath and wired to the controller.
    Lid interrupt safety switchParagon fits a switch that cuts power to the elements when the kiln is opened, and the On/Off switch is on the kiln as well.
    Cord and plugParagon ships this kiln with a cord and plug. The receptacle type changes with the voltage option you order, so we confirm the exact plug — or whether your configuration is wired direct instead — with Paragon before the order goes in.
    Paragon limited warrantyParagon limited warranty — we confirm the term for your model before you order. Paragon's published schedule and its dealers' listings disagree on the term for this kiln, so we will not print a number here that we cannot stand behind.
    Not includedNo shelves or posts ship with a clam shell. The window, bead doors, the ceramic fiber top upgrade, shelf kits and the mercury relay are separate options at order time.
    Key features
    SENTINEL Touch Xpress controller
    Touchscreen controller for fusing and slumping schedules
    3" firebrick insulation
    Thick firebrick for efficient heat retention
    Pinless top elements
    Set in recessed grooves for even heat and easy replacement
    Heavy-duty steel base
    Extended rear support, no separate stand required
    Spring-assisted clamshell lid
    Smooth, controlled opening for loading and unloading
    Special-limit thermocouple
    Stainless steel sheath for accurate, durable temperature sensing
    Technical specifications
    ModelCS16S
    Chamber16" wide x 16" deep x 6.5" high interior
    DesignSingle-opening clam shell, self-supporting
    Voltage120V, 20-amp circuit
    ControllerSENTINEL Touch Xpress touchscreen
    FinishWater-based, high-temperature paint
    Made inUSA (Mesquite, Texas)
    Warranty: One-year limited kiln warranty from Paragon. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Bead annealing doors
    Adds bead-loading access alongside the main chamber
    Furniture kit
    Kiln shelf, posts, and glass separator sized for the 16" chamber
    Custom color finishes
    Additional color options beyond the standard palette
    Replacement heating elements
    Spare element set for future maintenance
    Common questions
    Do I need a stand for the CS16S?
    No — the heavy-duty steel base is self-supporting with extended rear support, so it's ready to use straight out of the box.
    What's the difference between the CS16S and CS14S?
    The CS16S has a larger 16"x16" chamber compared to the CS14S's 14"x14" chamber, giving you more room for larger plates and platters while keeping the same single clamshell design.
    Does the CS16S need a dedicated circuit?
    It runs on a standard 120V/20-amp circuit, which is heavier than a typical 15-amp household outlet, so confirm your studio's circuit before installation.
    Is the warranty valid if I buy from Peach State Pottery?
    Yes. Peach State Pottery is an authorized Paragon dealer, so your CS16S comes with Paragon's full one-year manufacturer's warranty. Register your kiln within 30 days of delivery to activate coverage.
    Not sure if the CS16S is right for your studio? We'll help you compare chamber sizes, power requirements, and accessories to find the perfect fit.
