Paragon CS16D Dual Clam Shell Glass Fusing Kiln

ParagonGlass KilnSKU CS16D-BERRY
$3,109.00Regular price$3,200.00
Save $91.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Color Berry
Furniture kit

Fusion 16 / CS 16 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Paragon CS16D Dual Clam S...
    $3,109.00
    Call

    Overview

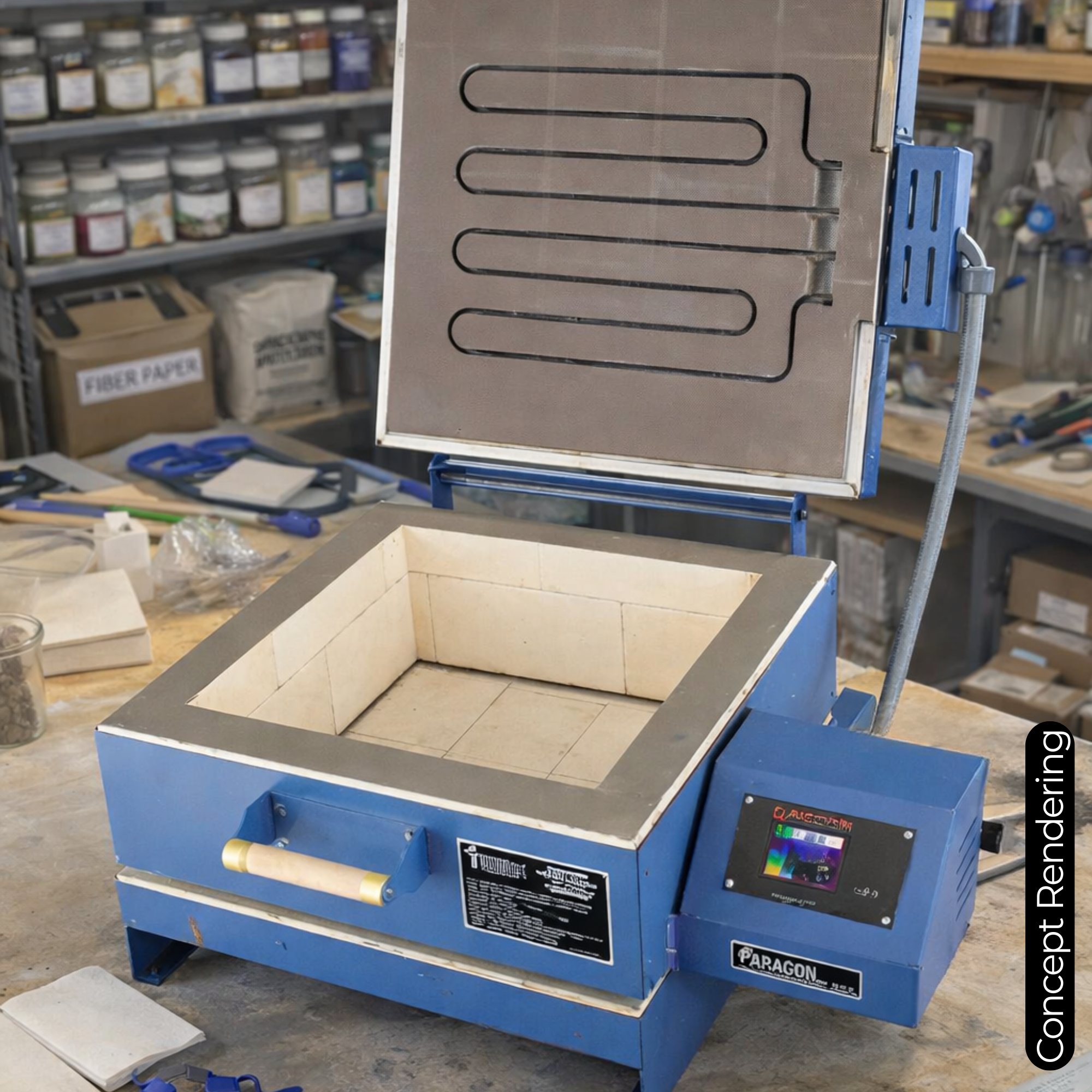

    Paragon · Electric Kiln · Glass Fusing Paragon CS16D Dual Clam Shell Glass Fusing Kiln CS16D · 120V / 20-Amp · 16" Square Dual-Opening The CS16D combines an independent top lid with a full clamshell body on a roomy 16" square chamber, giving production studios fast access for routine loads and full-width access for larger pieces. Three counterweight springs and dual mechanical relays keep daily operation smooth, with the SENTINEL Touch Xpress touchscreen controller preloaded with glass programs.
    Chamber size16" square
    DesignDual opening (lid + clamshell)
    Power120V / 20-Amp
    ControllerSENTINEL Touch Xpress
    What’s included
    The kiln, assembled and wiredParagon builds, wires and tests it at the factory, so it arrives ready to connect to power.
    Built-in base with mar-proof feetThe steel base is part of the kiln, with mar-proof feet underneath. Nothing separate ships for it.
    Digital controller, factory-installedParagon fits and wires the controller before the kiln leaves the factory. Paragon has been renaming and replacing its controller line and dealer listings are out of date at different dates, so we do not print a model name here. We confirm the exact controller with Paragon when you order.
    Type-K thermocouple, installedFitted at the factory in a high-nickel sheath and wired to the controller.
    Lid interrupt safety switchParagon fits a switch that cuts power to the elements when the kiln is opened, and the On/Off switch is on the kiln as well.
    Cord and plugParagon ships this kiln with a cord and plug. The receptacle type changes with the voltage option you order, so we confirm the exact plug — or whether your configuration is wired direct instead — with Paragon before the order goes in.
    Paragon limited warrantyParagon limited warranty — we confirm the term for your model before you order. Paragon's published schedule and its dealers' listings disagree on the term for this kiln, so we will not print a number here that we cannot stand behind.
    Not includedNo shelves or posts ship with a clam shell. The window, the ceramic fiber top upgrade, shelf kits and the mercury relay are separate options at order time. Paragon does not offer bead doors on the CS16D at all.
    Key features
    SENTINEL Touch Xpress controller
    Touchscreen controller preloaded with glass firing programs
    Dual-opening design
    Independent lid plus full clamshell access
    3" firebrick insulation
    Thick firebrick construction in a heavy-duty steel case
    Reversible firebrick floor
    Flip the floor when one side wears for extended service life
    Three counterweight springs
    Smooth, controlled opening for the full clamshell body
    Dual mechanical relays
    Reliable switching built for repeated daily firings
    Technical specifications
    ModelCS16D
    Chamber16" x 16" square interior
    DesignDual-opening (independent top lid + full clamshell)
    Voltage120V, 20-amp circuit
    ControllerSENTINEL Touch Xpress touchscreen
    ThermocoupleSpecial-limit, stainless steel sheath
    Made inUSA (Mesquite, Texas)
    Warranty: One-year limited kiln warranty from Paragon. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Furniture kit
    Kiln shelf, posts, and glass separator sized for the 16" chamber
    Digital pyrometer
    Independent temperature monitoring for precise fusing and slumping
    Custom color finishes
    8 custom color options at no extra cost
    Replacement heating elements
    Spare element set for future maintenance
    Common questions
    Why choose the CS16D over the CS16S?
    The CS16D adds an independent top lid to the same 16" clamshell body, so you get quick top access for routine loads plus the full clamshell opening whenever you need it for larger pieces.
    Does the CS16D come preloaded with firing programs?
    Yes — the SENTINEL Touch Xpress controller ships with preloaded glass programs you can use as a starting point, then customize to your own schedules.
    Does the CS16D need a dedicated circuit?
    It runs on a 120V/20-amp circuit, which is heavier than a typical 15-amp household outlet, so confirm your studio's circuit before installation.
    Is the warranty valid if I buy from Peach State Pottery?
    Yes. Peach State Pottery is an authorized Paragon dealer, so your CS16D comes with Paragon's full one-year manufacturer's warranty. Register your kiln within 30 days of delivery to activate coverage.
    Not sure if the CS16D is right for your studio? We'll help you compare chamber sizes, power requirements, and accessories to find the perfect fit.
