Orton AutoFire® 3-Button Remote Controller

Jen-KenKiln ControllerSKU JENKEN-ORTON-AUTOFIRE-REMOTE-3
$600.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA

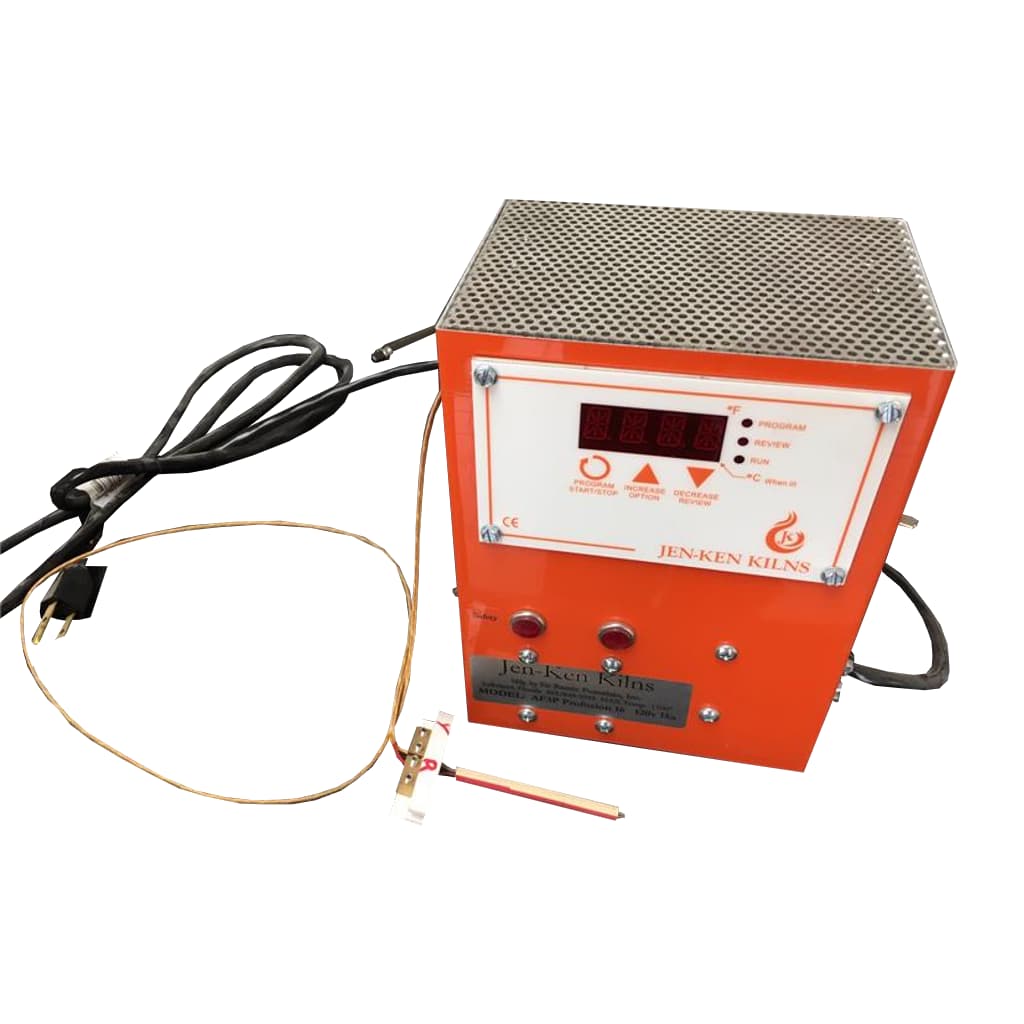

Build (volts · amps · relay) 120V · 15A · Mechanical relay
    Orton AutoFire® 3-Button ...
    $600.00
    Call

    Overview

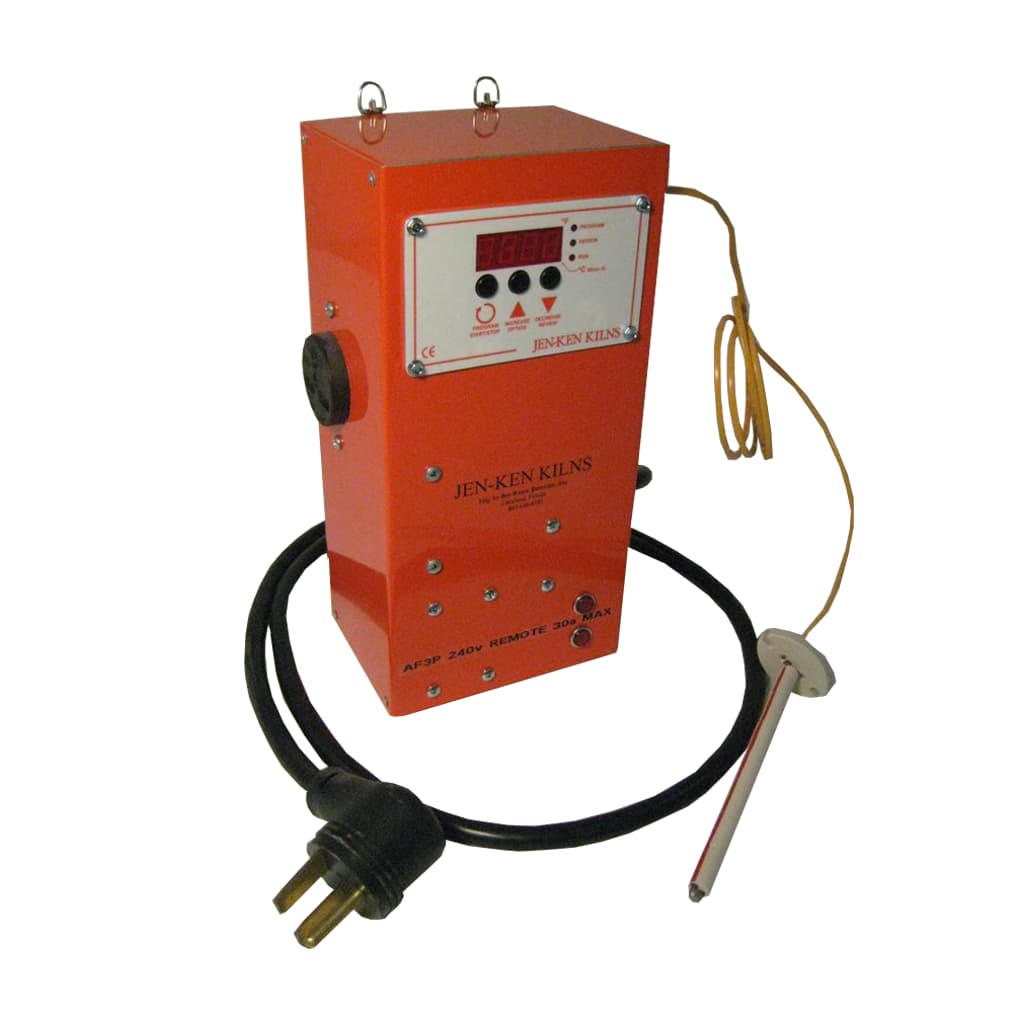

    Jen-Ken · Controllers · Orton AutoFire Orton AutoFire® 3-Button Remote Controller Orton AutoFire · 3-button interface · External plug-in controller An external digital controller that turns a manual kiln into a programmed one. The kiln plugs into the controller, the controller plugs into the wall, and from then on the controller runs the firing — ramp rates, hold times, cone-fire schedules — instead of you standing over a kiln sitter turning switches by hand. The 3-button Orton AutoFire is the straightforward end of the range: fewer buttons, the same programmed control.

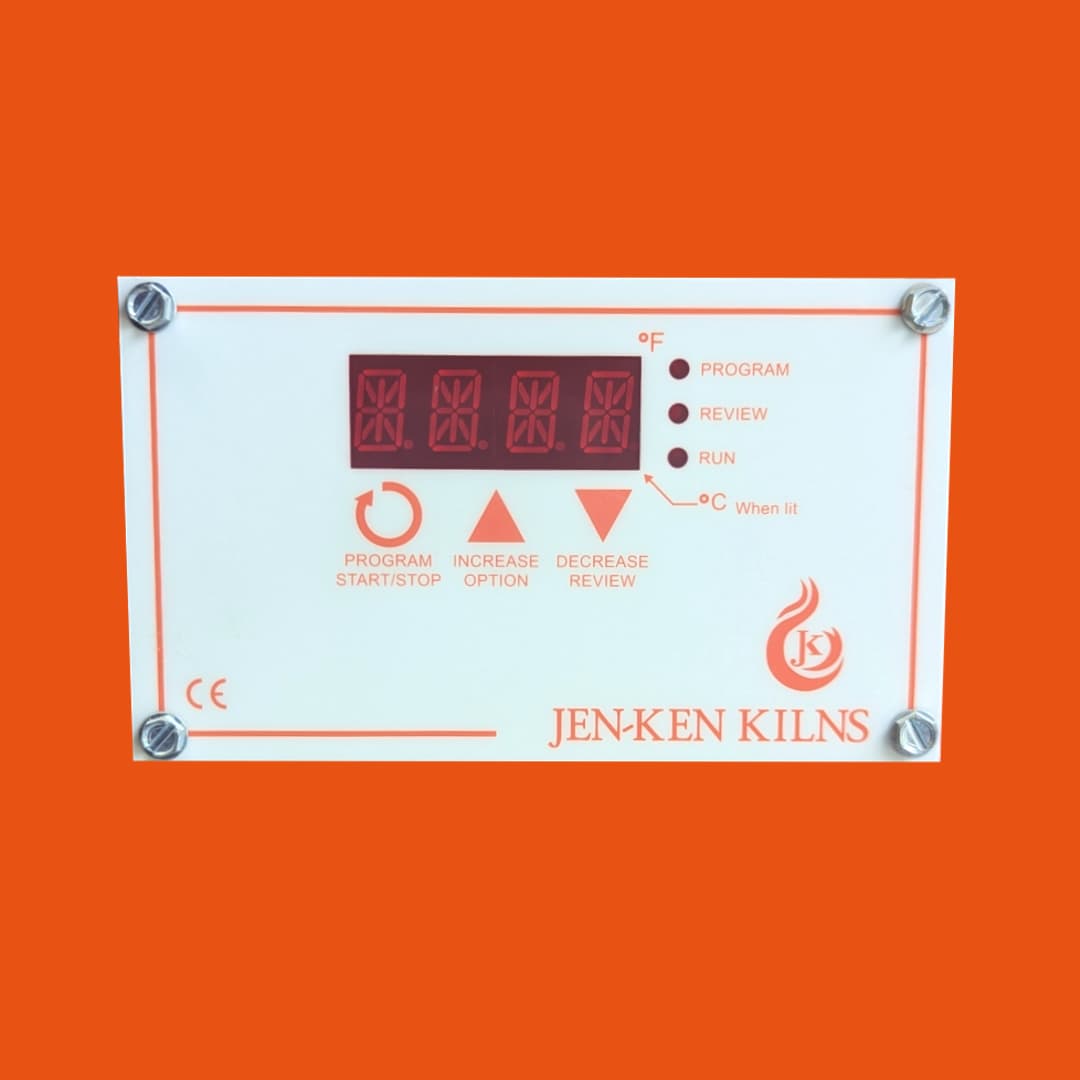

    Interface3-button
    TypeExternal, plug-in
    BrandOrton AutoFire®
    Use withManual kilns
    What’s included
    Orton AutoFire 4X controller The complete bench-top unit in its own enclosure, ready to sit beside the kiln.
    Type K thermocouple Supplied with the controller, with a 6 ft wire extension.
    Cord set Orton substitutes the cord set for the plug configuration you order, at no extra charge. Tell us your kiln's plug when you order.
    2-year warranty Orton's limited warranty, direct from the manufacturer.
    Technical specifications
    ControllerOrton AutoFire®, 3-button interface
    MountingExternal — sits between the kiln and the wall outlet
    Compatible withManual kilns requiring hand adjustment
    Not compatible withKilns fitted with auto turn-up devices
    Amperage requirementYour kiln's amperage must be lower than the controller's rating
    Supplied byJen-Ken Kilns
    Warranty: Orton controllers are covered by Orton's own manufacturer warranty rather than Jen-Ken's kiln warranty. Keep your proof of purchase.
    Common questions
    Will this work with my kiln?Two rules from Jen-Ken. First, your kiln's amperage must be lower than the controller's rating — this is the one people get wrong, so check the nameplate on your kiln before ordering. Second, it only works with manual kilns that you adjust by hand; it is not compatible with kilns already fitted with an auto turn-up device. Call us with your kiln's make, model and amperage and we will confirm before you buy.
    What does it actually change?A manual kiln holds whatever setting you last dialled in. A controller runs a schedule: climb at a set rate, hold at a set temperature, shut off on its own. That means repeatable firings and no sitting up with the kiln.
    Which voltage and amperage does this one carry?Jen-Ken lists this controller at a single configuration and price. Because the amperage rule above matters, we would rather confirm the exact rating against your kiln than have you guess — get in touch and we will check it.
    Is there a bigger version?Yes. Orton also makes a 12-button AutoFire and a touchscreen AutoFire Slide, and there is an SDS TAP II. They differ mainly in interface and how many zones they control. We carry all four.
    Check the amperage before you order The single most common mistake with an external controller is fitting one rated below the kiln. Tell us your kiln's make, model and amp draw and we will confirm the right controller — it takes a minute and saves a return.
