Overview
Olympic Kilns · Electric Kiln · Dual Media / TopHat Series
Olympic TopHat 2814E Electric Kiln
The TopHat 2814E pairs a wide 5 cubic foot Cone 10 ceramics chamber with a dedicated lid element for glass fusing, letting studio potters run both media out of a single kiln. Its 3-inch brick wall and stainless jacket are built for regular use, and the lift-off lid keeps loading simple for wide, shallow ware.
Max TemperatureCone 10 / 2350°F
Firing Chamber28¼″ W × 13.5″ D / 5 cu ft
Voltage208 or 240V, 1-phase
Breaker RequiredUp to 70 amp
What’s included
The kiln, with its elements installedThe chamber arrives with Olympic's heavy gauge coiled elements already set in the brick and wired to the control panel. Olympic does not put this model in either its ready-to-fire list or its reassemble-on-the-stand list, so we confirm the delivered state with the factory before your order goes in.
Bartlett KilnStar controller and Type K thermocoupleBoth are installed and wired at the factory, with one Type K thermocouple on a standard build and a pilot indicator light on the control panel. The Genesis touchscreen is a paid upgrade taken at order time; zone control is the option that adds thermocouples.
Lid elements for glass firingOlympic fits the TopHat with elements in the lid as well as the walls, so it fires glass from above. They are installed at the factory.

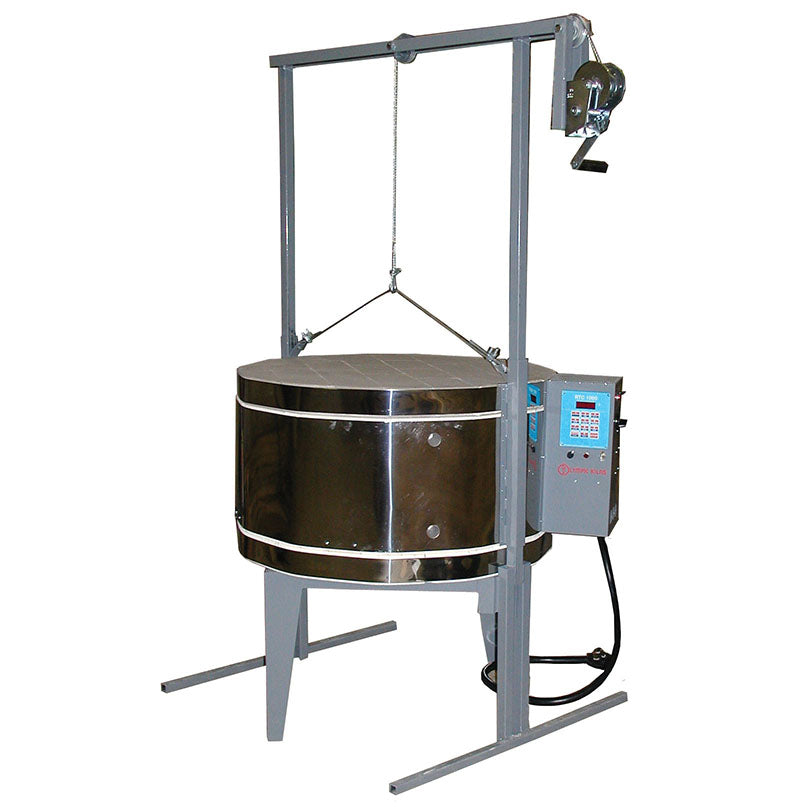

The lifting frame and hand crankThe firing chamber sits in a welded steel frame and a hand crank raises the whole chamber off your work. That is how this kiln opens, and the frame and crank are part of what ships. There is no separate stand.
Observation plugsHollow ceramic peephole plugs ship with the kiln. Olympic publishes no count for any model, in its manuals or on its site, so we will not print a number here. Ask and we will confirm yours with the factory. Replacements are a stock part.
The operating manual and a one-year warrantyOlympic's printed operating manual travels with the kiln. Olympic's limited warranty runs two years, cut to one year on Kiln-Sitter models and on any kiln rated at cone 10. This one is rated to cone 10, so one year. Register with Olympic within 30 days of delivery and keep your invoice.
Cord and plug, or direct wired, set by your buildOlympic's plug configuration row gives a NEMA 6-30 or 6-50 plug on lower-amperage builds and Direct Wired on higher-amperage ones, and several models are listed as either. The manual hedges the same way, with “If your kiln is equipped with a power cord...”. Tell us your voltage, phase and service and we confirm which one you get before the order goes in.
Not included: furniture, vent and hookupNo kiln furniture. Every Olympic line has its own separately priced furniture kit and shelves and posts are priced one by one. The VentMaster downdraft vent, stilts, gloves, tongs, kiln wash and a pyrometer are all separate items, and no receptacle, breaker, wire or disconnect ships with the kiln.
Key features
Bartlett KilnStar Controller
Pre-programmed with Cone Fire and Ramp/Hold modes. Includes delay start, alarm, and thermocouple offset adjustment.
Lid Element for Glass Fusing
Dedicated lid element lets you fuse and slump glass in the same kiln used for ceramics, without a second unit.
3-Inch Brick Insulation
Firebrick construction balances energy efficiency with reliable Cone 10 performance.
Stainless Steel Jacket
Durable, corrosion-resistant outer shell that also provides structural support.
Metal Stand
Steel stand included as standard equipment. Casters are available as an optional add-on.
Type K Thermocouple
Industrial-grade temperature sensor positioned for accurate chamber temperature reading.
Technical specifications
ModelTopHat 2814E
Interior Dimensions28¼″ wide × 13.5″ deep
Firing Chamber Volume5 cubic feet
Brick Thickness3 inches
Maximum TemperatureCone 10 / 2350°F
Voltage (208V)55 amps, 70 amp breaker
Voltage (240V)48 amps, 60 amp breaker
Outside Dimensions (with stand)49″ × 36″ × 66″
Shipping WeightApproximately 375 lbs
Optional accessories
Solid State Relay (SSR) Upgrade
Replaces mechanical contactors for silent operation and extended element life.
Kiln Furniture Kit
Shelves, posts, and stilts sized for this chamber.
Orton Kiln Vent System
Downdraft venting system removes fumes and moisture during firing.
Rolling Stand with Casters
Upgraded stand with locking casters for easy repositioning.
Power Interrupt Safety System
Automatically shuts down the kiln if the lid is opened during firing.
Emergency Parts Kit
Spare thermocouple, element connectors, and relay components to minimize downtime.
Controller upgrade
Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis controller replaces the standard KilnStar with a full-color touchscreen interface and expanded programming capabilities. Store unlimited custom firing schedules with up to 32 segments each, monitor real-time temperature graphs, and access diagnostic data through the intuitive menu system.
- 4.3-inch full-color touchscreen with graphical temperature display
- Unlimited program storage with cloud backup capability via USB
- Up to 32 segments per program for complex firing schedules
- Real-time graphing shows temperature curve during firing
Common questions
Do I need an electrician to install this kiln?
Yes. The TopHat 2814E is direct-wired and requires a dedicated circuit sized to your chosen voltage. 208V draws 55 amps on a 70-amp breaker; 240V draws 48 amps on a 60-amp breaker. A licensed electrician must determine the correct breaker, wire gauge, and connection method, and installation must meet local electrical codes.
Can I really fire both ceramics and glass in the same kiln?
Yes — that's the point of the Dual Media / TopHat design. The main chamber fires ceramics to Cone 10 as usual, and the separate lid element lets you run glass fusing and slumping schedules without buying a second kiln.
Does this kiln come with shelves and posts?
No. Kiln furniture is sold separately because different users need different configurations. For a 5 cu ft chamber we recommend a furniture kit with 3-4 full shelves and a full post/stilt assortment. Contact Peach State Pottery for a recommendation.
How do I register my warranty?
Register your kiln at the Olympic Kilns website within 30 days of delivery using your serial number and proof of purchase from an authorized dealer. Peach State Pottery can assist with registration if needed.
