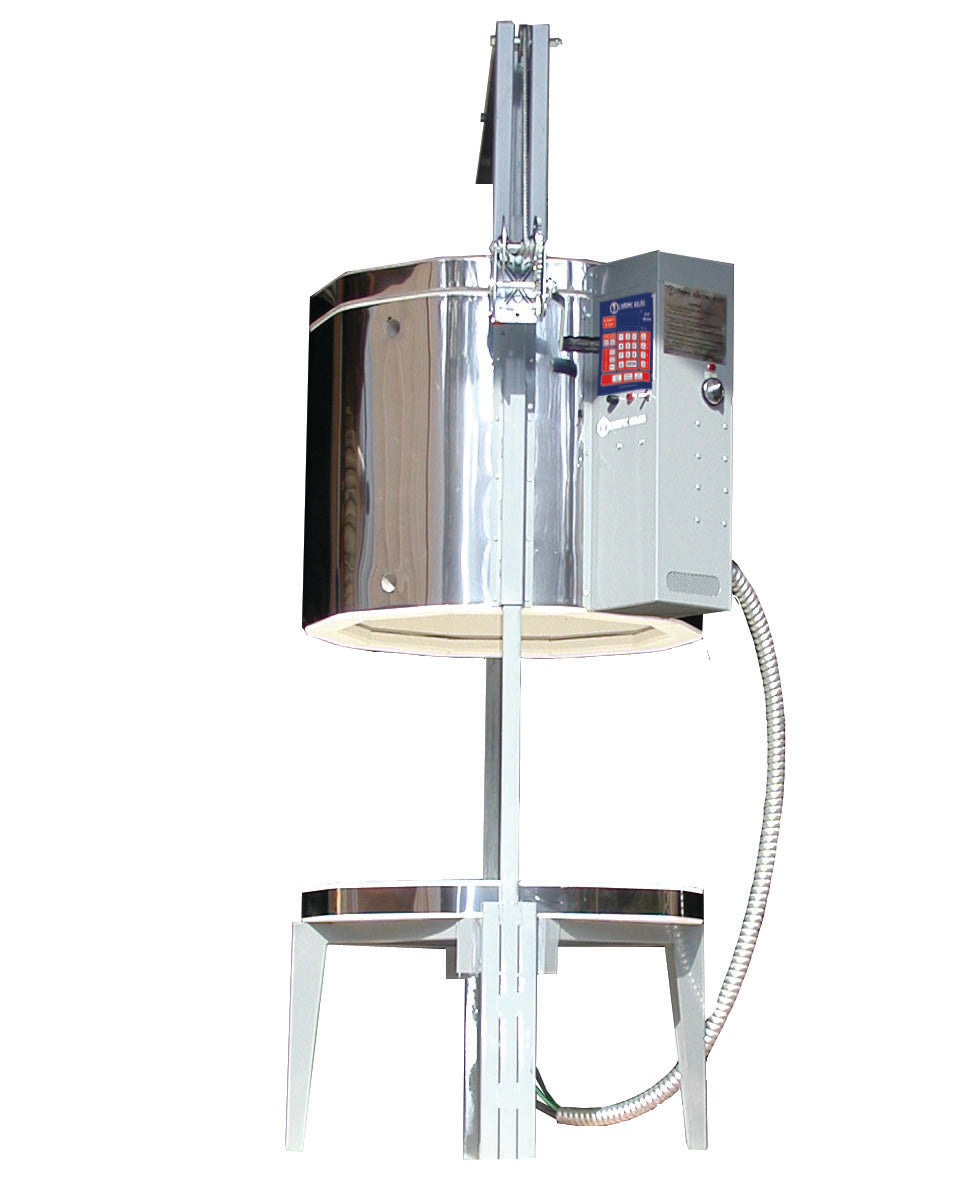

Olympic Kilns TopHat 2314E Electric Kiln

Olympic KilnsElectric KilnSKU TOPHAT2314E
$3,349.00Regular price$3,900.00
Save $551.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

23" — TopHat 239E, 2314E is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...
  • Olympic Ready-to-Fire Kits, TopHat 2314E

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Olympic Kilns TopHat 2314...
    $3,349.00
    Call

    Overview

    Olympic Kilns · Electric Kiln · TopHat Series Olympic TopHat 2314E Electric Kiln TopHat 2314E · 208/240V, 1-Phase · 23⅓″ W × 13.5″ D · 3.5 cu ft · Cone 10 / 2350°F The TopHat 2314E is a mid-size stackable electric kiln built for studio potters who need more depth than Olympic's smallest models without stepping up to a full production kiln. Its 3.5 cubic foot chamber and 2.5-inch brick wall hold Cone 10 heat efficiently, and the lift-off lid design makes it easy to stack additional rings later as your firing needs grow.
    Max TemperatureCone 10 / 2350°F
    Firing Chamber23⅓″ W × 13.5″ D / 3.5 cu ft
    Voltage208 or 240V, 1-phase
    Breaker RequiredUp to 70 amp
    What’s included
    The kiln, with its elements installedThe chamber arrives with Olympic's heavy gauge coiled elements already set in the brick and wired to the control panel. Olympic does not put this model in either its ready-to-fire list or its reassemble-on-the-stand list, so we confirm the delivered state with the factory before your order goes in.
    Bartlett KilnStar controller and Type K thermocoupleBoth are installed and wired at the factory, with one Type K thermocouple on a standard build and a pilot indicator light on the control panel. The Genesis touchscreen is a paid upgrade taken at order time; zone control is the option that adds thermocouples.
    Lid elements for glass firingOlympic fits the TopHat with elements in the lid as well as the walls, so it fires glass from above. They are installed at the factory.
    The lifting frame and hand crankThe firing chamber sits in a welded steel frame and a hand crank raises the whole chamber off your work. That is how this kiln opens, and the frame and crank are part of what ships. There is no separate stand.
    Observation plugsHollow ceramic peephole plugs ship with the kiln. Olympic publishes no count for any model, in its manuals or on its site, so we will not print a number here. Ask and we will confirm yours with the factory. Replacements are a stock part.
    The operating manual and a one-year warrantyOlympic's printed operating manual travels with the kiln. Olympic's limited warranty runs two years, cut to one year on Kiln-Sitter models and on any kiln rated at cone 10. This one is rated to cone 10, so one year. Register with Olympic within 30 days of delivery and keep your invoice.
    Cord and plug, or direct wired, set by your buildOlympic's plug configuration row gives a NEMA 6-30 or 6-50 plug on lower-amperage builds and Direct Wired on higher-amperage ones, and several models are listed as either. The manual hedges the same way, with “If your kiln is equipped with a power cord...”. Tell us your voltage, phase and service and we confirm which one you get before the order goes in.
    Not included: furniture, vent and hookupNo kiln furniture. Every Olympic line has its own separately priced furniture kit and shelves and posts are priced one by one. The VentMaster downdraft vent, stilts, gloves, tongs, kiln wash and a pyrometer are all separate items, and no receptacle, breaker, wire or disconnect ships with the kiln.
    Key features
    Bartlett KilnStar Controller Pre-programmed with Cone Fire and Ramp/Hold modes. Includes delay start, alarm, and thermocouple offset adjustment.
    2.5-Inch Brick Insulation Firebrick construction sized for this chamber, balancing energy efficiency with reliable Cone 10 performance.
    Stainless Steel Jacket Durable, corrosion-resistant outer shell that also provides structural support for the lift-off lid.
    Metal Stand Steel stand included as standard equipment. Casters are available as an optional add-on.
    Pilot Light External indicator shows when the kiln is receiving power and elements are energized.
    Type K Thermocouple Industrial-grade temperature sensor positioned for accurate chamber reading.
    Technical specifications
    ModelTopHat 2314E
    Interior Dimensions23⅓″ wide × 13.5″ deep
    Firing Chamber Volume3.5 cubic feet
    Brick Thickness2.5 inches
    Maximum TemperatureCone 10 / 2350°F
    Voltage (208V)48 amps, 10,800 watts, 70 amp breaker
    Voltage (240V)45 amps, 60 amp breaker
    Wire Size Required#6 copper (#4 for runs over 40 ft)
    Element TypeHeavy gauge coil
    Shipping WeightApproximately 300 lbs
    Warranty: One-year limited kiln warranty from Olympic Kilns. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Solid State Relay (SSR) Upgrade Replaces mechanical contactors for silent operation and extended element life.
    Kiln Furniture Kit Shelves, posts, and stilts sized for this 23⅓″ chamber.
    Orton Kiln Vent System Downdraft venting system removes fumes and moisture during firing.
    Rolling Stand with Casters Upgraded stand with locking casters for easy repositioning.
    Power Interrupt Safety System Automatically shuts down the kiln if the lid is opened during firing.
    Emergency Parts Kit Spare thermocouple, element connectors, and relay components to minimize downtime.
    Controller upgrade
    Genesis Touchscreen — Bartlett InstrumentsRecommended
    The Genesis controller replaces the standard KilnStar with a full-color touchscreen interface and expanded programming capabilities. Store unlimited custom firing schedules with up to 32 segments each, monitor real-time temperature graphs, and access diagnostic data through the intuitive menu system.
    • 4.3-inch full-color touchscreen with graphical temperature display
    • Unlimited program storage with cloud backup capability via USB
    • Up to 32 segments per program for complex firing schedules
    • Real-time graphing shows temperature curve during firing
    Common questions
    Do I need an electrician to install this kiln?
    Yes. The TopHat 2314E is direct-wired and requires a dedicated circuit sized to your chosen voltage — up to 70 amps on 208V service. A licensed electrician must determine the correct breaker, wire gauge, and connection method, and installation must meet local electrical codes.
    Does this kiln come with shelves and posts?
    No. Kiln furniture is sold separately because different users need different configurations. We recommend a furniture kit sized to the 23⅓″ chamber — contact Peach State Pottery for a recommendation.
    Can I add a second ring later to increase capacity?
    Olympic's stackable ring design allows compatible rings to be added by an authorized technician, though the TopHat series is generally sold as a complete unit. Contact us to confirm compatibility before ordering additional rings.
    How do I register my warranty?
    Register your kiln at the Olympic Kilns website within 30 days of delivery using your serial number and proof of purchase from an authorized dealer. Peach State Pottery can assist with registration if needed.
    Not sure if the TopHat 2314E is the right kiln for your space? Our team can help you evaluate electrical requirements, compare models, and coordinate delivery in the Atlanta area.
