Olympic Kilns DM3018HE Electric Kiln

Olympic KilnsElectric KilnSKU DM3018HE
$6,289.00Regular price$7,505.00
Save $1,216.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

30H Oval is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...
  • Olympic Ready-to-Fire Kits, 30" Oval (3018 / 3023)

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Olympic Kilns DM3018HE El...
    $6,289.00
    Call

    Overview

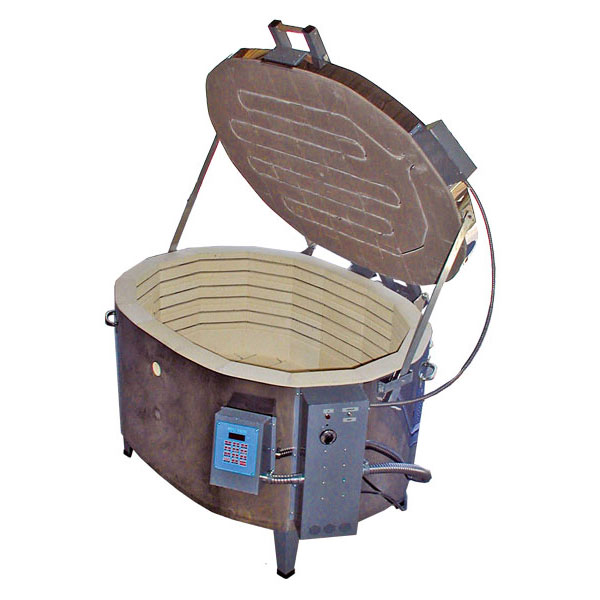

    Olympic Kilns · Electric Kiln · Dual Media Oval Series Olympic Dual Media DM3018HE Oval Electric Kiln DM3018HE · 208/240V · 42″ W × 30″ D · 12.2 cu ft · Cone 10 / 2350°F The DM3018HE is Olympic's largest oval Dual Media kiln, pairing a 12.2 cubic foot Cone 10 chamber with a glass-fusing lid element. It's built for production studios and schools that need serious ceramic capacity for platters, sculpture, and batch loads while keeping glass work in-house.
    Max TemperatureCone 10 / 2350°F
    Firing Chamber42″ W × 30″ D / 12.2 cu ft
    Voltage208V or 240V
    Breaker RequiredUp to 70 amp
    What’s included
    The kiln, with its elements installedThe brick sections arrive with Olympic's heavy gauge coiled elements already set in their grooves and wired. This kiln ships as sections on a pallet together with its stand: the manual has you take the sections off the pallet and restack them on the stand where the kiln will live.
    Bartlett KilnStar controller and Type K thermocoupleBoth are installed and wired at the factory, with one Type K thermocouple on a standard build and a pilot indicator light on the control panel. The Genesis touchscreen is a paid upgrade taken at order time; zone control is the option that adds thermocouples.
    The lid element and its infinite switchDual Media kilns carry a second set of elements in the lid for glass work, plus an infinite switch on the panel that sets how hard those lid elements run. Both are real hardware in the crate, not an option.
    The combined lid lift and standOlympic's oval line ships one assembly that is both the stand and the lid lift, so the lid assist is built into the stand rather than added to it. The manual requires it: “Your kiln must be fired only on the metal stand provided.”
    Observation plugsHollow ceramic peephole plugs ship with the kiln. Olympic publishes no count for any model, in its manuals or on its site, so we will not print a number here. Ask and we will confirm yours with the factory. Replacements are a stock part.
    The operating manual and a one-year warrantyOlympic's printed operating manual travels with the kiln. Olympic's limited warranty runs two years, cut to one year on Kiln-Sitter models and on any kiln rated at cone 10. This one is rated to cone 10, so one year. Register with Olympic within 30 days of delivery and keep your invoice.
    Cord and plug, or direct wired, set by your buildOlympic's plug configuration row gives a NEMA 6-30 or 6-50 plug on lower-amperage builds and Direct Wired on higher-amperage ones, and several models are listed as either. The manual hedges the same way, with “If your kiln is equipped with a power cord...”. Tell us your voltage, phase and service and we confirm which one you get before the order goes in.
    Not included: furniture, vent and hookupNo kiln furniture. Every Olympic line has its own separately priced furniture kit and shelves and posts are priced one by one. The VentMaster downdraft vent, stilts, gloves, tongs, kiln wash and a pyrometer are all separate items, and no receptacle, breaker, wire or disconnect ships with the kiln.
    Key features
    Bartlett KilnStar Controller Pre-programmed with Cone Fire and Ramp/Hold modes. Includes delay start, alarm, and thermocouple offset adjustment.
    Lid Element for Glass Fusing Dedicated lid element lets you fuse and slump glass in the same kiln used for ceramics, without a second unit.
    3-Inch Brick Insulation Firebrick construction balances energy efficiency with reliable Cone 10 performance.
    Stainless Steel Jacket Durable, corrosion-resistant outer shell that also provides structural support.
    Metal Stand Steel stand included as standard equipment. Casters are available as an optional add-on.
    Type K Thermocouple Industrial-grade temperature sensor positioned for accurate chamber temperature reading.
    Technical specifications
    ModelDM3018HE
    Interior Dimensions42″ wide × 30″ front-to-back × 20″ deep
    Firing Chamber Volume12.2 cubic feet
    Maximum TemperatureCone 10 / 2350°F
    Voltage Options208V or 240V (480V available)
    Outside Dimensions (with stand)55″ × 53″ × 40″
    Shipping WeightApproximately 585 lbs
    Warranty: One-year limited kiln warranty from Olympic Kilns. Must be registered within 30 days of delivery. Valid only through authorized dealers.
    Optional accessories
    Solid State Relay (SSR) Upgrade Replaces mechanical contactors for silent operation and extended element life.
    Kiln Furniture Kit Shelves, posts, and stilts sized for this chamber.
    Orton Kiln Vent System Downdraft venting system removes fumes and moisture during firing.
    Rolling Stand with Casters Upgraded stand with locking casters for easy repositioning.
    Power Interrupt Safety System Automatically shuts down the kiln if the lid is opened during firing.
    Emergency Parts Kit Spare thermocouple, element connectors, and relay components to minimize downtime.
    Controller upgrade
    Genesis Touchscreen — Bartlett InstrumentsRecommended
    The Genesis controller replaces the standard KilnStar with a full-color touchscreen interface and expanded programming capabilities. Store unlimited custom firing schedules with up to 32 segments each, monitor real-time temperature graphs, and access diagnostic data through the intuitive menu system.
    • 4.3-inch full-color touchscreen with graphical temperature display
    • Unlimited program storage with cloud backup capability via USB
    • Up to 32 segments per program for complex firing schedules
    • Real-time graphing shows temperature curve during firing
    Common questions
    Do I need an electrician to install this kiln?
    Yes. The DM3018HE is direct-wired and requires a dedicated circuit sized to your chosen voltage. 208/240V service is direct-wired to a dedicated circuit; confirm amperage with your electrician for this large chamber. A licensed electrician must determine the correct breaker, wire gauge, and connection method, and installation must meet local electrical codes.
    Can I really fire both ceramics and glass in the same kiln?
    Yes — that's the point of the Dual Media / TopHat design. The main chamber fires ceramics to Cone 10 as usual, and the separate lid element lets you run glass fusing and slumping schedules without buying a second kiln.
    Does this kiln come with shelves and posts?
    No. Kiln furniture is sold separately because different users need different configurations. For a 12.2 cu ft chamber we recommend a furniture kit with 6+ full shelves and a full post/stilt assortment. Contact Peach State Pottery for a recommendation.
    How do I register my warranty?
    Register your kiln at the Olympic Kilns website within 30 days of delivery using your serial number and proof of purchase from an authorized dealer. Peach State Pottery can assist with registration if needed.
    Not sure if the DM3018HE is the right kiln for your space? Our team can help you evaluate electrical requirements, compare models, and coordinate delivery in the Atlanta area.
