Jen-Ken Vitri Barrel Vitrigraph Kiln - 120V, 2150°F, 11" dia x 9" deep
$1,469.00Regular price$1,512.00
Save $43.00- 15-day returns
- No sales tax outside Georgia
- Made in USA
Ways to save
Choose your build
Built to order.
Already built, not made to order, so there is nothing else to configure. We confirm the lead time in writing before you are charged.
Lead time 6 to 8 weeks, confirmed in writing before you are charged.
Configure your kiln
Not sure? Call 470-264-3563
-
Orton AutoFire® 3-Button Remote Controller

-
Orton AutoFire® 12-Button Remote Controller

-
Orton AutoFire® Slide Remote Controller

-
SDS Industries TAP II Remote Controller

Jen-Ken Vitri Barrel Vitr...
$1,469.00
Overview
Jen-Ken · Glass Kiln · Vitrigraph
Jen-Ken Vitri Barrel Vitrigraph Kiln
A vitrigraph kiln does one job: it melts glass and lets it run out through a hole in the floor so you can pull stringer, murrine canes and long twisted threads under it. The Vitri Barrel is Jen-Ken's biggest and deepest — 11 inches across and 9 deep — with a double layer of elements so the whole column of glass reaches flow temperature together instead of going soft at the top while the bottom is still stiff. That is the difference between a pull that runs and one that stops. It reaches 2,150°F, plugs into a normal wall outlet, and weighs 50 lbs. With Jen-Ken's optional stand, shelf and solid bottom insert it converts into a small fusing, casting and low-fire ceramic kiln — but as sold, with the hole in the floor, it is a vitrigraph kiln. Note that the wire rack and pot you pull from are not included.
PurposeVitrigraph pulling
Max Temp2,150°F
Chamber11" x 9"
Power120V · 15A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
Orton AutoFire AF3P 3-button controllerFitted and wired at the factory. Jen-Ken lists one controller for this model, so there is nothing to choose.
Cord and plug — NEMA 5-15PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
Instruction manualJen-Ken's printed manual, including firing guidance and their electrical requirements.
2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
Not included — kiln furnitureNo shelves, posts or kiln wash in the crate, and Jen-Ken does not list a furniture kit against this model. Order the pieces you need from our accessories pages. Solid-state relays are a paid upgrade rather than standard.
Key features

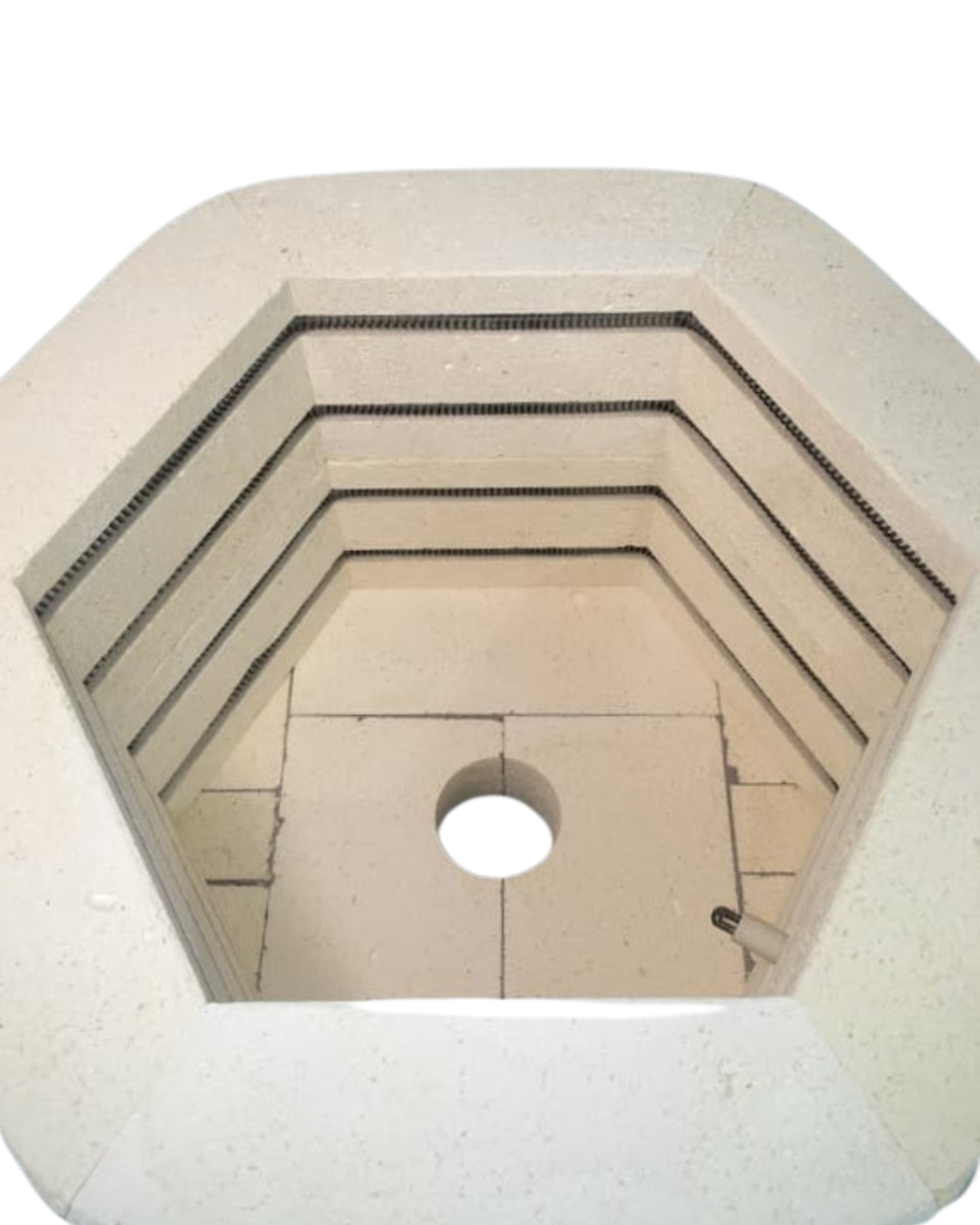

Double layer of elementsJen-Ken's own point about this kiln: two element layers rather than one, so a 9-inch column of glass reaches flow temperature top to bottom at the same time.

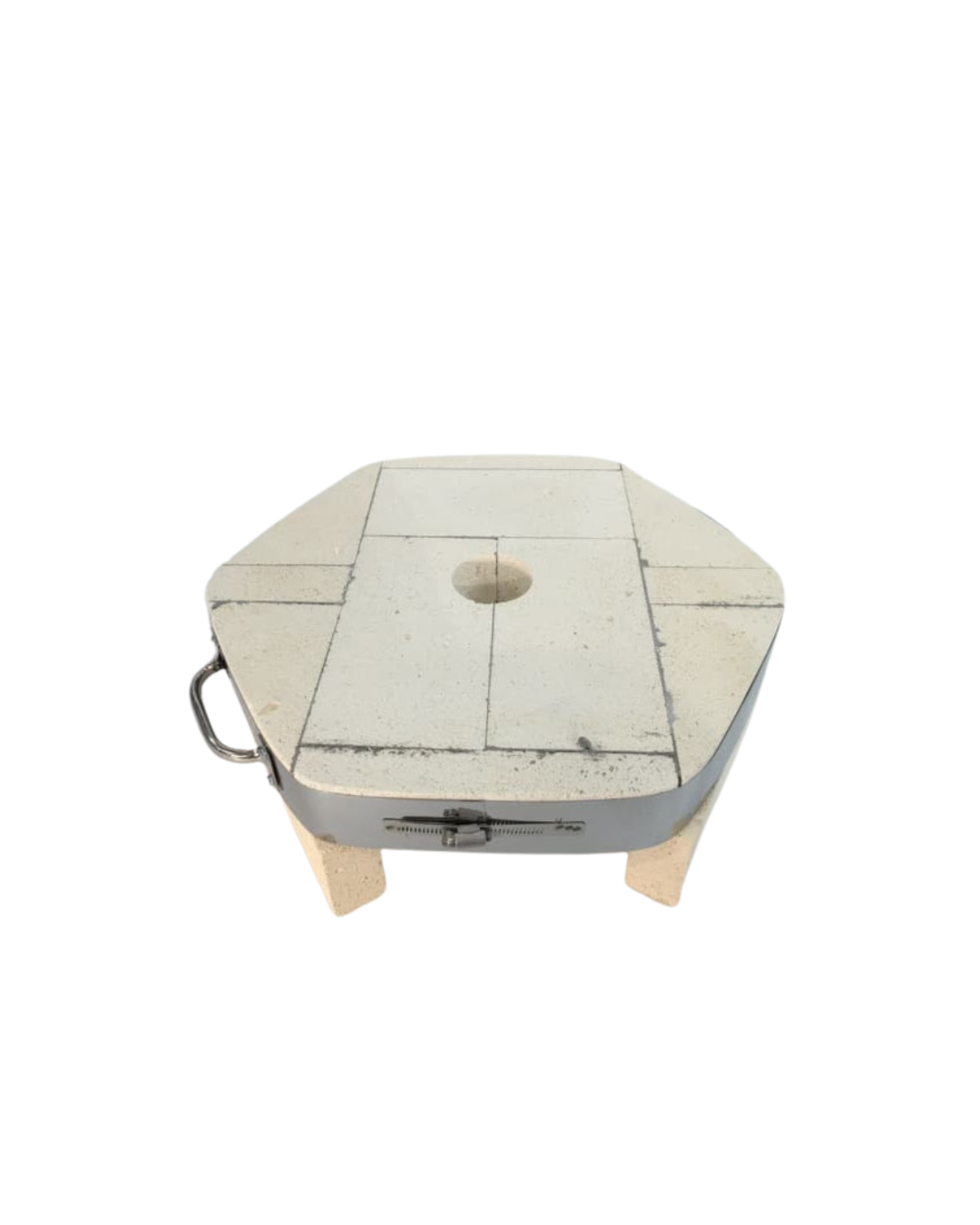

Hole in the floorThis is the vitrigraph configuration — the glass runs out through the floor and you pull underneath. It is the model's defining feature, not an option.

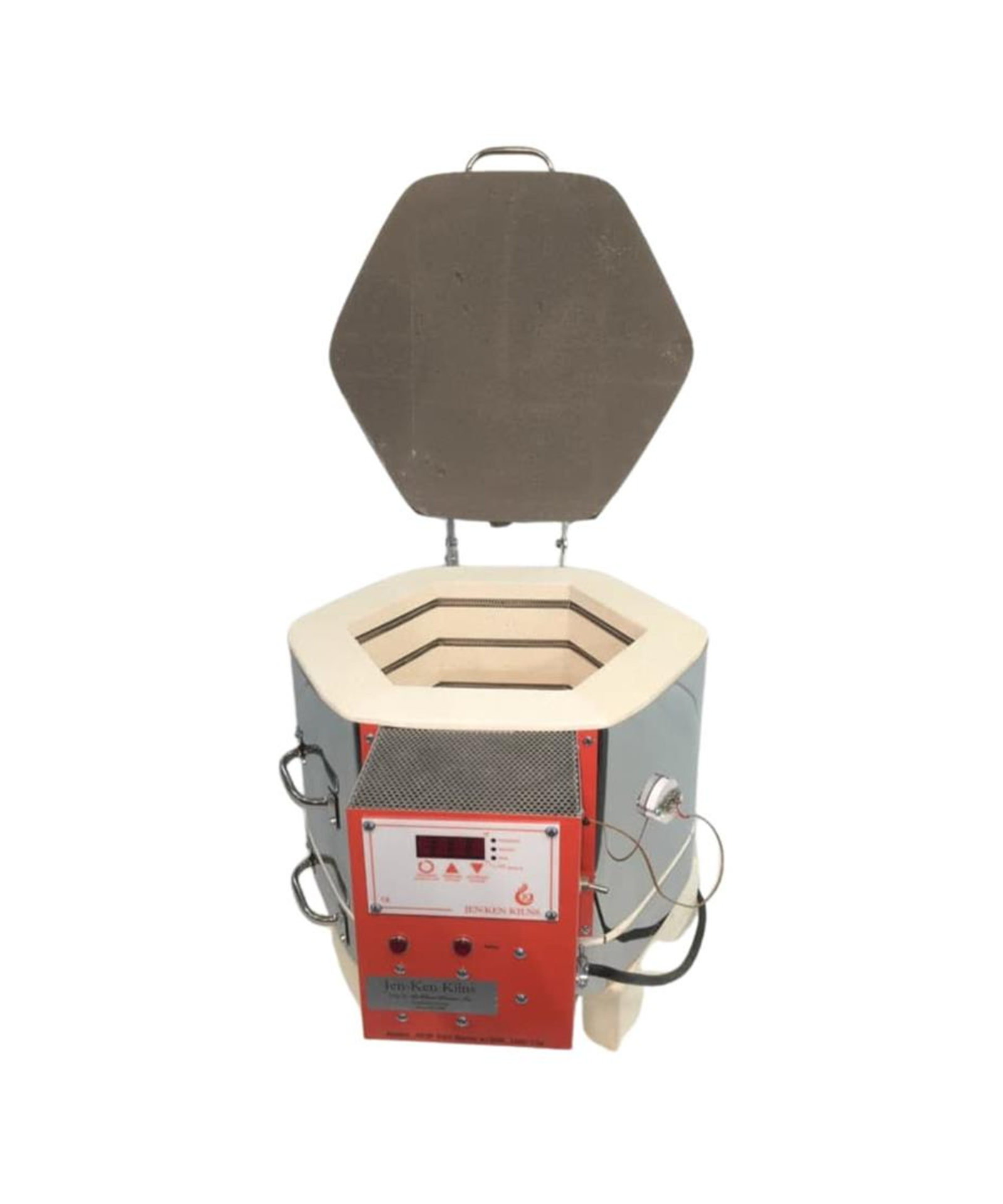

Hinged kiln lidThe lid hinges rather than lifting free, so you can get at the interior with one hand while the kiln is hot.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Technical specifications
ModelVitri Barrel with Hole in Floor
Kiln functionVitrigraph pulling (glass)
Chamber dimensions11" x 9"
Cubic feet0.55 cu ft
Maximum temperature2,150°F (1,177°C)
Voltage120V
Amperage15A
Wattage1,800W
PhaseSingle phase
ReceptacleNEMA 5-15R
Breaker (fuse) size15A
Element placementSide-fired, double layer
LoadingHinged lid
ControllerOrton AutoFire 3-button
Kiln weight50 lbs
Estimated shipping weight70 lbs
Shipping dimensions26" x 26" x 20"
Shipping methodMotor freight
Warranty2-year limited (Jen-Ken)
Optional accessories
Stand, shelf and solid bottom insertJen-Ken's conversion kit. The solid bottom closes off the pull hole and the shelf and stand turn the Vitri Barrel into a small fusing, casting and low-fire ceramic kiln. Sold separately — call us and we will quote the set.
Wire rack and potNot included, and you need one to pull. The pot holds the glass over the hole; the rack supports it. Tell us how you work and we will match them to the chamber.
Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
Controller upgradeJen-Ken fits the Orton AutoFire 3-button as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
Common questions
What is a vitrigraph kiln actually for?Pulling stringer and cane. You put a pot or a wire rack of glass over a hole in the kiln floor, take the kiln up to flow temperature, and the glass runs out through the hole as a thread which you pull and stretch by hand underneath. Done well you get long stringer, twisted cane and murrine components in your own colours instead of buying them. It is a hot, physical, standing-up process, and the reason the Vitri Barrel is a barrel is that the glass needs depth and even heat rather than shelf area.
What electrical circuit does it need?120V single phase, a 15-amp draw and 1,800 watts on an ordinary NEMA 5-15R outlet, with a 15-amp breaker. Jen-Ken publishes no circuit wire gauge for this model at all — the spec table simply has no row for it — so we have omitted that row rather than borrow a figure from a sibling. One thing to be honest about: 15 amps continuous on a 15-amp breaker leaves nothing spare. The 125% continuous-load rule puts it at 18.75 amps, so we would put it on a dedicated 20-amp circuit with #12 wire, which is what Jen-Ken recommends on their other 15-amp 120V kilns. Ask a licensed electrician, and do not share the circuit with anything.
Can it fuse or fire clay as it comes?Not as it comes — it has a hole in the floor. Jen-Ken sells a stand, shelf and solid bottom insert separately, and with those fitted the Vitri Barrel does become a small fusing, casting and low-fire ceramic kiln at up to 2,150°F. We have not tagged this listing as a ceramic kiln because that capability depends on parts that are not in the crate. If you want the kiln to do both jobs, order the conversion parts with it and we will price them together.
What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line and we have not invented one. The published maximum is 2,150°F, which is in the table above. If you are planning to convert it for low-fire clay, that temperature is the figure to work from.
Why the double element layer?Because a vitrigraph pull depends on the whole depth of glass being at flow temperature at once. A single element band heats a 9-inch column unevenly — the glass nearest the elements moves first and the rest lags, and the pull stalls. Two layers is Jen-Ken's fix, and it is the main reason to choose the Vitri Barrel over a shallower vitrigraph kiln.
What actually comes in the crate?Jen-Ken lists the controller, the instruction manual and the warranty, and states explicitly that the wire rack and pot are NOT included. The stand, shelf and solid bottom are separate too. Call or email us and we will put together everything you need to pull on day one.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
First vitrigraph kiln?
We are authorized Jen-Ken dealers based in Georgia. Tell us what you want to pull and whether you also want the kiln to fuse, and we will quote the Vitri Barrel with the right pot, rack and conversion parts rather than leaving you to work it out after delivery.
