Jen-Ken Vertical Air Bath Excalibur Knife Kiln

Jen-KenHeat Treating OvenSKU JENKEN-VAB-EXCALIBUR
$4,039.00Regular price$4,355.00
Save $316.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken Vertical Air Bath...
    $4,039.00
    Call

    Overview

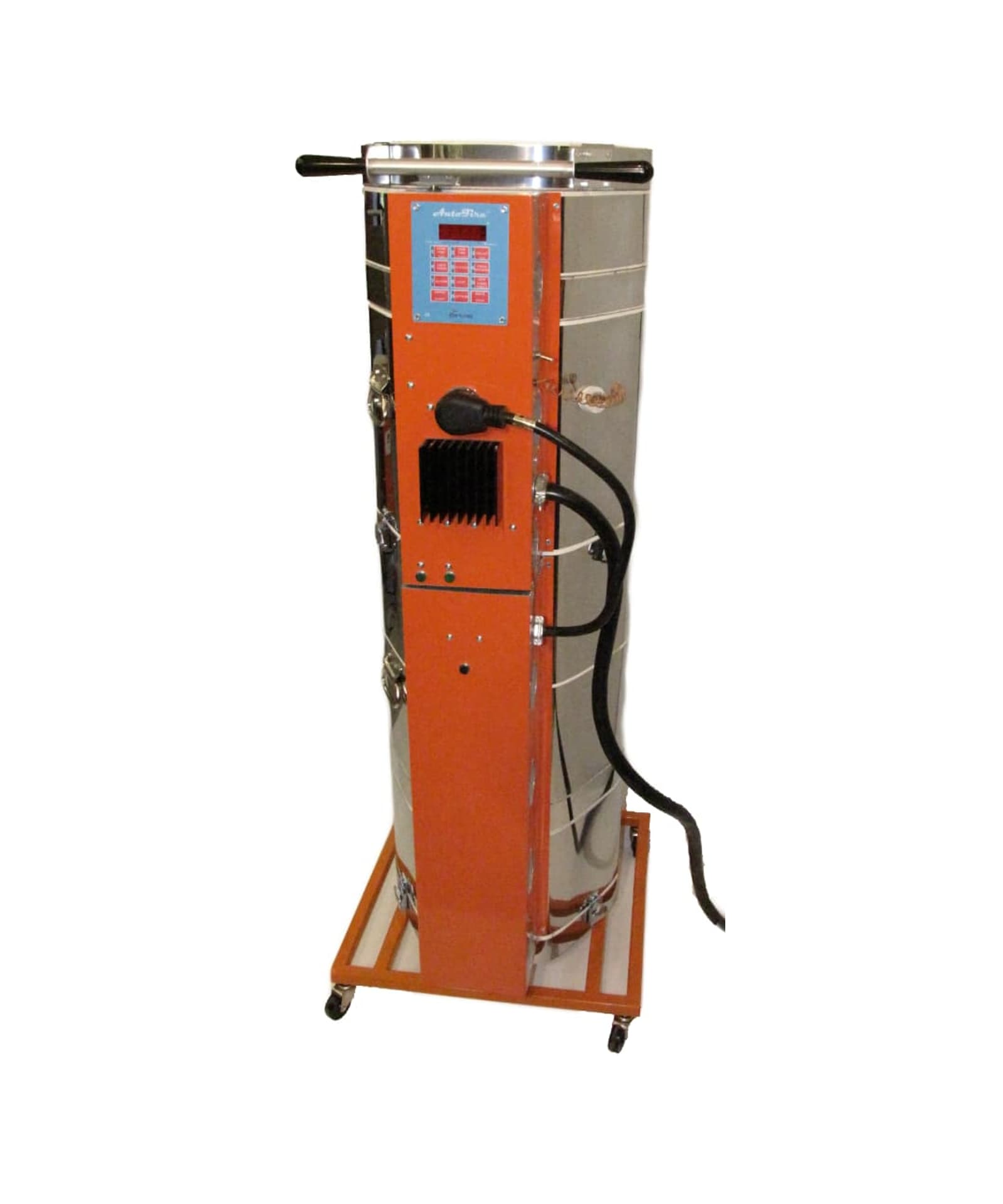

    Jen-Ken · Vertical Air Bath · Knife & Blade Heat Treating Jen-Ken Vertical Air Bath Excalibur Knife Kiln Vertical Air Bath Excalibur · 240V · 11" x 50" chamber · 2,200°F Fifty inches of chamber, which is sword territory. The Excalibur is the tallest of Jen-Ken's vertical air baths and the only one in the line that will heat treat a full-length blade hanging straight, which is the difference between a sword that comes out true and one that comes out with a bow in it. A removable extension section clamps on to reach the full height. Blades hang from the top so nothing touches the steel while it soaks, and the refractory baffle system holds the chamber temperature when the lid comes off. 2,200°F, 39 amps on a 6-50 plug.
    Max Temp2,200°F
    Blade lengthUp to 50"
    Chamber11" W x 50" D
    Power240V · 39A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory.

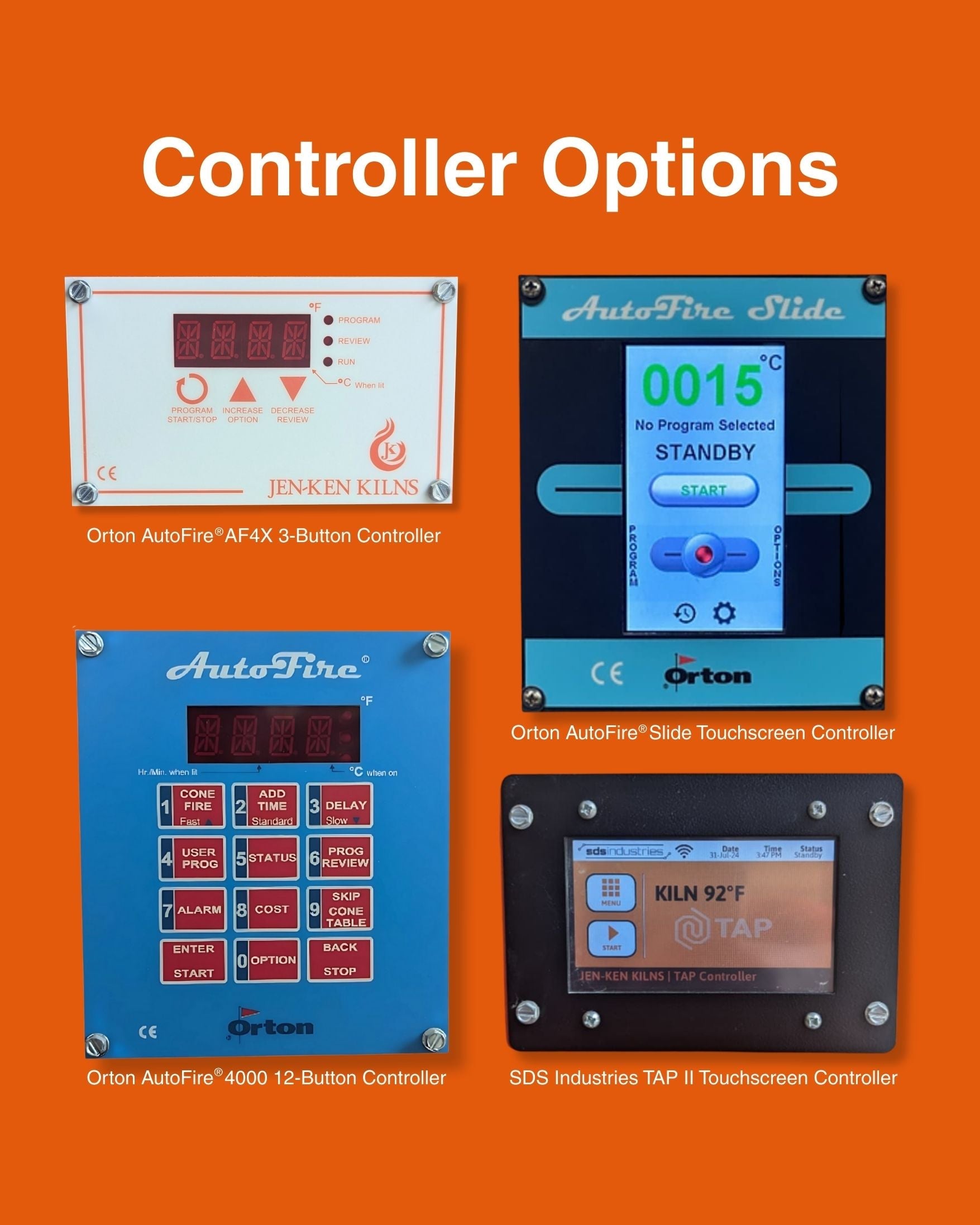

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF4X 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — Jen-Ken does not publish a breaker size or wire gauge for this model, so have a licensed electrician size the circuit to the draw in the specifications below.
    Rolling stand with castersJen-Ken lists a rolling stand with casters for this model.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Key features

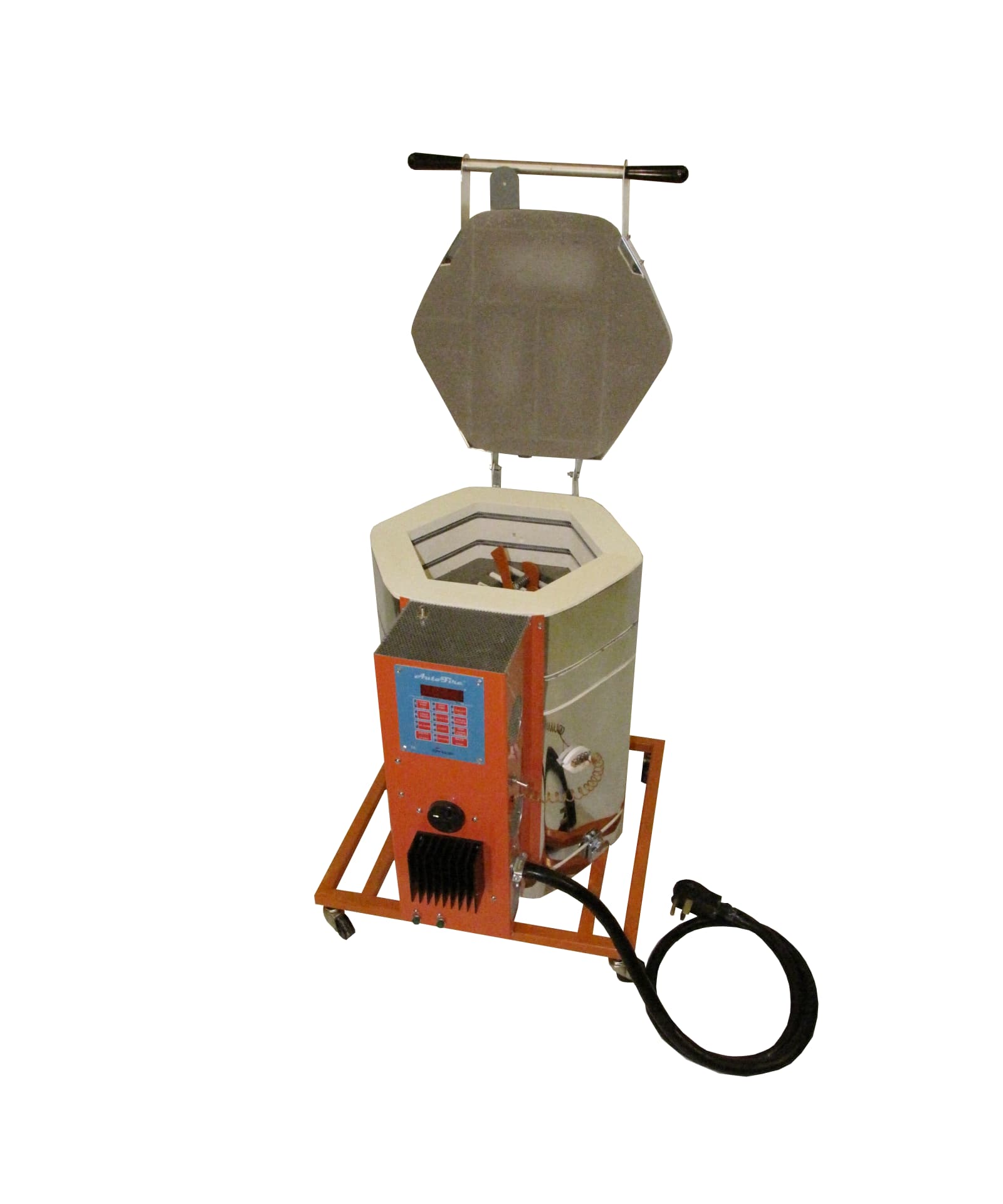

    Removable Excalibur extension sectionClamps in place to take the chamber to its full 50 inches, and comes off when you are working shorter.

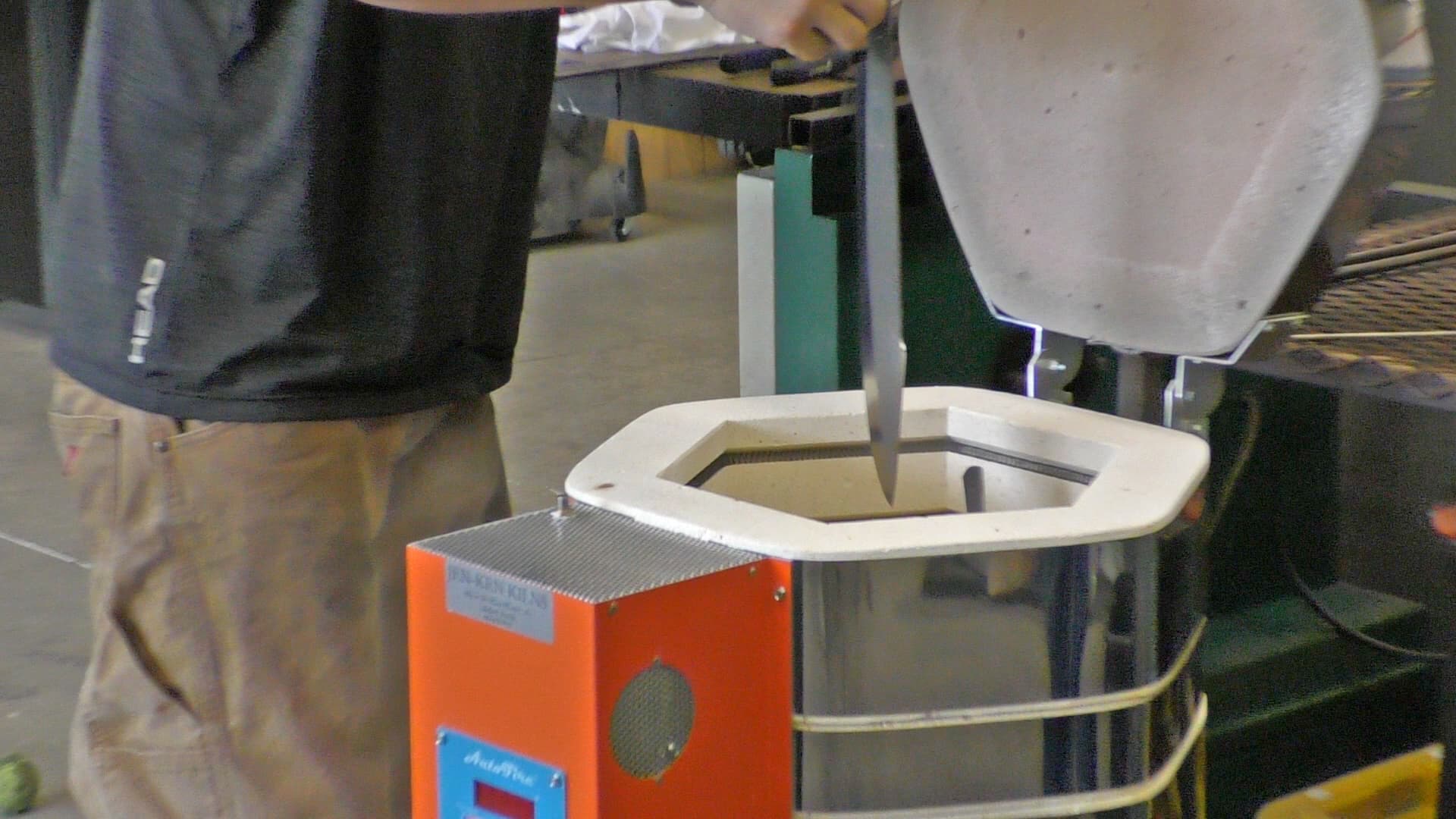

    Vertical blade suspensionBlades hang by pin, spring clasp or ceramic rod rather than resting on anything — the only way to soak a 50-inch blade without it leaning on something.
    Refractory baffle systemA custom baffle arrangement that holds heat in the chamber when the lid comes off, so pulling one blade does not drop the temperature on the rest.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Technical specifications
    Kiln functionHeat treating steel — normalizing, hardening and tempering
    Blade length it takesUp to 50"
    Interior width11"
    Interior depth50"
    Cubic feet3.57 cu ft
    Maximum temperature2,200°F (1,204°C)
    Voltage240V
    Amperage39A
    Wattage9,360W
    PhaseSingle phase
    PlugNEMA 6-50
    Element placementSide-fired
    LoadingTop-loading; blades suspended vertically
    ControllerOrton AutoFire AF4X 3-button
    Kiln weight175 lbs
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Quench tank and platformJen-Ken sells these separately for the taller ovens. If you are hardening rather than only tempering, you need somewhere to put the blade in the two seconds after it leaves the chamber.
    Suspension hardwareBlades hang by pin, spring clasp or ceramic rod. Tell us what you make and we will help you work out what you need to hang it by.
    Spare thermocoupleA thermocouple is a consumable in a furnace that lives at 2,000°F. Worth having one on the shelf before you need it.
    Controller upgradeJen-Ken offers other Orton controllers on request. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions

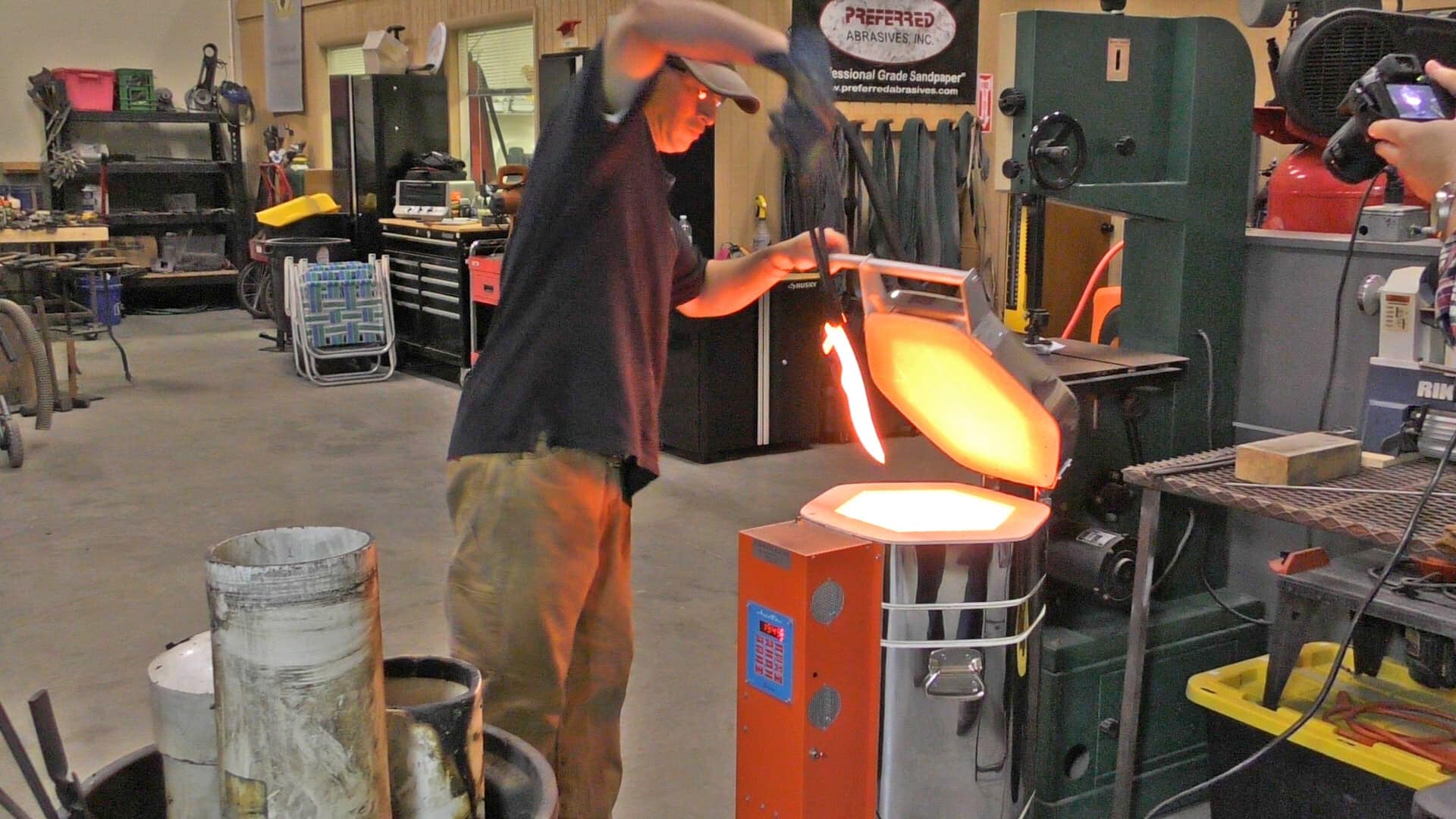

    Why hang the blade instead of laying it flat?A blade lying flat on a shelf touches something, and everywhere it touches cools differently from everywhere it does not. That is where warp and decarb patterns come from. In an air bath the blade hangs from the top of a tall chamber — by a pin, a spring clasp or a ceramic rod — and nothing is in contact with the steel while it soaks. Heat reaches it from every side at once, tip to tang. It is the same argument a front-loading oven cannot make.
    What electrical circuit does it need?Jen-Ken publishes the voltage, the draw, the wattage and the plug for the knife line and nothing else — no breaker size, no circuit wire gauge and no shipping method appear on any of these spec tables. We have not filled those rows in by working them out or by borrowing them from a pottery kiln of similar draw, because a number we invented is exactly the sort of thing an electrician would act on. Size the circuit to the continuous draw with a licensed electrician, and call us — we are asking Jen-Ken for the factory figures.
    Is the platform and quench tank included?No. Jen-Ken sells the platform and the quench tank separately for this oven, and at 50 inches you will want to have thought about both before the kiln arrives — a blade that long has to go from chamber to quench in one controlled movement. Ask us and we will quote them alongside.
    Do I have to use the full height every time?No. The Excalibur extension section is removable and clamps in place when you need it, so you can run the oven shorter for ordinary knife work and only take it to 50 inches when there is a sword in it.
    Why is there no shipping weight?Jen-Ken does not publish one for this model. The oven is 175 lbs on its own. We have banded it for freight rather than inventing a crate weight; if you need the exact figure before booking a delivery, call us and we will get it from the factory.
    How uniform is the temperature, in numbers?Jen-Ken describes this oven as giving 360° heat, and that is a fair description of the geometry — a hanging blade is surrounded by chamber on every side. It is not a measured specification, though. Nobody in the heat-treating oven category publishes a temperature uniformity figure in °F, Jen-Ken included, so we are not going to print one either. If you need a documented uniformity survey for a certification, tell us and we will take the question to the factory.
    Will it do stainless as well as carbon steel?2,200°F covers the austenitizing range for the carbon and tool steels most knifemakers use, and reaches into the range for the common air-hardening stainless grades. Jen-Ken publishes the ceiling and not a steel list, so check your steel's data sheet against 2,200°F rather than taking our word for it.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Swords, machetes and anything over a yard. We are authorized Jen-Ken dealers based in Georgia. This is a specialist oven and it is a lot of money if you do not need the height. Tell us what you are making and we will tell you honestly whether the 30+9 would do.
