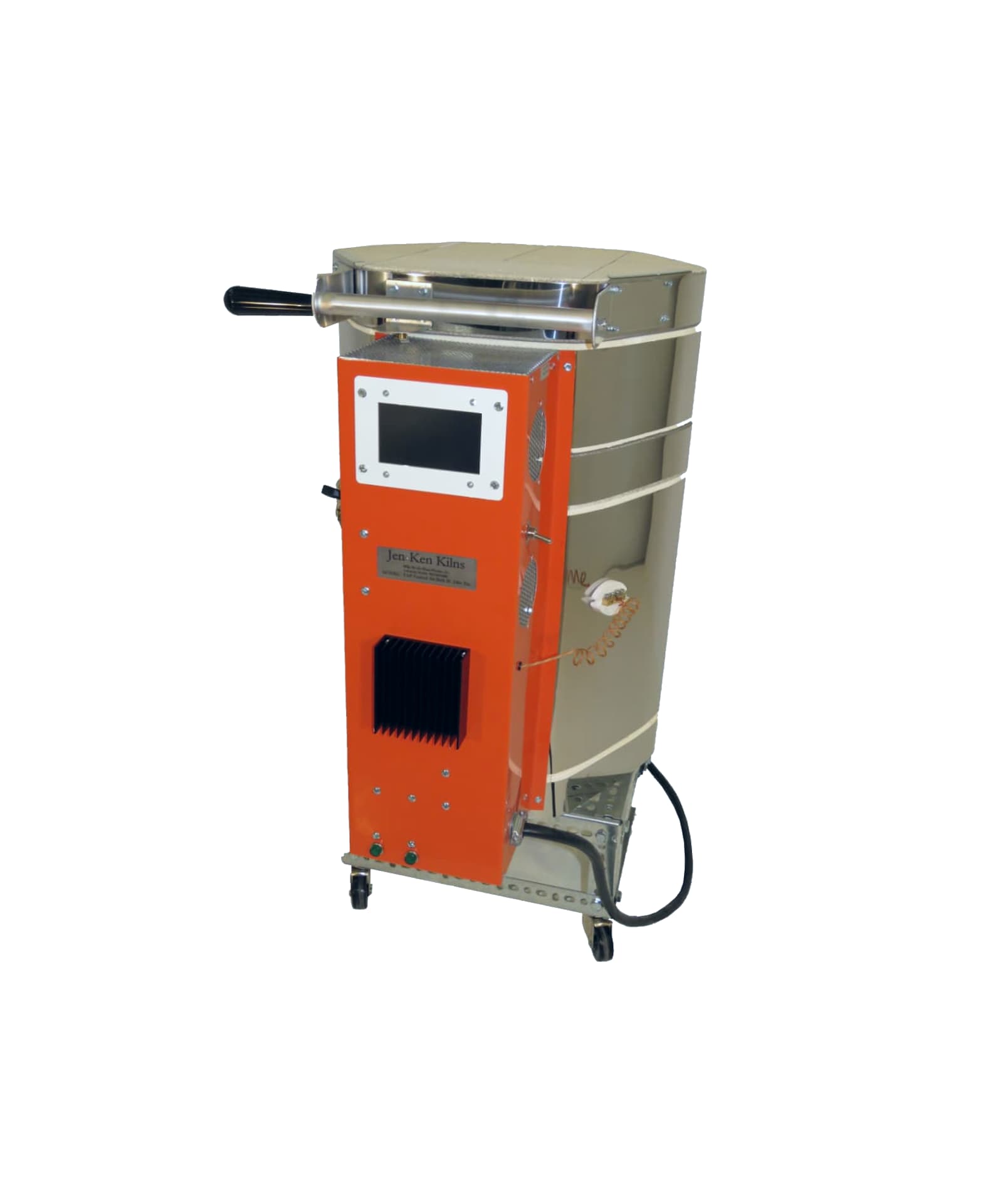

Jen-Ken Vertical Air Bath 21 Knife Kiln - 240V, 2200°F, 11" W x 21" D

Jen-KenHeat Treating OvenSKU JENKEN-VAB-21
$2,089.00Regular price$2,231.00
Save $142.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken Vertical Air Bath...
    $2,089.00
    Call

    Overview

    Jen-Ken · Vertical Air Bath · Knife & Blade Heat Treating Jen-Ken Vertical Air Bath 21 Knife Kiln Vertical Air Bath 21 · 240V · 11" x 21" chamber · 2,200°F Five more inches of chamber than the 16, which is the difference between stopping at a hunter and being able to take a 20" bowie or a short sword. The principle does not change: blades hang vertically in an 11" x 21" air bath so nothing touches the steel while it soaks, and heat reaches it from every side rather than through a shelf. 22 amps on a 6-30 plug, 2,200°F, and the same Orton AF4X controller preloaded with heat-treating schedules.
    Max Temp2,200°F
    Blade lengthUp to 20"
    Chamber11" W x 21" D
    Power240V · 22A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory.

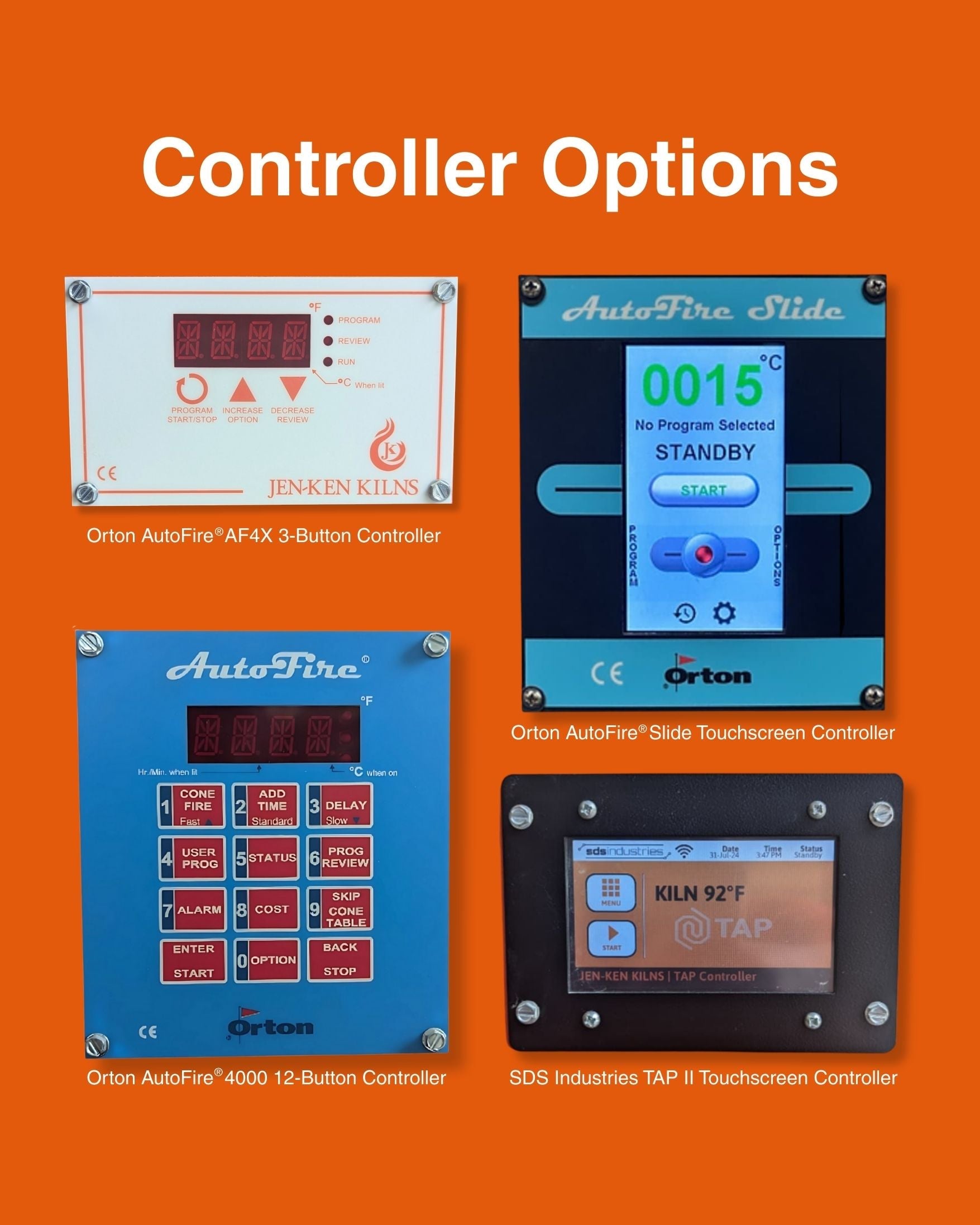

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF4X 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-30PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — Jen-Ken does not publish a breaker size or wire gauge for this model, so have a licensed electrician size the circuit to the draw in the specifications below.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Key features

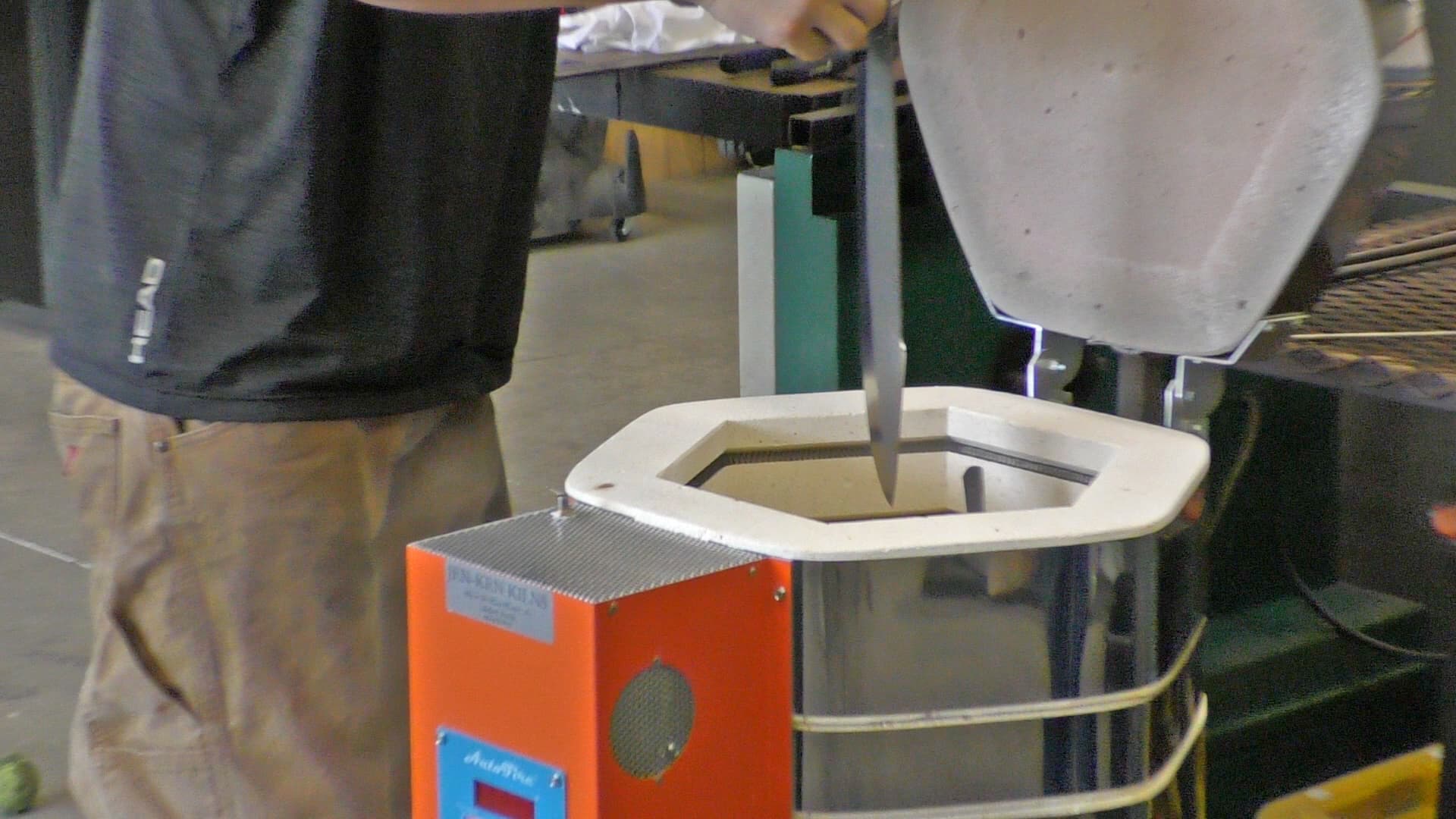

    Vertical blade suspensionBlades hang by pin, spring clasp or ceramic rod rather than resting on anything.

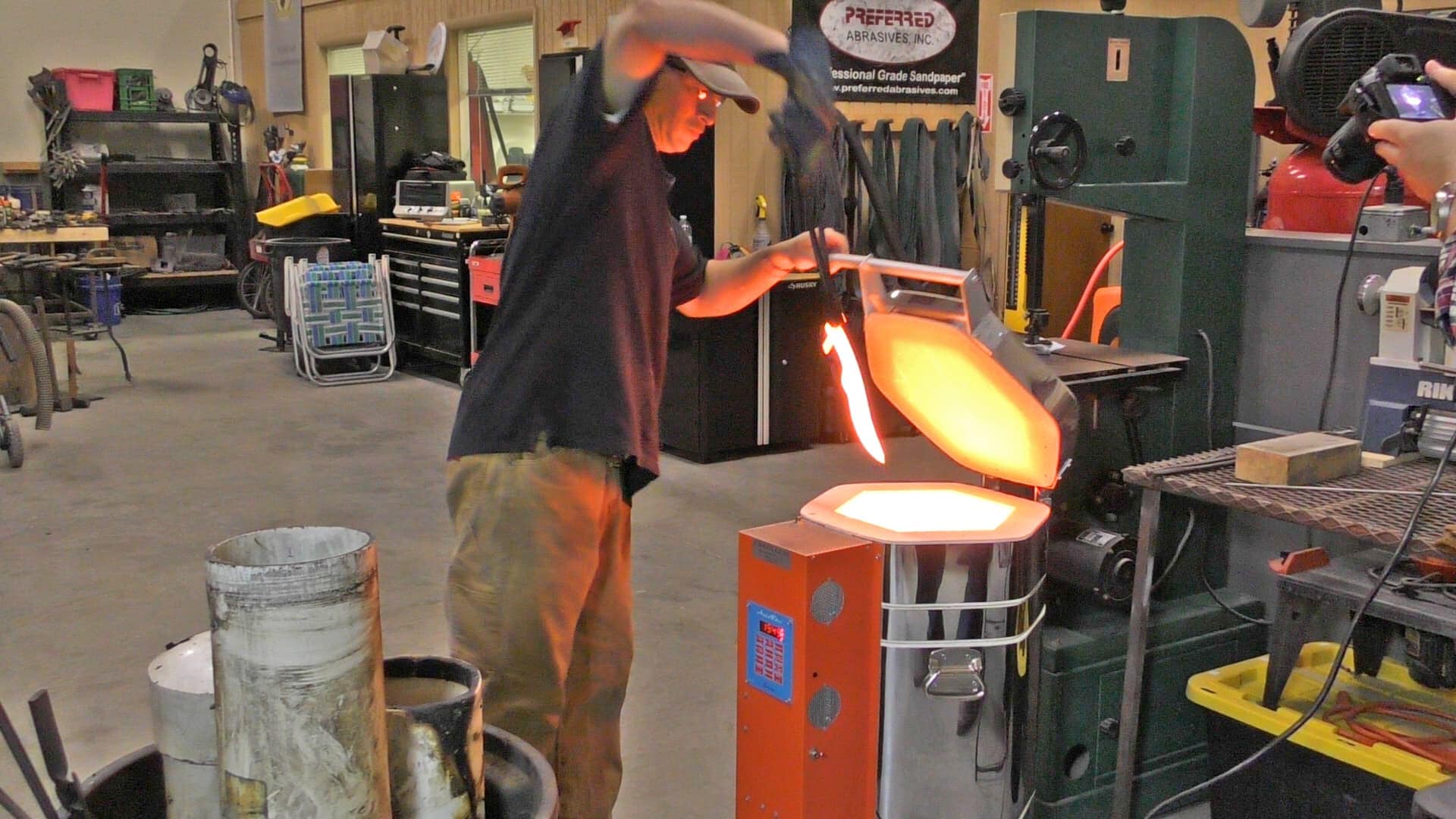

    Refractory baffle systemA custom baffle arrangement that holds heat in the chamber when the lid comes off, so pulling one blade does not drop the temperature on the rest.
    Power-interrupt lid switchCuts power to the elements the moment the lid opens. You are reaching into a 2,200°F chamber with tongs, so this matters.
    Cool-touch reversible lid handleReversible so it can be set up for the side you work from, and cool enough to use bare-handed during a run.
    Technical specifications
    Kiln functionHeat treating steel — normalizing, hardening and tempering
    Blade length it takesUp to 20"
    Interior width11"
    Interior depth21"
    Cubic feet1.47 cu ft
    Maximum temperature2,200°F (1,204°C)
    Voltage240V
    Amperage22A
    Wattage5,280W
    PhaseSingle phase
    PlugNEMA 6-30
    Element placementSide-fired
    LoadingTop-loading; blades suspended vertically
    ControllerOrton AutoFire AF4X 3-button
    Kiln weight85 lbs
    Shipping weight110 lbs
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Quench tank and platformJen-Ken sells these separately for the taller ovens. If you are hardening rather than only tempering, you need somewhere to put the blade in the two seconds after it leaves the chamber.
    Suspension hardwareBlades hang by pin, spring clasp or ceramic rod. Tell us what you make and we will help you work out what you need to hang it by.
    Spare thermocoupleA thermocouple is a consumable in a furnace that lives at 2,000°F. Worth having one on the shelf before you need it.
    Controller upgradeJen-Ken offers other Orton controllers on request. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    Why hang the blade instead of laying it flat?A blade lying flat on a shelf touches something, and everywhere it touches cools differently from everywhere it does not. That is where warp and decarb patterns come from. In an air bath the blade hangs from the top of a tall chamber — by a pin, a spring clasp or a ceramic rod — and nothing is in contact with the steel while it soaks. Heat reaches it from every side at once, tip to tang. It is the same argument a front-loading oven cannot make.
    What electrical circuit does it need?Jen-Ken publishes the voltage, the draw, the wattage and the plug for the knife line and nothing else — no breaker size, no circuit wire gauge and no shipping method appear on any of these spec tables. We have not filled those rows in by working them out or by borrowing them from a pottery kiln of similar draw, because a number we invented is exactly the sort of thing an electrician would act on. Size the circuit to the continuous draw with a licensed electrician, and call us — we are asking Jen-Ken for the factory figures.
    Is a stand included with this one?Jen-Ken's copy says that most models in this line ship with a rolling stand on casters, but their page for the 21 does not say so for this model specifically — so we are not claiming it. Call or email us and we will confirm with the factory what is on the crate before you order.
    Should I buy this or the 30?Longest blade you make, plus a couple of inches for however you hang it. The 21 takes 20" and draws 22 amps; the 30 takes 29" and draws 26. If you are near the line, buy the larger one — a blade that does not fit cannot be heat treated at all, and the running cost difference is small.
    How uniform is the temperature, in numbers?Jen-Ken describes this oven as giving 360° heat, and that is a fair description of the geometry — a hanging blade is surrounded by chamber on every side. It is not a measured specification, though. Nobody in the heat-treating oven category publishes a temperature uniformity figure in °F, Jen-Ken included, so we are not going to print one either. If you need a documented uniformity survey for a certification, tell us and we will take the question to the factory.
    Will it do stainless as well as carbon steel?2,200°F covers the austenitizing range for the carbon and tool steels most knifemakers use, and reaches into the range for the common air-hardening stainless grades. Jen-Ken publishes the ceiling and not a steel list, so check your steel's data sheet against 2,200°F rather than taking our word for it.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Twenty inches, or do you need more? We are authorized Jen-Ken dealers based in Georgia. Measure your longest blade, add clearance for the suspension, and call us. We will tell you whether the 21 covers you or whether you want the 30.
