Jen-Ken ProFusion 26 Deep Glass Kiln - 240V, 1700°F, 26" x 26" x 15" nominal (14" clear)

Jen-KenGlass KilnSKU JENKEN-PROFUSION-26-DEEP
$4,899.00Regular price$5,403.00
Save $504.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken ProFusion 26 Deep...
    $4,899.00
    Call

    Overview

    Jen-Ken · Glass Kiln · ProFusion Fiber Series Jen-Ken ProFusion 26 Deep Glass Kiln Model AFG ProFusion 26 Deep · 240V · 26" x 26" x 14" chamber · 1,700°F The ProFusion 26 Deep is the working-studio size in Jen-Ken's fiber clamshell line. A 26" x 26" opening takes a full-size fusing shelf, and the 14 inches of height — measured from the floor to the bottom of the quartz element tubes — is what the word Deep is doing: there is room for real slumping moulds under the elements, not just flat work. Being all-fiber, it will run at Jen-Ken's quoted 500°F an hour up to 1,700°F, so a studio can get more than one firing out of a day. It needs a 240V 50-amp circuit on a NEMA 6-50R.
    Max Temp1,700°F
    Chamber26" x 26" x 15"
    Capacity5.6 cu ft
    Power240V · 36A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    1-year limited warrantyJen-Ken's fiber-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    Integrated stand with castersJen-Ken lists a built-in stand with casters for this model, so it rolls into position instead of being lifted onto a bench.
    Quartz-encased elementsThe elements run inside quartz tubes rather than being buried in the fiber, so the chamber can be all-fiber and still fire directly on the work.

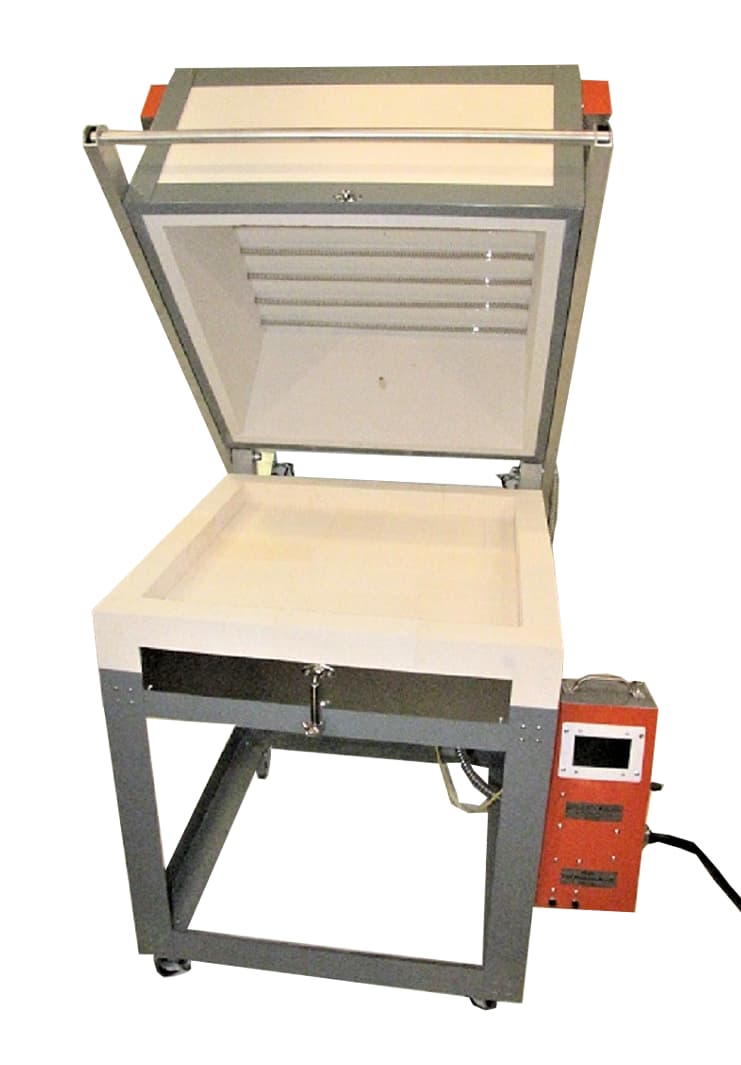

    Clamshell bodyThe upper half hinges open as one piece, so you load over an open shelf at waist height.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Technical specifications
    ModelAFG ProFusion 26 Deep
    Kiln functionFiber fusing, slumping
    Chamber dimensions26" x 26" x 15" nominal (14" clear height from the floor to the bottom of the quartz element tubes)
    Cubic feet5.6 cu ft
    Maximum temperature1,700°F (927°C)
    Voltage240V
    Amperage36A
    Wattage8,640W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) size50A
    Circuit wire gauge#6
    Element typeQuartz-encased elements
    Element placementSide-fired
    LoadingClamshell — the upper half hinges open
    ControllerOrton AutoFire 12-key
    Kiln weight250 lbs
    Estimated shipping weight450 lbs
    Shipping methodMotor freight
    Warranty1-year limited (Jen-Ken fiber kiln)
    Warranty: One-year limited warranty from Jen-Ken Kilns to the original purchaser. Jen-Ken warrants brick kilns for two years and fiber kilns for one, and the ProFusion line is a fiber kiln. The warranty covers defects in materials and workmanship and is limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.

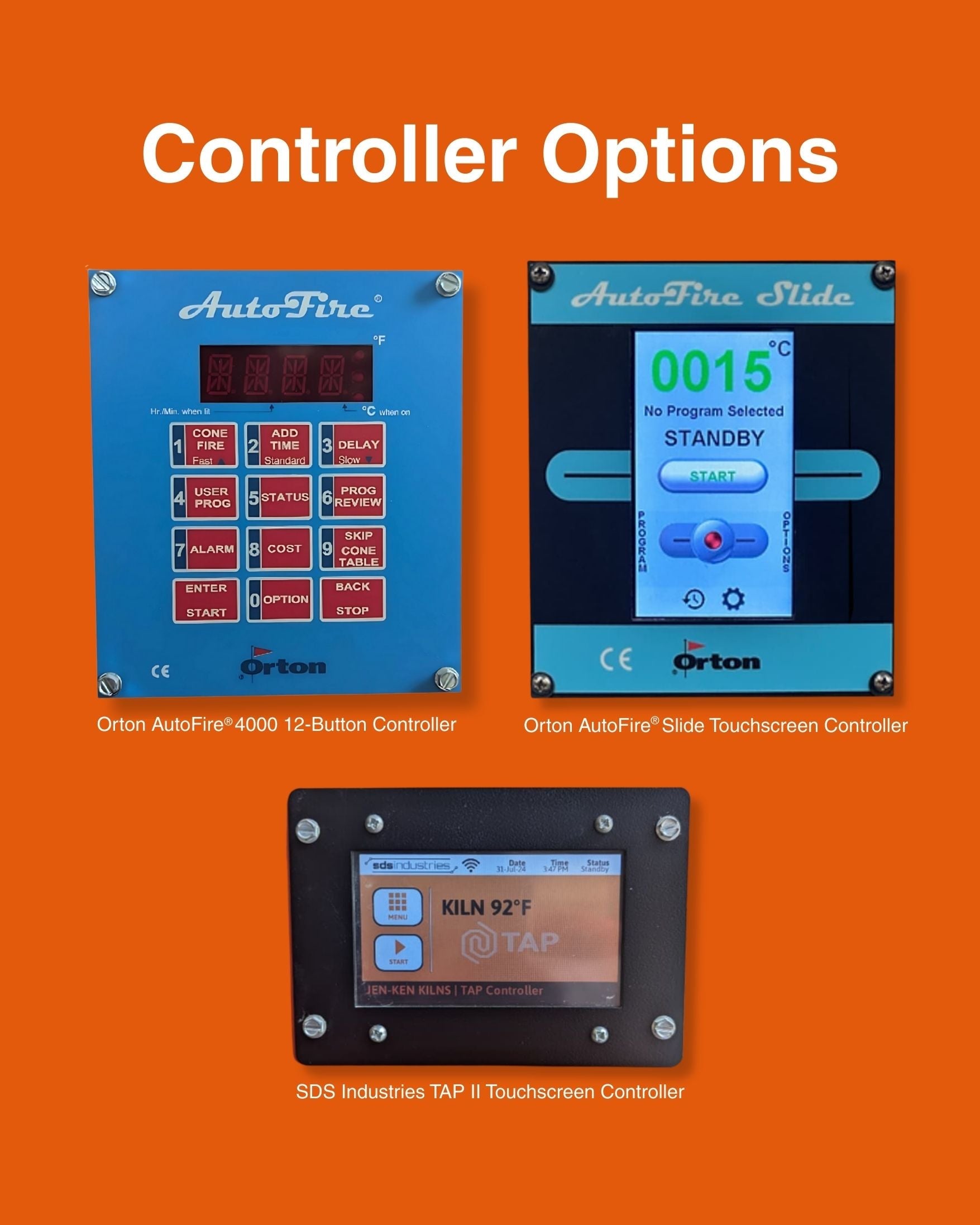

    Controller upgradeJen-Ken fits the Orton AutoFire 12-key as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?240V single phase, 36 amps, 8,640 watts, a NEMA 6-50R receptacle, a 50-amp breaker and #6 copper. That is what Jen-Ken publishes and it agrees with the wiring table in their own owner's manual, so it is a figure we are happy to print. It is a dedicated run — a kiln is a continuous load and should not share a circuit. Have a licensed electrician confirm it against your local code before delivery.
    What does "Deep" mean on this model?Fourteen inches of usable height, measured from the kiln floor up to the bottom of the quartz element tubes. That is the number that matters when you are buying a slumping mould, because the mould plus the glass has to clear the elements. Jen-Ken measures it that way on their own spec table and we have repeated their wording above.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How fast can it fire?Jen-Ken quotes up to 500°F an hour to 1,700°F on this kiln. Fiber has very little thermal mass, which is what makes that possible and also what makes it cool quickly. Whether you should fire that fast is a question about your glass and your schedule, not about the kiln.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory warranty applies exactly as it would buying direct. Note that Jen-Ken warrants fiber kilns for one year and brick kilns for two — the ProFusion is a fiber kiln, so it is the one-year line. Keep your proof of purchase.
    Sizing a fiber kiln for a working studio? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
