Jen-Ken ProFusion 16 Glass Kiln - 120V, 1700°F, 16" x 16" x 5"

Jen-KenGlass KilnSKU JENKEN-PROFUSION-16
$2,039.00Regular price$2,166.00
Save $127.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken ProFusion 16 Glas...
    $2,039.00
    Call

    Overview

    Jen-Ken · Glass Kiln · ProFusion Fiber Series Jen-Ken ProFusion 16 Glass Kiln Model AFG ProFusion 16 · 120V · 16" x 16" x 5" chamber · 1,700°F The ProFusion 16 is the small end of Jen-Ken's fiber clamshell line and the one that plugs into a normal wall. It is an all-fiber chamber rather than brick, so it heats and cools fast — Jen-Ken's own figure is full-fuse temperature in about an hour and a half — and at 42 lbs it sits on a bench rather than a stand. The whole top half lifts on a hinge, so you load a 16" x 16" shelf from above with the chamber wide open in front of you instead of reaching down into a well. It runs on 120V and draws 15 amps, which Jen-Ken specifies on its own dedicated 20-amp circuit.
    Max Temp1,700°F
    Chamber16" x 16" x 5"
    Capacity0.88 cu ft
    Power120V · 15A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships boxed by UPS.

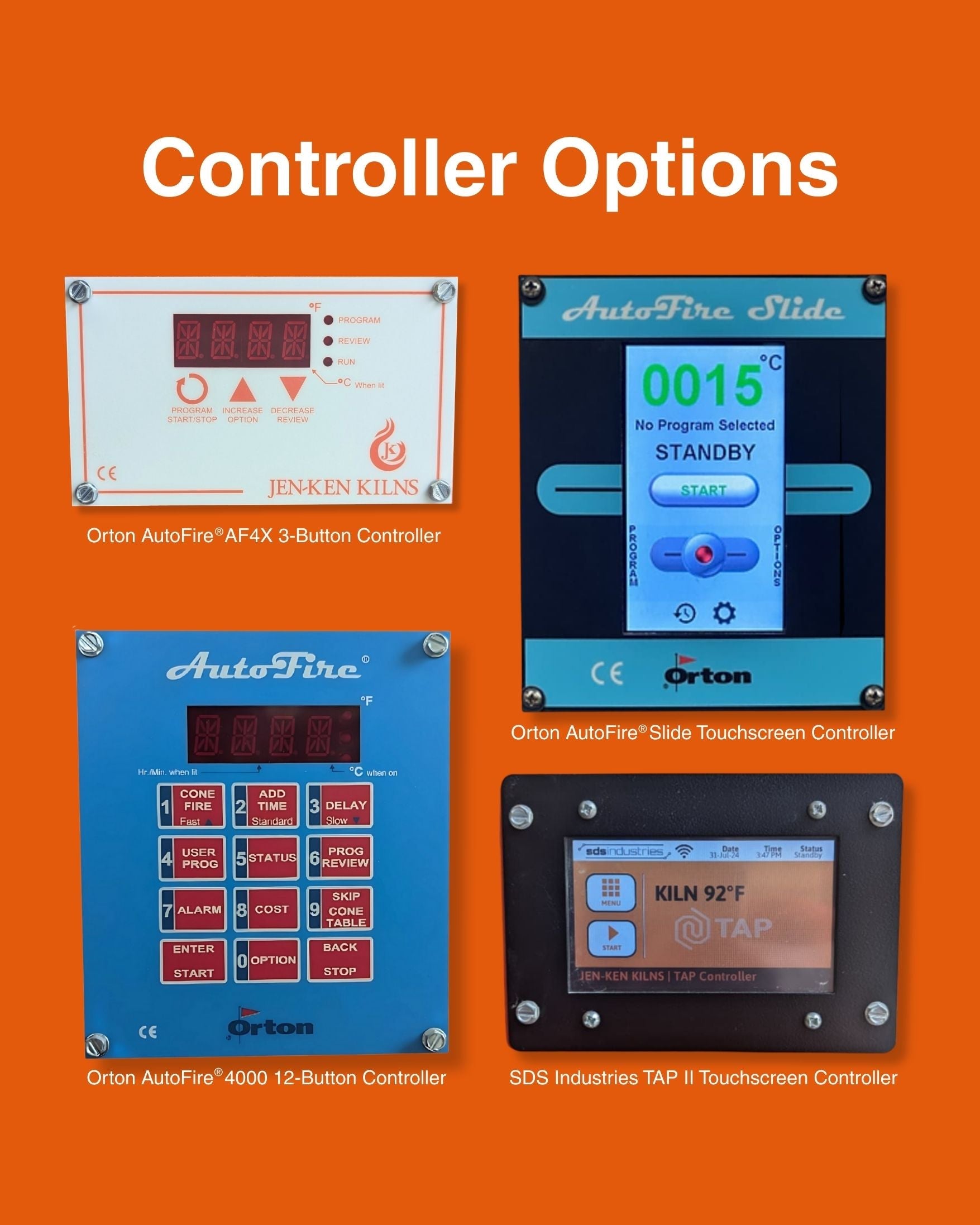

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3P 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 5-15PWired with a cord and an ordinary household NEMA 5-15P plug. Jen-Ken still specifies a dedicated 20-amp circuit for it, so do not share the outlet.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    1-year limited warrantyJen-Ken's fiber-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    Integrated stand with castersJen-Ken lists a built-in stand with casters for this model, so it rolls rather than being lifted.
    Quartz-encased elementsThe elements run inside quartz tubes rather than being buried in the fiber, which is what lets the chamber be all-fiber and still take direct radiant heat.

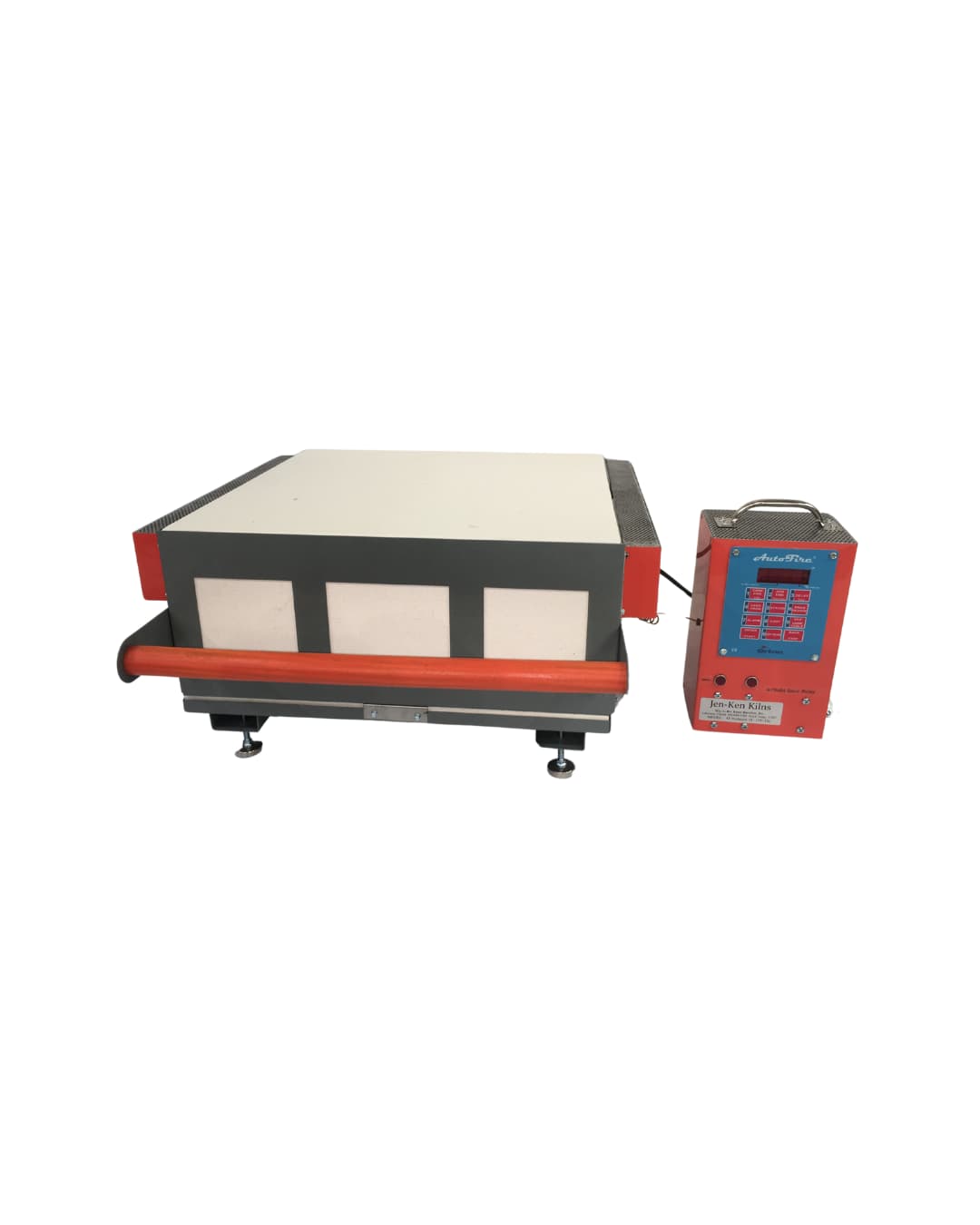

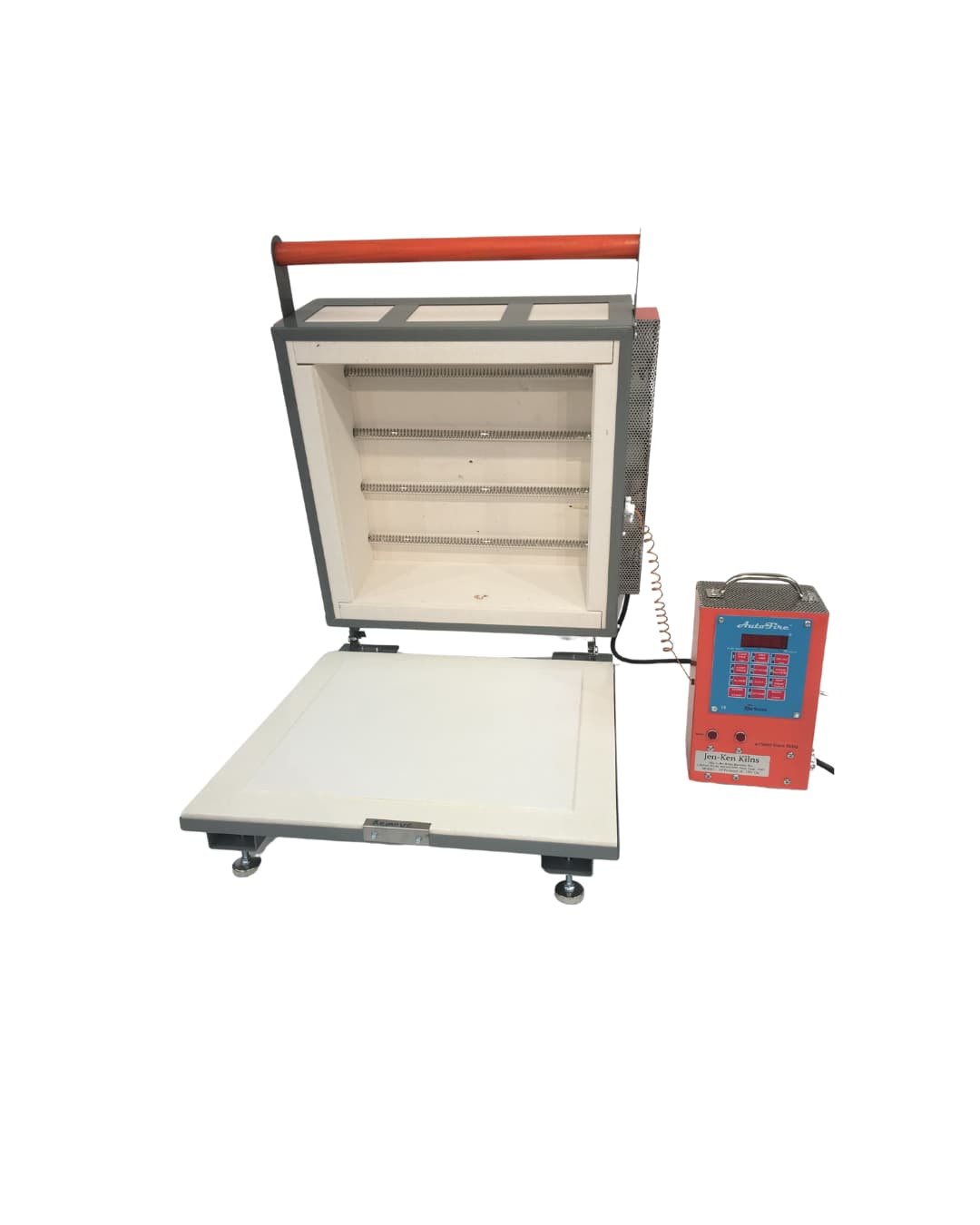

    Clamshell bodyThe top half hinges up as one piece. Loading is over the open shelf, not down into a well.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Technical specifications
    ModelAFG ProFusion 16
    Kiln functionFiber fusing, slumping
    Chamber dimensions16" x 16" x 5"
    Cubic feet0.88 cu ft
    Maximum temperature1,700°F (927°C)
    Voltage120V
    Amperage15A
    Wattage1,800W
    PhaseSingle phase
    ReceptacleNEMA 5-15R — Jen-Ken specifies a dedicated 20A circuit
    Breaker (fuse) size20A
    Circuit wire gauge#12
    Element typeQuartz-encased elements
    Element placementTop-fired
    LoadingClamshell — the upper half hinges open
    ControllerOrton AutoFire AF3P 3-button
    Overall dimensions24" W x 24" D x 10" H
    Kiln weight42 lbs
    Estimated shipping weight70 lbs (kiln) plus 12 lbs for the remote, shipped separately
    Shipping dimensions30" x 30" x 20" (kiln box)
    Shipping methodUPS or motor freight
    Warranty1-year limited (Jen-Ken fiber kiln)
    Warranty: One-year limited warranty from Jen-Ken Kilns to the original purchaser. Jen-Ken warrants brick kilns for two years and fiber kilns for one, and the ProFusion line is a fiber kiln. The warranty covers defects in materials and workmanship and is limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P 3-button as standard and offers other AutoFire controllers on the fiber line. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?120V single phase, a 15-amp draw, 1,800 watts, and a NEMA 5-15R receptacle — an ordinary three-prong outlet. What is not ordinary is that Jen-Ken specifies a dedicated 20-amp circuit with #12 wire behind it, and they say so on their own spec table. A 15-amp kiln is a continuous load; sharing a 15-amp household circuit with anything else will trip it. If you do not already have a spare 20-amp run in the room, budget for an electrician.
    Why fiber instead of brick?Fiber has almost no thermal mass, so it comes up to temperature fast and cools fast — Jen-Ken quotes roughly an hour and a half to full fuse on this kiln. That suits a studio turning work around in a day. The trade-offs are a softer interior that does not take knocks like brick, a lower ceiling (1,700°F, so no casting or clay), and a one-year warranty rather than two.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How big a piece will it take?The shelf is 16" x 16" and the chamber is 5" tall. That is comfortable for tiles, plates, panels and jewellery runs. It is not a kiln for deep slumps or tall moulds — 5 inches is the hard limit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory warranty applies exactly as it would buying direct. Note that Jen-Ken warrants fiber kilns for one year and brick kilns for two — the ProFusion is a fiber kiln, so it is the one-year line. Keep your proof of purchase.
    Not sure a 120V kiln is enough? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
