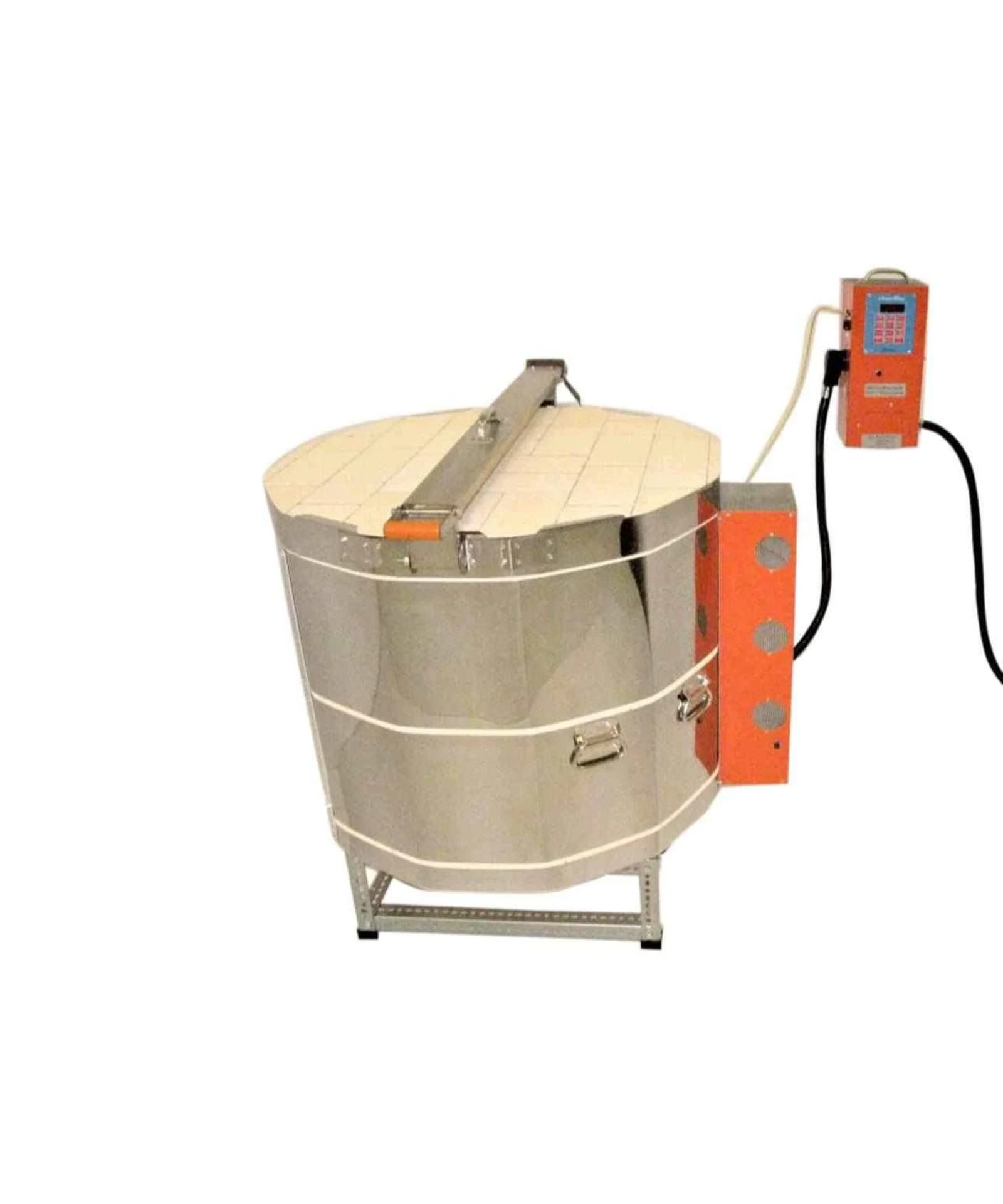

Jen-Ken Mega Coil 2822 3" Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-MEGACOIL-2822-3
$4,529.00Regular price$4,952.00
Save $423.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2822 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken Mega Coil 2822 3"...
    $4,529.00
    Call

    Overview

    Jen-Ken · Ceramic Kiln · Mega Coil Series Jen-Ken Mega Coil 2822 3" Ceramic Kiln Model AF 2822 Mega Coil 3" LL · 240V · 28" x 22" chamber · Cone 5-6 / 2,300°F Eight cubic feet of chamber with Mega Coil elements and 3-inch brick — the mid-size kiln in Jen-Ken's production line, aimed at studios, schools and commercial pottery operations that fire weekly or more. The heavy-gauge coils are the reason this line costs more than the standard 2822 3": they take frequent firing better and they are quicker to replace. One thing to know before you buy: Jen-Ken's published breaker and wire figures for this model are wrong, and we are not going to reprint them. Read the electrical question below.
    Max Temp2,300°F (Cone 5-6)
    Chamber28" x 22"
    Capacity8 cu ft
    Power240V · 42A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

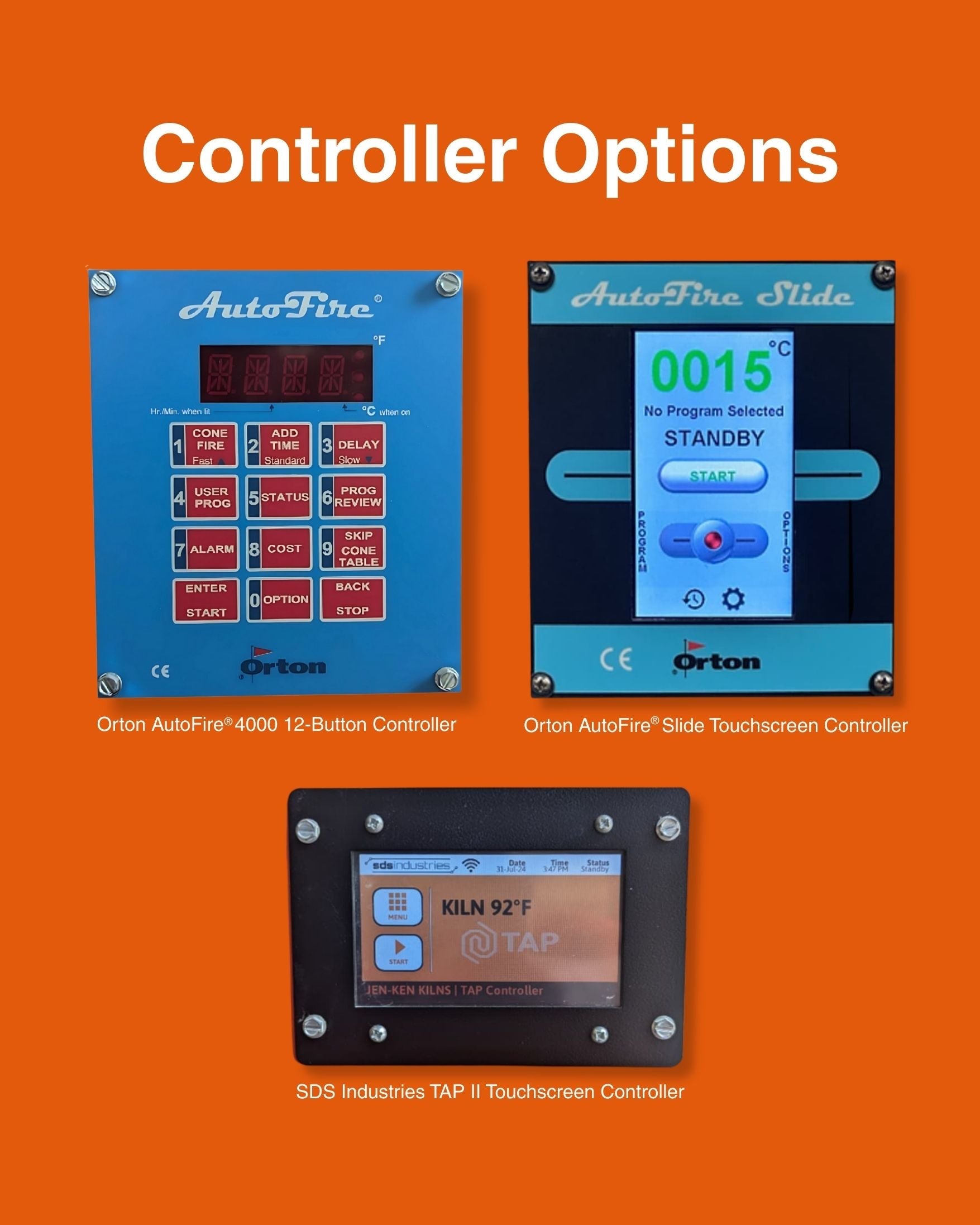

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.

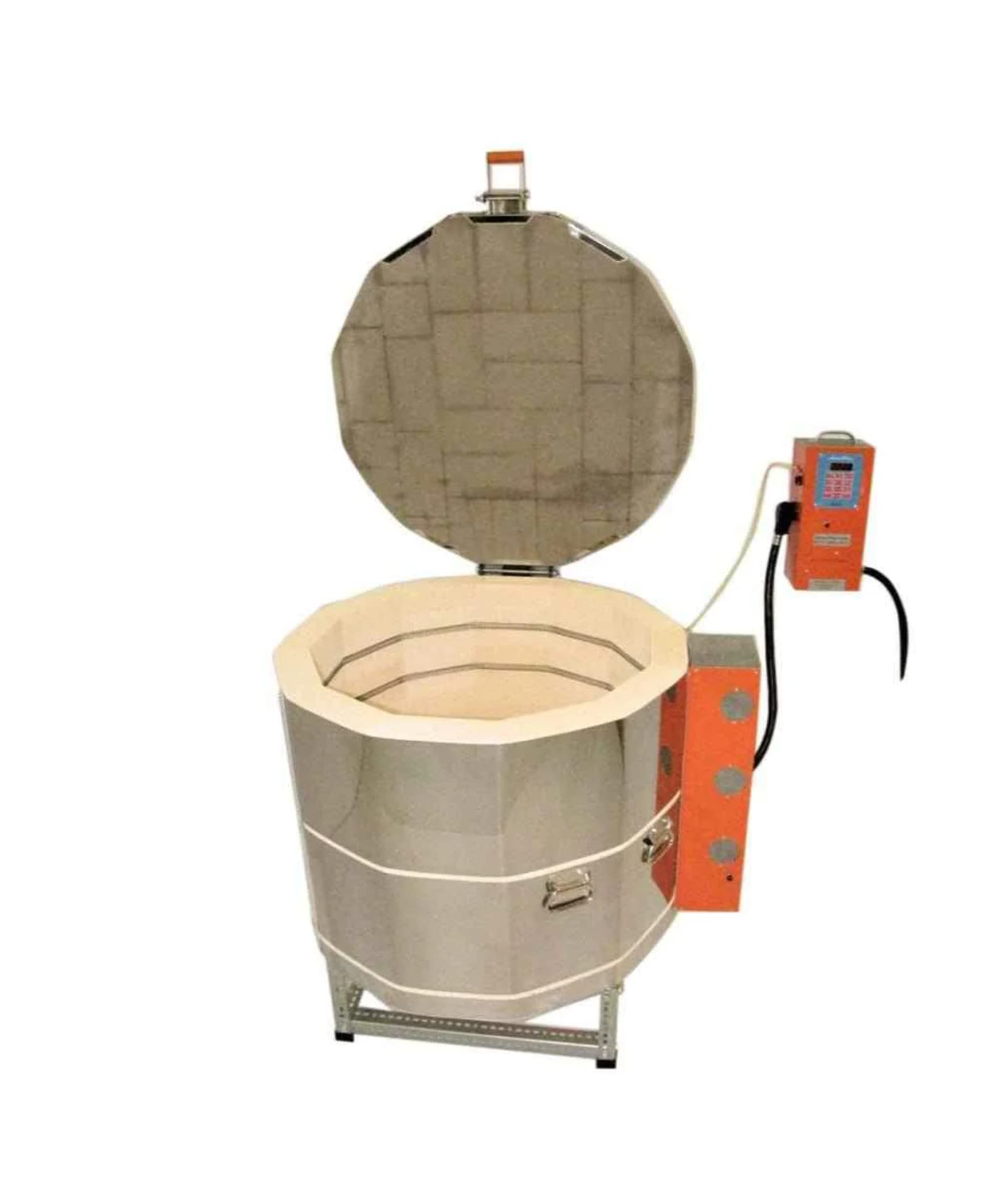

    Lid lifterJen-Ken's dealer sheet lists this model as including the lid lifter — the spring assist that takes most of the weight out of raising the lid.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Key features
    Mega Coil elementsOversized heavy-gauge coils rather than standard element stock — longer life under frequent firing, and easier to change.
    3-inch brick wallsThicker walls for heat retention on a kiln expected to fire several times a week.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.

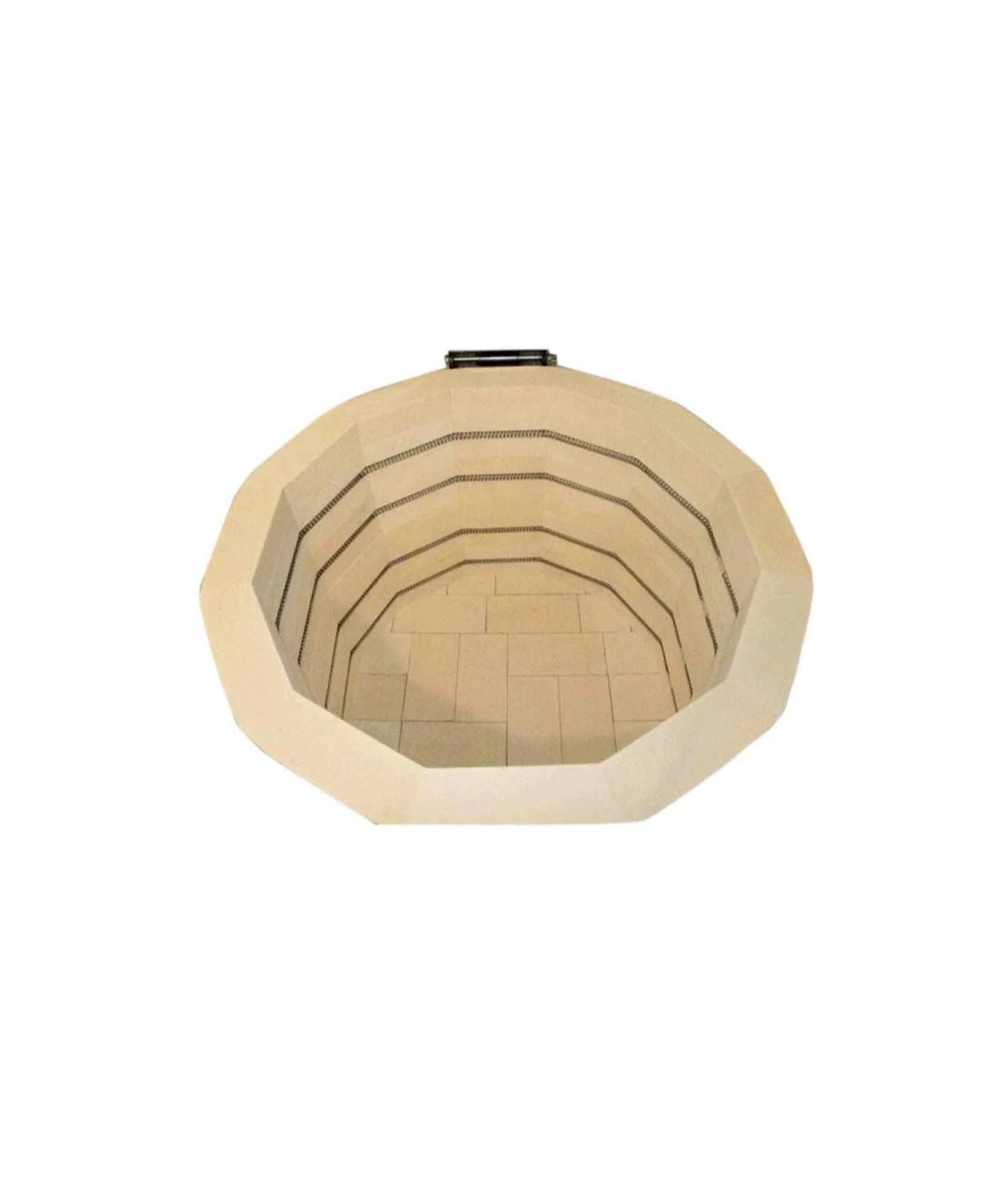

    Chamber size28" x 22" — 8 cu ft. That is the space you actually have to load.
    Technical specifications
    ModelAF 2822 Mega Coil 3" LL
    Kiln functionCeramics, pottery
    Chamber dimensions28" x 22"
    Cubic feet8 cu ft
    Maximum temperature2,300°F (1,260°C)
    Cone ratingCone 5-6
    Voltage240V
    Amperage42A
    Wattage10,080W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) sizeContact us — see note below
    Circuit wire gaugeContact us — see note below
    Element typeMega Coil
    Element placementSide-fired
    LoadingTop-loading
    ControllerOrton AutoFire 12-button
    Kiln weight300 lbs
    Estimated shipping weight350 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    Why is there no breaker size or wire gauge in the spec table?Because Jen-Ken's published figures for this model do not describe a circuit that can be built. Their page lists a 42A draw on a 30A-rated receptacle, with #16 circuit wire — #16 is a lamp-cord gauge, nowhere near a 42A conductor. We have confirmed the receptacle is a NEMA 6-50R, and that is published above. We will not print a breaker size or a wire gauge for this kiln until the factory confirms them, because those are the two numbers you hand to your electrician. Call or email us before you wire anything and we will get the nameplate figures from Jen-Ken for your build.
    What is safe to rely on?240V single phase, a 42A draw and 10,080W are consistent across Jen-Ken's page and independent retailers, and the NEMA 6-50R receptacle is confirmed by two separate sources. Size the circuit to the 42A draw with a licensed electrician and confirm the final numbers with us first.
    What is a Mega Coil?A separate, dearer Jen-Ken line — not a name for 3-inch brick. The elements are wound from heavier-gauge wire than a standard kiln uses, so they last longer under frequent firing and are easier to swap. Jen-Ken also sells a standard 2822 3" at a lower price; if you fire occasionally, that is the better buy.
    What can it fire?Jen-Ken rates this one cone 5-6 at 2,300°F — mid-fire stoneware, porcelain and the low-fire work most production studios run. It will not reach cone 10, whatever you may read elsewhere about kilns in this class.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Anything not on that list — shelves, posts, kiln wash — is a separate line on Jen-Ken’s sheet. Call or email us if you want the crate confirmed against your build before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Talk to us before you book the electrician. We are authorized Jen-Ken dealers based in Georgia. Jen-Ken's own page gets this kiln's wiring spec wrong, so call us and we will get the nameplate breaker and wire gauge from the factory for your build before anything is installed.
