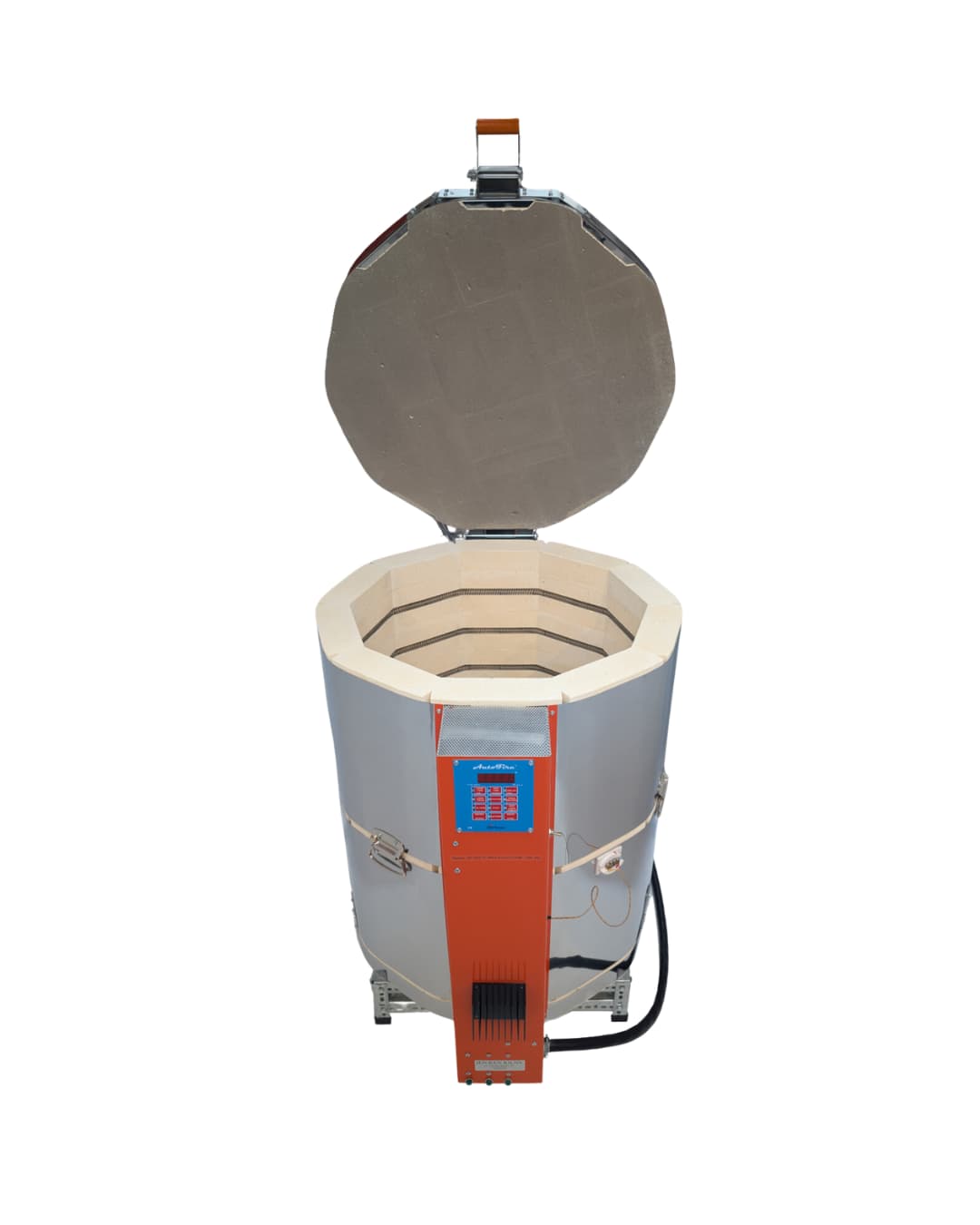

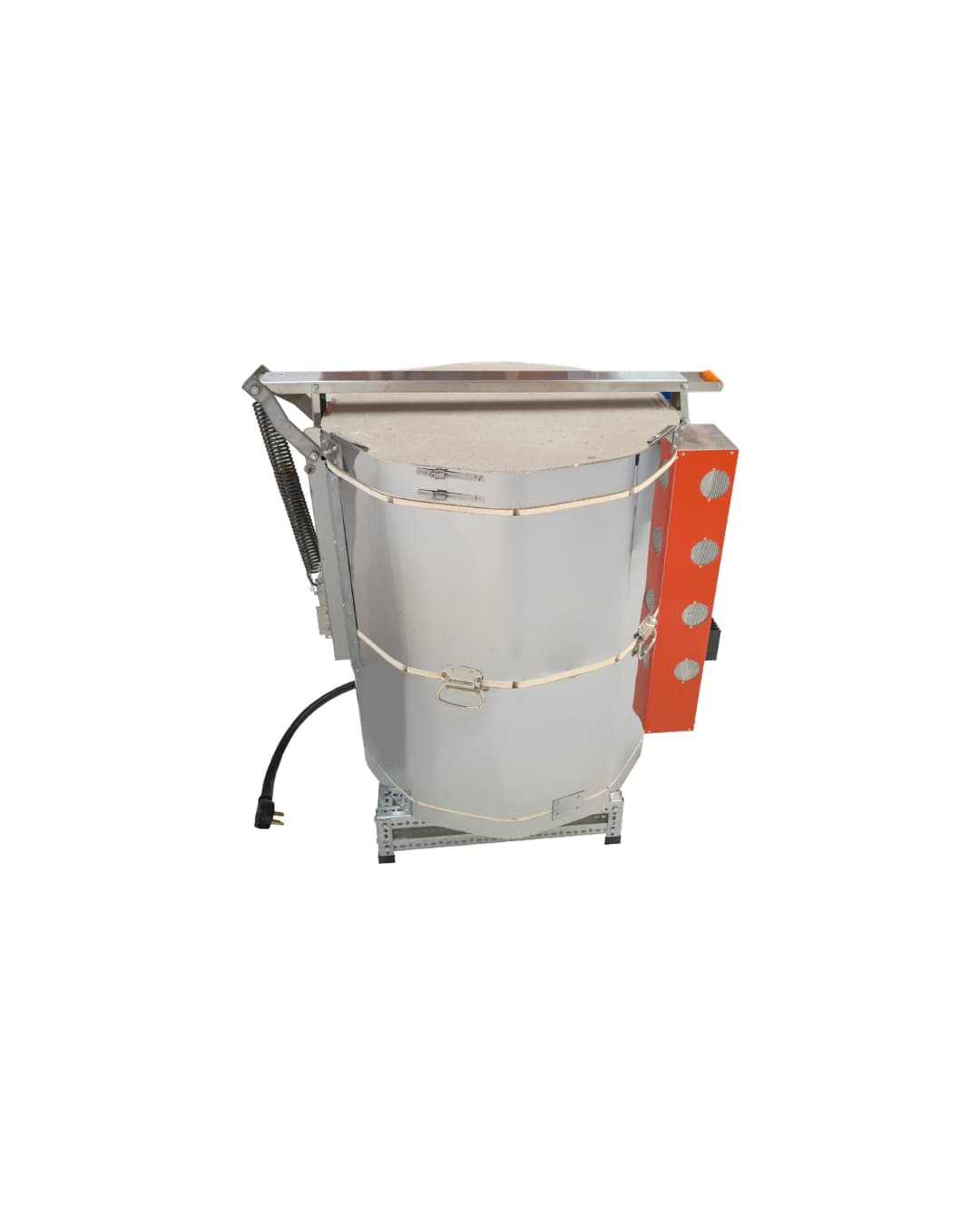

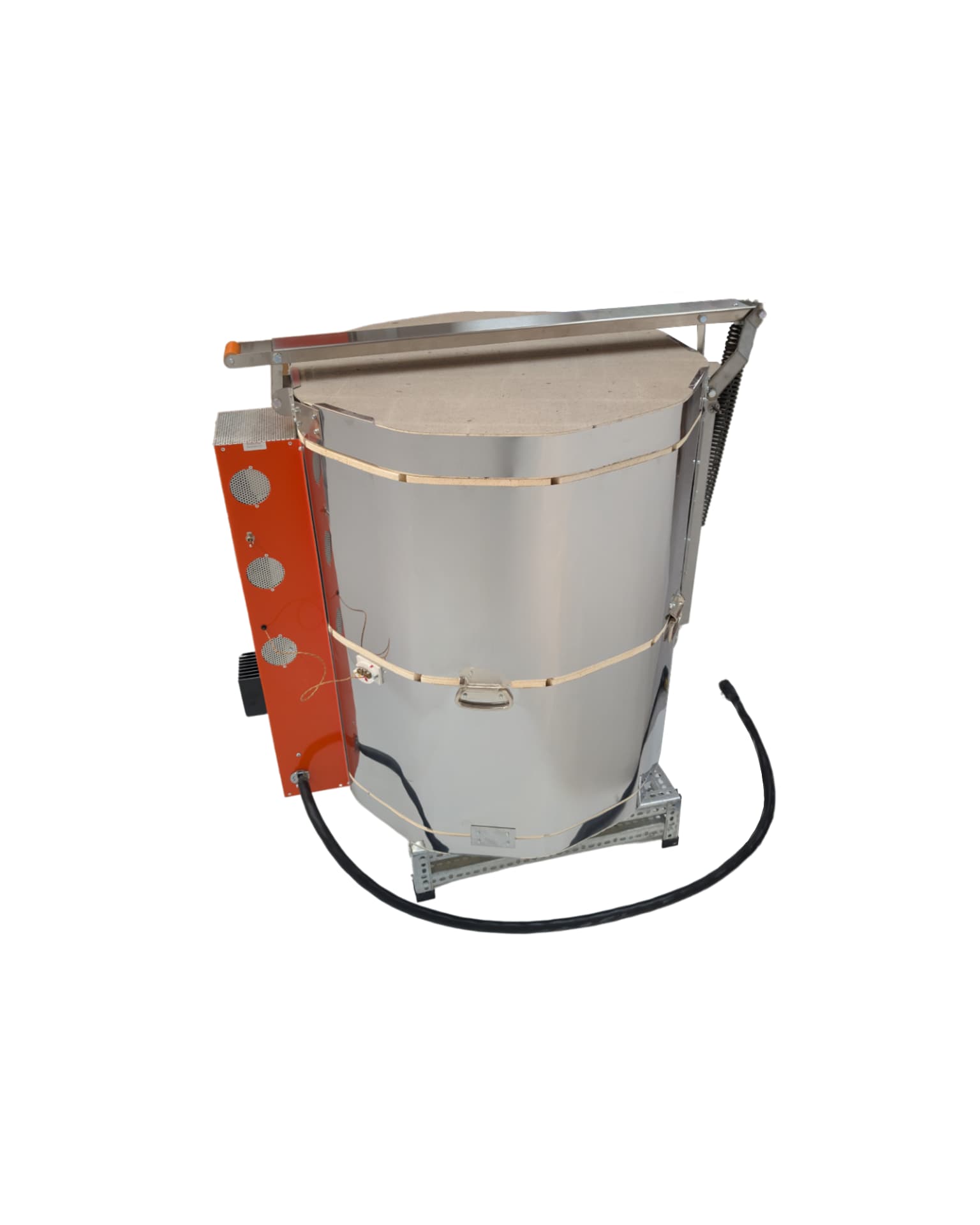

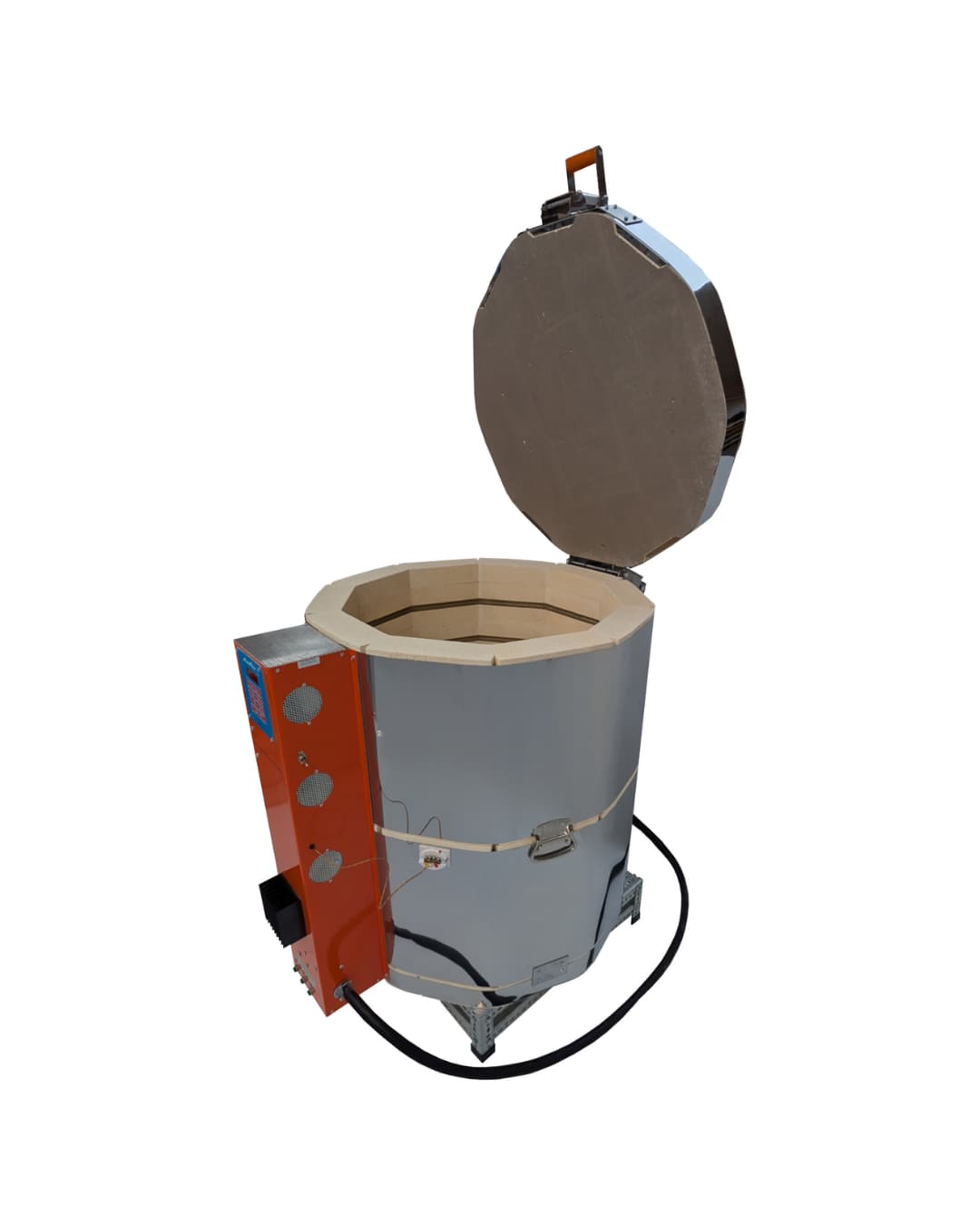

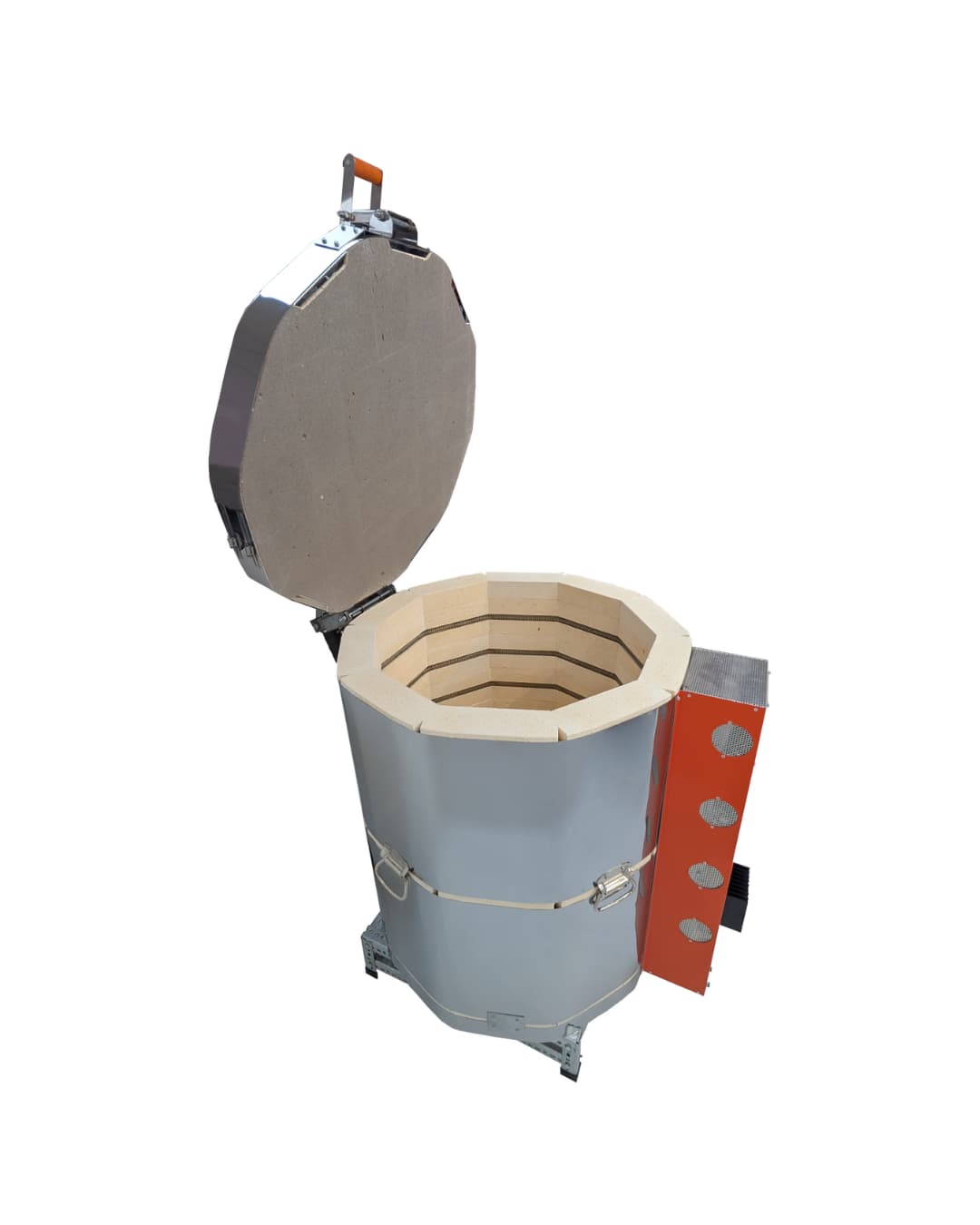

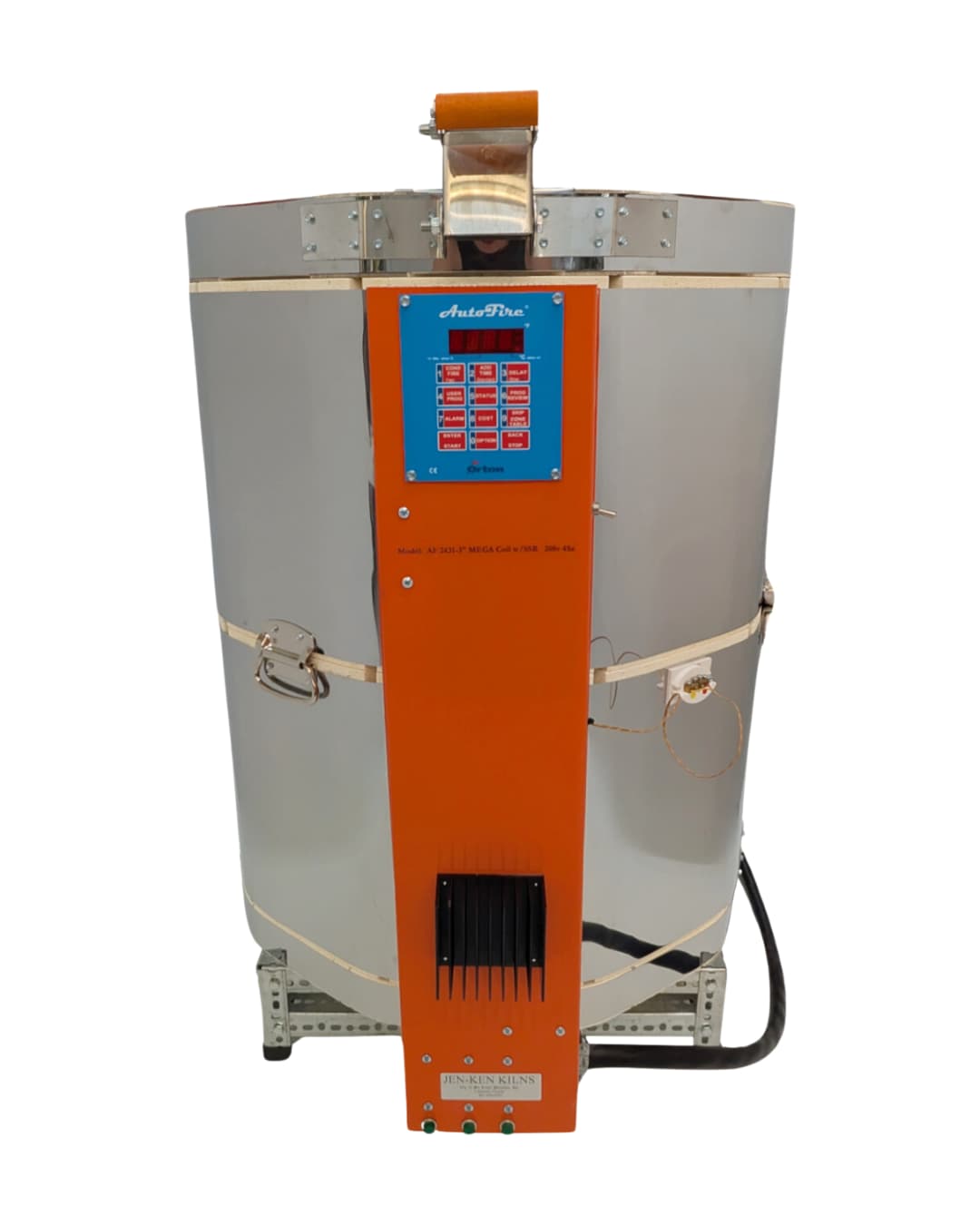

Jen-Ken Mega Coil 2431 3" Ceramic Kiln
The Mega Coil version of Jen-Ken's 2431 — 8.11 cubic feet, 3-inch brick, and heavy-gauge Mega Coil elements in place of standard element stock. It is built for studios and schools that fire on a schedule rather than when the shelf fills up, and it comes in two electrical builds: 45 amps on a 6-50 plug or 55 amps direct wired. Jen-Ken's own sources disagree on this kiln's cone rating, so we publish the maximum temperature and leave the cone number to the factory. That is explained below.
Max Temp2,300°F
Chamber24" x 31"
Capacity8.11 cu ft
Power240V · 45A or 55A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

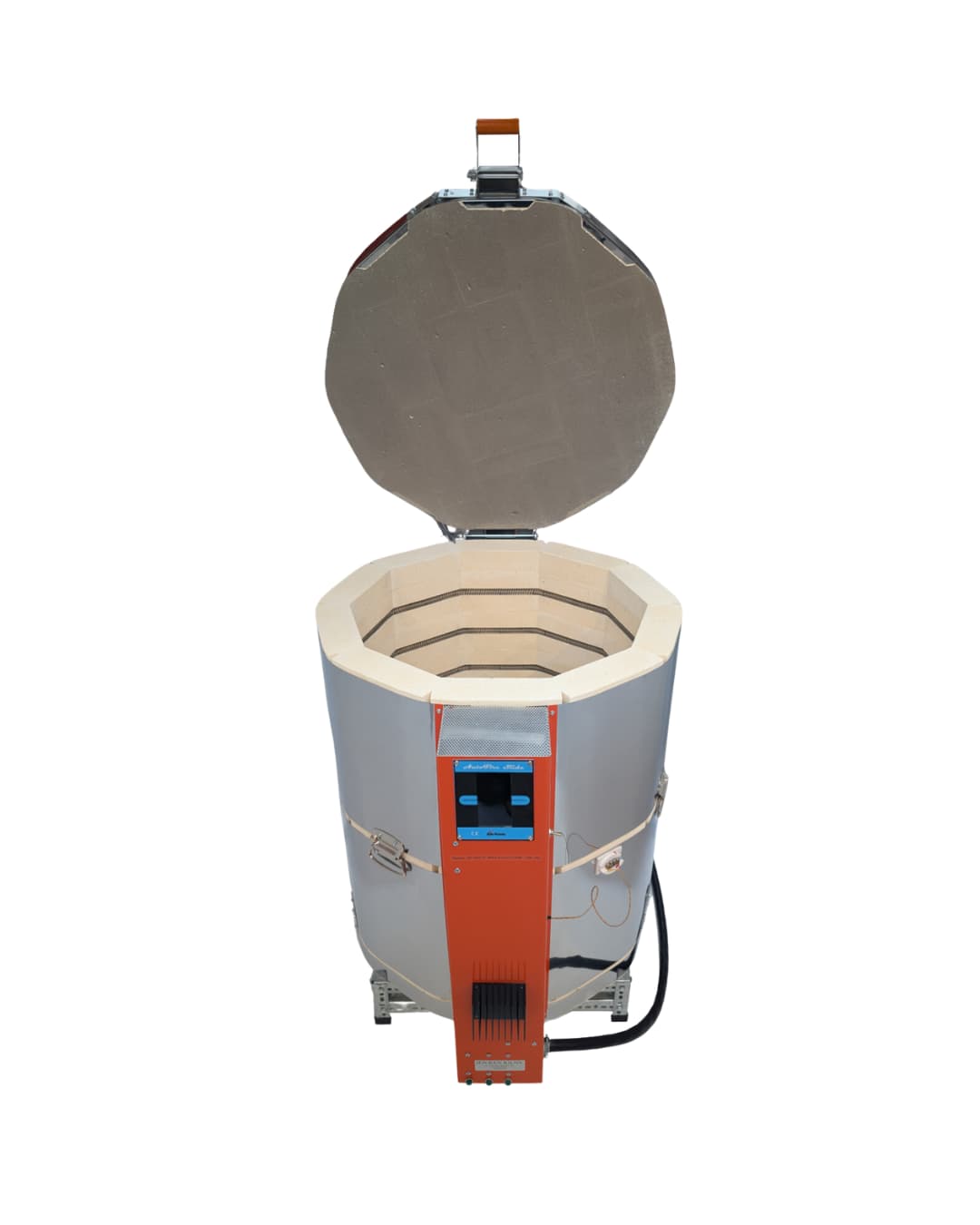

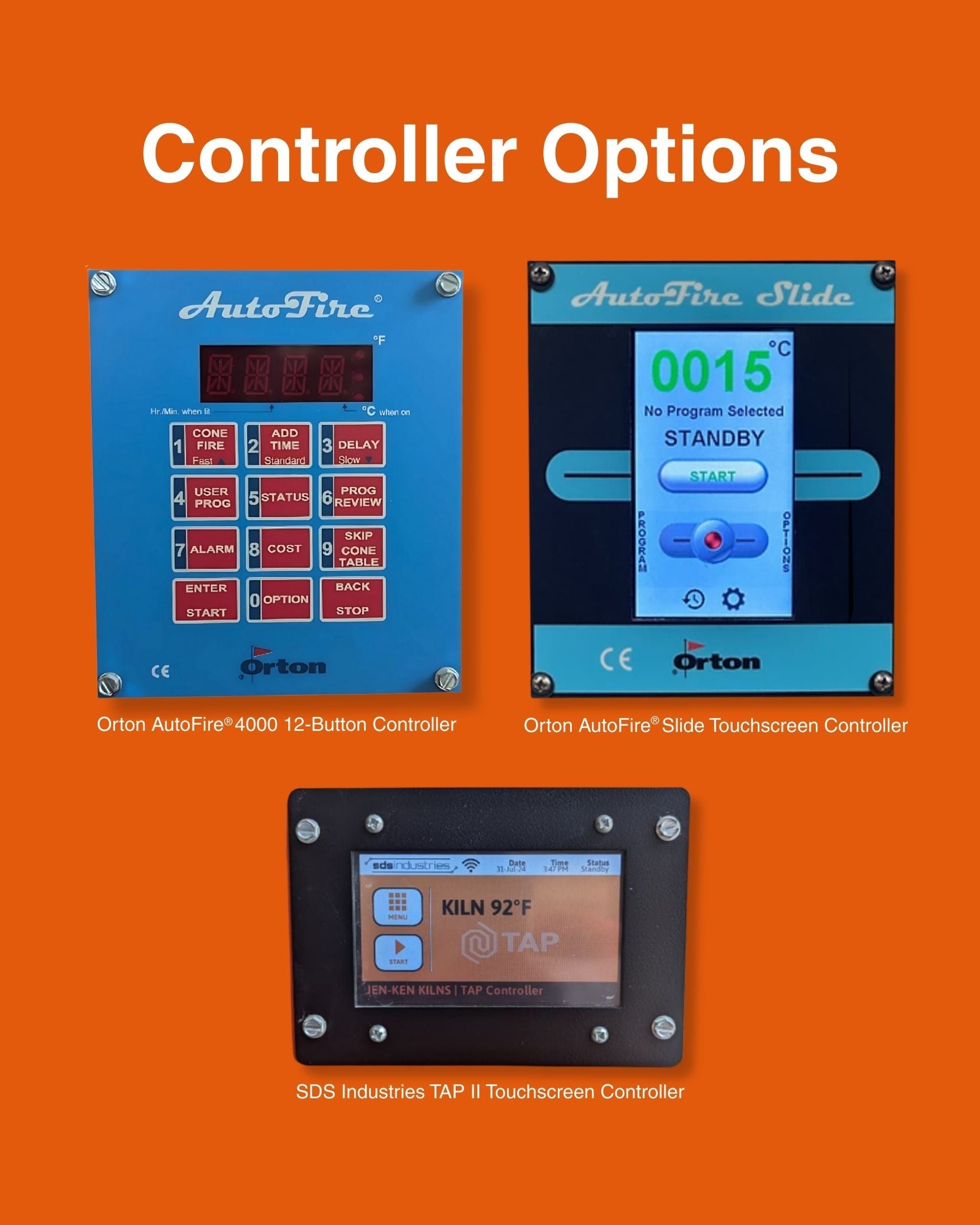

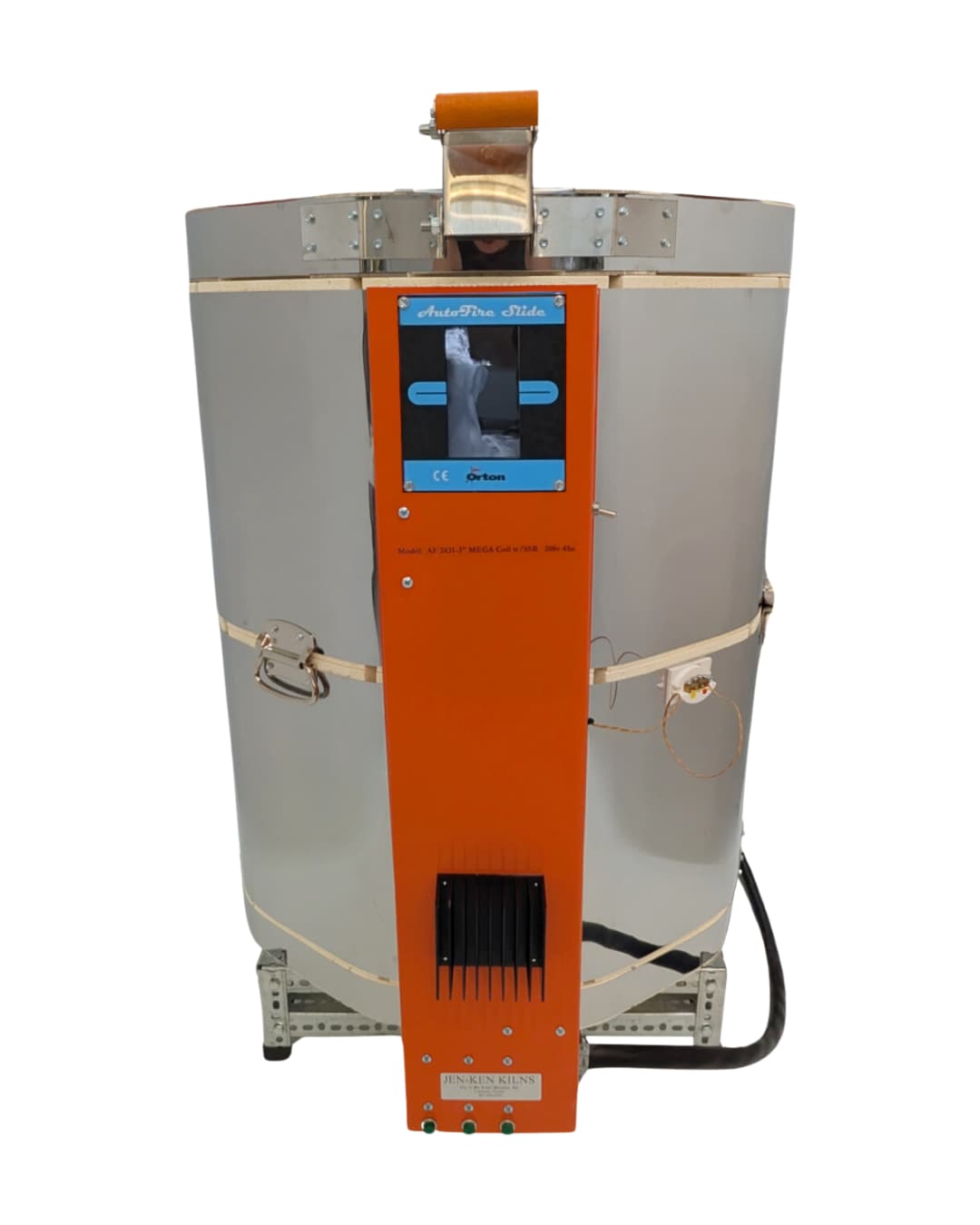

The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
Cord and plug, or direct wireThe 45-amp build ships with a cord and a NEMA 6-50P plug. The 55-amp build is direct-wired instead, with no plug, so an electrician lands the cable for you. Tell us which build you want before the order goes in.
Lid lifterJen-Ken's dealer sheet lists this model as including the lid lifter — the spring assist that takes most of the weight out of raising the lid.
Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
Key features
Mega Coil elementsOversized heavy-gauge coils rather than standard element stock — longer life under frequent firing, and easier to change.
3-inch brick wallsThicker walls for heat retention on a kiln expected to fire several times a week.
Two electrical builds45A on a NEMA 6-50, or 55A direct wired. Specify when you order.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Technical specifications
ModelAF 2431 Mega Coil 3" LL
Kiln functionCeramics, pottery
Chamber dimensions24" x 31"
Cubic feet8.11 cu ft
Maximum temperature2,300°F (1,260°C)
Cone ratingContact us — see note below
Voltage240V
PhaseSingle phase
Amperage — 45A build45A
Wattage — 45A build10,800W
Receptacle — 45A buildNEMA 6-50
Breaker — 45A build60A
Circuit wire gauge — 45A build#6
Amperage — 55A build55A
Wattage — 55A build13,200W
Receptacle — 55A buildDirect wire
Breaker — 55A build70A
Circuit wire gauge — 55A build#4
Element typeMega Coil
Element placementSide-fired
LoadingTop-loading, with lid lifters
ControllerOrton AutoFire 12-key
Overall dimensions30" x 37"
Kiln weight300 lbs
Estimated shipping weight480 lbs
Shipping dimensions54" x 45" x 64"
Shipping methodMotor freight
Warranty2-year limited (Jen-Ken)
Optional accessories
Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
Common questions
Why is there no cone rating?Because Jen-Ken publishes two different ones for this kiln. Their spec table says cone 8; their own body copy on the same page says it fires up to cone 5-6. No other Jen-Ken document gives a cone figure for the Mega Coil range at all. Publishing cone 8 when the working rating is cone 5-6 sets you up for a warranty argument and short element life; publishing cone 5-6 on a cone 8 kiln undersells it. So we publish the maximum temperature Jen-Ken and every other source agrees on — 2,300°F — and we are asking the factory for the working cone rating. Ask us and we will tell you what they say.
Which electrical build should I order?The 45A build runs 240V single phase, 10,800W, on a NEMA 6-50 with a 60A breaker and #6 wire. The 55A build is direct wired, 13,200W, with a 70A breaker and #4 wire. Jen-Ken does not print a standalone voltage row on this page, but both of their own wattage figures divide out to exactly 240V and their current price list confirms 240V. Decide the build before you order and have a licensed electrician confirm the circuit against local code.
What is a Mega Coil, and do I need one?Mega Coil is a separate, dearer Jen-Ken line — not another name for 3-inch brick. The coils are wound from heavier-gauge wire, so they survive frequent firing better and are easier to replace. Jen-Ken also builds a standard 2431 3" at a lower price with the same chamber. If you fire a few times a month, buy that one.
Will it fit through my door?Jen-Ken gives the kiln body a 30" x 37" footprint and crates it at 54" x 45" x 64". Measure your access before delivery; this comes by motor freight on a pallet.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Anything not on that list — shelves, posts, kiln wash — is a separate line on Jen-Ken’s sheet. Call or email us if you want the crate confirmed against your build before you order.
Can I get it in 208V or three phase?Standard build is 240V single phase, and that is the only configuration Jen-Ken publishes a specification for. Jen-Ken will build most ceramic models for 208V, and some for three phase, to order. There is no published amperage, breaker or wire figure for a three-phase build, so contact us for a quote and we will get the numbers from the factory.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
Need the cone rating before you commit?
We are authorized Jen-Ken dealers based in Georgia. Jen-Ken publishes two different cone ratings for this kiln — call us, we will get the working figure from the factory, and we will tell you whether the standard 2431 3" would suit you better.
