Jen-Ken Mega Coil 1822 3" Ceramic Kiln
$3,289.00Regular price$3,457.00
Save $168.00- 15-day returns
- No sales tax outside Georgia
- Made in USA
Ways to save
Choose your build
Built to order.
Already built, not made to order, so there is nothing else to configure. We confirm the lead time in writing before you are charged.
Lead time 6 to 8 weeks, confirmed in writing before you are charged.
Configure your kiln
Not sure? Call 470-264-3563
-

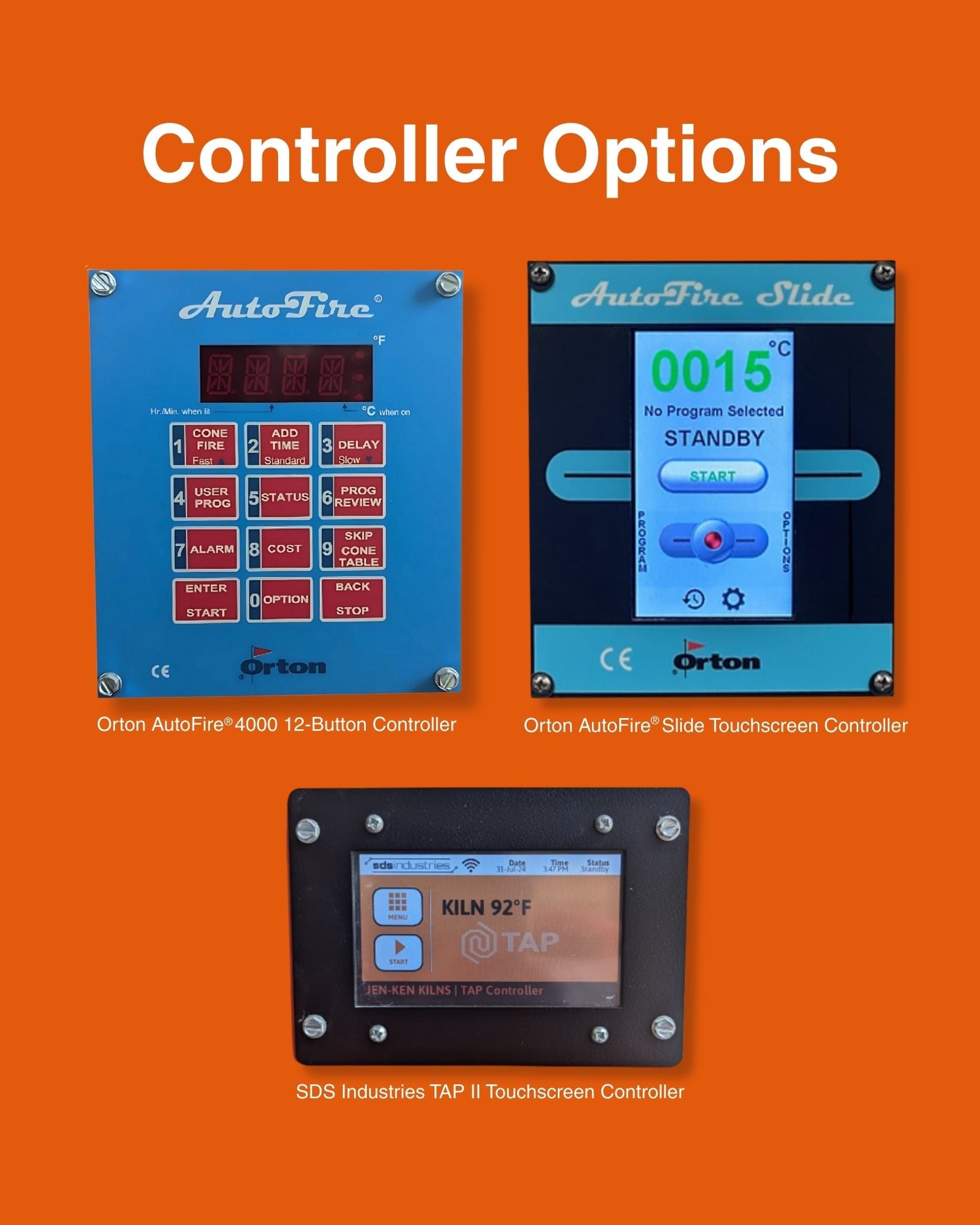

Orton AutoFire® 3-Button Remote Controller

-
Orton AutoFire® 12-Button Remote Controller

-
Orton AutoFire® Slide Remote Controller

-
SDS Industries TAP II Remote Controller

-
Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

Jen-Ken Mega Coil 1822 3"...
$3,289.00
Overview
Jen-Ken · Ceramic Kiln · Mega Coil Series

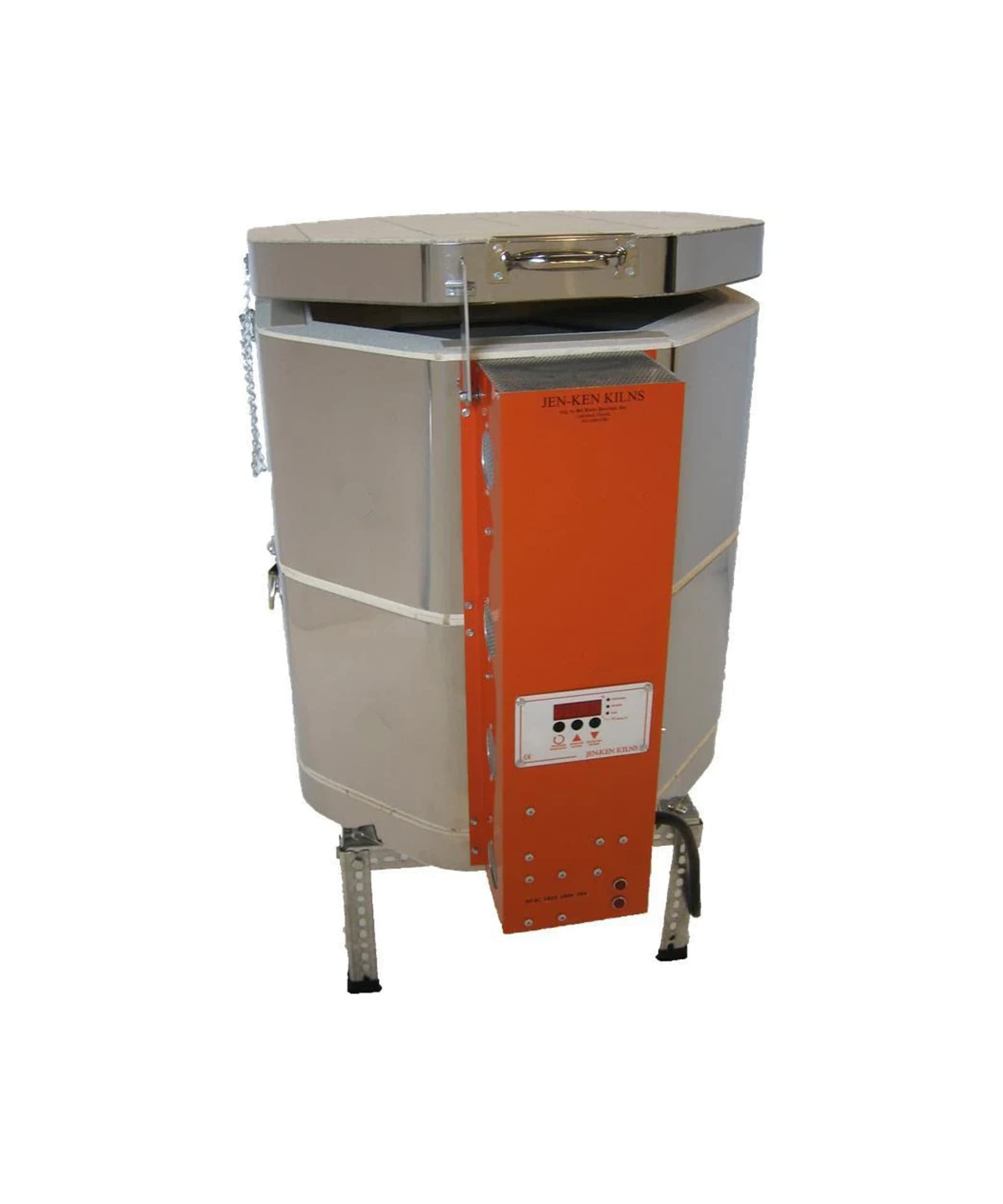

Jen-Ken Mega Coil 1822 3" Ceramic Kiln
The Mega Coil 1822 is the entry point into Jen-Ken's heavy-element line. Same 3.24 cubic foot chamber as the familiar AF3C 1822, but with 3-inch brick and oversized Mega Coil elements — and, importantly, a different circuit. Where the standard 1822 draws 26 amps on a 6-30R, this one draws 30 amps on a 6-50R. They are not interchangeable, so do not wire for one and order the other. It suits a school or a small studio that fires most weeks and wants elements that will take it.
Max Temp2,300°F
Chamber18" x 22"
Capacity3.24 cu ft
Power240V · 30A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
Key features
Mega Coil elementsOversized heavy-gauge coils rather than standard element stock — longer life under frequent firing, and easier to change.
3-inch brick wallsThicker walls than the standard 1822, for better heat retention when firing frequently.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Chamber size18" x 22" — 3.24 cu ft. That is the space you actually have to load.
Technical specifications
ModelAF 1822 Mega Coil 3"
Kiln functionCeramics, pottery
Chamber dimensions18" x 22"
Cubic feet3.24 cu ft
Maximum temperature2,300°F (1,260°C)
Voltage240V
Amperage30A
Wattage7,200W
PhaseSingle phase
ReceptacleNEMA 6-50R
Breaker (fuse) size60A
Circuit wire gauge#6
Element typeMega Coil
Element placementSide-fired
LoadingTop-loading
ControllerOrton AutoFire 12-button
Kiln weight175 lbs
Estimated shipping weight240 lbs
Shipping methodMotor freight
Warranty2-year limited (Jen-Ken)
Optional accessories
Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
Common questions
What electrical circuit does it need?240V single phase, 30A draw, 7,200W. Jen-Ken specifies a NEMA 6-50R receptacle with a 60A breaker and #6 circuit wire — heavier than the 30A draw strictly needs, which is Jen-Ken's own published pairing for this model. Note that the breaker Jen-Ken quotes is larger than the 50-amp rating of a 6-50R receptacle, so have a licensed electrician confirm the final arrangement against your local code before installation. Jen-Ken also notes that runs over 30 feet from the breaker may need the next heavier gauge.
How is this different from the standard AF3C 1822?Three ways, and the third is the one that catches people out. It has 3-inch brick, it has Mega Coil elements, and it draws 30 amps on a NEMA 6-50R where the standard 1822 draws 26 amps on a NEMA 6-30R. Same chamber, different circuit. If you already have a 6-30 outlet for a 1822, this kiln will not plug into it.
Is it worth the extra over a standard 1822?If you fire most weeks — a school, a class, a small production studio — the heavier coils last longer and are quicker to change, and the 3-inch brick cuts your power cost per firing. If you fire once or twice a month, the standard AF3C 1822 does the same work for a good deal less money.
What can it fire?Jen-Ken publishes 2,300°F for this kiln and does not state a cone rating for it, so we have not invented one. At 2,300°F it sits in the same class as the rest of their cone 5-8 ceramic range. It will not reach cone 10.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
Mega Coil or standard 1822?
We are authorized Jen-Ken dealers based in Georgia. Tell us how often you fire and what outlet you have, and we will tell you straight which of the two 18 x 22 kilns to buy — including when the cheaper one is the right answer.
