Jen-Ken JK² 29" Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-JK2-29
$4,859.00Regular price$5,352.00
Save $493.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

JK² 29" is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken JK² 29" Ceramic Kiln
    $4,859.00
    Call

    Overview

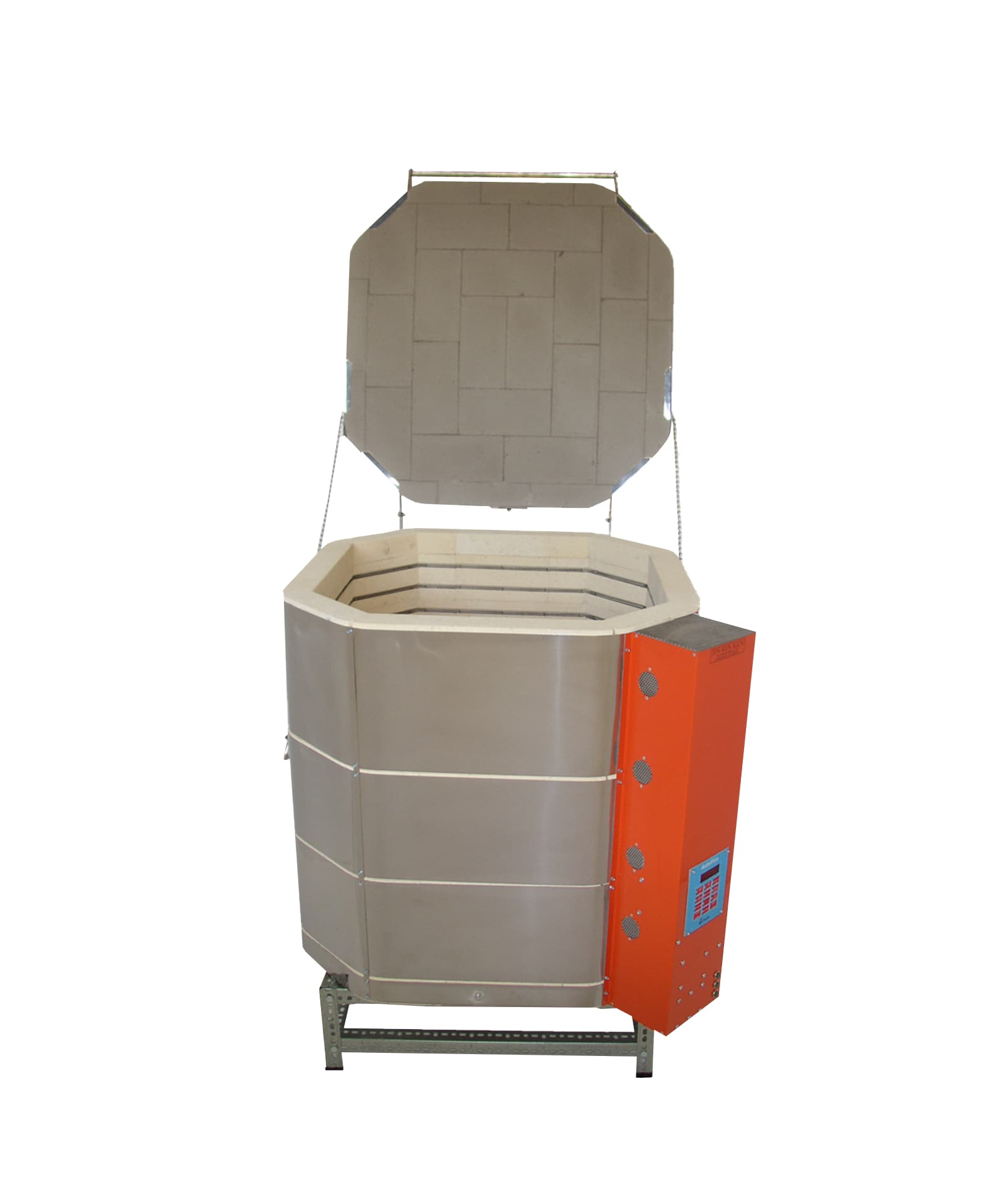

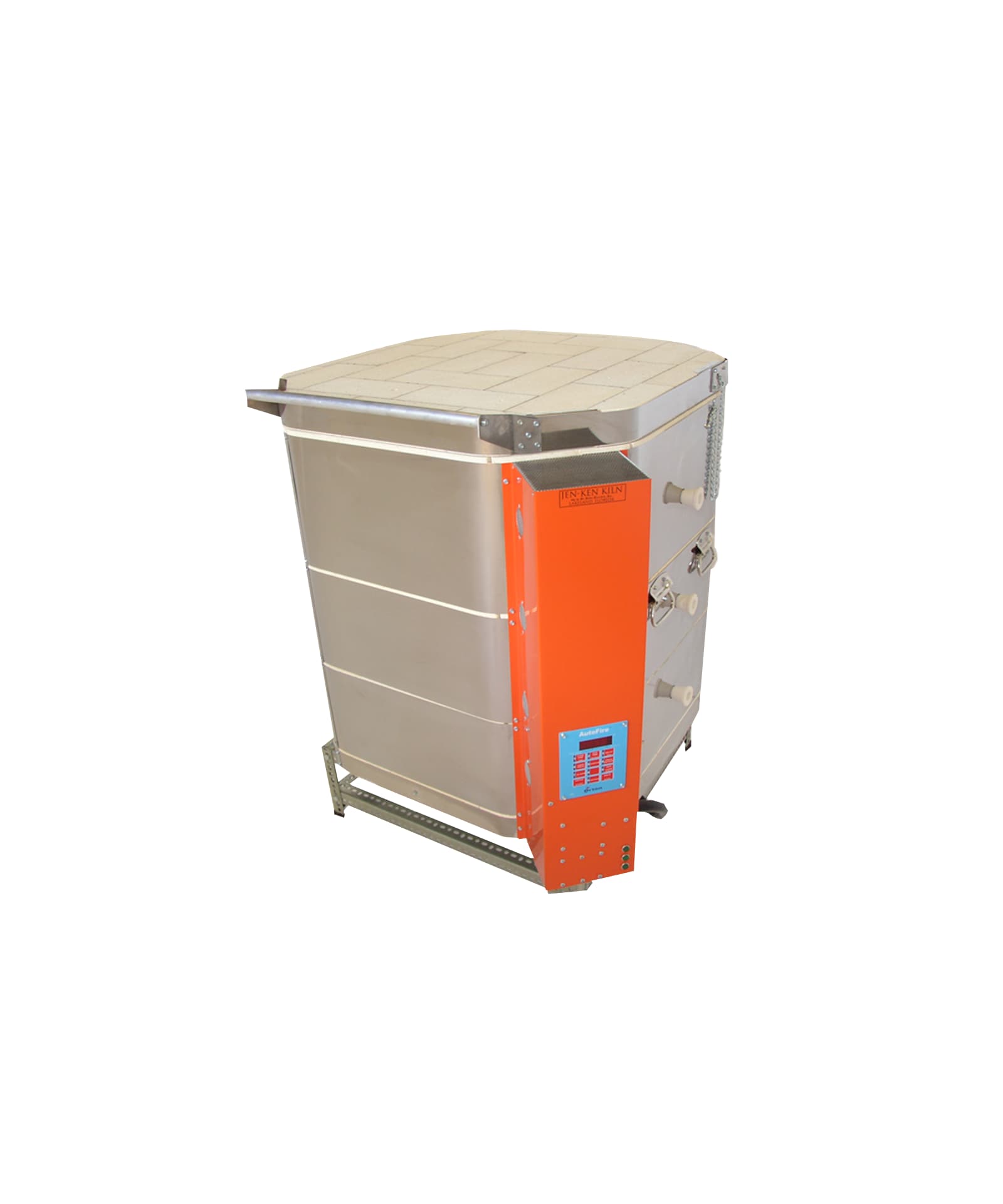

    Jen-Ken · Ceramic Kiln · JK² Series Jen-Ken JK² 29" Ceramic Kiln Model AF JK² 29" · 240V · 27" x 27" x 29" chamber · 2,250°F The JK² is Jen-Ken's square-chamber kiln, and the shape is why people buy it. A 27" x 27" footprint 29 inches deep gives you 11.4 cubic feet with flat walls and corners — which means yard ornaments, large slip-cast pieces and square work sit in it properly instead of wasting the space a round chamber leaves at the edges. It is rated to 2,250°F, so it is a low-fire production kiln. Two electrical builds are offered, 45 amps plugged or 55 amps direct wired.
    Max Temp2,250°F
    Chamber27" x 27" x 29"
    Capacity11.4 cu ft
    Power240V · 45A or 55A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

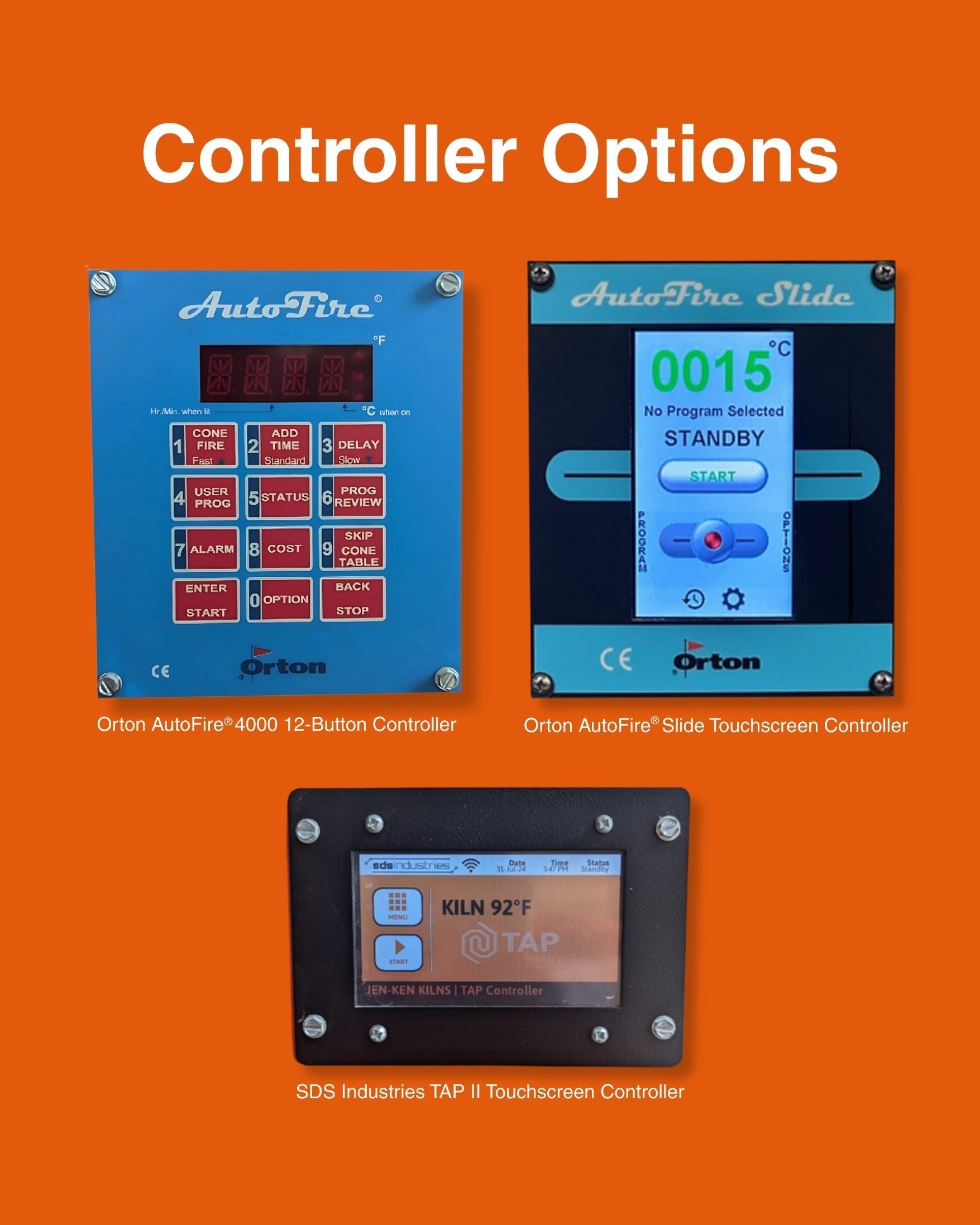

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model. Jen-Ken’s own page names the Orton AutoFire 3-button as this model’s standard board, but their dealer price sheet prices only the controllers above for it, so ask us and we will confirm with the factory before your order goes in.
    Cord and plug, or direct wireThe 45-amp build ships with a cord and a NEMA 6-50P plug. The 55-amp build is direct-wired instead, with no plug, so an electrician lands the cable for you. Tell us which build you want before the order goes in.
    Lid liftersJen-Ken lists lid lifters with this model.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
    Key features
    Square chamberFlat walls and corners rather than a round barrel — the usable volume for square and irregular work is much higher than the cubic-foot figure suggests.
    Two electrical builds45A on a NEMA 6-50R, or 55A direct wired. Specify when you order.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size27" x 27" x 29" — 11.4 cu ft. That is the space you actually have to load.
    Technical specifications
    ModelAF JK² 29" Ceramic Kiln
    Kiln functionCeramics, pottery
    Chamber dimensions27" x 27" x 29"
    Cubic feet11.4 cu ft
    Maximum temperature2,250°F (1,232°C)
    Voltage240V
    PhaseSingle phase
    Amperage — 45A build45A
    Wattage — 45A build10,800W
    Receptacle — 45A buildNEMA 6-50R
    Breaker — 45A build60A
    Circuit wire gauge — 45A build#6
    Amperage — 55A build55A
    Wattage — 55A build13,200W
    Receptacle — 55A buildDirect wire
    Breaker — 55A build70A
    Circuit wire gauge — 55A build#4
    Element placementSide-fired
    LoadingTop-loading, with lid lifters
    ControllerOrton AutoFire 3-button
    Overall dimensions36" x 46" x 39"
    Kiln weight250 lbs
    Estimated shipping weight400 lbs
    Shipping dimensions54" x 45" x 50"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    Which electrical build should I order?The 45A build is 240V single phase, 10,800W, on a NEMA 6-50R with a 60A breaker and #6 wire. The 55A build is direct wired, 13,200W, with a 70A breaker and #4 wire. Both are single phase. Pick before you order — this is built to order and the two are not interchangeable. Use a licensed electrician; Jen-Ken notes runs over 30 feet from the breaker may need the next heavier gauge.
    What can it fire?Jen-Ken publishes 2,250°F for this kiln. They do not state a cone rating for the 29", so we have not invented one — 2,250°F puts it in low-fire and lower mid-range territory. It is not a cone 10 kiln, and it is not the right kiln for high-fire stoneware production. Ask us and we will get the working cone rating from the factory.
    Why square instead of round?Because a square chamber wastes less space on square work. If you fire yard ornaments, slabs, tiles, boxes or large slip-cast pieces, you will fit noticeably more into 11.4 square cubic feet than into 11.4 round ones. If you throw round pots, a round kiln is cheaper.
    Will it fit?The kiln body measures 36" x 46" x 39" overall and crates at 54" x 45" x 50". Measure your doorways and your route before delivery — it arrives by motor freight on a pallet at around 375 lbs.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Can I get it in 208V or three phase?Standard build is 240V single phase, and that is the only configuration Jen-Ken publishes a specification for. Jen-Ken will build most ceramic models for 208V, and some for three phase, to order. There is no published amperage, breaker or wire figure for a three-phase build, so contact us for a quote and we will get the numbers from the factory.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Square chamber, 11.4 cubic feet — is it the right shape for you? We are authorized Jen-Ken dealers based in Georgia. Tell us what you make and what power you have available, and we will tell you straight whether the JK² earns its price over a round kiln of the same volume.
