Jen-Ken JK² 22" Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-JK2-22
$4,309.00Regular price$4,673.00
Save $364.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

JK² 22" Ceram-a-Glass is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

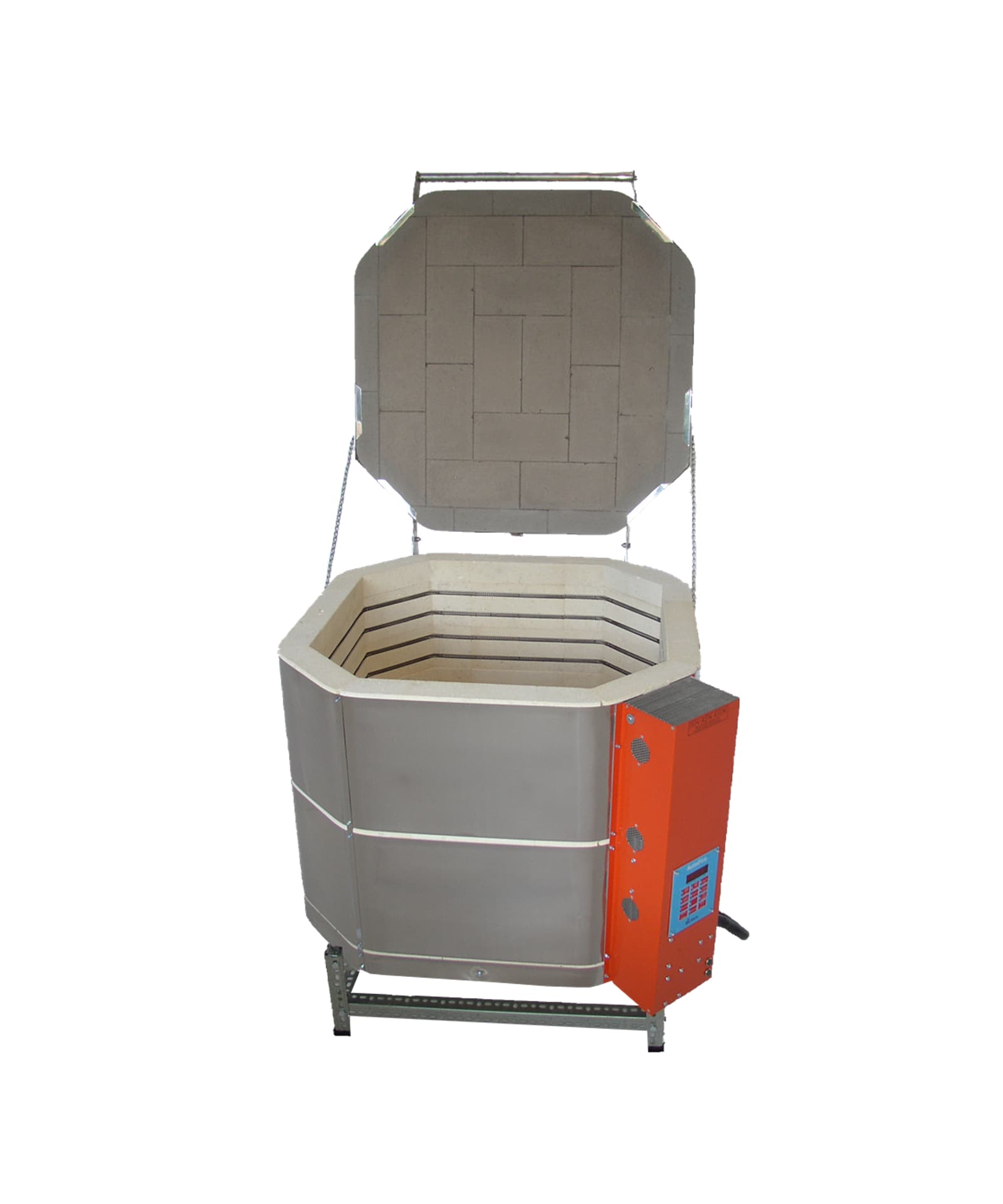

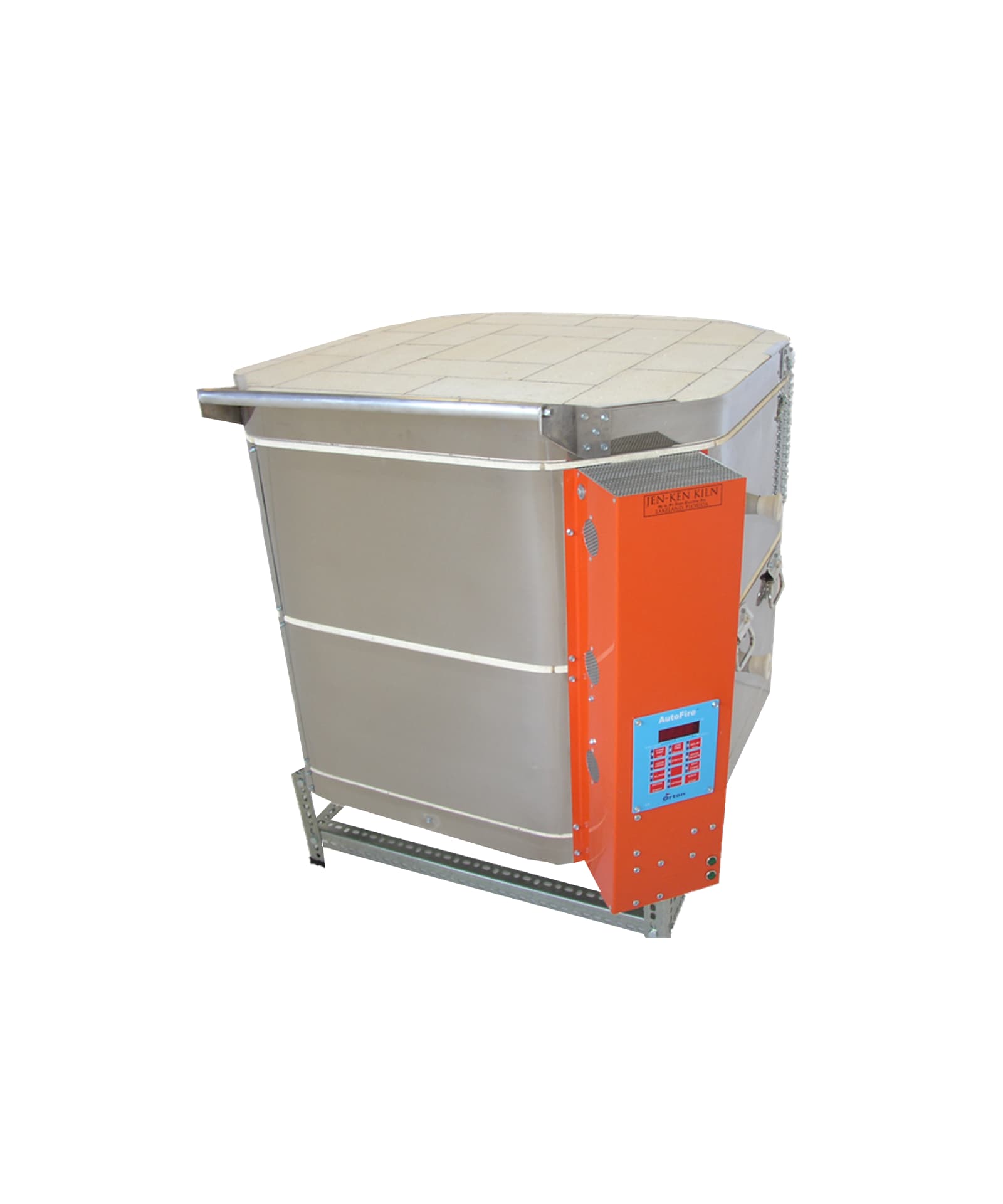

    Jen-Ken JK² 22" Ceramic Kiln
    $4,309.00
    Call

    Overview

    Jen-Ken · Ceramic Kiln · JK² Series Jen-Ken JK² 22" Ceramic Kiln Model JK² 22" · 240V · 27" x 27" x 22" chamber · Cone 04-06 The JK² 22 is the shallower of Jen-Ken's two square kilns: 27 inches each way and 22 deep, for nine cubic feet of flat-walled chamber. Square is the reason to buy it. Yard ornaments, tiles, boxes, large slip-cast work and anything with corners uses the space far better than it would in a round barrel, and at 22 inches deep you can reach the bottom shelf without climbing in. Jen-Ken builds it for low-fire ceramics — cone 04-06 — rather than high-fire stoneware production.
    Max Temp2,100°F
    Chamber27" x 27" x 22"
    Capacity9 cu ft
    Power240V · 45A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

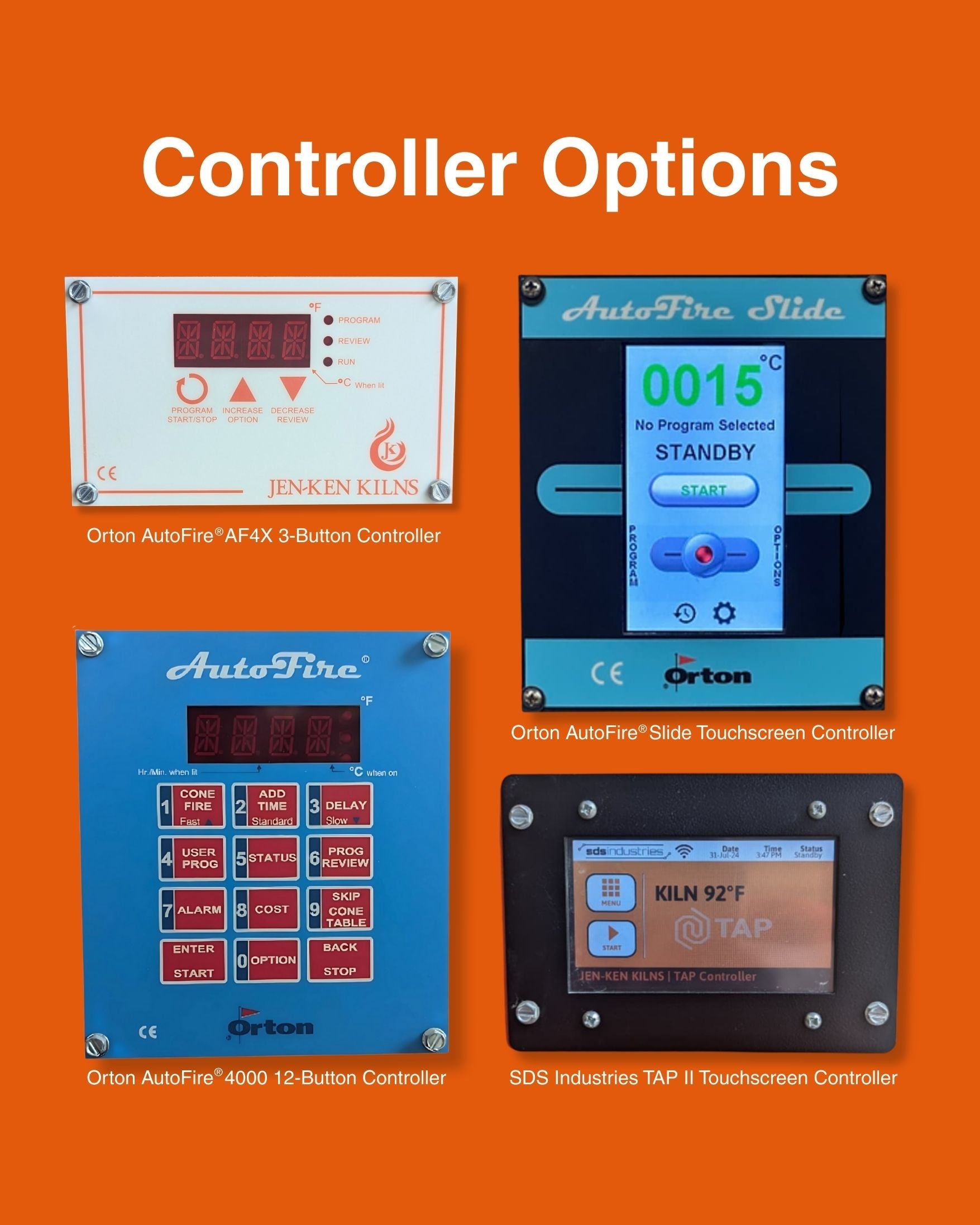

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Lid lifterJen-Ken's dealer sheet lists this model as including the lid lifter — the spring assist that takes most of the weight out of raising the lid.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
    Key features
    Square chamberFlat walls and corners. For square or irregular work the usable volume is much higher than the cubic-foot figure suggests.
    Shallow loading depthAt 22 inches you can set the bottom shelf without leaning into the kiln — a real difference over the 29" JK² for daily loading.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size27" x 27" x 22" — 9 cu ft. That is the space you actually have to load.
    Technical specifications
    ModelJK² 22" Ceramic Kiln
    Kiln functionCeramics, pottery
    Chamber dimensions27" x 27" x 22"
    Cubic feet9 cu ft
    Maximum temperature2,100°F (1,149°C)
    Cone ratingCone 04-06 (Jen-Ken's recommended working range for this kiln)
    Voltage240V
    Amperage45A
    Wattage10,800W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) size50A
    Circuit wire gauge#6
    Element placementSide-fired
    LoadingTop-loading
    ControllerOrton AutoFire AF3C 3-button
    Kiln weight225 lbs
    Estimated shipping weight350 lbs
    Shipping dimensions54" x 45" x 46"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    What electrical circuit does it need?240V single phase, 45A draw, 10,800W, on a NEMA 6-50R receptacle with a 50A breaker and #6 copper circuit wire. Please read the next question before you give any figure to your electrician — Jen-Ken's own product page prints a different breaker and wire size, and it is wrong. Jen-Ken also notes that runs over 30 feet from the breaker may need the next heavier gauge.
    Jen-Ken's page says 40A breaker and #8 wire. Why do you say 50A and #6?Because 40A and #8 describe a circuit that cannot be built. A 45-amp continuous load cannot sit on a 40-amp breaker, and a NEMA 6-50R is a 50-amp device that cannot legally be fed by a 40-amp circuit with #8 wire. Jen-Ken's own wiring table for this model gives it #6 copper and a 50-amp fuse, and every one of its 42-to-48-amp siblings gets the same. Their own wattage figure — 10,800W at 240V — forces the 45-amp draw. So we publish 45A, 6-50R, 50A breaker, #6 copper, and we are not reprinting the page figures. Your electrician should size to these and confirm against local code.
    What is the maximum temperature?2,100°F. Jen-Ken’s September 2025 dealer price list rates the JK² 22 to 2,100°F — lower than the 2,300°F of the round ceramic kilns alongside it, which is a function of the square chamber rather than a misprint. Cone 04-06 is the working range Jen-Ken designs and recommends it for, and that sits comfortably under the ceiling. Treat it as a low-fire kiln: it is not built for stoneware production and it is nothing like a cone 10 kiln.
    What can it actually fire?Low-fire ceramics — bisque, earthenware, low-fire glaze, ceramic production work, greenware and slip-cast pieces. That is what Jen-Ken designed it for. If you fire mid-range stoneware on a schedule, a 2822 3" or 2829 3" is the better kiln.
    How is it different from the JK² 29?Depth. Same 27" x 27" footprint, 22 inches deep instead of 29, so nine cubic feet instead of 11.4. It is easier to load and cheaper, and it draws 45A where the 29 offers 45A or 55A.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Can I get it in 208V or three phase?Standard build is 240V single phase, and that is the only configuration Jen-Ken publishes a specification for. Jen-Ken will build most ceramic models for 208V, and some for three phase, to order. There is no published amperage, breaker or wire figure for a three-phase build, so contact us for a quote and we will get the numbers from the factory.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Read the electrical note before you wire anything. We are authorized Jen-Ken dealers based in Georgia. Jen-Ken's own page prints a breaker and wire size for this kiln that will not pass inspection — call us and we will go through the correct circuit with you before your electrician starts.
