Jen-Ken JK² 11" Glass Fusing Kiln

Jen-KenGlass KilnSKU JENKEN-JK2-11-GF
$3,739.00Regular price$3,978.00
Save $239.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

JK² 15" — Glass/Casting is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken JK² 11" Glass Fus...
    $3,739.00
    Call

    Overview

    Jen-Ken · Glass Kiln · JK² Series Jen-Ken JK² 11" Glass Fusing Kiln Model AFG JK2 · 240V · 27" x 27" x 11" chamber · 1,700°F The JK² is the square one, and square is the whole point. Twenty-seven inches by twenty-seven means a set of four plates, or a run of tiles, uses the shelf instead of wasting the corners the way a round chamber does — 4.5 cubic feet of chamber that measures the same in both directions. Eleven inches of height suits flat fusing, shallow slumps and tile work; if you need to stand a sink or a deep draping mould up inside it, Jen-Ken builds the same kiln with a 15-inch chamber. It fires top and side together for an even fuse across a wide shelf, comes with lid lifters and a 12-button controller, and runs on a 240V 36-amp circuit. Note that we have left the breaker row blank: Jen-Ken's two sources give this model two different breaker sizes, and we explain that below rather than guess.
    Max Temp1,700°F
    Chamber27" x 27" x 11"
    Capacity4.5 cu ft
    Power240V · 36A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

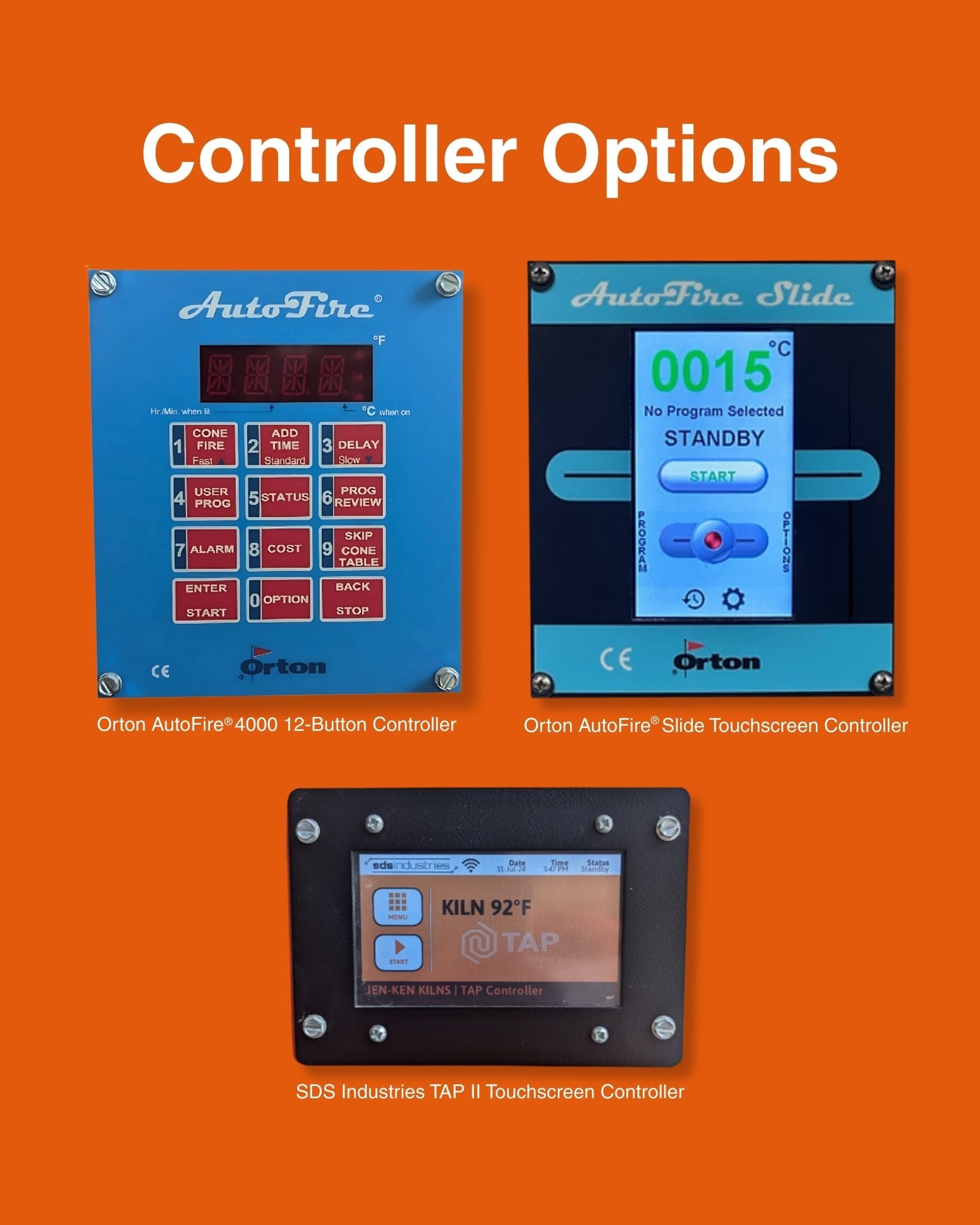

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Kiln standIncluded by Jen-Ken. It lifts the chamber off the floor for airflow and brings it to a workable loading height.
    Kiln washA starter supply of shelf primer is on Jen-Ken's included list — glass welds itself to an unprimed shelf.
    Lid liftersOn Jen-Ken's included list. A 27-inch square brick lid is heavy; the lifters take most of that weight out of opening and closing it.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves or posts in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    Square chamber27" x 27" with no wasted corners. The reason to choose this over a round kiln of the same cubic feet.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size27" x 27" x 11" — 4.5 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 1,700°F (927°C).
    Technical specifications
    ModelAFG JK2
    Kiln functionGlass fusing, slumping
    Chamber dimensions27" x 27" x 11"
    Cubic feet4.5 cu ft
    Maximum temperature1,700°F (927°C)
    Voltage240V
    Amperage36A
    Wattage8,640W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) sizeContact us — see note below
    Circuit wire gauge#8
    Element placementTop and side
    LoadingTop-loading, with lid lifters
    ControllerOrton AutoFire 12-button
    Overall dimensions37" W x 44" D x 17" H
    Kiln weight250 lbs
    Estimated shipping weight300 lbs
    Shipping dimensions54" x 45" x 42"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire 12-button as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    Why is there no breaker size in the spec table?Because Jen-Ken's two sources disagree, and the one on the product page does not leave enough headroom. The page gives a 40-amp breaker; the wiring table in Jen-Ken's own owner's manual gives the glass JK² a 50-amp fuse on the same #8 wire and the same 6-50R receptacle. A kiln is a continuous load, so the 125% rule puts this 36-amp draw at 45 amps of breaker — above the page's 40 and comfortably under the manual's 50. We are not going to pick between two Jen-Ken numbers on a figure you hand to an electrician. Call or email us before anything is wired and we will get the nameplate figure from the factory for your build.
    What is safe to rely on?240V single phase, a 36-amp draw and 8,640 watts — the arithmetic confirms it, since 240V × 36A is exactly 8,640W — on a NEMA 6-50R receptacle with #8 copper. All four of those appear in both Jen-Ken sources and are published above. Only the breaker is in dispute. Note Jen-Ken's own caveat from the manual as well: a run of more than about 30 feet from the panel may need the next heavier gauge.
    How is this different from the JK² 15"?Height. Both are 27" x 27". This one is 11 inches deep at 4.5 cubic feet and draws 36 amps; the 15" is 15 inches deep at 6 cubic feet and draws 45 amps. Jen-Ken also sells the 15-inch chamber as a "Make it DEEP" upgrade on this model rather than only as a separate kiln — if that is the route you want, call us. Buy this one for flat fusing and tile work; buy the 15" if you are slumping sinks or standing deep moulds up inside.
    And how is it different from the JK² Glass/Casting?Temperature and firing modes. This is the plain fusing and slumping build, rated 1,700°F with top and side elements. The Glass/Casting version adds a side-only firing mode and a 2,150°F ceiling, which is what casting moulds and low-fire clay need. If all you do is fuse and slump, you do not need to pay for the casting build.
    Why square rather than round?Because most glass work is not round. A 27-inch round chamber and a 27-inch square chamber have very different usable shelf areas once you start laying out rectangular panels, square tiles or a set of four plates. The square chamber also takes square shelves, which are cheaper to replace and easier to cut fibre paper for.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Talk to us before you book the electrician. We are authorized Jen-Ken dealers based in Georgia. Jen-Ken's own figures for this kiln's breaker do not add up, so we have left that one row blank rather than print something an electrician cannot build. Call us and we will get the nameplate figure from the factory before anything is installed.
