Overview
Jen-Ken · Glass Kiln · Crucible Series

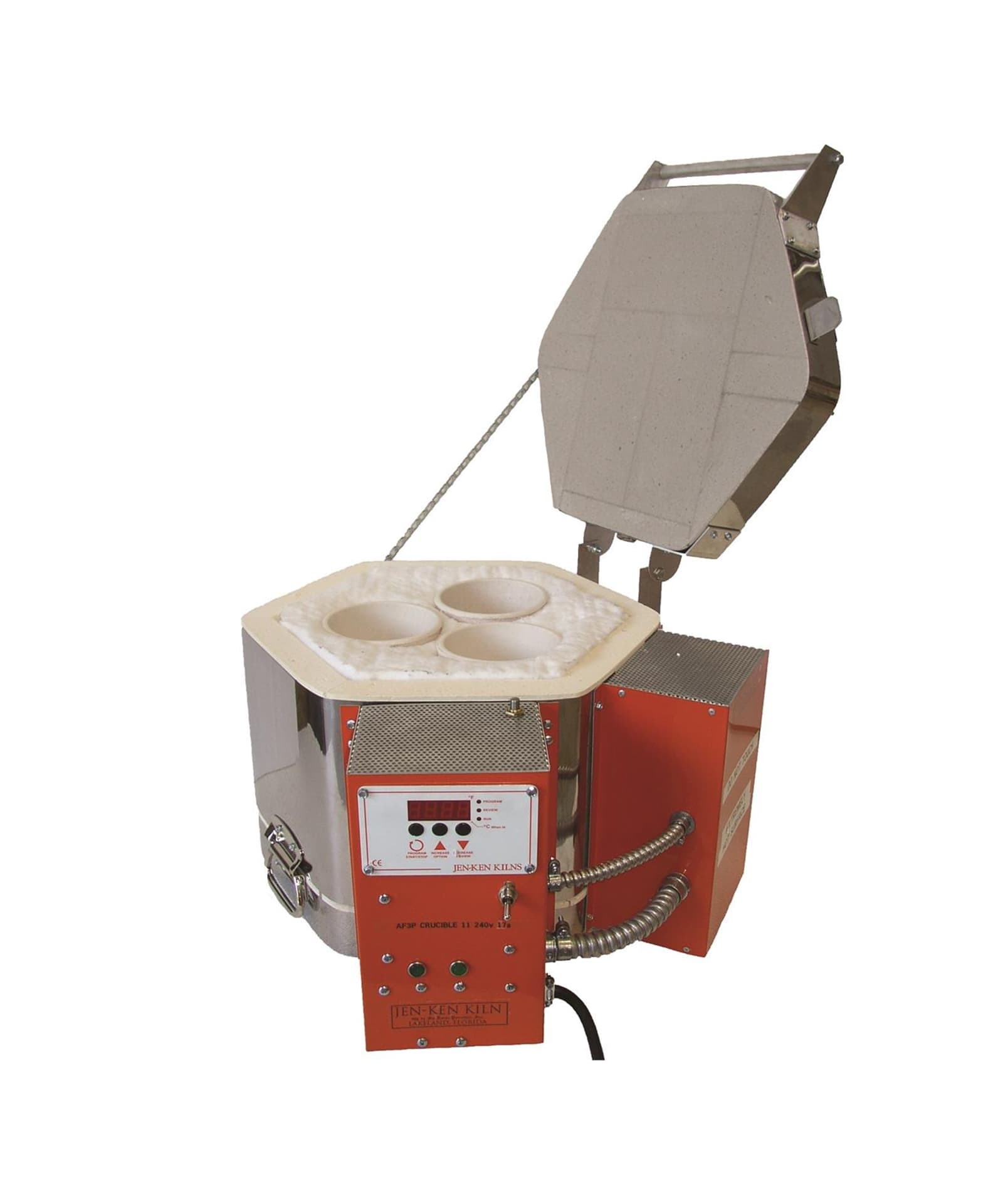

Jen-Ken Crucible 11 Glass Melting Kiln with 3 Crucibles
This is a melting kiln, not a fusing kiln. Its job is to hold pots of cullet at working temperature so a hot-glass artist can gather, roll up or pour without running a full furnace — which is the difference between keeping three colours hot for an afternoon and firing a furnace for a week. It reaches 2,300°F to get cullet moving and works at around 2,150°F, and it ships with three thin-wall crucibles, so you can have three colours going at once from the day it arrives. Solid-state relays are fitted as standard rather than mechanical ones, which matters on a kiln that holds temperature for hours. It is 55 lbs on a 240V 17-amp circuit. One caveat: it melts cullet, not raw batch — the fumes from batch will eat the thermocouple and the brick.
PurposeMelting cullet
Max Temp2,300°F
Chamber11" x 9"
Power240V · 17A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

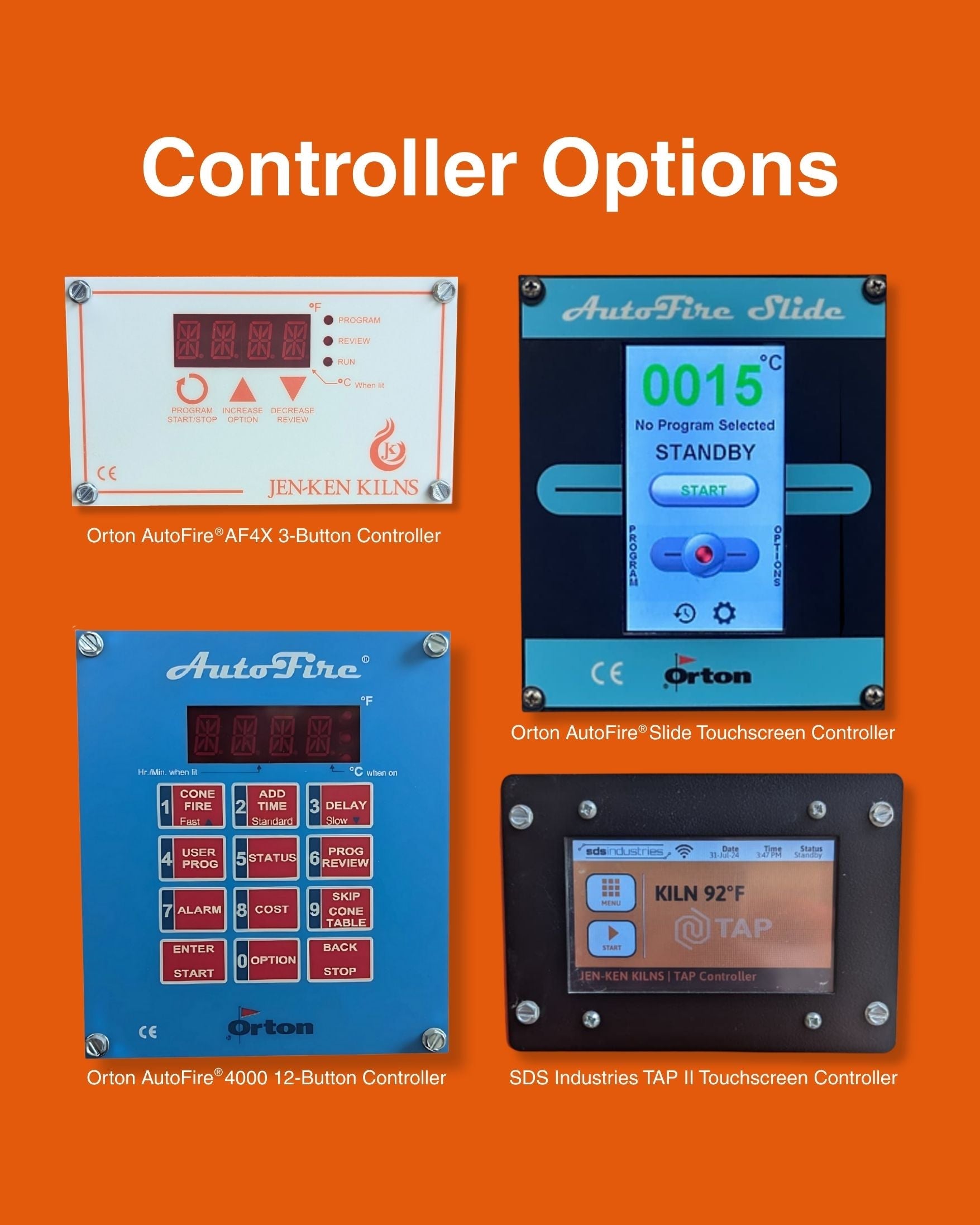

The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3P 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
Cord and plug, fittedJen-Ken wires the cord and plug at the factory for 240V service. Their dealer sheet and our spec table differ on the exact NEMA configuration for this model, so we confirm the receptacle with the factory before your order ships rather than print the wrong one.
Kiln standIncluded by Jen-Ken. It brings the chamber to a height you can reach into with a gather iron.
Furniture kitJen-Ken lists a 10-inch shelf, three 1-inch posts, kiln wash and three bricks with this kiln.
3 thin-wall cruciblesOn Jen-Ken's included list, and the reason to buy this build. Three pots means three colours held hot at once rather than one.
Fiber baffleOn Jen-Ken's included list — it shields the chamber while you are working out of it.
2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
Key features
Solid-state relaysFitted as standard. A melting kiln sits at working temperature for hours at a time, and SSRs handle that duty cycle without the mechanical relay chatter and wear.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Chamber size11" x 9" — 0.55 cu ft. That is the space you actually have to load.
Maximum temperatureRated to 2,300°F (1,260°C).
Technical specifications
ModelAF3P Crucible 11 with 3 Crucibles
Kiln functionMolten glasswork — melting cullet
Chamber dimensions11" x 9"
Cubic feet0.55 cu ft
Maximum temperature2,300°F (1,260°C)
Working temperatureAround 2,150°F, per Jen-Ken
Voltage240V
Amperage17A
Wattage4,080W
PhaseSingle phase
ReceptacleNEMA 10-20R
Breaker (fuse) size20A
Circuit wire gauge#12
Element placementSide-fired
RelaysSolid-state
ControllerOrton AutoFire 3-button
Kiln weight55 lbs (approximate)
Estimated shipping weight70 lbs, plus a 20 lb accessory box shipped separately
Shipping dimensions30" x 30" x 18"
Shipping methodMotor freight and UPS
Warranty2-year limited (Jen-Ken)
Optional accessories
Replacement cruciblesThin-wall crucibles are consumables — they take thermal abuse and eventually crack. Three come with the kiln; keep a spare or two on the shelf. Call us and we will match the size.
Gather irons, punties and hand toolsThe kiln melts the glass; the tools do the work. Tell us whether you are gathering, rolling up or pouring and we will point you at what suits.
Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
Controller upgradeJen-Ken fits the Orton AutoFire 3-button as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
Common questions
What is a crucible kiln for?Melting cullet — broken or scrap glass — so you can work it hot. Hot-glass artists use one for roll-ups, small gathers, pours into moulds and any process that needs molten glass but not a full furnace's capacity or running cost. Jen-Ken's framing is the flexibility of keeping several colour pots going without committing to a furnace. It is not a fusing kiln and not a kiln you put a shelf of flat glass into.
Can I make glass from batch in it?No — Jen-Ken says so explicitly, and it is worth repeating because it is the mistake that ruins one of these kilns. Electric crucible kilns are for melting cullet. Making glass from raw batch produces caustic fumes that attack the thermocouple and the kiln brick, and it will destroy the kiln quickly. Cullet only.
What electrical circuit does it need?240V single phase, a 17-amp draw and 4,080 watts — the arithmetic checks, since 240V × 17A is exactly 4,080W — on a NEMA 10-20R receptacle behind a 20-amp breaker with #12 copper. Two things to know. First, the 10-20R is an unusual receptacle: it is an older non-grounding 250V 20-amp device and not something an electrician will have in the van, so mention it when you book the work. Second, the arithmetic is tight: 17 amps continuous wants 21.25 amps of breaker under the 125% rule, marginally above the 20 Jen-Ken specifies. Jen-Ken sizes their whole line that way, and the #12 wire is good for 25 amps at 75°C, so the wire is not the constraint. Have a licensed electrician confirm the whole set against local code, and ask us first if anything looks wrong.
Why three crucibles?Because one colour is rarely what you want. Three pots let you hold three colours at working temperature in the same chamber, which is the practical reason people buy a crucible kiln instead of scheduling three separate melts. They are thin-wall pots and they are consumables — plan on replacing them.
What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. The published maximum is in the table above. Cone numbers are a ceramics measure and this is a glass-melting kiln, so the temperature and how steadily it holds it are the figures that matter.
How is this different from the Crucible 1813?Size and power. This one is 11" x 9" at 0.55 cubic feet on a 17-amp 240V circuit, and it comes with three crucibles for multi-colour work. The 1813 is 18" x 13" at 1.91 cubic feet on a 45-amp circuit, which is a much bigger melt and a much bigger electrical job. Buy this one for roll-ups and small work and for holding several colours; buy the 1813 if you need volume.
What actually comes in the crate?Jen-Ken publishes a list for this model, which is unusual and welcome: the Orton AutoFire 3-button controller, three thin-wall crucibles, solid-state relays, a fiber baffle, a furniture kit (10" shelf, three 1" posts, kiln wash and three bricks), a kiln stand and the instruction manual. Note the accessories ship in a separate 20-lb box, so expect two deliveries.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
Melting cullet, or fusing glass?
We are authorized Jen-Ken dealers based in Georgia. A crucible kiln and a fusing kiln do completely different jobs — tell us what you are making and we will make sure you are buying the right one, and sort out the unusual 10-20R receptacle before delivery.
