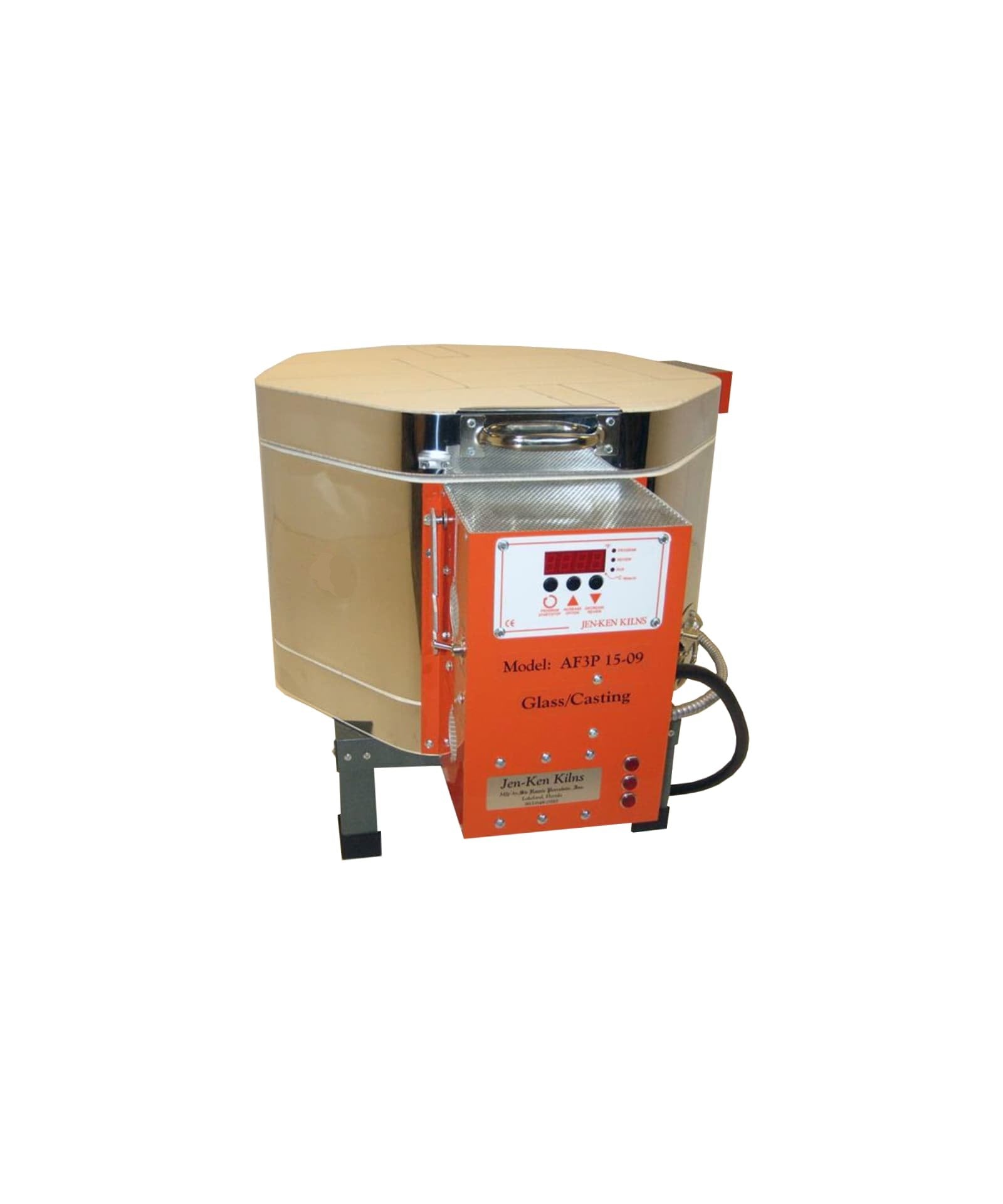

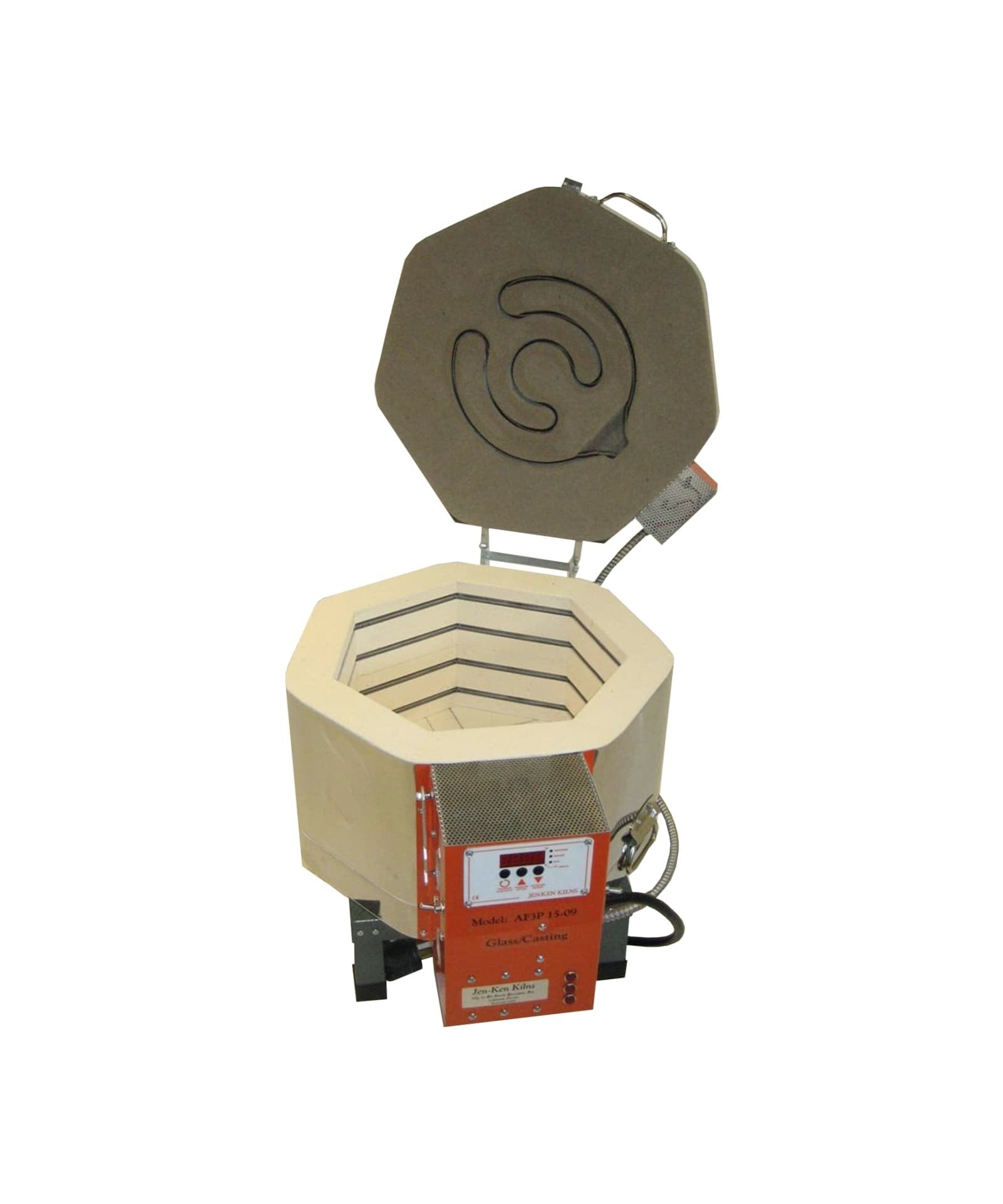

Jen-Ken AF3P 15/9 Glass/Casting Kiln

Jen-KenGlass KilnSKU JENKEN-AF3P-15-9-GC
$1,729.00Regular price$1,805.00
Save $76.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

15/13 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF3P 15/9 Glass/C...
    $1,729.00
    Call

    Overview

    Jen-Ken · Glass Kiln · AF3P Glass/Casting Jen-Ken AF3P 15/9 Glass/Casting Kiln Model AF3P 15/9 Glass Casting · 240V · 15" x 9" chamber · 1,700°F glass / 2,150°F casting The 15/9 Glass/Casting is the smallest kiln Jen-Ken builds that will do both jobs properly. Switch the elements to fire top and side together and it is a fusing kiln with a 15-inch shelf; switch to side firing alone and it climbs to 2,150°F, which is casting and low-fire clay. The nine inches of chamber height is what makes the casting mode worth having — there is room for a mould rather than just a tile. It runs on 240V but only draws 15 amps, so the circuit is modest for what the kiln does, and at 90 lbs it is still a one-person move.
    FiresGlass, casting, low-fire clay
    Max Temp1,700°F / 2,150°F
    Chamber15" x 9"
    Power240V · 15A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3P 3-button or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-30PJen-Ken wires the cord and plug at the factory for the 240V service this kiln runs on. Their dealer sheet prints a 120V-style 5-15 plug against this model, which cannot be right for a 240V kiln, so we go with the NEMA 6-30 in the specifications below and confirm it with the factory on your order.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Key features
    Selectable top/side and side firingThe feature that makes it two kilns: top and side together for fusing, side alone for casting.
    2,150°F ceilingHigh enough for casting moulds and for low-fire clay and glaze, not just warm glass.
    Built to order in FloridaAssembled in Jen-Ken's own Lakeland shop rather than drop-shipped from a distributor.
    Chamber size15" x 9" — 0.99 cu ft. That is the space you actually have to load.
    Technical specifications
    ModelAF3P 15/9 Glass/Casting
    Kiln functionFusing, slumping, casting, low-fire ceramics
    Chamber dimensions15" x 9"
    Cubic feet0.99 cu ft
    Maximum temperature — glass1,700°F (927°C)
    Maximum temperature — casting2,150°F (1,177°C)
    Firing modesTop/side together for glass, side only for casting
    Voltage240V
    Amperage15A
    Wattage3,600W
    PhaseSingle phase
    ReceptacleNEMA 6-30R
    Breaker (fuse) size20A
    Circuit wire gauge#12
    Element placementTop/side and side — selectable
    ControllerOrton AutoFire AF3P 3-button
    Kiln weight90 lbs
    Estimated shipping weight115 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P 3-button as standard. Other AutoFire controllers are a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What does "Glass/Casting" actually mean?Two firing modes in one kiln. For fusing and slumping the elements fire from the top and the sides together, which washes a wide shelf in even heat — that is what flat glass wants, and the ceiling there is 1,700°F. For casting, the side elements do the work on their own and the kiln will go to 2,150°F, which is the range a casting mould and a long ramp need. You select the mode; it is one kiln with two ways of heating, not a compromise between them.
    What electrical circuit does it need?240V single phase, 15 amps, 3,600 watts, a NEMA 6-30R receptacle, a 20-amp breaker and #12 copper — all as Jen-Ken publishes them, and internally consistent, which is more than can be said for one or two kilns in this range. It needs a dedicated 240V run; a kiln is a continuous load and should not share a circuit. Have a licensed electrician confirm it against your local code before delivery.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, this one included, and we have not worked one out from the temperature. What is published is the two ceilings — 1,700°F in glass mode and 2,150°F in casting mode — and those are in the table above. Treat 2,150°F as low-fire clay and glaze territory.
    Will it fire clay?Low-fire clay and glaze, yes — Jen-Ken lists low-fire ceramics among this kiln's functions and 2,150°F is in that range. What it will not do is mid-fire or high-fire stoneware: cone 6 is out of reach, let alone cone 10. If pottery is the main event, buy a ceramic kiln and keep this one for glass. If you fire glass most of the time and want the option of a low-fire load, this is exactly the kiln for it.
    Is it big enough to cast in?For small work, yes — that is the point of the nine-inch chamber. A 15" shelf with 9" of height takes a reasonable mould. For anything larger, the 1815 Glass/Casting gives you 18" x 15" on a 20-amp circuit and the 2415 goes wider again.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory warranty applies exactly as it would buying direct. Jen-Ken gives brick kilns two years. Keep your proof of purchase.
    Fusing and casting from one kiln? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
