Jen-Ken AF3P 11/4.5 Glass Kiln with 2" Flip Door

Jen-KenGlass KilnSKU JENKEN-AF3P-11-4.5-FD2
$1,399.00Regular price$1,438.00
Save $39.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

11/9 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF3P 11/4.5 Glass...
    $1,399.00
    Call

    Overview

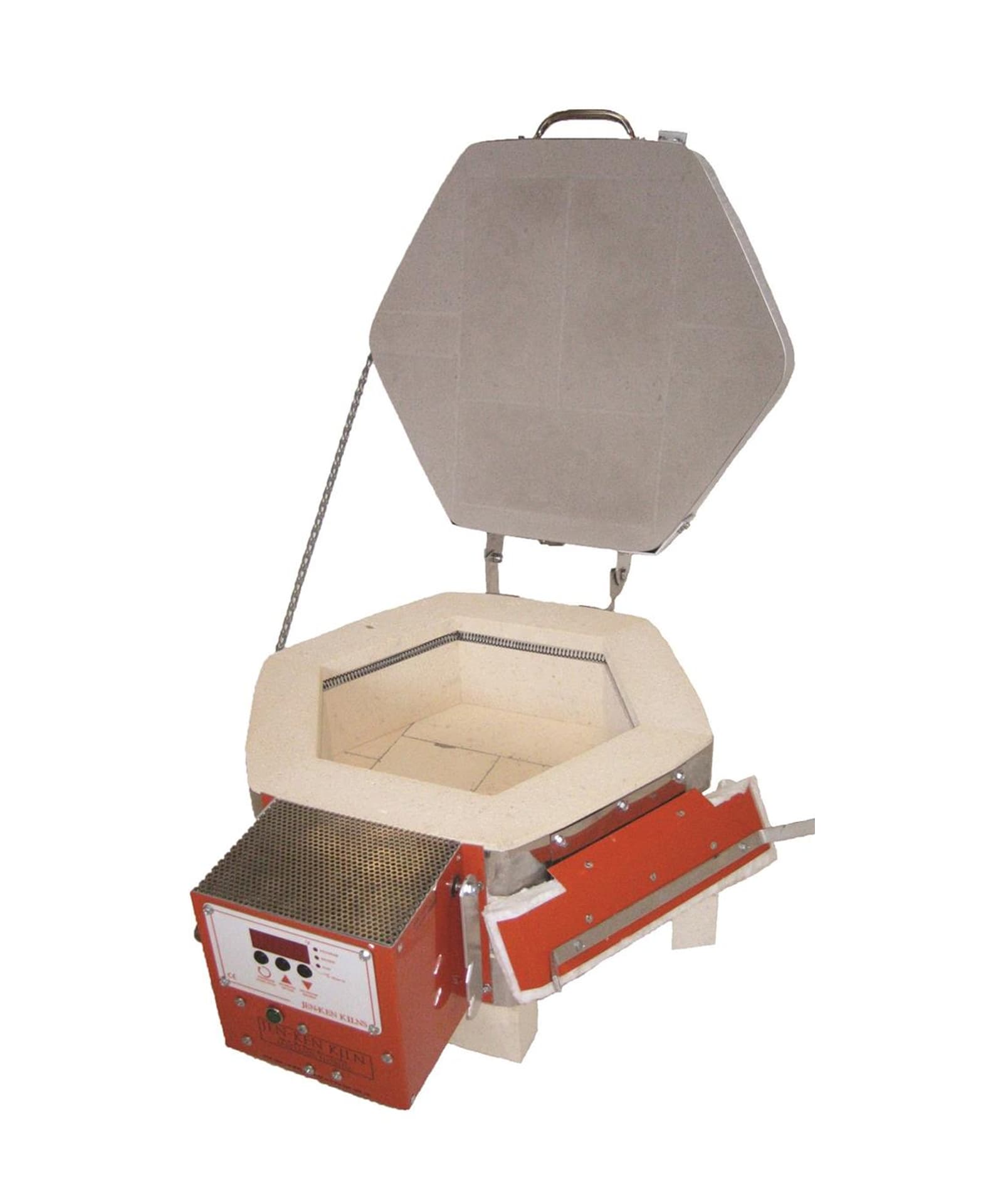

    Jen-Ken · Glass Kiln · AF3P Series Jen-Ken AF3P 11/4.5 Glass Kiln with 2" Flip Door Model AF3P 11/4.5 · 120V · 11" x 4.5" chamber · 1,700°F This is the 11/4.5 built with a 2-inch self-supported flip door in the front instead of a plain lid. The door stays where you put it, which means you can open a hot chamber one-handed and introduce a bead or a piece of work at temperature — the reason people buy a front-opening kiln for lampwork and annealing rather than a top-loader. Everything else matches the standard 11/4.5: 120V, 13 amps, an 11" x 4.5" chamber, a furniture kit, and 40 lbs of brick. The one genuine difference in the specification is the temperature ceiling, and it is there because of the door.
    Max Temp1,700°F
    Chamber11" x 4.5"
    Capacity0.27 cu ft
    Power120V · 13A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships boxed by UPS.
    Orton AutoFire AF3P 3-button controllerFitted and wired at the factory. Jen-Ken lists one controller for this model, so there is nothing to choose.
    Cord and plug — NEMA 5-15PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Furniture kit with shelf and postsJen-Ken lists a furniture kit with this model, so you can fire it the day it arrives rather than waiting on a second order.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Key features
    2" self-supported flip doorA front door that holds its own position, so a hot chamber can be opened one-handed. This is the feature you are paying for.
    Plugs into a normal outlet120V on a NEMA 5-15R. No electrician, no service upgrade — though Jen-Ken asks for a dedicated circuit behind it.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size11" x 4.5" — 0.27 cu ft. That is the space you actually have to load.
    Technical specifications
    ModelAF3P 11/4.5 with 2" flip door
    Kiln functionFusing, slumping, casting
    Chamber dimensions11" x 4.5"
    Cubic feet0.27 cu ft
    Maximum temperature1,700°F (927°C) — the 2" flip door lowers the rating; see the note below
    Voltage120V
    Amperage13A
    Wattage1,560W
    PhaseSingle phase
    ReceptacleNEMA 5-15R
    Breaker (fuse) size20A recommended; Jen-Ken says 15A may be acceptable — call us to confirm
    Circuit wire gauge#12
    Element placementSide-fired
    Loading2" self-supported flip door (front-opening)
    ControllerOrton AutoFire AF3P 3-button
    Overall dimensions16" x 9.5"
    Kiln weight40 lbs
    Estimated shipping weight50 lbs
    Shipping methodUPS
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P 3-button as standard. Other AutoFire controllers are a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    Why is this rated 1,700°F when the plain 11/4.5 is rated 2,000°F?The 2" flip door lowers the rating, and Jen-Ken does it deliberately. A hinged door is a thermal weak point, so their current glass price list carries the flip-door builds as separate rows with lower ceilings — this one drops from 2,000°F to 1,700°F, and the 11/9 with a 4" door drops further still. The bigger the door, the deeper the de-rate. You will find at least one retailer showing 2,000°F on this model; that is an error, and it would have you fire 300 degrees past what the door is rated for. 1,700°F is plenty for fusing and slumping — if you need 2,000°F for casting, buy the plain 11/4.5 and give up the front door.
    What electrical circuit does it need?120V single phase, a 13-amp draw and 1,560 watts on an ordinary NEMA 5-15R three-prong outlet — identical to the plain 11/4.5, and Jen-Ken's owner's manual confirms the two builds share one electrical specification. Their guidance on the breaker is "20A recommended; 15A may be acceptable — please call to confirm", with #12 circuit wire. Take the 20-amp advice, and give it a dedicated outlet.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    What is a flip door actually for?Getting work in and out of a hot chamber. A self-supported door stays open where you leave it, so you can hold a mandrel in one hand and still load. For lampworkers moving hot beads straight into an annealer, that is the whole job. If you only ever load a cold kiln and fire it, you do not need this build and the plain 11/4.5 gives you a higher ceiling for less money.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Jen-Ken does include a furniture kit with this model, which is unusual in the line, and it is on the list above. Call or email us if you want the crate confirmed against your build before you order.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory warranty applies exactly as it would buying direct. Jen-Ken gives brick kilns two years. Keep your proof of purchase.
    Front door or higher ceiling? We are authorized Jen-Ken dealers based in Georgia. The flip door costs you 300°F of ceiling and buys you hot loading. Tell us how you work and we will tell you which of the two 11/4.5 builds you actually want.
