Jen-Ken AF3P 11/4.5 Glass Kiln

Jen-KenGlass KilnSKU JENKEN-AF3P-11-4.5
$1,349.00Regular price$1,381.00
Save $32.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

11/9 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF3P 11/4.5 Glass...
    $1,349.00
    Call

    Overview

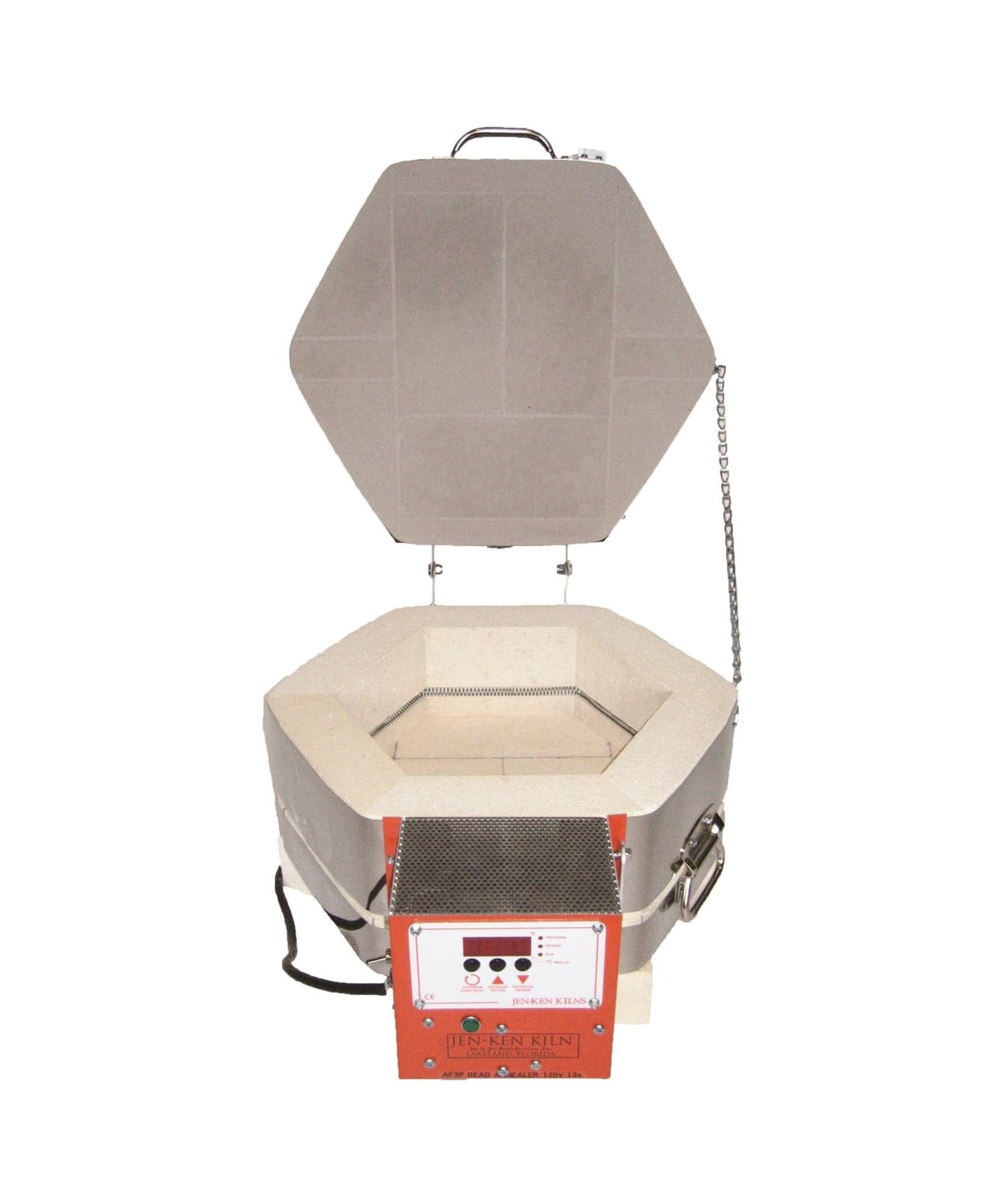

    Jen-Ken · Glass Kiln · AF3P Series Jen-Ken AF3P 11/4.5 Glass Kiln Model AF3P 11/4.5 · 120V · 11" x 4.5" chamber · 2,000°F The 11/4.5 is Jen-Ken's entry point into warm glass: a 40-lb brick kiln that plugs into a wall outlet and still reaches 2,000°F, which is high enough for casting as well as fusing and slumping. The chamber is 11 inches across and 4.5 inches deep — small-format work, jewellery, test tiles, a handful of pendants or a single dish at a time. It is side-fired, which is what casting wants, and it ships with a furniture kit so you are not ordering a shelf separately. If you want a taller chamber on the same footprint and the same circuit, look at the 11/6.
    Max Temp2,000°F
    Chamber11" x 4.5"
    Capacity0.27 cu ft
    Power120V · 13A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships boxed by UPS.
    Orton AutoFire AF3P 3-button controllerFitted and wired at the factory. Jen-Ken lists one controller for this model, so there is nothing to choose.
    Cord and plug — NEMA 5-15PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Furniture kitJen-Ken lists a furniture kit with this model — a shelf and posts, so you can fire it the day it arrives rather than waiting on a second order.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Key features
    Plugs into a normal outlet120V on a NEMA 5-15R. No electrician, no service upgrade — though Jen-Ken asks for a dedicated circuit behind it.
    Built to order in FloridaAssembled in Jen-Ken's own Lakeland shop rather than drop-shipped from a distributor.
    Chamber size11" x 4.5" — 0.27 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 2,000°F (1,093°C).
    Technical specifications
    ModelAF3P 11/4.5
    Kiln functionFusing, slumping, casting
    Chamber dimensions11" x 4.5"
    Cubic feet0.27 cu ft
    Maximum temperature2,000°F (1,093°C)
    Voltage120V
    Amperage13A
    Wattage1,560W
    PhaseSingle phase
    ReceptacleNEMA 5-15R
    Breaker (fuse) size20A recommended; Jen-Ken says 15A may be acceptable — call us to confirm
    Circuit wire gauge#12
    Element placementSide-fired
    ControllerOrton AutoFire AF3P 3-button
    Overall dimensions16" flat to flat x 9.5" high
    Kiln weight40 lbs
    Estimated shipping weight50 lbs
    Shipping methodUPS
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P 3-button as standard. Other AutoFire controllers are a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?120V single phase, a 13-amp draw and 1,560 watts on an ordinary NEMA 5-15R three-prong outlet. Jen-Ken's guidance on the breaker is "20A recommended; 15A may be acceptable — please call to confirm the best setup for your studio", with #12 circuit wire. We would take the 20-amp advice: a 13-amp continuous load on a 15-amp circuit leaves nothing spare, and the wiring table in Jen-Ken's older owner's manual is more optimistic than their current page. Give it a dedicated outlet whichever way you go — nothing else on the circuit.
    Why does the flip-door version say 1,700°F when this one says 2,000°F?Because they are two different products and Jen-Ken de-rates the flip-door build on purpose. A hinged door is a thermal weak point, so the 2" flip-door 11/4.5 is rated 1,700°F while this plain build is rated 2,000°F. Their current glass price list lists the two as separate rows with separate temperatures, and it does the same thing to the 11/9 with a 4" door. Some retailers have flattened both to 2,000°F; that is wrong. If you need 2,000°F for casting, this is the build to buy.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    Can it really cast, at this size?At 2,000°F, yes — within the chamber. Casting needs the higher ceiling and the side-fired elements that this kiln has, and plenty of people cast small work in it. What limits you is the 11" x 4.5" chamber, not the temperature. For anything bigger, the 15/9 Glass/Casting gives you a 15" x 9" chamber and 2,150°F.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Jen-Ken does include a furniture kit with this model, which is unusual in the line, and it is on the list above. Call or email us if you want the crate confirmed against your build before you order.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory warranty applies exactly as it would buying direct. Jen-Ken gives brick kilns two years. Keep your proof of purchase.
    First glass kiln? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
