Jen-Ken AF3C 1822 Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-AF3C-1822
$2,599.00Regular price$2,677.00
Save $78.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

1822 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF3C 1822 Ceramic...
    $2,599.00
    Call

    Overview

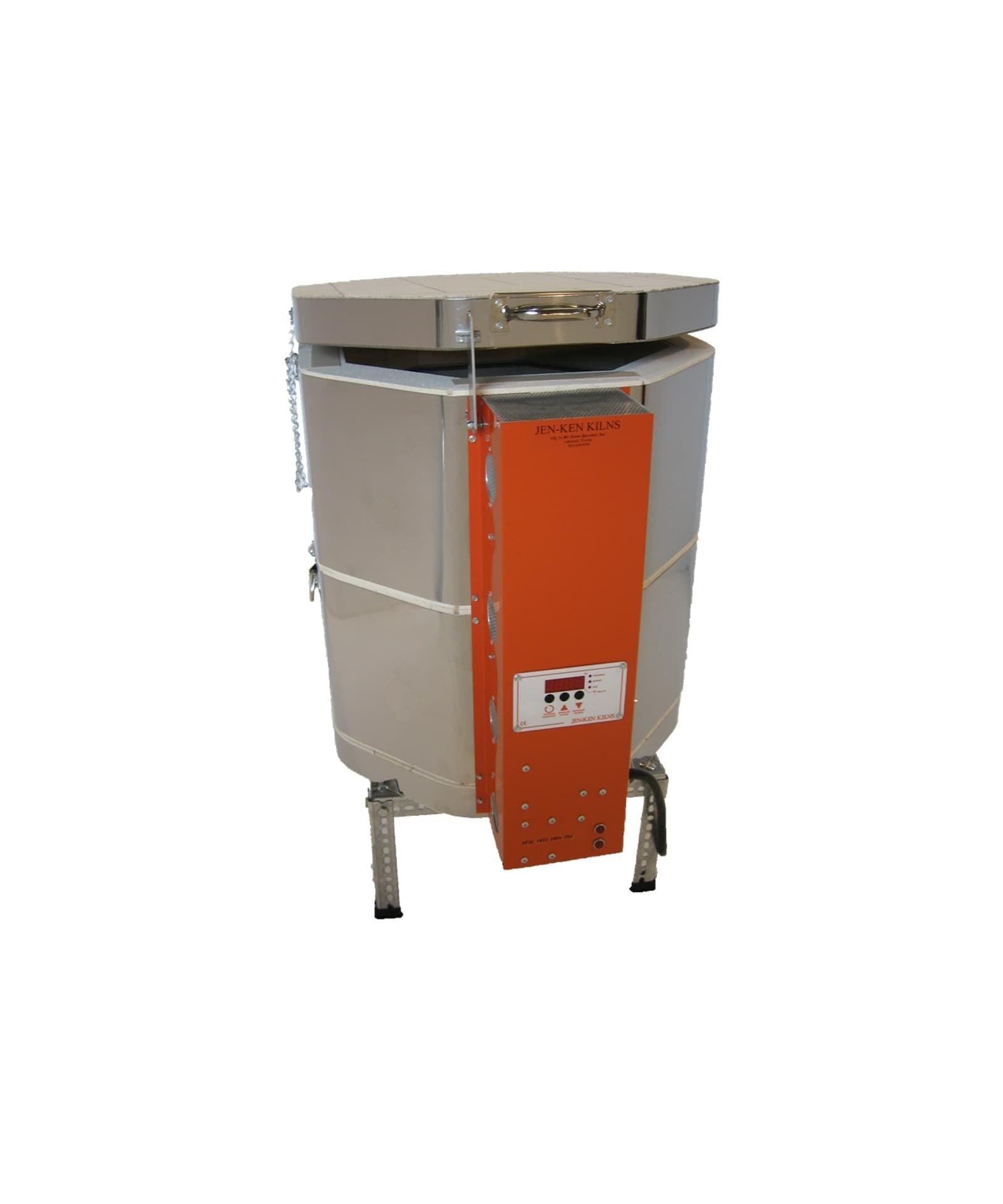

    Jen-Ken · Ceramic Kiln · AF3C Series Jen-Ken AF3C 1822 Ceramic Kiln Model AF3C 1822 · 240V · 18" x 22" chamber · Cone 6 / 2,300°F The AF3C 1822 is Jen-Ken's mainstream studio kiln: 3.24 cubic feet of chamber, cone 6, and a 26-amp draw that runs from the same 30-amp circuit a household dryer uses. That combination is the reason it sells. It is large enough to fire a real body of work rather than test tiles, and small enough that most studios can power it without a service upgrade. Jen-Ken builds it to order in Lakeland, Florida, and it ships with the kiln stand and an Orton AF3C 3-button controller included.
    Max Temp2,300°F (Cone 6)
    Chamber18" x 22"
    Capacity3.24 cu ft
    Power240V · 26A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

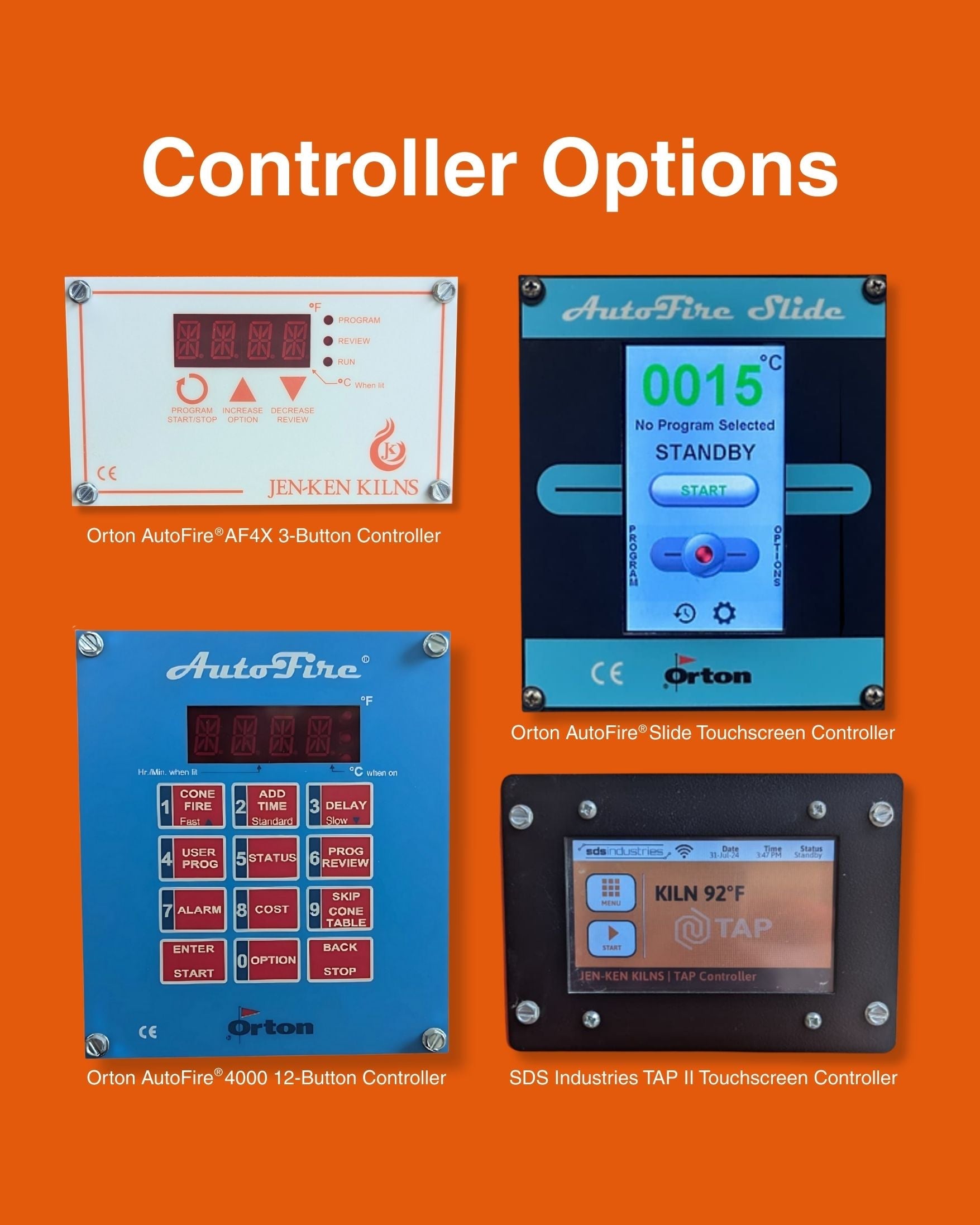

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-30PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Kiln standThe stand is included, not an extra. It lifts the kiln off the floor for airflow and brings the chamber to a workable loading height.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
    Key features
    Integrated lid propBuilt into the lid for controlled venting during the early stages of a firing.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size18" x 22" — 3.24 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 2,300°F (1,260°C). Jen-Ken gives it as Cone 6.
    Technical specifications
    ModelAF3C 1822
    Kiln functionCeramics, pottery
    Chamber dimensions18" x 22"
    Cubic feet3.24 cu ft
    Maximum temperature2,300°F (1,260°C)
    Cone ratingCone 6
    Voltage240V
    Amperage26A
    Wattage6,240W
    PhaseSingle phase
    ReceptacleNEMA 6-30R
    Breaker (fuse) size30A
    Circuit wire gauge#8
    Element placementSide-fired
    LoadingTop-loading, hinged lid
    ControllerOrton AF3C 3-button
    Overall dimensions24" W x 31" D x 27" H
    Kiln weight150 lbs
    Estimated shipping weight220 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    3-inch brick upgradeJen-Ken offers this kiln with 3" brick instead of the standard wall, which they rate at roughly 20% more insulation. It is a separate model, not an option at checkout — call us and we will quote it.
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    Common questions
    What electrical circuit does it need?The AF3C 1822 runs on 240V single phase and draws 26A, which Jen-Ken pairs with a NEMA 6-30R receptacle, a 30A breaker and #8 circuit wire. That is the same class of circuit as an electric dryer, though the kiln needs its own dedicated run. A kiln is a continuous load, so have a licensed electrician confirm the breaker and wire against your local code before delivery.
    What can it actually fire?Cone 6 at 2,300°F covers the great majority of studio pottery — mid-fire stoneware, porcelain, most commercial glazes. It will not reach cone 10. If you fire cone 10 reduction-look stoneware, look higher up the range.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Is the stand really included?Yes. Jen-Ken includes the kiln stand with this model. Some brands charge separately for it, so it is worth noting when you are comparing prices.
    Not sure if the AF3C 1822 is the right size? We are authorized Jen-Ken dealers based in Georgia. Tell us what you make and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
