Jen-Ken AF3C 1822 3" Ceramic Kiln
$2,739.00Regular price$2,819.00
Save $80.00- 15-day returns
- No sales tax outside Georgia
- Made in USA
Ways to save
Choose your build
Built to order.
Already built, not made to order, so there is nothing else to configure. We confirm the lead time in writing before you are charged.
Lead time 6 to 8 weeks, confirmed in writing before you are charged.
Configure your kiln
Not sure? Call 470-264-3563
-

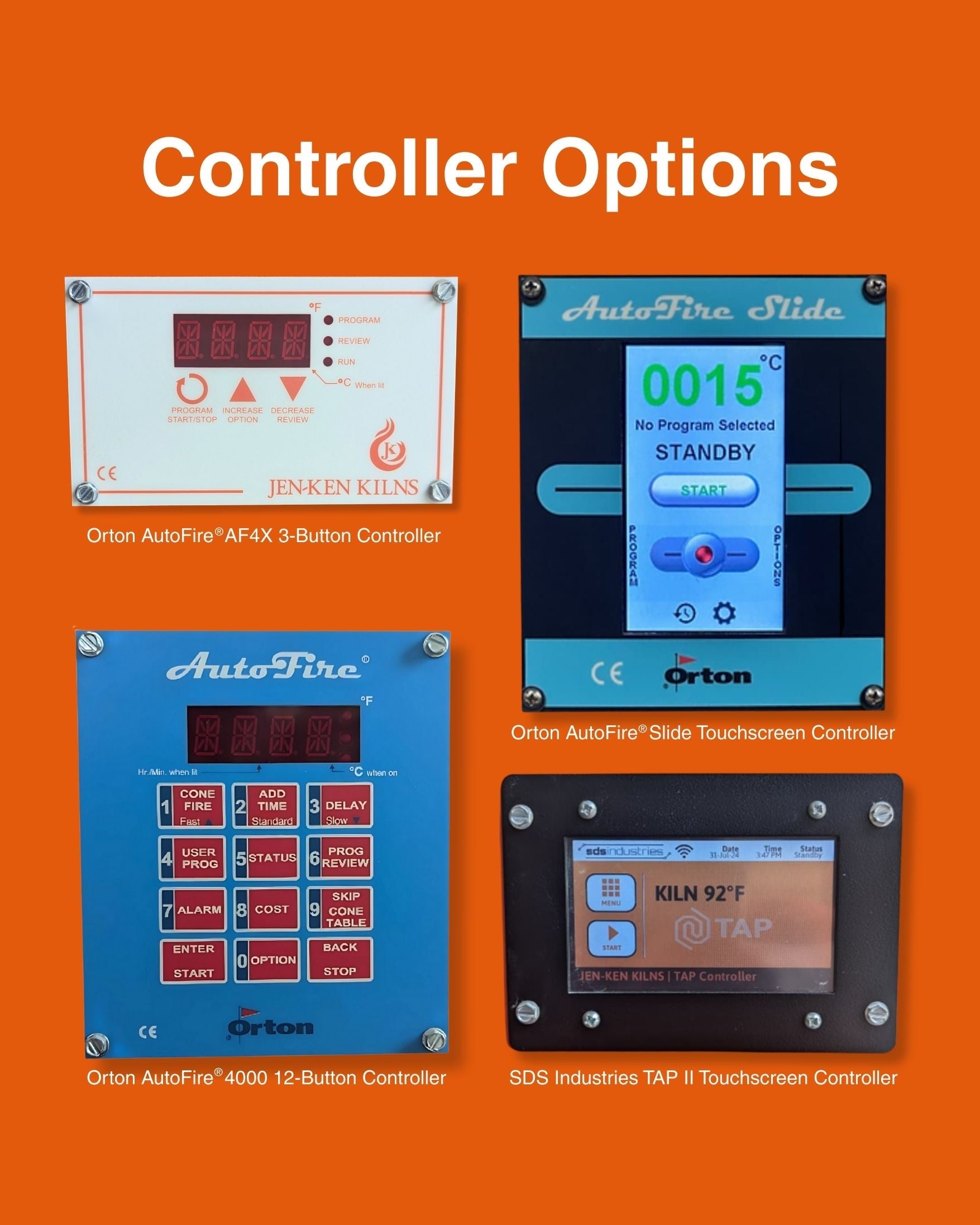

Orton AutoFire® 3-Button Remote Controller

-
Orton AutoFire® 12-Button Remote Controller

-
Orton AutoFire® Slide Remote Controller

-
SDS Industries TAP II Remote Controller

-
Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

Jen-Ken AF3C 1822 3" Cera...
$2,739.00
Overview
Jen-Ken · Ceramic Kiln · AF3C Series

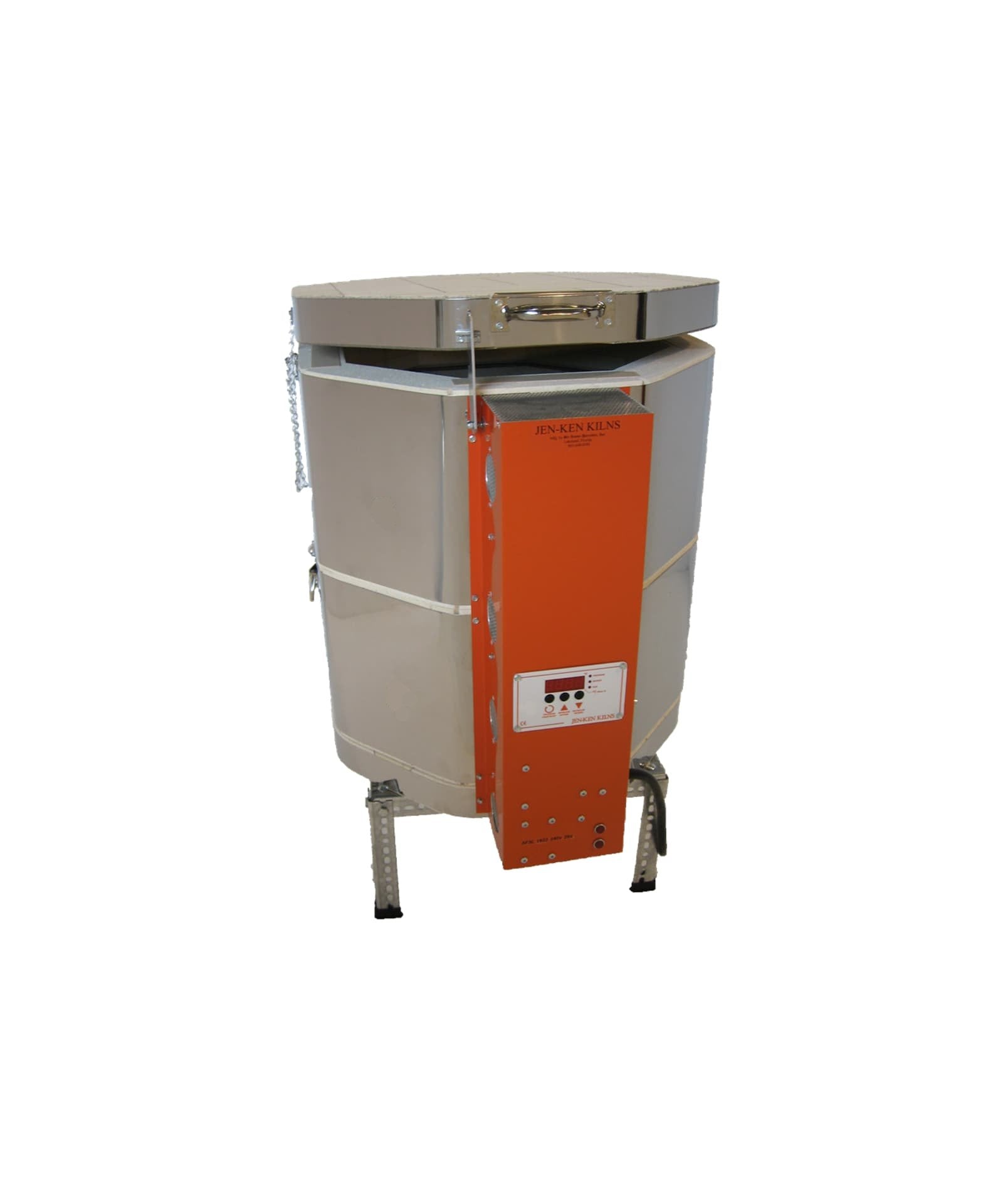

Jen-Ken AF3C 1822 3" Ceramic Kiln
This is the 3-inch brick build of Jen-Ken's best-selling AF3C 1822. Same 3.24 cubic foot chamber, same cone 6 rating, same 26-amp draw on an ordinary 30-amp circuit — the difference is the wall. Thicker brick holds heat, so the kiln costs less to run per firing and cools more slowly and evenly, which matters if you fire weekly or you are chasing glaze results that depend on the cooling curve. It is the upgrade to buy if you already know the 1822 is the right size.
Max Temp2,300°F (Cone 6)
Chamber18" x 22"
Capacity3.24 cu ft
Power240V · 26A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
Cord and plug — NEMA 6-30PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
Key features
3-inch brick wallsThe one substantive difference from the standard 1822: thicker walls, better heat retention, slower cooling, lower cost per firing.
Same circuit as the standard 1822The 3-inch build draws the same 26 amps on the same NEMA 6-30R. If you already have the outlet, it fits.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Chamber size18" x 22" — 3.24 cu ft. That is the space you actually have to load.
Technical specifications
ModelAF3C 1822 (3" brick)
Kiln functionCeramics, pottery
Chamber dimensions18" x 22"
Cubic feet3.24 cu ft
Maximum temperature2,300°F (1,260°C)
Cone ratingCone 6
Voltage240V
Amperage26A
Wattage6,240W
PhaseSingle phase
ReceptacleNEMA 6-30R
Breaker (fuse) size30A
Circuit wire gauge#8
Element placementSide-fired
LoadingTop-loading
ControllerOrton AF3C 3-button
Overall dimensions24" W x 31" D x 27" H
Kiln weight150 lbs
Estimated shipping weight240 lbs
Shipping methodMotor freight
Warranty2-year limited (Jen-Ken)
Optional accessories
Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
Common questions
Why is the electrical spec identical to the standard 1822? Is that a mistake on your site?No — it is correct, and we checked it specifically because it looks like an error. The 3-inch brick changes the wall thickness, the insulation and the weight. It does not change the chamber size or the element load, so the circuit is the same: 240V, 26A, NEMA 6-30R, 30A breaker, #8 wire. Jen-Ken's current price list carries both kilns as separately priced models with the same electrical figures, and their printed wiring table agrees. If you already have a 6-30 outlet for an 1822, this kiln plugs into it.
What electrical circuit does it need?240V single phase, 26A, 6,240W, on a NEMA 6-30R receptacle with a 30A breaker and #8 circuit wire. That is the same class of circuit as an electric dryer, though the kiln needs its own dedicated run. Have a licensed electrician confirm against your local code, and note Jen-Ken's advice that runs over 30 feet from the breaker may need the next heavier gauge.
So what am I paying extra for?Insulation. Thicker walls mean less heat lost through the brick, so lower power cost per firing and a slower, more even cool-down. Over a kiln's life, on a studio that fires weekly, that adds up. If you fire a few times a year it will not pay for itself.
Does it have Mega Coil elements?No. Jen-Ken's page for this model uses the phrase 'mega coils' loosely, but the actual Mega Coil 1822 3" is a different, dearer kiln that draws 30 amps on a NEMA 6-50R. This one draws 26 amps on a 6-30R. Do not wire for one expecting the other — if you want the Mega Coil build, ask us for it by name.
What can it fire?Cone 6 at 2,300°F — mid-fire stoneware, porcelain and most commercial glazes. It will not reach cone 10.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
Standard brick or 3-inch?
We are authorized Jen-Ken dealers based in Georgia. Tell us how often you fire and what you make, and we will tell you straight whether the thicker wall will pay for itself — or whether the standard AF3C 1822 is the better buy.
