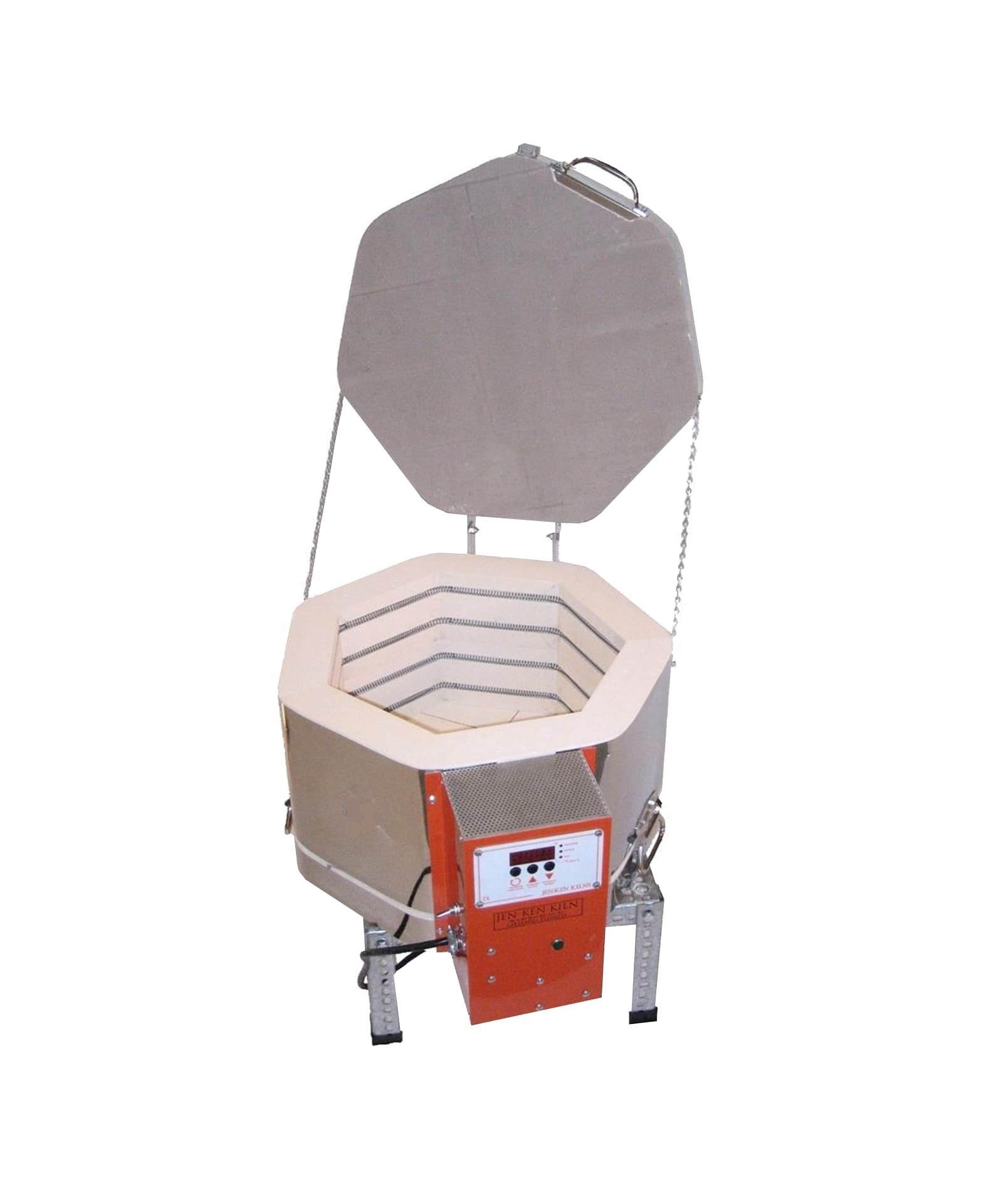

Jen-Ken AF3C 15/9 Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-AF3C-15-9
$1,749.00Regular price$1,827.00
Save $78.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

15/13 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF3C 15/9 Ceramic...
    $1,749.00
    Call

    Overview

    Jen-Ken · Ceramic Kiln · AF3C Series Jen-Ken AF3C 15/9 Ceramic Kiln Model AF3C 15/9 · 240V · 15" x 9" chamber · 2,300°F Just under a cubic foot of firebrick chamber, rated to 2,300°F, on a 15-amp 240V circuit. The 15/9 is a test kiln that is not a toy: it reaches the same temperature as Jen-Ken's studio kilns, so glaze tests fired in it actually tell you something about what the big kiln will do. Jen-Ken lists it for ceramics, pottery, porcelain and glass casting, which makes it useful as a second kiln for small work alongside a larger one.
    Max Temp2,300°F
    Chamber15" x 9"
    Capacity0.99 cu ft
    Power240V · 15A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-20PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Key features
    Full 2,300°F rangeThe same temperature ceiling as Jen-Ken's studio kilns, which is what makes test results transferable.
    Ceramics and glass castingJen-Ken lists this model for ceramics, pottery, porcelain and glass casting.
    Light circuit15 amps on a 20-amp 240V circuit — the lightest 240V kiln in the ceramic range.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Technical specifications
    ModelAF3C 15/9
    Kiln functionCeramics, pottery, porcelain, glass casting
    Chamber dimensions15" x 9"
    Cubic feet0.99 cu ft
    Maximum temperature2,300°F (1,260°C)
    Voltage240V
    Amperage15A
    Wattage3,600W
    PhaseSingle phase
    ReceptacleNEMA 6-20P
    Breaker (fuse) size20A
    Circuit wire gauge#12
    Element placementSide-fired
    LoadingTop-loading
    ControllerOrton AutoFire AF3P 3-button
    Overall dimensions20" x 14"
    Kiln weight70 lbs
    Estimated shipping weight140 lbs
    Shipping dimensions32" x 31" x 32"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    What electrical circuit does it need?240V single phase, 15A draw, 3,600W. Jen-Ken lists a NEMA 6-20 connection with a 20A breaker and #12 circuit wire. That is a small dedicated 240V circuit — much less work than a studio kiln needs, but it is still 240V and still needs its own run. Use a licensed electrician and confirm against your local code.
    What can it fire?Jen-Ken publishes 2,300°F for this kiln but does not state a cone rating, so we have not invented one. In practice a 2,300°F ceiling covers low-fire and mid-fire clay work. It will not reach cone 10.
    Is it worth having alongside a big kiln?That is what most people use it for. Glaze tests, single pieces, small commissions and anything you do not want to hold up a studio firing for. Because it hits the same 2,300°F as the big kiln, a test fired in here is a genuine test rather than an approximation.
    Can it fire glass?Jen-Ken lists it for glass casting as well as clay. Glass work needs slower, lower schedules than clay, which the Orton controller handles. If glass is your main medium, ask us about the dedicated glass range — those kilns are built around top-fired elements for even heat on the surface.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Test kiln, or first kiln? We are authorized Jen-Ken dealers based in Georgia. Tell us what you want it for and we will tell you straight whether 0.99 cubic feet will do the job — or whether you should start bigger.
