Jen-Ken AF3C 11/9 Low Fire Ceramic Kiln
$1,559.00Regular price$1,607.00
Save $48.00- 15-day returns
- No sales tax outside Georgia
- Made in USA
Ways to save
Choose your build
Built to order.
Already built, not made to order, so there is nothing else to configure. We confirm the lead time in writing before you are charged.
Lead time 6 to 8 weeks, confirmed in writing before you are charged.
Configure your kiln
Not sure? Call 470-264-3563
-
Orton AutoFire® 3-Button Remote Controller

-
Orton AutoFire® 12-Button Remote Controller

-
Orton AutoFire® Slide Remote Controller

-
SDS Industries TAP II Remote Controller

Jen-Ken AF3C 11/9 Low Fir...
$1,559.00
Overview
Jen-Ken · Ceramic Kiln · AF3C Series

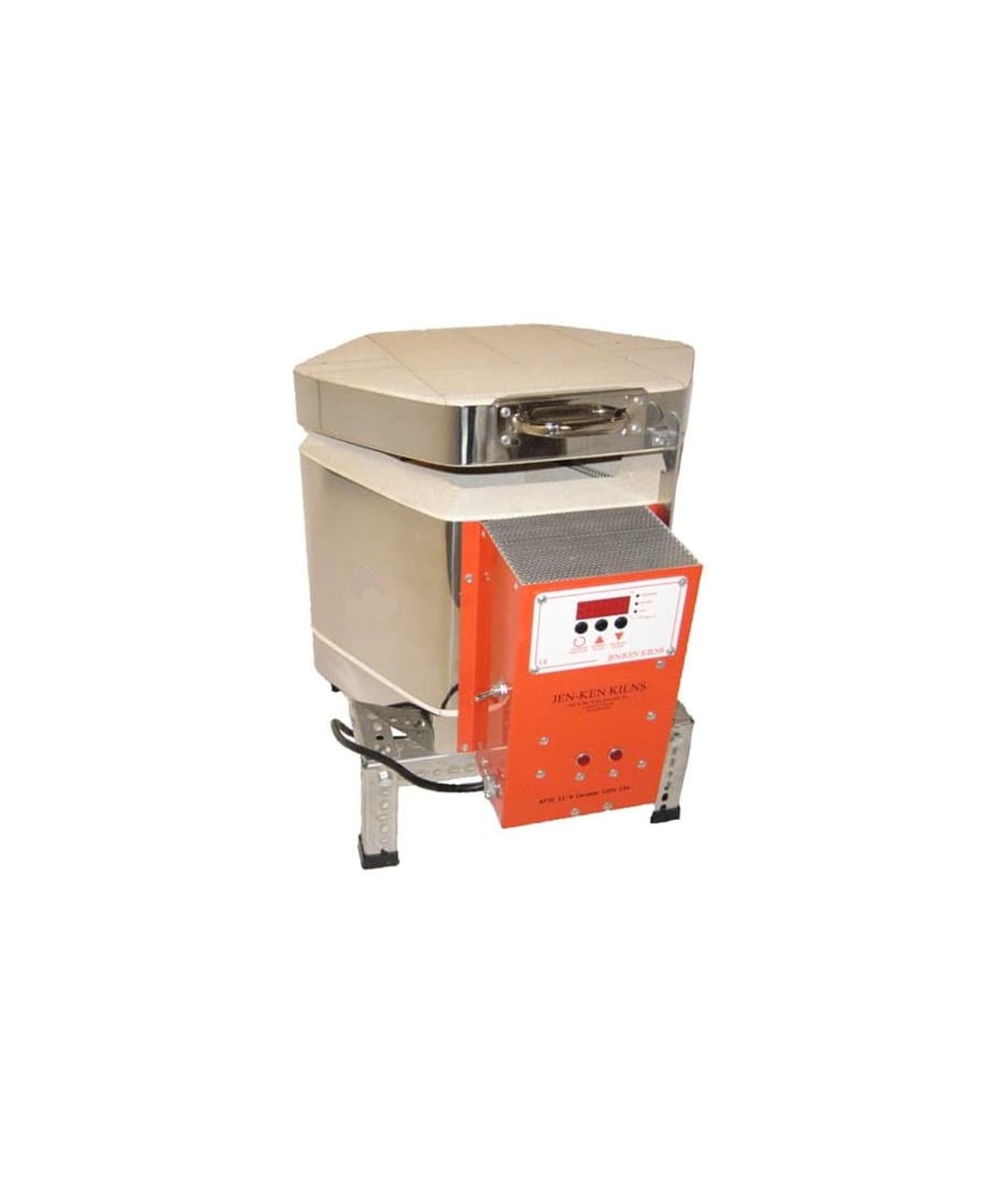

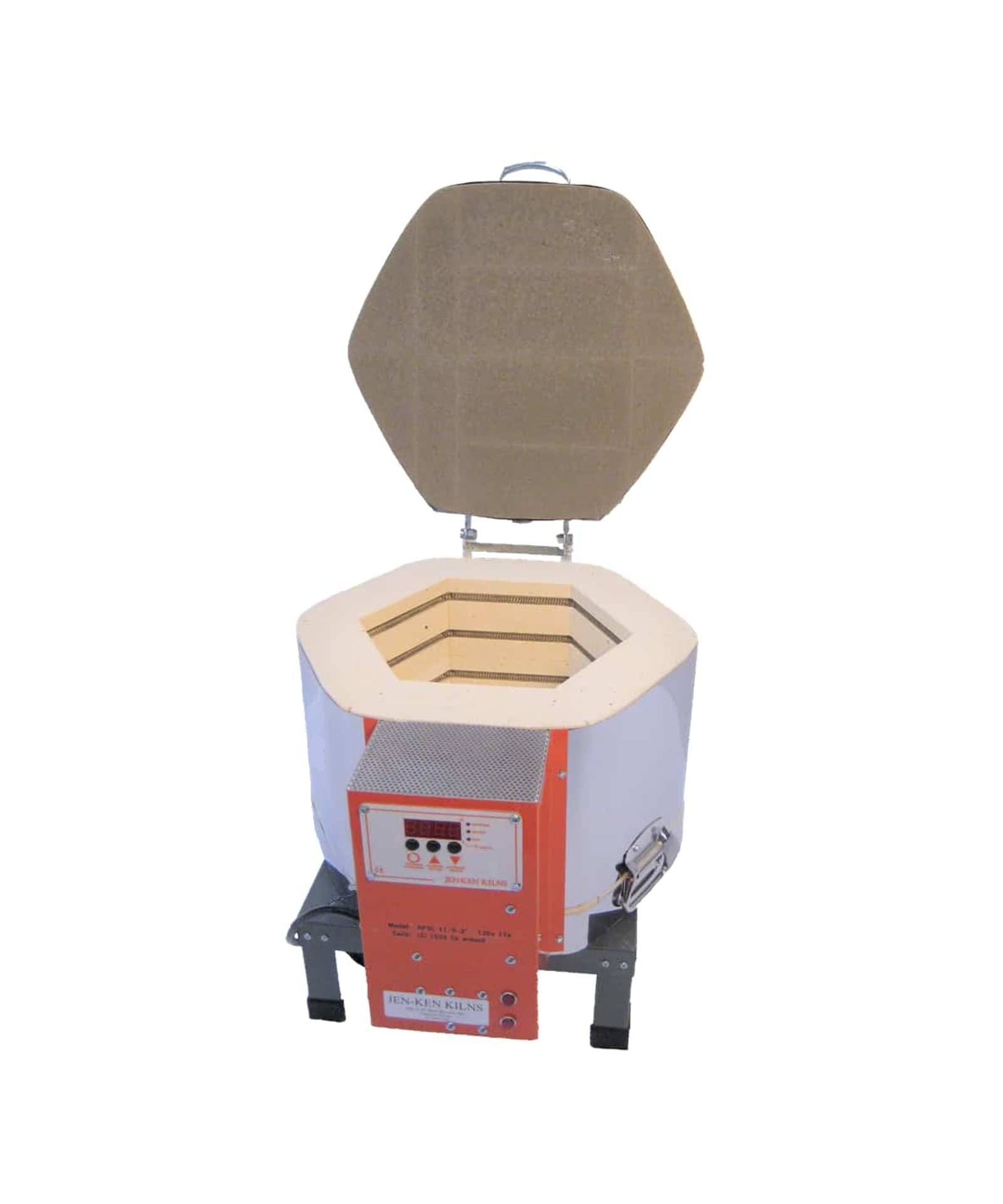

Jen-Ken AF3C 11/9 Low Fire Ceramic Kiln
The 15-amp build of Jen-Ken's 11/9, and the one that plugs into any ordinary wall outlet. A standard NEMA 5-15 plug, 120 volts, no electrician and no dedicated 240V circuit — which is why this is the kiln that ends up in a classroom corner, a spare bedroom, or somebody's first studio. It reaches 2,100°F, which covers low-fire clay and glaze and sits comfortably over anything you would fuse or slump in glass. Jen-Ken also builds a High Fire version of the same cabinet that reaches 2,300°F on a 5-20 plug; if you have a 20-amp outlet, that one is worth a look.
Max Temp2,100°F
Chamber11" x 9"
Capacity0.55 cu ft
Power120V · 15A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships boxed by UPS.
The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
Cord and plug — NEMA 5-15PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
Steel kiln standJen-Ken ships their ceramic kilns on a metal stand. Casters are a separate add-on.
Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
Key features
Plugs into a normal outlet120V on a standard NEMA 5-15 household plug. No dedicated circuit and no electrician.
Clay and glassJen-Ken lists it for low-fire ceramics and for glass fusing, slumping and drop moulds.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Chamber size11" x 9" — 0.55 cu ft. That is the space you actually have to load.
Technical specifications
ModelAF3C 11/9 Low Fire
Kiln functionLow-fire ceramics, pottery, glass fusing and slumping
Chamber dimensions11" x 9"
Cubic feet0.55 cu ft
Cone ratingCone 04-06
Voltage120V
PhaseSingle phase
Maximum temperature2,100°F (1,149°C)
Amperage15A
Wattage1,800W
ReceptacleNEMA 5-15P
Breaker (fuse) size20A
Circuit wire gauge#12
Element placementSide-fired
Element configuration2 full elements
LoadingTop-loading
ControllerOrton AutoFire AF3C 3-button
Solid-state relay upgradeAvailable as a priced upgrade — ask us for the current price
Furniture kitAvailable separately — ask us for the current price
Kiln standIncluded — metal stand; casters optional
Estimated shipping weight70 lbs
Shipping methodUPS — call for a quote
Warranty2-year limited (Jen-Ken)
Optional accessories
Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
Orton VentMasterA downdraft vent takes fumes out of the kiln and outside the building. Worth it if the kiln lives anywhere you breathe.
Common questions
How is this different from the 11/9 High Fire?Same cabinet, same chamber, same price from Jen-Ken — the difference is the element draw. This Low Fire build runs 15 amps on a standard 5-15 plug and tops out at 2,100°F. The High Fire build draws 17 amps, needs a 5-20 outlet (the one with the sideways slot) and reaches 2,300°F. If your outlet is a plain household socket and you are firing low-fire clay or glass, this is the one.
Do I need an electrician?Usually not. It runs on 120V and a standard plug. What matters is that the kiln gets the circuit to itself: Jen-Ken specifies a 20-amp breaker and #12 wire, and you should not share the circuit with a fridge, a heater or a shop vac, or run it on an extension lead.
What can it fire?Jen-Ken rates it cone 04-06 — low-fire clay, bisque, earthenware, underglaze and low-fire glaze. It also does glass fusing, slumping and drop moulds, which sit well below its ceiling. It is not a stoneware kiln.
Is 0.55 cubic feet useful?For jewellery, beads, small glass, test tiles, a child's class or a few small pots at a time, yes. For anything larger, no — and we would rather say that now than sell you a kiln you outgrow in a month. The 15/9 is the next step up and still runs on a small circuit.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
Not sure whether you need Low Fire or High Fire?
Tell us what you want to fire and what outlet you have. We will tell you straight which of the two builds you want — or whether you should be looking at a 240V kiln instead.
Talk to an expert →
