Jen-Ken AF3C 11/9 Ceramic Kiln - 120V, Cone 04-06, 11" x 9"

Jen-KenElectric KilnSKU JENKEN-AF3C-11-9
$1,559.00Regular price$1,607.00
Save $48.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

11/9 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF3C 11/9 Ceramic...
    $1,559.00
    Call

    Overview

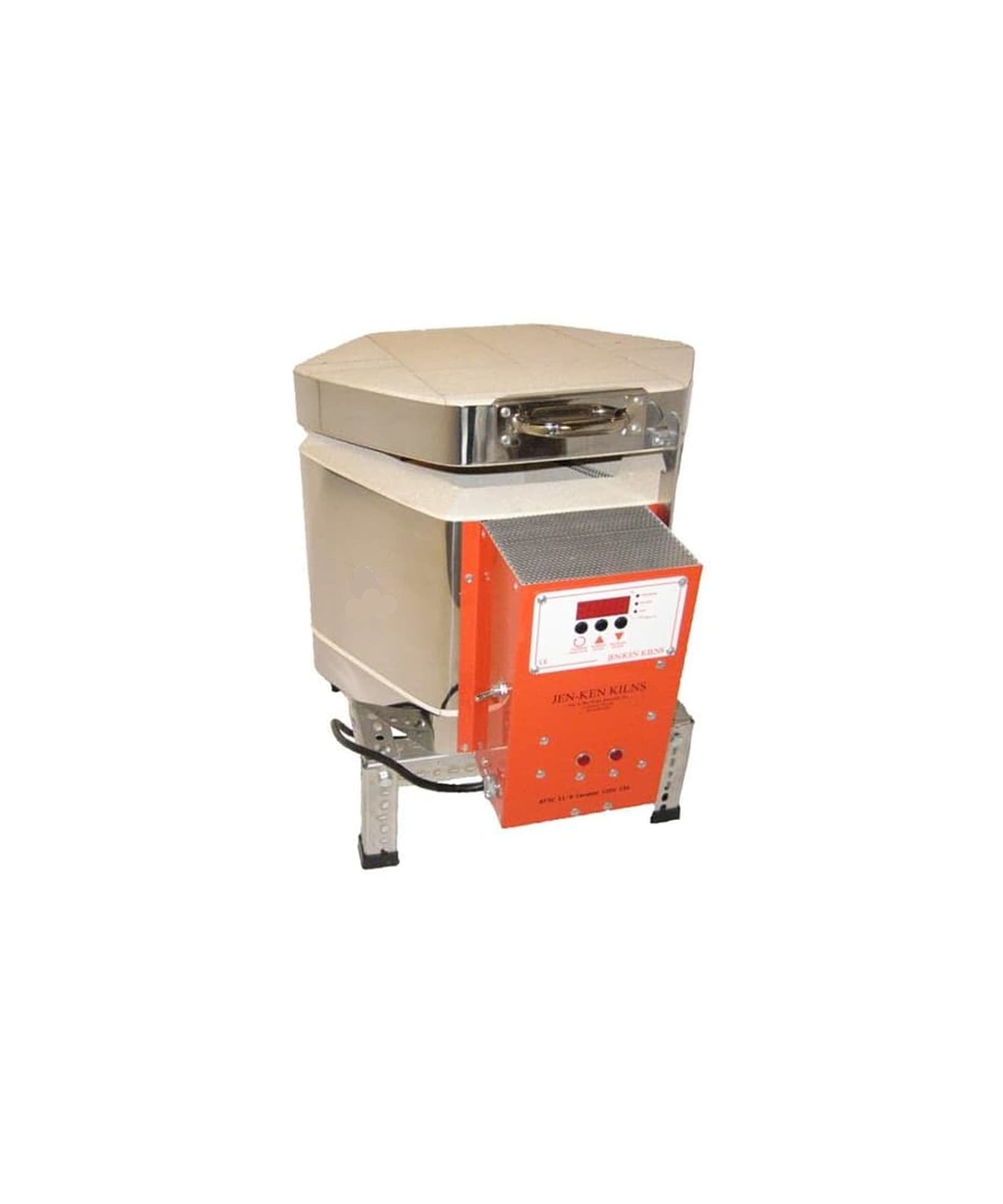

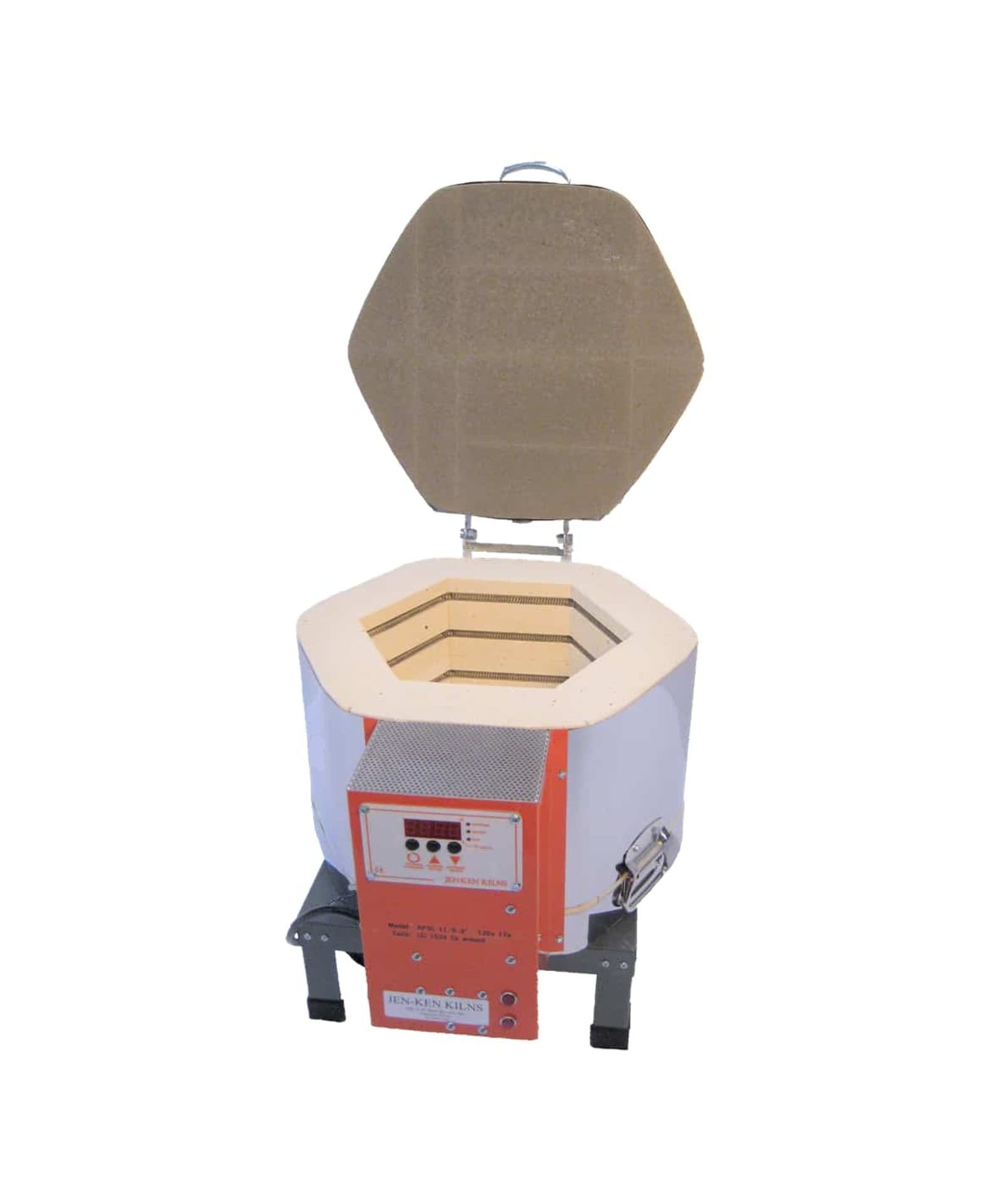

    Jen-Ken · Ceramic Kiln · AF3C Series Jen-Ken AF3C 11/9 Ceramic Kiln Model AF3C 11/9 · 120V · 11" x 9" chamber · 2,100°F or 2,300°F The 11/9 plugs into an ordinary household outlet. No electrician, no dedicated 240V circuit, no panel work — 120V and a standard plug, which is why it is the kiln that gets bought for a classroom corner, a spare bedroom or a first attempt at firing. Jen-Ken builds it in two versions: a 15-amp model on a standard 5-15 plug that reaches 2,100°F, and a 17-amp model on a 5-20 plug that reaches 2,300°F. It is also used for glass fusing, slumping and drop moulds.
    Max Temp2,100°F / 2,300°F
    Chamber11" x 9"
    Capacity0.55 cu ft
    Power120V · 15A or 17A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships boxed by UPS.

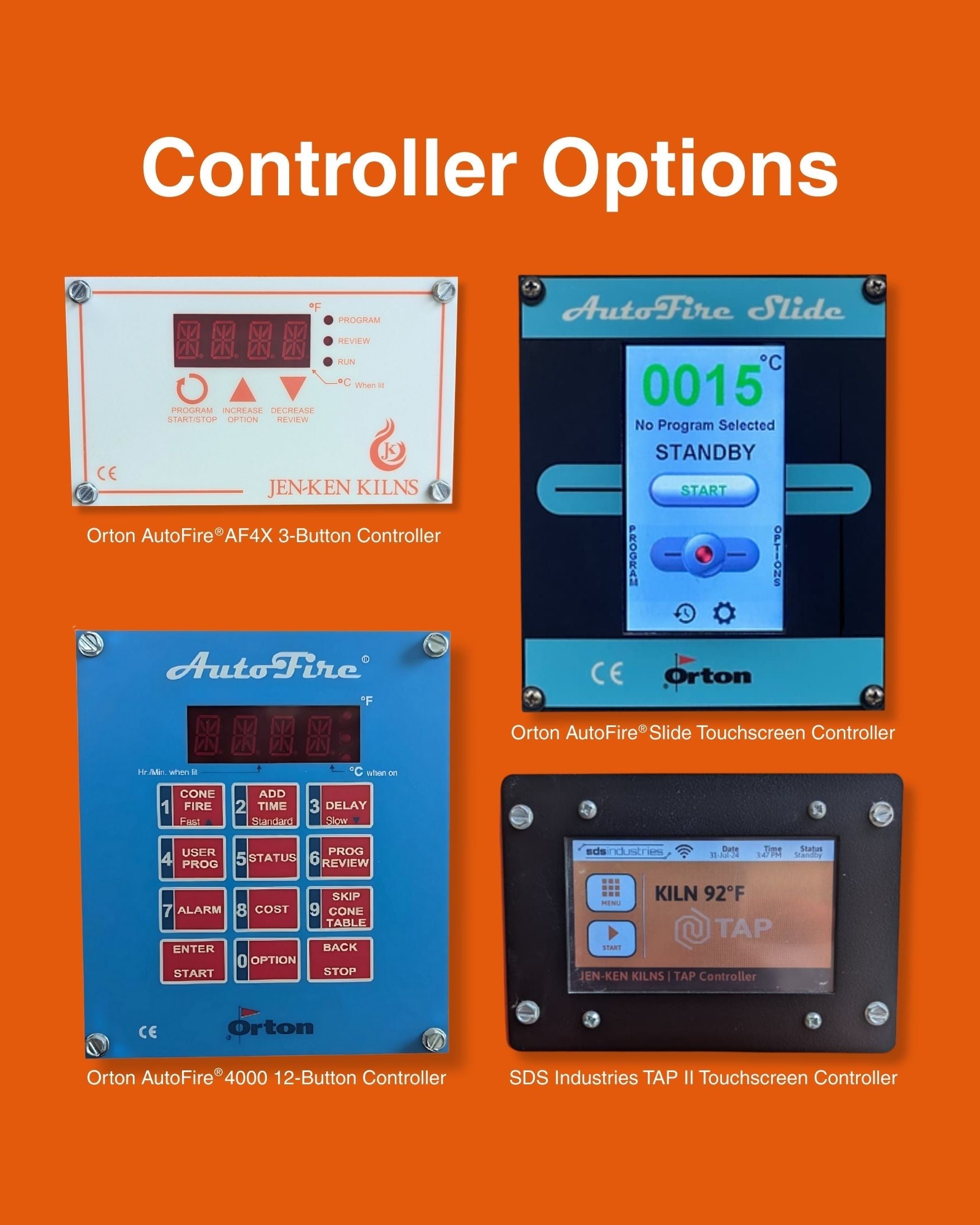

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — two buildsThe 15-amp build is wired with a NEMA 5-15P plug and the 17-amp build with a NEMA 5-20P. Both run on 120V. Say which one you need and we confirm it on the order.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    Plugs into a normal outlet120V on a standard household plug. No dedicated 240V circuit and no electrician.
    Two builds15A on a NEMA 5-15P to 2,100°F, or 17A on a NEMA 5-20P to 2,300°F. Specify when you order.
    Clay and glassJen-Ken lists it for low-fire ceramics and for glass fusing, slumping and drop moulds.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Technical specifications
    ModelAF3C 11/9
    Kiln functionCeramics, pottery, glass fusing and slumping
    Chamber dimensions11" x 9"
    Cubic feet0.55 cu ft
    Cone ratingCone 04-06
    Voltage120V
    PhaseSingle phase
    Maximum temperature — 15A build2,100°F (1,149°C)
    Amperage — 15A build15A
    Wattage — 15A build1,800W
    Receptacle — 15A buildNEMA 5-15P
    Breaker — 15A build20A
    Circuit wire gauge — 15A build#12
    Maximum temperature — 17A build2,300°F (1,260°C)
    Amperage — 17A build17A
    Receptacle — 17A buildNEMA 5-20P
    Breaker — 17A build20A
    Circuit wire gauge — 17A build#12
    Element placementSide-fired
    LoadingTop-loading
    ControllerOrton AutoFire AF3C 3-button
    Overall dimensions16" x 14"
    Kiln weight50 lbs
    Estimated shipping weight70 lbs
    Shipping dimensions26" x 26" x 20"
    Shipping methodUPS — call for a quote
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    Do I need an electrician?Usually not. Both builds run on 120V and a standard plug — the 15-amp model on a NEMA 5-15P, the 17-amp model on a NEMA 5-20P. Jen-Ken specifies a 20-amp breaker and #12 wire for both. What matters is that the kiln gets the circuit to itself: do not run it on the same circuit as a fridge, a heater or a shop vac, and do not put it on an extension lead.
    Which build should I order?The 15-amp model plugs into any ordinary outlet and reaches 2,100°F. The 17-amp model needs a 5-20 outlet — the one with the sideways slot — and reaches 2,300°F. If your outlet is a plain 5-15 and you do not want to change it, take the 15-amp build. If you want the extra 200 degrees and have or can fit a 20-amp outlet, take the 17.
    What can it fire?Jen-Ken rates it cone 04-06 — low-fire clay, bisque, earthenware, underglaze and low-fire glaze. It also does glass fusing, slumping and drop moulds, which sit comfortably below its ceiling. It is not a stoneware kiln.
    A note on Jen-Ken's published figuresJen-Ken lists 1,800W for both builds, but 120V at 17 amps is 2,040W, not 1,800W — the 15-amp figure appears to have been repeated. We publish the wattage only for the 15-amp build, where it is consistent, and have asked the factory to confirm the 17-amp figure. It does not change the circuit: both are 20A and #12.
    Is 0.55 cubic feet useful?For jewellery, beads, small glass, test tiles, a child's class or a few small pots at a time, yes. For anything larger, no — and we would rather tell you that now than sell you a kiln you outgrow in a month. The 15/9 is the next step up and still only needs a small circuit.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Smallest kiln we sell — and sometimes the right one. We are authorized Jen-Ken dealers based in Georgia. Tell us what you want to fire and we will tell you straight whether this will do it, or whether you need to step up to a 240V kiln.
