Jen-Ken AF 2829 3" Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-AF-2829-3
$5,089.00Regular price$5,635.00
Save $546.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2829 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken AF 2829 3" Cerami...
    $5,089.00
    Call

    Overview

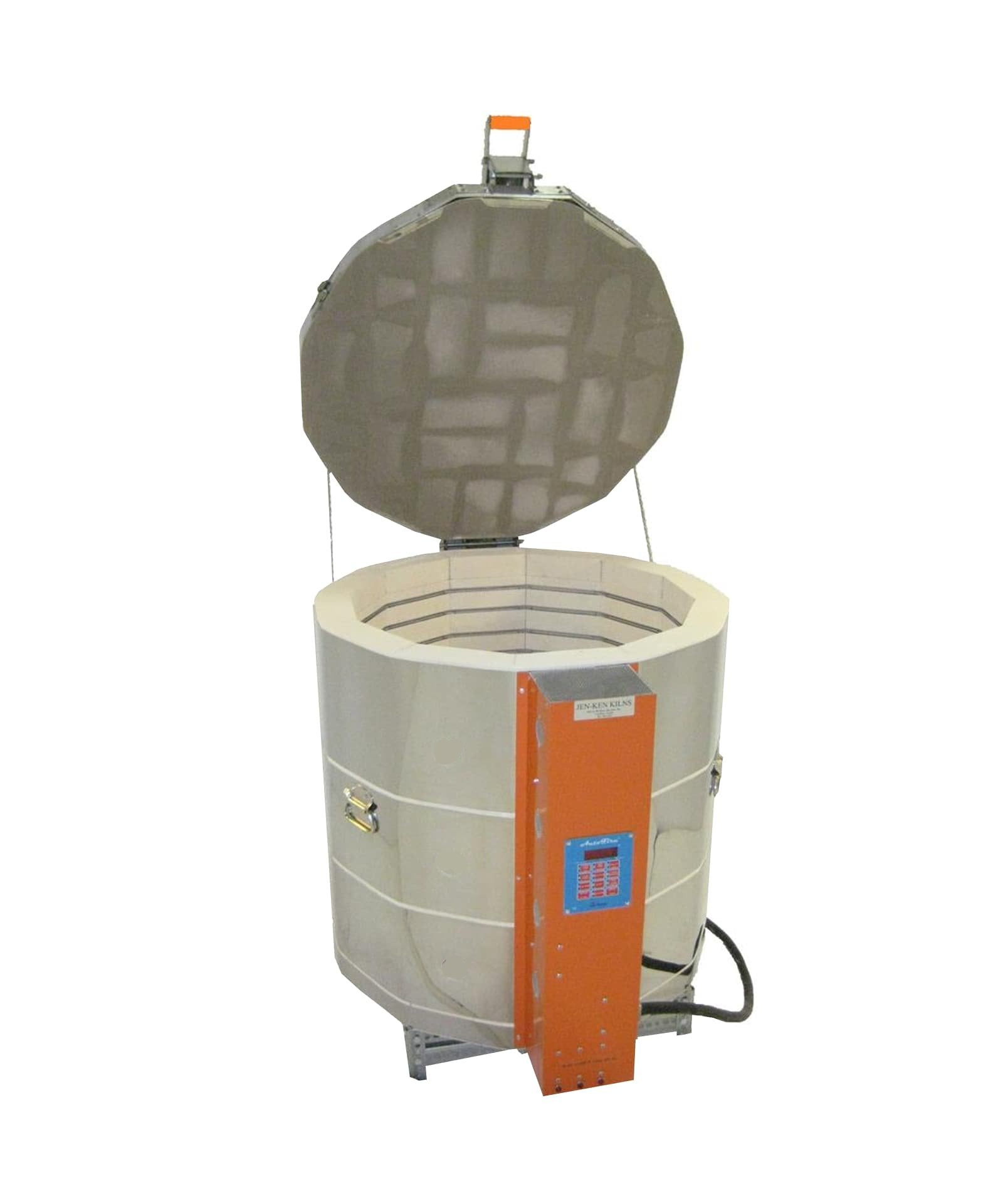

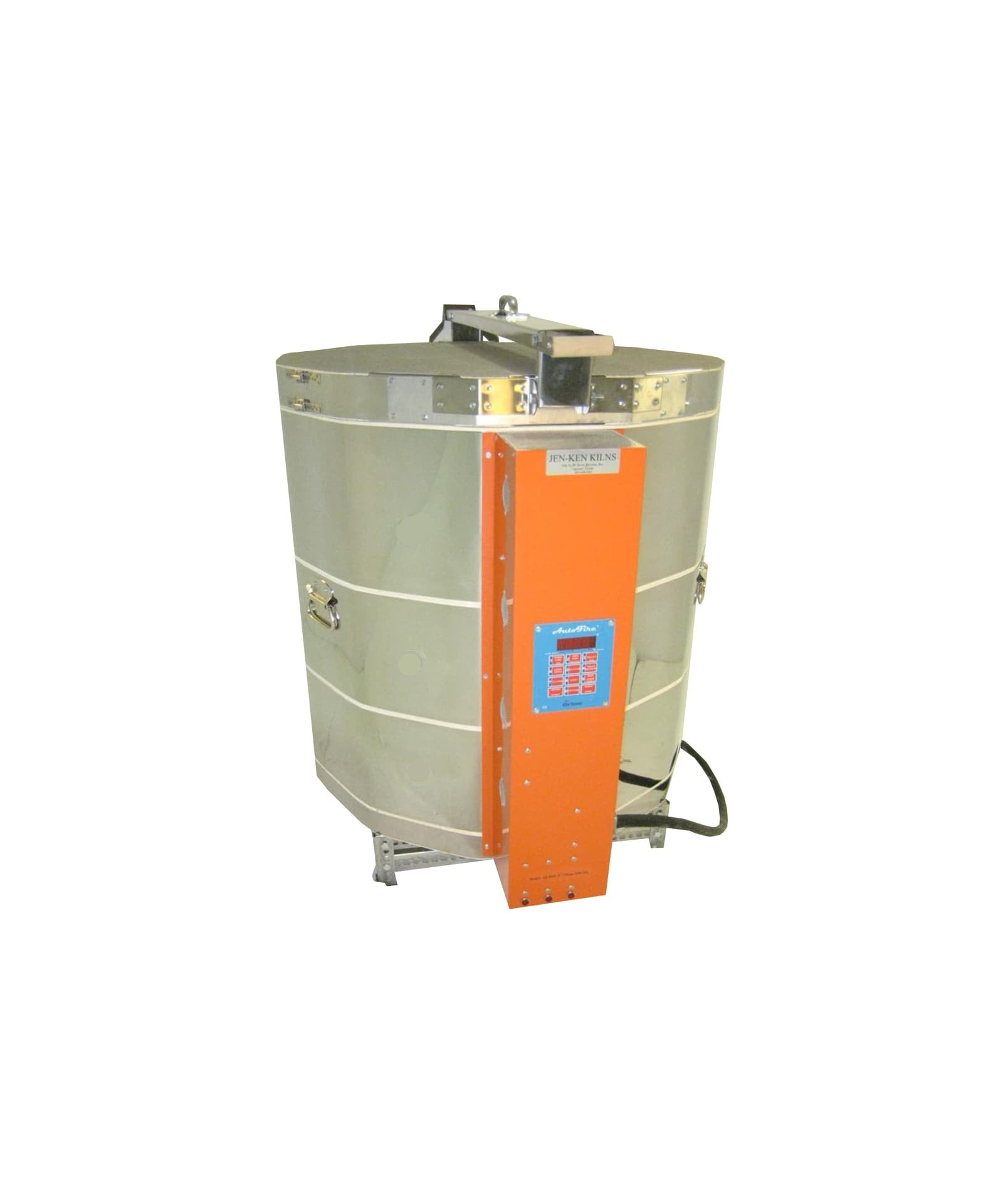

    Jen-Ken · Ceramic Kiln · 3-Inch Brick Jen-Ken AF 2829 3" Ceramic Kiln Model AF 2829 3" · 240V · 28" x 29" chamber · Cone 8 / 2,300°F Ten and a third cubic feet of 3-inch brick chamber — Jen-Ken's large studio kiln, and the standard-element sibling of the Mega Coil 2829. It fires to cone 8 at 2,300°F, which covers everything from bisque to mid-fire stoneware and porcelain. Jen-Ken offers it in two builds: 45 amps on a 6-50R plug, or a 55-amp high-fire build that is direct wired. Both are single phase. This is a kiln you put in a studio, not a spare room.
    Max Temp2,300°F (Cone 8)
    Chamber28" x 29"
    Capacity10.33 cu ft
    Power240V · 45A or 55A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

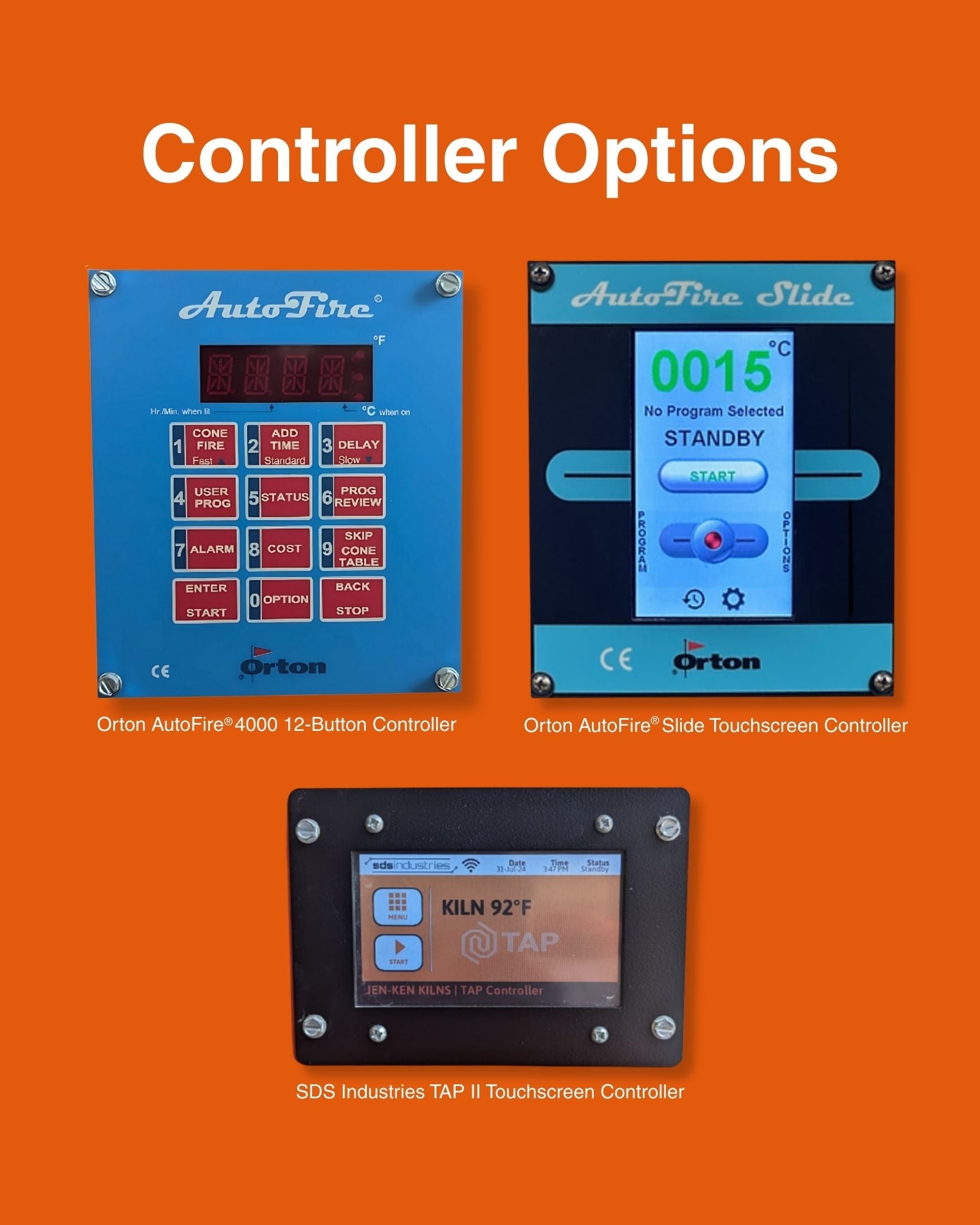

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug, or direct wireThe 45-amp build ships with a cord and a NEMA 6-50P plug. The 55-amp build is direct-wired instead, with no plug, so an electrician lands the cable for you. Tell us which build you want before the order goes in.
    Lid liftersJen-Ken lists lid lifters with this model.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
    Key features
    3-inch brick wallsThicker walls for heat retention on a large chamber, where reheating from cold is the expensive part.
    Two electrical builds45A on a NEMA 6-50R, or 55A high fire direct wired. Specify when you order.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size28" x 29" — 10.33 cu ft. That is the space you actually have to load.
    Technical specifications
    ModelAF 2829 3" Ceramic Kiln
    Kiln functionCeramics, pottery
    Chamber dimensions28" x 29"
    Cubic feet10.33 cu ft
    Maximum temperature2,300°F (1,260°C)
    Cone ratingCone 8
    Voltage240V
    PhaseSingle phase
    Amperage — 45A build45A
    Wattage — 45A build10,800W
    Receptacle — 45A buildNEMA 6-50R
    Breaker — 45A build60A
    Circuit wire gauge — 45A build#6
    Amperage — 55A high-fire build55A
    Wattage — 55A high-fire build13,200W
    Receptacle — 55A high-fire buildDirect wire
    Breaker — 55A high-fire build70A
    Circuit wire gauge — 55A high-fire build#4
    Element placementSide-fired
    LoadingTop-loading, with lid lifters
    ControllerOrton AutoFire 12-button
    Kiln weight300 lbs
    Estimated shipping weight440 lbs
    Shipping dimensions54" x 45" x 64"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    Which electrical build should I order?The 45A build runs 240V single phase, 10,800W, on a NEMA 6-50R with a 60A breaker and #6 wire. The 55A high-fire build is direct wired, 13,200W, with a 70A breaker and #4 wire — that is the one Jen-Ken points production users toward. Decide before you order; it is built to order and the two are not interchangeable. Have a licensed electrician confirm the circuit against local code, and note Jen-Ken's own advice that runs over 30 feet from the breaker may need the next heavier gauge.
    What can it fire?Cone 8 at 2,300°F. That is low-fire, mid-fire stoneware and porcelain — the great majority of studio work. It will not reach cone 10; no Jen-Ken pottery kiln does.
    How is this different from the Mega Coil 2829 3"?Same chamber and same 3-inch brick, different elements. The Mega Coil version uses six oversized heavy-gauge coils that last longer under frequent firing and are easier to change, and it costs more. This one uses Jen-Ken's standard element stock. If you fire once or twice a month, this is the better value; if you fire most days, look at the Mega Coil.
    Will it fit through my door?Jen-Ken crates it at 54" x 45" x 64" and it ships at around 400 lbs by motor freight. Measure your access route before delivery and plan for a liftgate or a dock.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Can I get it in 208V or three phase?Standard build is 240V single phase, and that is the only configuration Jen-Ken publishes a specification for. Jen-Ken will build most ceramic models for 208V, and some for three phase, to order. There is no published amperage, breaker or wire figure for a three-phase build, so contact us for a quote and we will get the numbers from the factory.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    45A or 55A high fire? We are authorized Jen-Ken dealers based in Georgia. Tell us what you fire and what your panel will take, and we will tell you which build to order — and whether the Mega Coil version is worth the difference for how you work.
