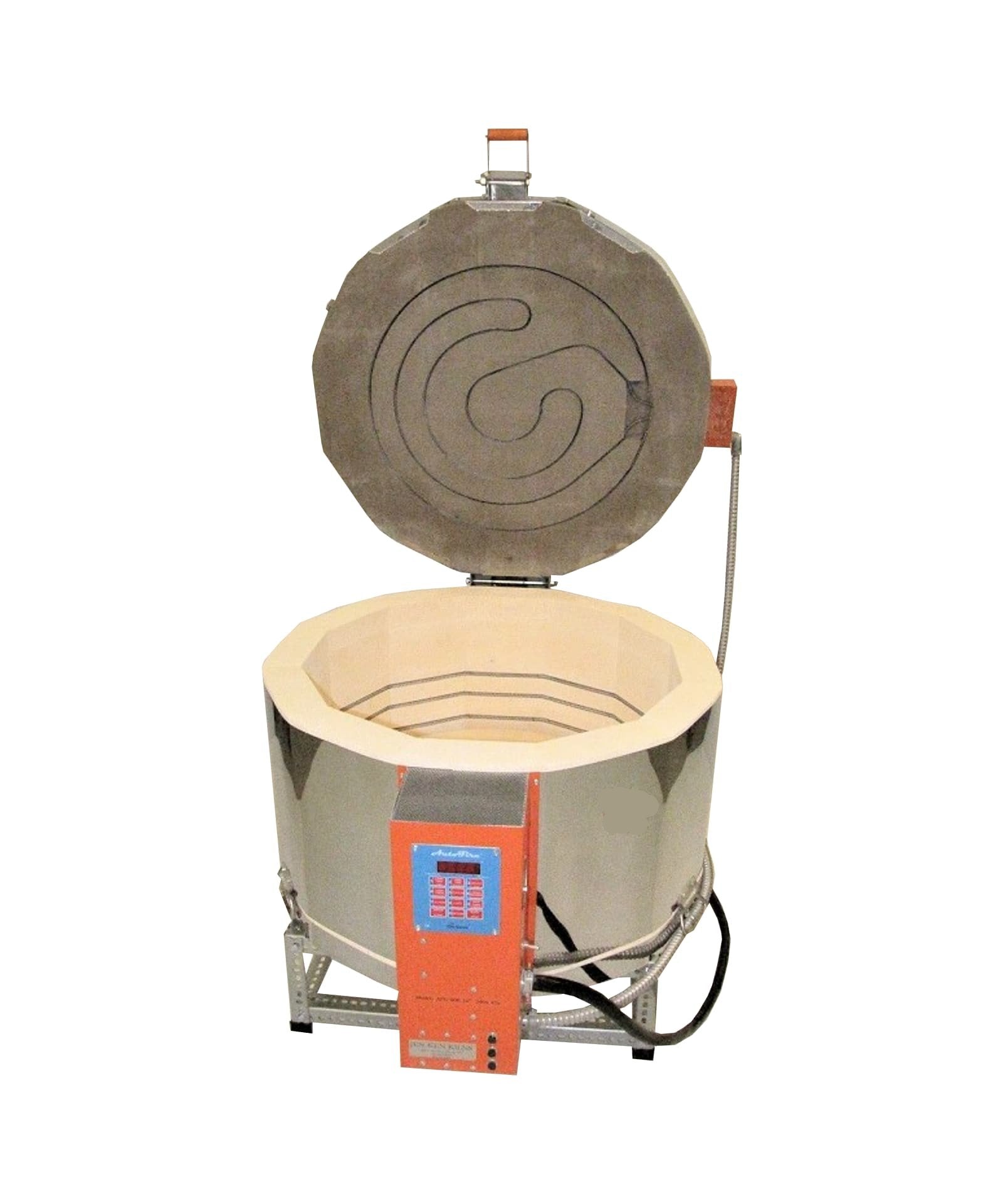

Jen-Ken 28-E 15" Glass Kiln

Jen-KenGlass KilnSKU JENKEN-28E-15
$4,099.00Regular price$4,426.00
Save $327.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2815 — Glass/Casting is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken 28-E 15" Glass Kiln
    $4,099.00
    Call

    Overview

    Jen-Ken · Glass Kiln · AFG 28-E Series Jen-Ken 28-E 15" Glass Kiln Model AFG 28-E 15" 3" · 240V · 28" x 15" chamber · 1,700°F This is the largest round kiln Jen-Ken builds for glass: 28 inches across and 15 deep, 5.33 cubic feet, taking a 26-inch solid round shelf or squares up to 18" x 18". The walls and lid are 3-inch brick rather than the usual 2.5, which Jen-Ken rates at roughly 20% more insulation — that shows up as a steadier anneal soak and a lower power bill over a long schedule, which is what you want if the kiln is earning its keep. Fifteen inches of height takes deep slumping moulds standing up. It fires top and side together for an even fuse across a shelf that wide, ships with lid lifters and the 12-button controller, and runs on a 240V 45-amp circuit.
    Max Temp1,700°F
    Chamber28" x 15"
    Capacity5.33 cu ft
    Power240V · 45A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

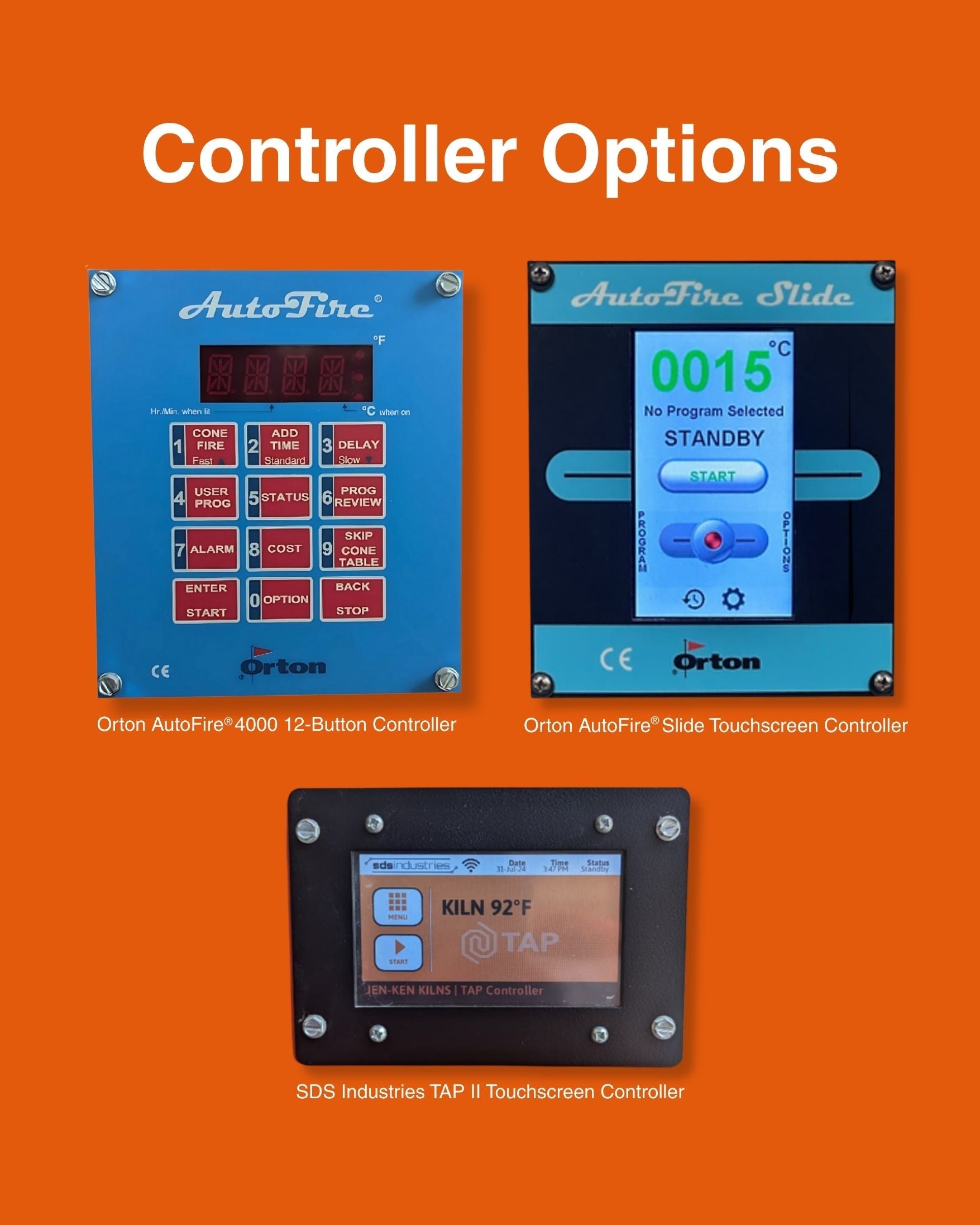

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Kiln standIncluded by Jen-Ken. It lifts the chamber off the floor for airflow and brings it to a workable loading height.
    Kiln washA starter supply of shelf primer is on Jen-Ken's included list — glass welds itself to an unprimed shelf.
    Lid liftersOn Jen-Ken's included list. A 28-inch 3-inch-brick lid is heavy; the lifters take most of that weight out of opening and closing it.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves or posts in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    3-inch brick walls and lidJen-Ken's figure is around 20% more insulation than their standard wall. It holds a soak more steadily and costs less to run over a long glass schedule.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size28" x 15" — 5.33 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 1,700°F (927°C).
    Technical specifications
    ModelAFG 28-E 15" 3"
    Kiln functionGlass fusing, slumping
    Chamber dimensions28" x 15"
    Cubic feet5.33 cu ft
    Shelf / work size26" solid round shelf, or pieces up to 18" x 18"
    Brick3-inch walls and lid
    Maximum temperature1,700°F (927°C)
    Voltage240V
    Amperage45A
    Wattage10,800W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) size50A
    Circuit wire gauge#6
    Element placementTop and side
    LoadingTop-loading, with lid lifters
    ControllerOrton AutoFire 12-button
    Kiln weight275 lbs
    Estimated shipping weight380 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire 12-button as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?240V single phase, a 45-amp draw, 10,800 watts, a NEMA 6-50R receptacle, a 50-amp breaker and #6 copper. That combination matches the wiring table in Jen-Ken's own owner's manual, which gives every 45-amp kiln in their range #6 wire, a 50-amp fuse and a 6-50R, so it is a figure we are happy to print. One arithmetical note we would rather state than hide: a kiln is a continuous load and the 125% rule puts 45 amps at 56.25 amps of breaker, above the 50 Jen-Ken specifies. Jen-Ken pairs 45-amp models with a 50-amp fuse consistently across their whole line, and the #6 wire is good for 65 amps at 75°C, so the wire is not the constraint. It is a dedicated run — have a licensed electrician confirm it against local code before delivery, and mention the 30-foot rule from Jen-Ken's manual if the panel is a long way off.
    How big a piece will it take?Jen-Ken's own figures are a 26-inch solid round shelf or work up to 18" x 18" square. The chamber is 15 inches deep, so deep slumping moulds and taller draping forms go in standing up, or you can stack a second shelf on posts.
    How is this different from the 28-E 11"?Height, and the current. Both are 28 inches across with the same 26-inch shelf, the same 18" x 18" maximum piece and the same 3-inch brick. This one is 15 inches deep at 5.33 cubic feet and draws 45 amps; the 11-inch is 3.91 cubic feet and draws 36. Buy this one for deep slumps and stacking; buy the 11-inch if your work is flat and you would rather spend less.
    Is the 3-inch brick worth it?On a kiln this size, usually yes. Jen-Ken's number is about 20% more insulation, and on glass that matters less for reaching temperature than for holding one — an anneal soak on a thick piece is a long, slow hold, and a better-insulated chamber does it with less element cycling. It also adds weight, which is part of why the crate is 350 lbs.
    Will it fire clay?No. 1,700°F is a glass ceiling. If you want one large kiln for both glass and clay, look at the AFG 2815 3" Glass/Casting — same 28" x 15" chamber and the same 3-inch brick, but with a side-only firing mode and a 2,150°F ceiling for casting and low-fire clay.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Planning a 45-amp circuit and a freight delivery? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
