Jen-Ken 28-E 11" Glass Kiln

Jen-KenGlass KilnSKU JENKEN-28E-11
$3,829.00Regular price$4,090.00
Save $261.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2815 — Glass/Casting is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

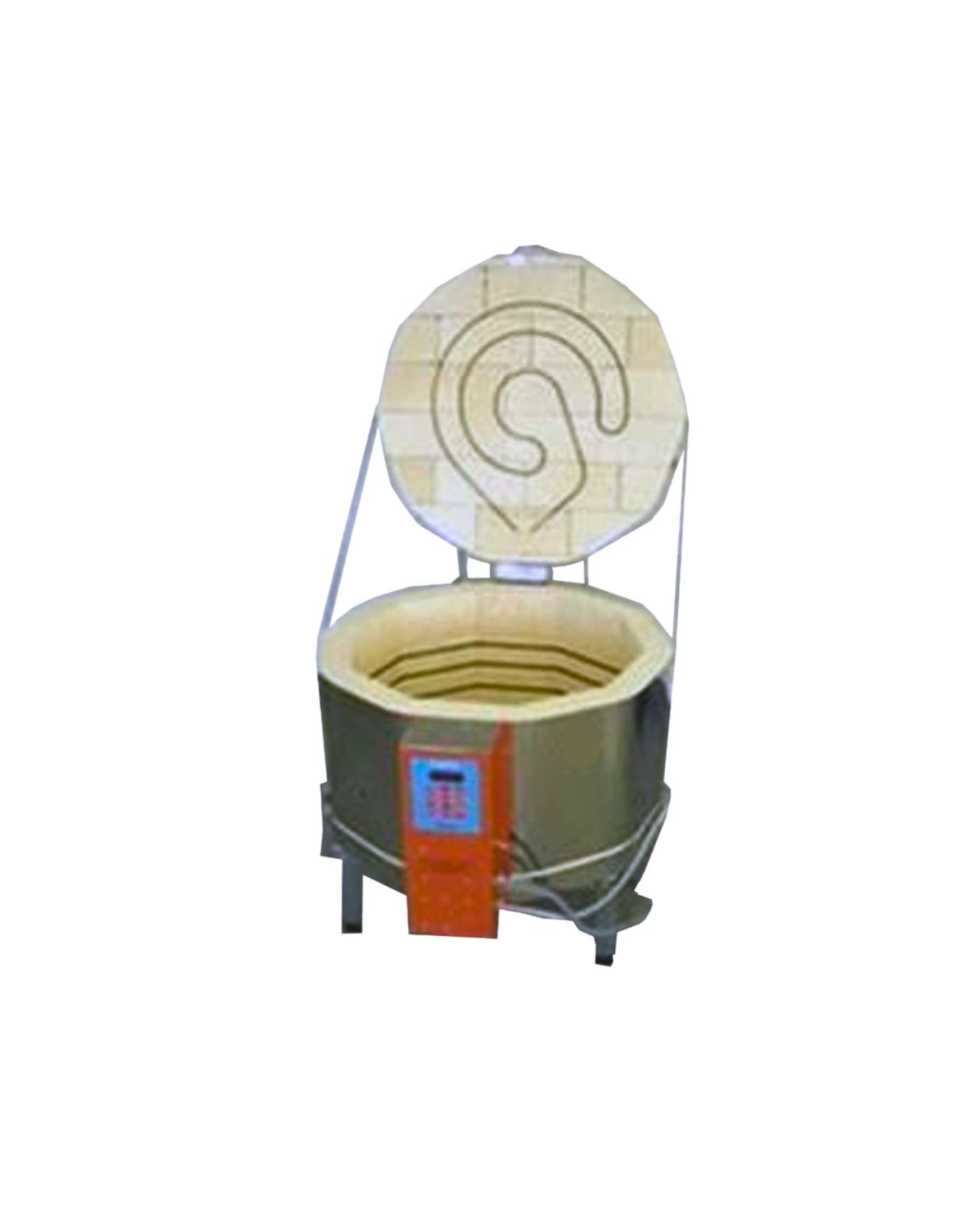

    Jen-Ken 28-E 11" Glass Kiln
    $3,829.00
    Call

    Overview

    Jen-Ken · Glass Kiln · AFG 28-E Series Jen-Ken 28-E 11" Glass Kiln Model AFG 28-E · 240V · 28" x 11" chamber · 1,700°F Jen-Ken's second-largest round glass kiln, behind only the 28-E 15". It takes the same 26-inch solid round shelf and the same 18" x 18" maximum piece as its taller sibling, in an 11-inch chamber at 3.91 cubic feet — which is the right trade if your work is flat. Large bowl slumps, platters, long panels, a full shelf of tiles. The walls and lid are 3-inch brick, which Jen-Ken rates at about 20% more insulation than a standard wall, and that shows up as a steadier anneal hold rather than a faster climb. Elements fire top and side together so a 26-inch shelf fuses evenly out to the rim. Lid lifters and the 12-button controller are included, and it runs on a 240V 36-amp circuit — nine amps less than the 15-inch build, which can be the difference between calling an electrician and not.
    Max Temp1,700°F
    Chamber28" x 11"
    Capacity3.91 cu ft
    Power240V · 36A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

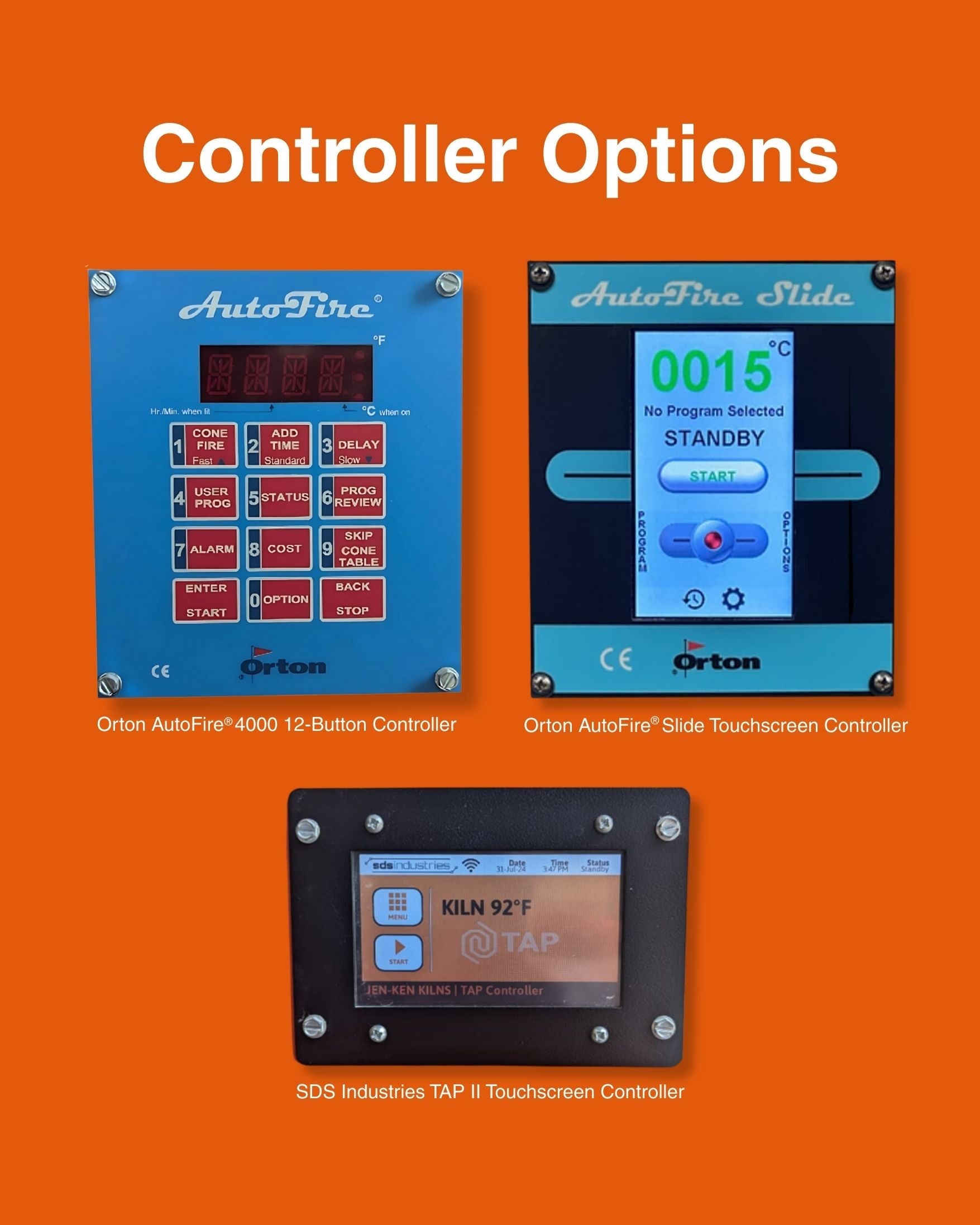

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Kiln standIncluded by Jen-Ken. It lifts the chamber off the floor for airflow and brings it to a workable loading height.
    Kiln washA starter supply of shelf primer is on Jen-Ken's included list — glass welds itself to an unprimed shelf.
    Lid liftersOn Jen-Ken's included list. A 28-inch 3-inch-brick lid is heavy; the lifters take most of that weight out of opening and closing it.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves or posts in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    3-inch brick walls and lidJen-Ken's figure is around 20% more insulation than their standard wall. It holds a soak more steadily and costs less to run over a long glass schedule.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size28" x 11" — 3.91 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 1,700°F (927°C).
    Technical specifications
    ModelAFG 28-E
    Kiln functionGlass fusing, slumping
    Chamber dimensions28" x 11"
    Cubic feet3.91 cu ft
    Shelf / work size26" solid round shelf, or pieces up to 18" x 18"
    Brick3-inch walls and lid
    Maximum temperature1,700°F (927°C)
    Voltage240V
    Amperage36A
    Wattage8,640W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) size50A
    Circuit wire gauge#6
    Element placementTop and side
    LoadingTop-loading, with lid lifters
    ControllerOrton AutoFire 12-key
    Kiln weight250 lbs
    Estimated shipping weight350 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire 12-key as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?240V single phase, a 36-amp draw, 8,640 watts, a NEMA 6-50R receptacle, a 50-amp breaker and #6 copper. That set is internally consistent and we are happy to print all of it: 240V × 36A is exactly 8,640W, a continuous 36-amp load wants 45 amps of breaker under the 125% rule and gets 50, #6 copper carries 65 amps at 75°C, and a 6-50R is a 50-amp device. Nothing in the chain is undersized. It is still a dedicated run — have a licensed electrician confirm it against local code before delivery, and note Jen-Ken's own caveat that more than about 30 feet from the panel may need the next heavier gauge.
    How big a piece will it take?Jen-Ken's own figures are a 26-inch solid round shelf or work up to 18" x 18" square — the same as the taller 28-E. What you give up at 11 inches of height is deep moulds and stacking, not diameter.
    How is this different from the 28-E 15"?Height and current. Same 28-inch chamber, same 26-inch shelf, same 18" x 18" maximum piece, same 3-inch brick, same 1,700°F. This one is 11 inches deep at 3.91 cubic feet on 36 amps; the 15-inch is 5.33 cubic feet on 45 amps. If your work is flat this is the better buy — you get the full diameter for less money on a smaller circuit. If you slump into deep moulds, pay for the 15-inch.
    Is the 3-inch brick worth it?On a kiln this size, usually yes. Jen-Ken's number is about 20% more insulation, and on glass that matters less for reaching temperature than for holding one — an anneal soak on a thick piece is a long, slow hold, and a better-insulated chamber does it with less element cycling. It also adds weight, which is part of why the crate is 325 lbs.
    Will it fire clay?No. 1,700°F is a glass ceiling, not a ceramic one. For clay as well as glass in a chamber this size, look at the Glass/Casting builds, which Jen-Ken rates to 2,150°F and lists for low-fire ceramics.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Flat work or deep moulds? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
