Jen-Ken 2431 Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-2431
$4,159.00Regular price$4,501.00
Save $342.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2431 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

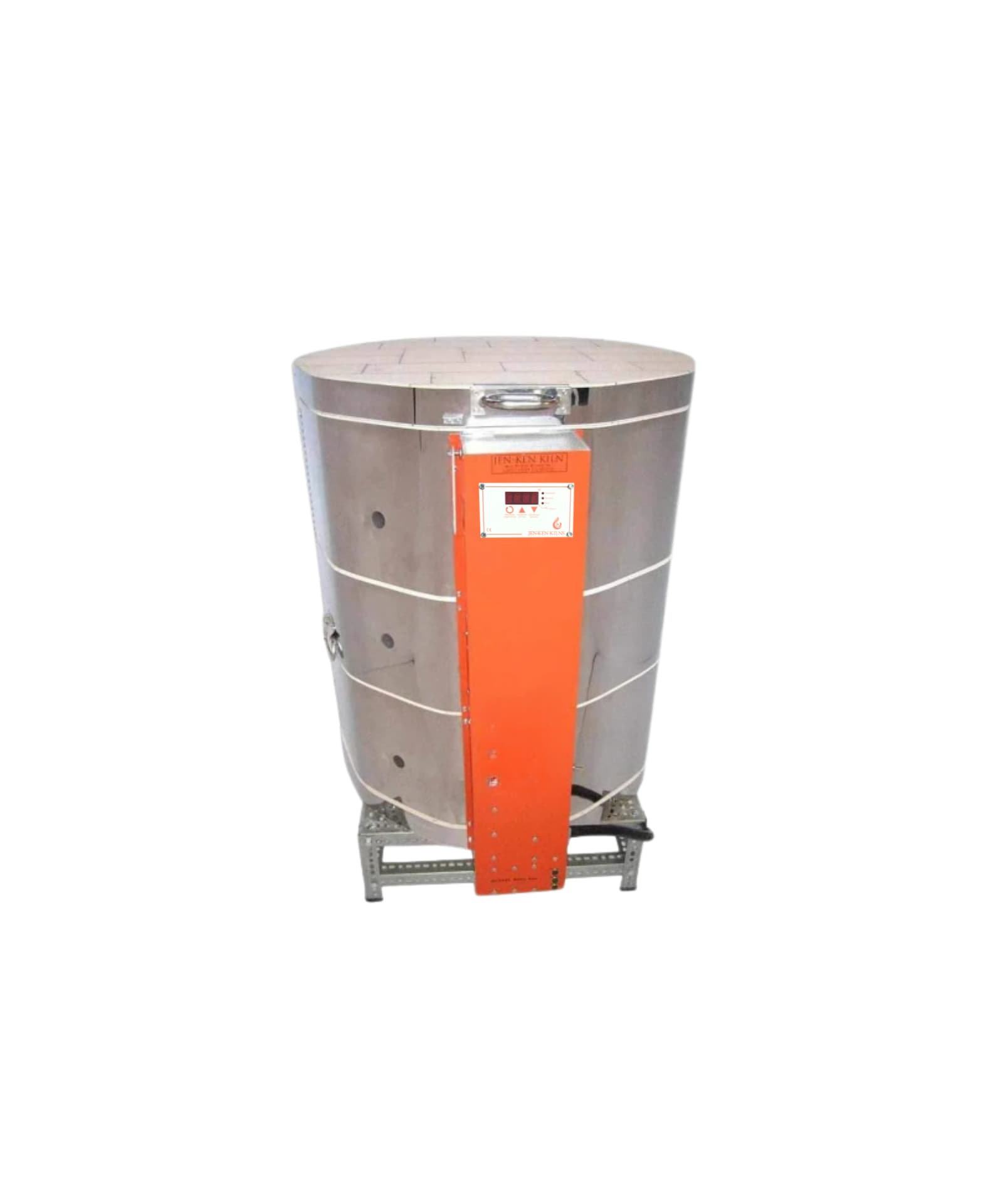

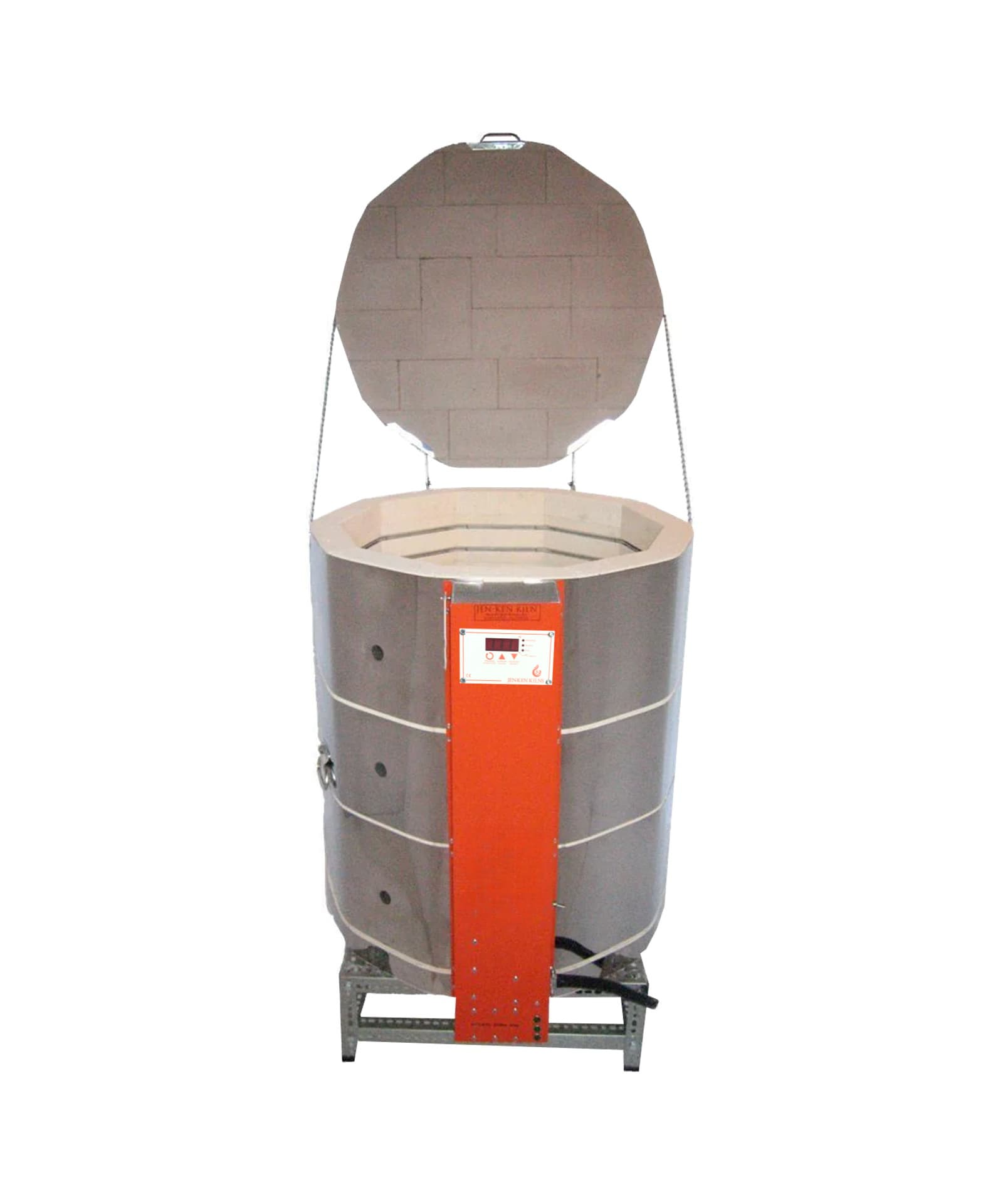

    Jen-Ken 2431 Ceramic Kiln
    $4,159.00
    Call

    Overview

    Jen-Ken · Ceramic Kiln · AF Series Jen-Ken 2431 Ceramic Kiln Model 2431 · 240V · 24" x 31" chamber · Cone 5-6 / 2,300°F The 2431 is Jen-Ken's tall studio kiln: 8.11 cubic feet in a 24" x 31" chamber, which is depth rather than width. That suits paint-your-own-pottery studios and schools firing stacked shelves of bisque, and it fits through a standard 30-inch doorway, which several kilns this size do not. It draws 45 amps on a 6-50R and fires to cone 5-6 at 2,300°F. Jen-Ken also builds a 55-amp direct-wire version for production use — see below.
    Max Temp2,300°F (Cone 5-6)
    Chamber24" x 31"
    Capacity8.11 cu ft
    Power240V · 45A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

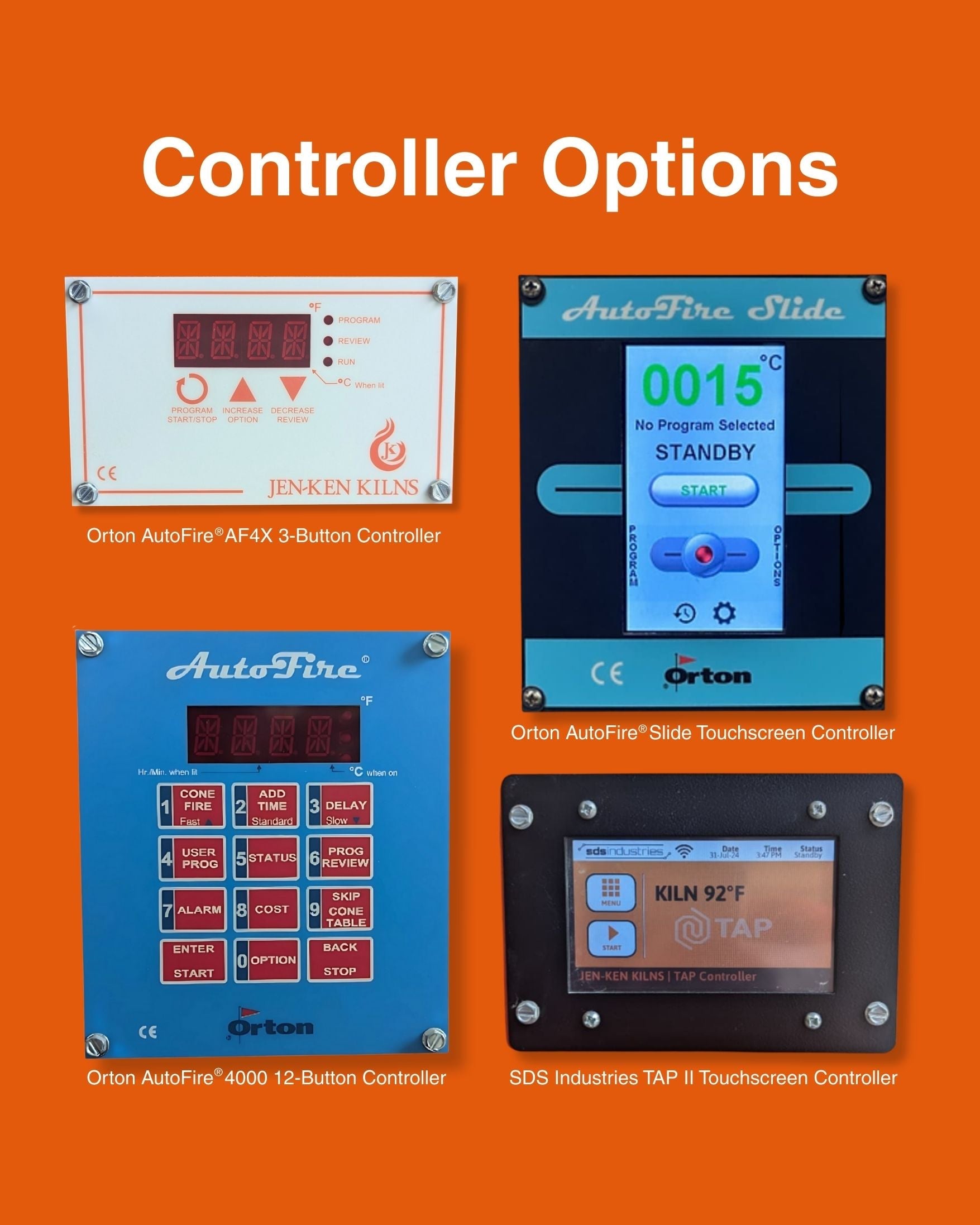

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Lid lifterJen-Ken's dealer sheet lists this model as including the lid lifter — the spring assist that takes most of the weight out of raising the lid.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
    Key features
    Fits a 30" doorwayJen-Ken designed the footprint to go through a standard interior door — worth knowing if the kiln room is not on the ground floor.
    Depth over widthA 31-inch chamber takes more stacked shelves than a wide, shallow one of the same volume.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size24" x 31" — 8.11 cu ft. That is the space you actually have to load.
    Technical specifications
    Model2431 Ceramic Kiln
    Kiln functionCeramics, pottery
    Chamber dimensions24" x 31"
    Cubic feet8.11 cu ft
    Maximum temperature2,300°F (1,260°C)
    Cone ratingCone 5-6
    Voltage240V
    Amperage45A
    Wattage10,800W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) size60A
    Circuit wire gauge#6
    Element placementSide-fired
    LoadingTop-loading
    ControllerOrton AutoFire 12-key
    Kiln weight275 lbs
    Estimated shipping weight450 lbs
    Shipping dimensions54" x 45" x 64"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    55A direct-wire versionJen-Ken's page mentions a 55-amp direct-wire build of this kiln for production use, but publishes no separate electrical table for it. If you want that build, call us and we will get the figures from the factory before you order.
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    Common questions
    What electrical circuit does it need?240V single phase, 45A draw, 10,800W, on a NEMA 6-50R receptacle with a 60A breaker and #6 circuit wire. That is a dedicated circuit and a job for a licensed electrician — a kiln is a continuous load, so confirm the breaker and wire against your local code before delivery. Jen-Ken notes that runs over 30 feet from the breaker may need the next heavier gauge.
    What about the 55-amp version?Jen-Ken's copy recommends a 55-amp direct-wire build for high-demand production use, but they publish no electrical table for it — no breaker size, no wire gauge. We will not guess at those. Call us and we will get the factory's figures before you commit, because it changes the circuit your electrician installs.
    What can it fire?Cone 5-6 at 2,300°F — mid-fire stoneware and porcelain, and all the low-fire and bisque work a paint-your-own studio runs. It will not reach cone 10.
    Will it fit through my door?Yes, that is one of the reasons Jen-Ken built this shape — the body goes through a standard 30-inch doorway. The crate is 54" x 45" x 64" and will not, so plan for uncrating outside.
    Should I get the 3-inch brick version instead?If you fire several times a week, yes — the 2431 3" holds heat better and costs less to run per firing. If you fire a few times a month, the standard build is the better buy.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Standard brick or 3-inch? 45A or 55A? We are authorized Jen-Ken dealers based in Georgia. Tell us how often you fire and what your panel will take, and we will tell you which 2431 to order — including when the cheaper build is the right one.
