Jen-Ken 2431 3" Ceramic Kiln

Jen-KenElectric KilnSKU JENKEN-2431-3
$4,739.00Regular price$5,209.00
Save $470.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2431 is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

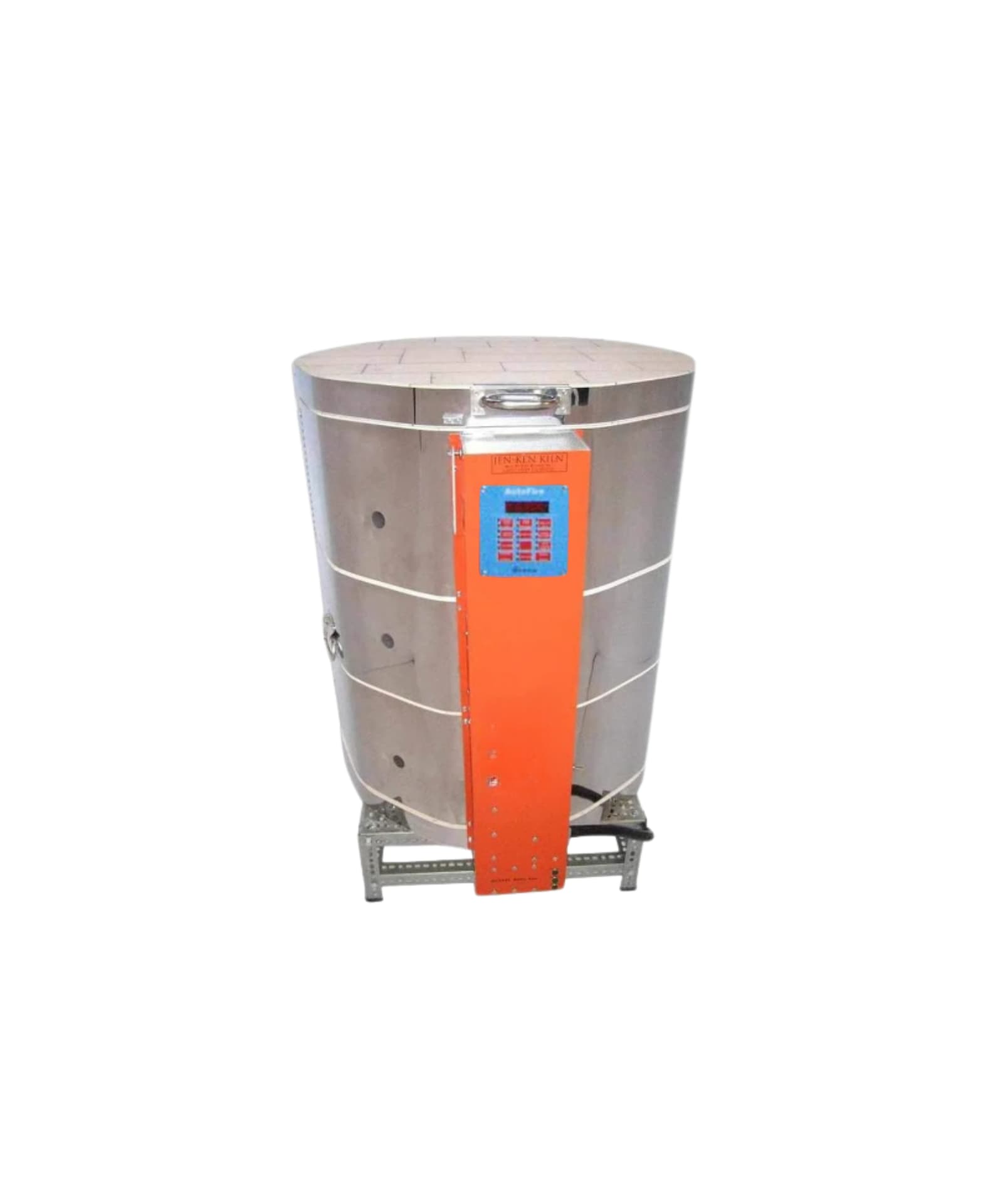

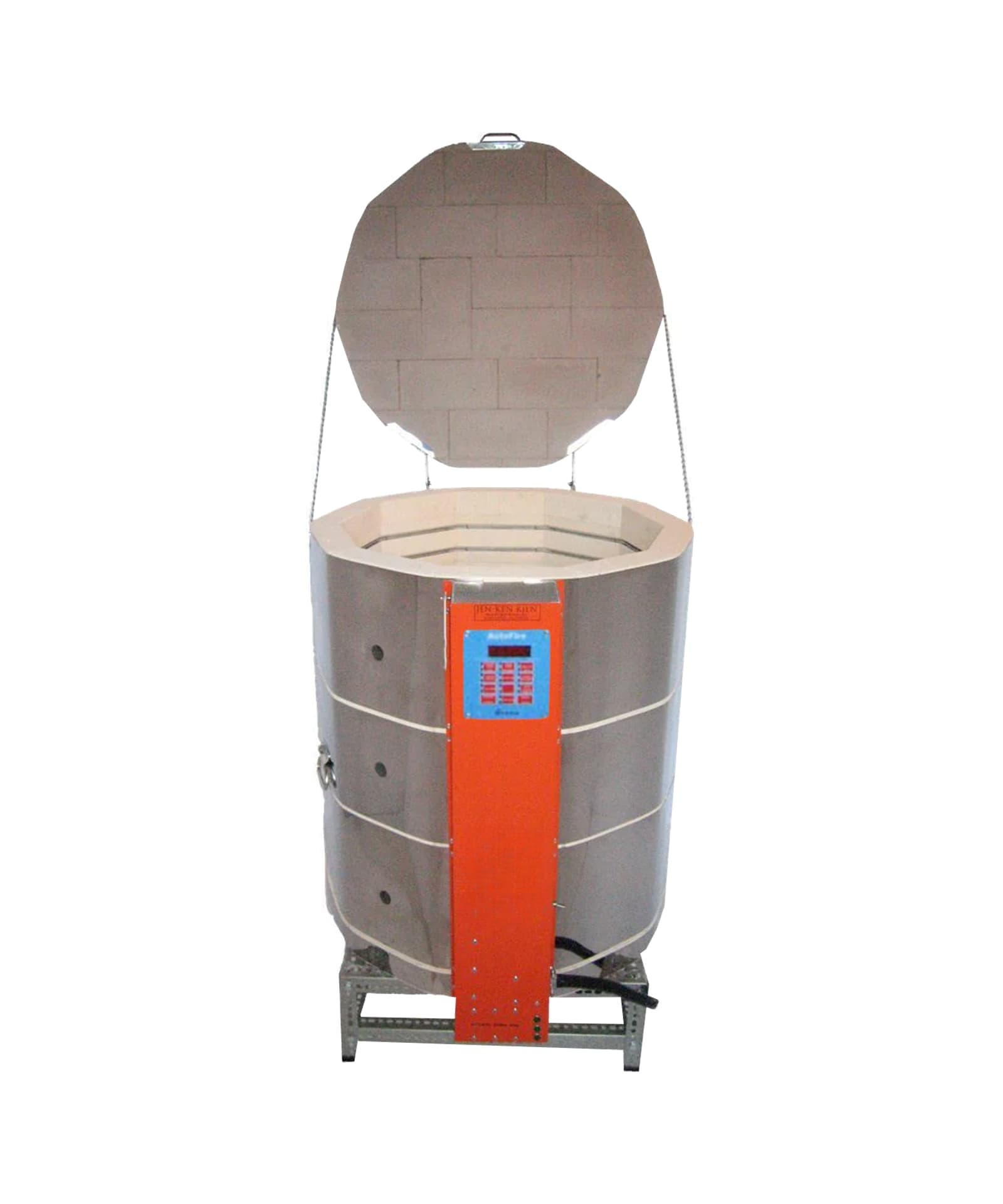

    Jen-Ken 2431 3" Ceramic Kiln
    $4,739.00
    Call

    Overview

    Jen-Ken · Ceramic Kiln · 3-Inch Brick Jen-Ken 2431 3" Ceramic Kiln Model 2431 3" · 240V · 24" x 31" chamber · Cone 5-6 / 2,300°F This is the 3-inch brick version of Jen-Ken's 2431 — 8.11 cubic feet in a 24" x 31" chamber, with thicker walls than the standard build. The extra brick holds heat better, which matters when you are firing several times a week rather than once a month. Jen-Ken offers it in two electrical builds: a 45-amp version on a 6-50R plug, and a 55-amp high-fire version that is direct wired. Choose the circuit before you order, because it is built to order either way.
    Max Temp2,300°F (Cone 5-6)
    Chamber24" x 31"
    Capacity8.11 cu ft
    Power240V · 45A or 55A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

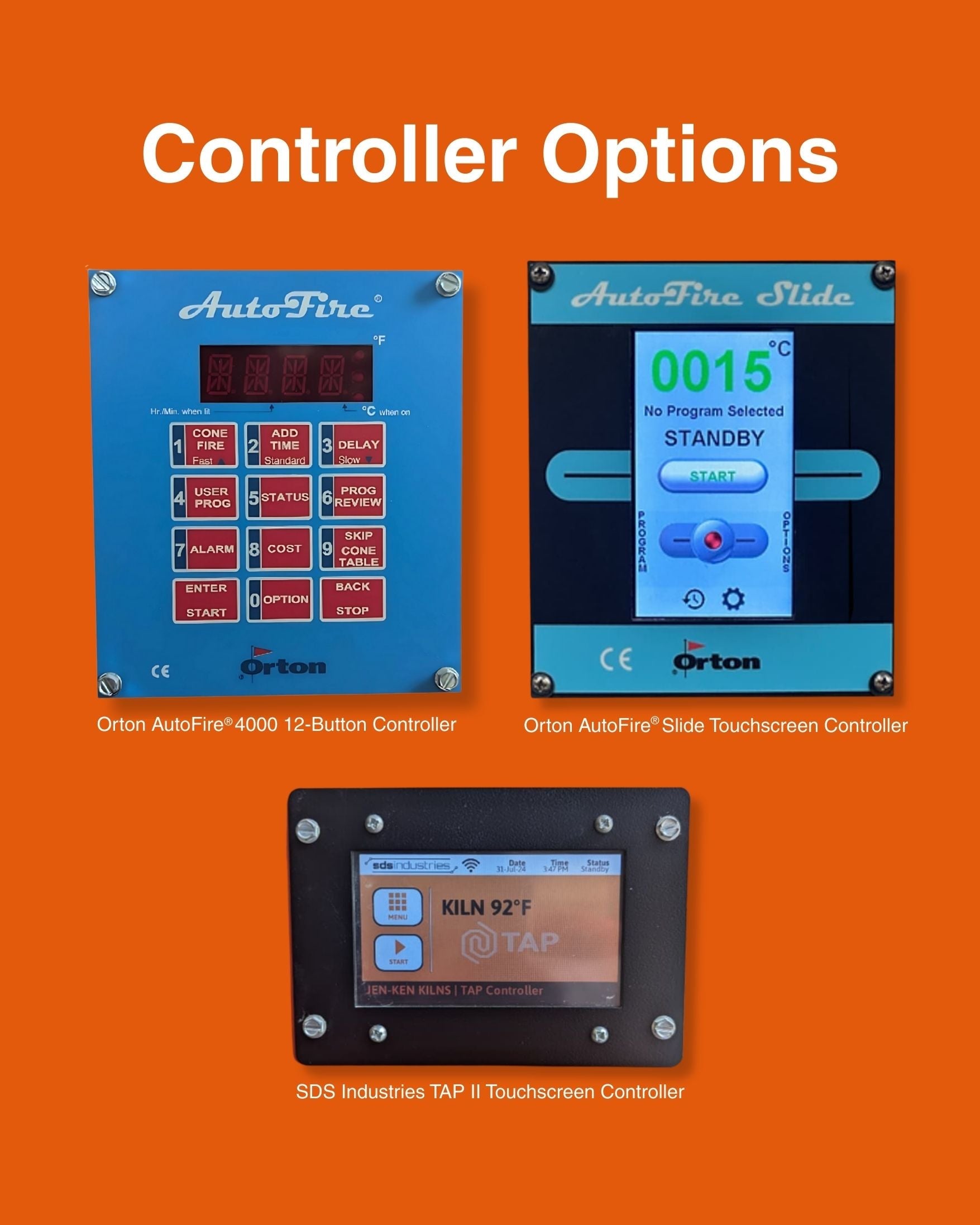

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug, or direct wireThe 45-amp build ships with a cord and a NEMA 6-50P plug. The 55-amp build is direct-wired instead, with no plug, so an electrician lands the cable for you. Tell us which build you want before the order goes in.
    Lid lifterJen-Ken's dealer sheet lists this model as including the lid lifter — the spring assist that takes most of the weight out of raising the lid.
    Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
    Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
    Key features
    3-inch brick wallsThicker walls than Jen-Ken's standard build, for better heat retention on a kiln that fires often.
    Two electrical builds45A on a NEMA 6-50R, or 55A high fire on a direct-wire connection. Specify when you order.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size24" x 31" — 8.11 cu ft. That is the space you actually have to load.
    Technical specifications
    Model2431 3" Ceramic Kiln
    Kiln functionCeramics, pottery
    Chamber dimensions24" x 31"
    Cubic feet8.11 cu ft
    Maximum temperature2,300°F (1,260°C)
    Cone ratingCone 5-6
    Voltage240V
    PhaseSingle phase
    Amperage — 45A build45A
    Wattage — 45A build10,800W
    Receptacle — 45A buildNEMA 6-50R
    Breaker — 45A build60A
    Circuit wire gauge — 45A build#6
    Amperage — 55A high-fire build55A
    Wattage — 55A high-fire build13,200W
    Receptacle — 55A high-fire buildDirect wire
    Breaker — 55A high-fire build70A
    Circuit wire gauge — 55A high-fire build#4
    Element placementSide-fired
    LoadingTop-loading
    ControllerOrton AutoFire 12-button
    Kiln weight275 lbs
    Estimated shipping weight480 lbs
    Shipping dimensions54" x 45" x 64"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
    Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
    Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
    208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
    Common questions
    Which electrical build should I order?The 45A build runs on 240V with a NEMA 6-50R receptacle, a 60A breaker and #6 wire. The 55A high-fire build is direct wired with a 70A breaker and #4 wire, and is the one Jen-Ken points production users toward. Both are single phase. Decide before you order — this is a build-to-order kiln and the two are not interchangeable afterwards. Have a licensed electrician confirm the circuit against local code; Jen-Ken notes runs over 30 feet may need the next heavier gauge.
    What does the 3" brick actually buy me?Better heat retention and a more even, slower cool. In practice that means lower power cost per firing and less thermal stress on the brick when you fire frequently. It does not raise the temperature ceiling — this is still a 2,300°F kiln.
    What can it fire?Jen-Ken rates it cone 5-6 at 2,300°F. That covers paint-your-own-pottery bisque and low-fire glaze work, which is the market Jen-Ken builds this size for, and mid-fire stoneware. It will not reach cone 10.
    Will it fit through my door?The kiln body is 24" x 31" inside; Jen-Ken's crate is 54" x 45" x 64". Measure your access before delivery — this arrives by motor freight on a pallet and a liftgate or dock is usually needed.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    45A or 55A? Ask before you order. We are authorized Jen-Ken dealers based in Georgia. Tell us what power you have at the panel and how often you fire, and we will tell you which build to order — and whether the standard-brick 2431 would do the same job for less.
