Jen-Ken 2422 Ceramic Kiln
$3,559.00
Overview
Jen-Ken · Ceramic Kiln · AF Series

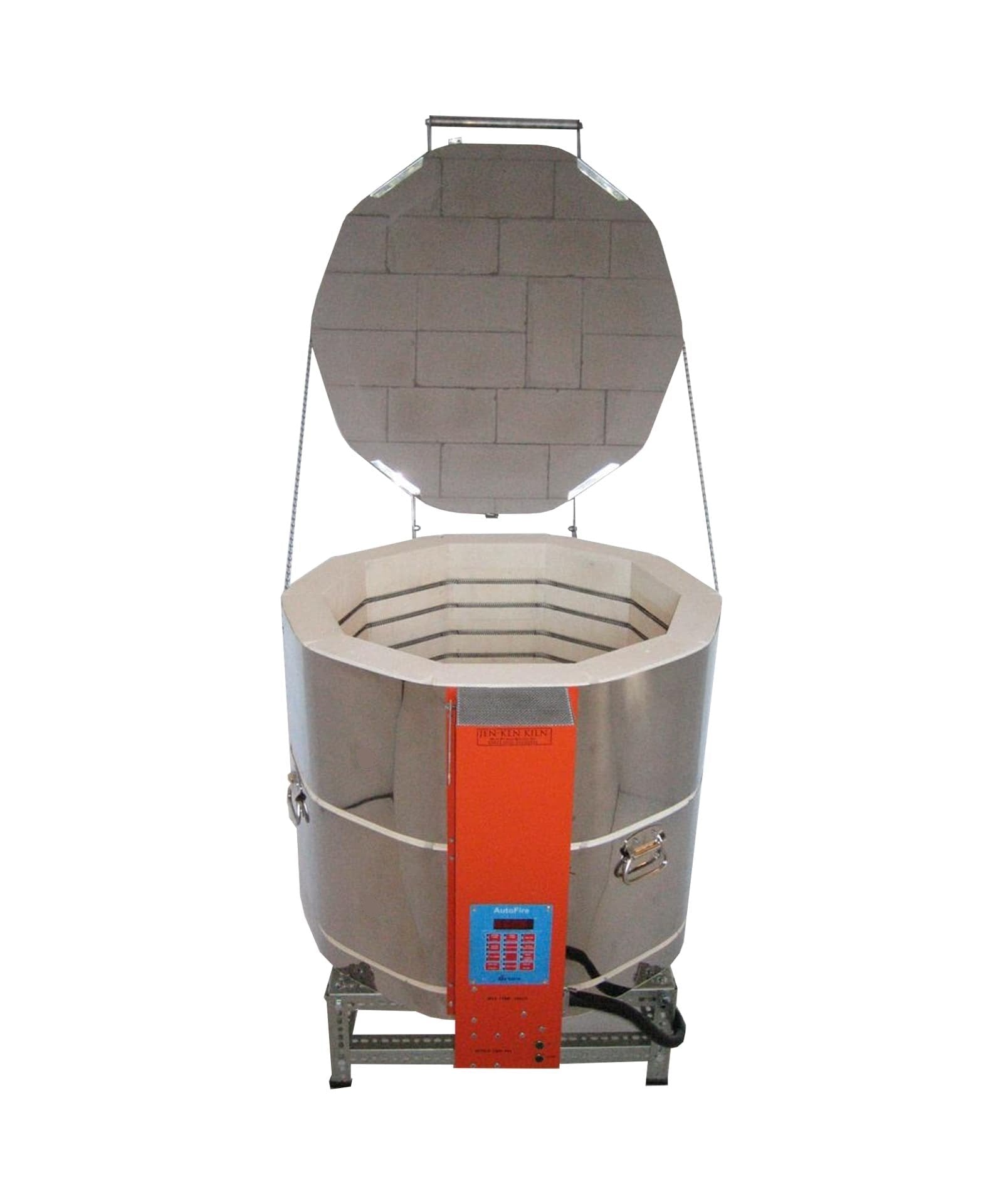

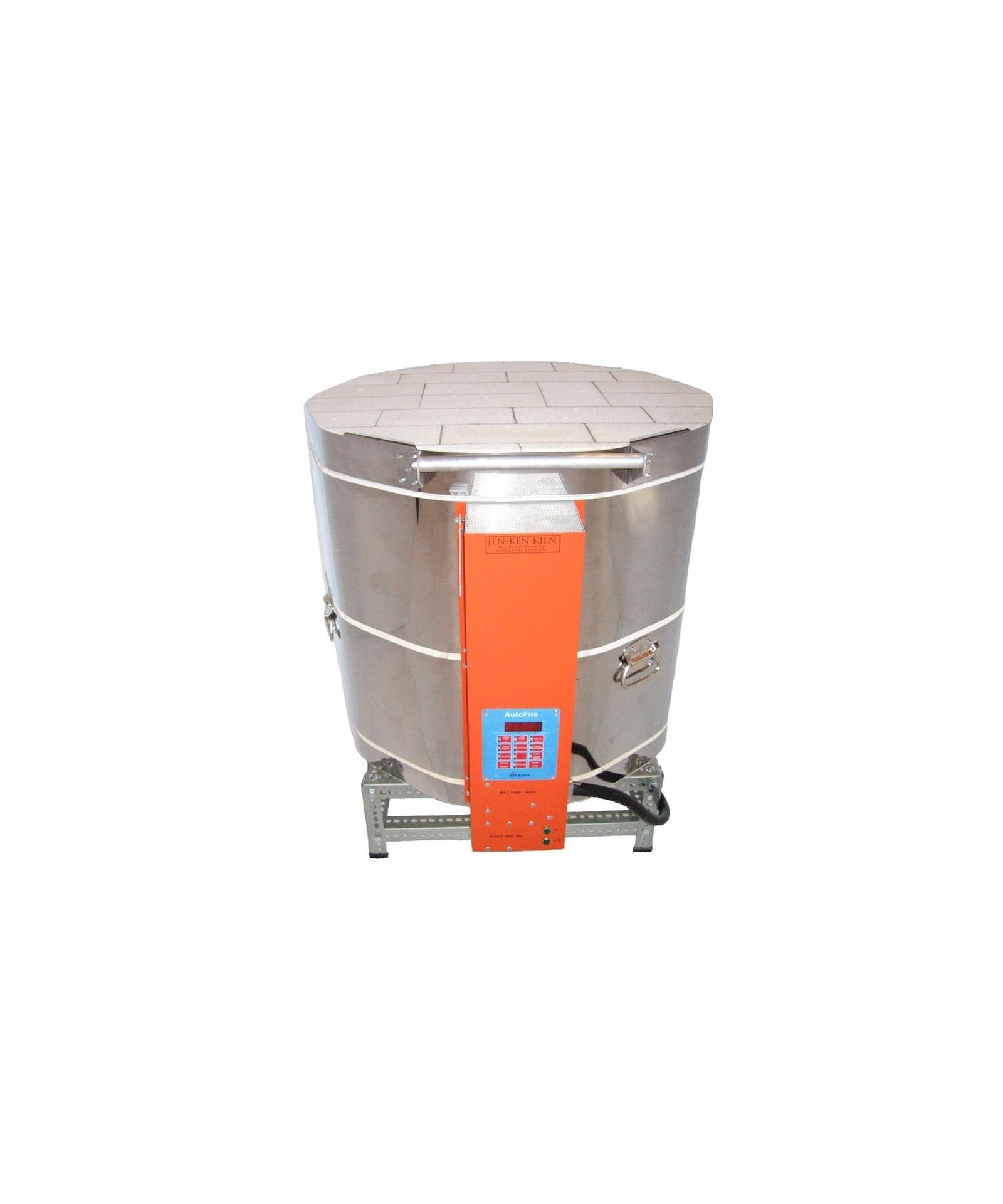

Jen-Ken 2422 Ceramic Kiln
The 2422 is the standard-brick version of Jen-Ken's 5.75 cubic foot kiln — the size a lot of home studios settle on once they outgrow an 1822. Twenty-four inches across and only twenty-two deep, so it takes a full set of 21-inch shelves and you can still reach the bottom one. Jen-Ken rates it cone 6, with high fire to cone 8. One thing to note before you order: Jen-Ken's published breaker and wire figures for this model do not match their own wiring table, so we have left those two rows for the factory to confirm.
Max Temp2,300°F (Cone 6)
Chamber24" x 22"
Capacity5.75 cu ft
Power240V · 36A
What’s included
The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

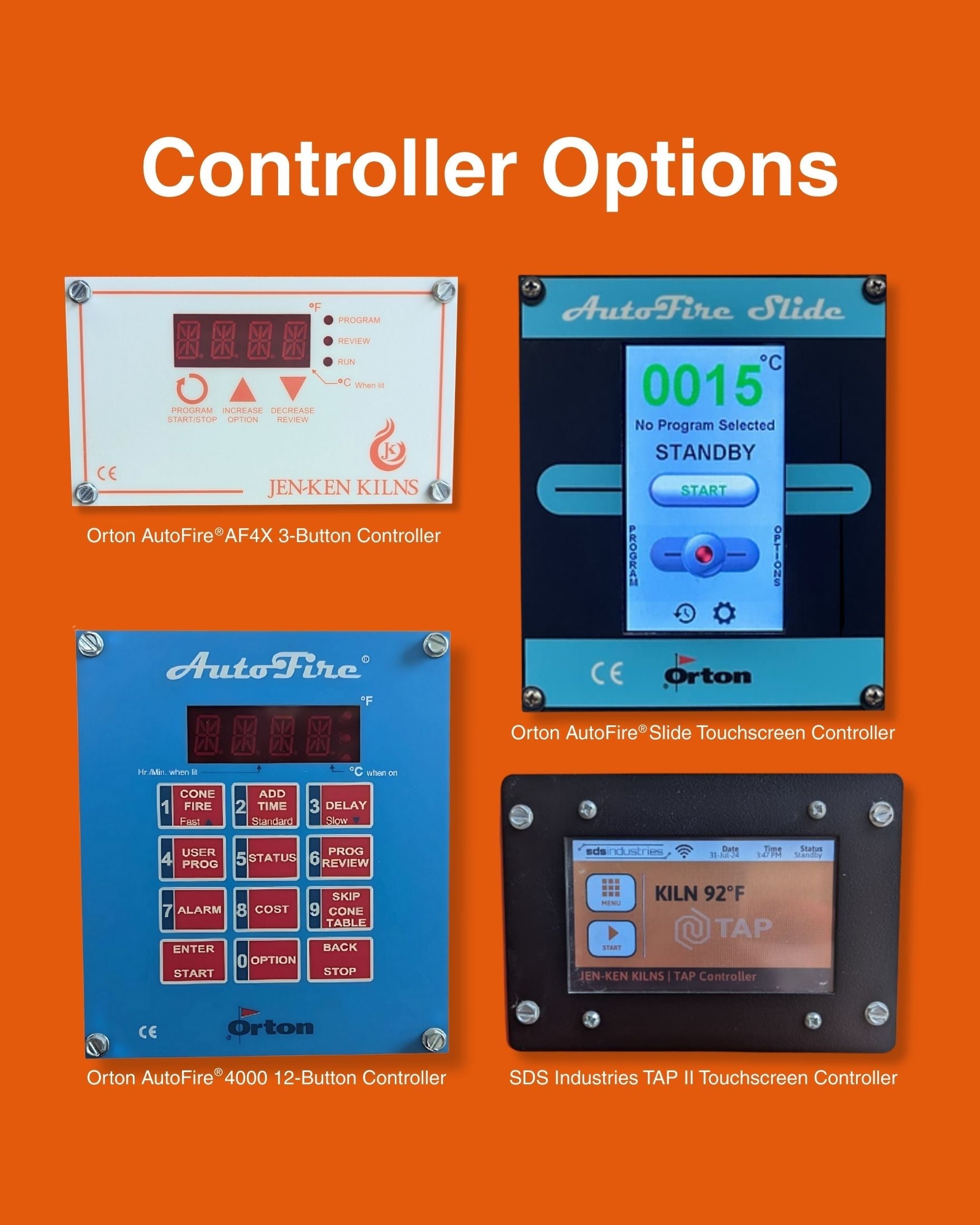

The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3C 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
Lid lifterJen-Ken's dealer sheet lists this model as including the lid lifter — the spring assist that takes most of the weight out of raising the lid.
Instruction manualJen-Ken's printed manual, including firing schedules and their electrical requirements.
2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages.
Not included — solid-state relaysThis model ships with mechanical relays. Solid-state relays are a priced upgrade on Jen-Ken’s sheet, so ask for them at order if you want them.
Key features
Shallow loading depthTwenty-two inches deep, so the bottom shelf is within reach — a real daily difference over a 31-inch chamber.
Takes 21" shelvesThe chamber is sized for Jen-Ken's 21-inch round shelves, which is the common furniture size for this class of kiln.
Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
Chamber size24" x 22" — 5.75 cu ft. That is the space you actually have to load.
Technical specifications
Model2422 Ceramic Kiln
Kiln functionCeramics, pottery
Chamber dimensions24" x 22"
Cubic feet5.75 cu ft
Maximum temperature2,300°F (1,260°C)
Cone ratingCone 6 (high fire to cone 8)
Voltage240V
Amperage36A
Wattage8,640W
PhaseSingle phase
ReceptacleNEMA 6-50R
Breaker (fuse) sizeContact us — see note below
Circuit wire gaugeContact us — see note below
Element placementSide-fired
LoadingTop-loading
ControllerOrton AutoFire AF3C 3-button
Kiln weight200 lbs
Estimated shipping weight260 lbs
Shipping dimensions49" x 42" x 42"
Shipping methodMotor freight
Warranty2-year limited (Jen-Ken)
Optional accessories
Kiln shelves and postsJen-Ken's own shelves and posts are sized to this chamber. We stock them alongside the kiln.
Kiln washShelf primer keeps glaze off your shelves. Worth adding to a first order.
Furniture kitA matched set of shelves and posts for this chamber, cheaper than buying the pieces individually.
208V or three-phase buildJen-Ken can build most ceramic models for 208V, and some for three phase, to order. Contact us for a quote — there is no published spec for those builds.
Common questions
Why is there no breaker size or wire gauge in the spec table?Because Jen-Ken's two sources disagree, and this is the one line your electrician works from. Their product page pairs the 36-amp draw with a 40-amp breaker and #8 wire on a NEMA 6-50R. Their own printed ceramic wiring table gives this model #6 wire and a 50-amp fuse. A kiln is a continuous load, so the breaker must be at least 125% of the draw — 45 amps — which rules the 40-amp figure out, and a 6-50R is a 50-amp device that does not belong on a 40-amp circuit. Rather than print a number that may be wrong, we have asked the factory. Call or email us before you wire anything and we will give you what they confirm.
What is safe to rely on?240V single phase, 36A, 8,640W and a NEMA 6-50R receptacle. Those are consistent across Jen-Ken's sources — 8,640W ÷ 240V is exactly 36A. Size the circuit to a 36-amp continuous load with a licensed electrician and confirm the final figures with us first.
What can it fire?Jen-Ken rates it cone 6, with high fire to cone 8, at 2,300°F. That covers mid-fire stoneware, porcelain and all the low-fire work below it. It will not reach cone 10.
How is it different from the 2422 3" High Fire?The high-fire model has 3-inch brick and a heavier 42-amp element load, which is what earns it a straight cone 8 rating. This one has standard brick and 36 amps, and costs less. If you fire to cone 6 and you fire a few times a month, this is the sensible buy.
Is 5.75 cubic feet the right size?It is the most popular studio size for a reason — you can fill it on a monthly cycle without firing half-empty, and it still takes a platter. If you are firing every couple of months, the 1822 will cost you less to buy and less to run.
How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
Talk to us before you book the electrician.
We are authorized Jen-Ken dealers based in Georgia. Jen-Ken's own sources disagree on this kiln's breaker and wire size, so call us — we will get the nameplate figures from the factory before anything is installed.
