Jen-Ken 24-E 15" Glass Kiln

Jen-KenGlass KilnSKU JENKEN-24E-15
$3,439.00Regular price$3,641.00
Save $202.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

2415 — Glass/Casting is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

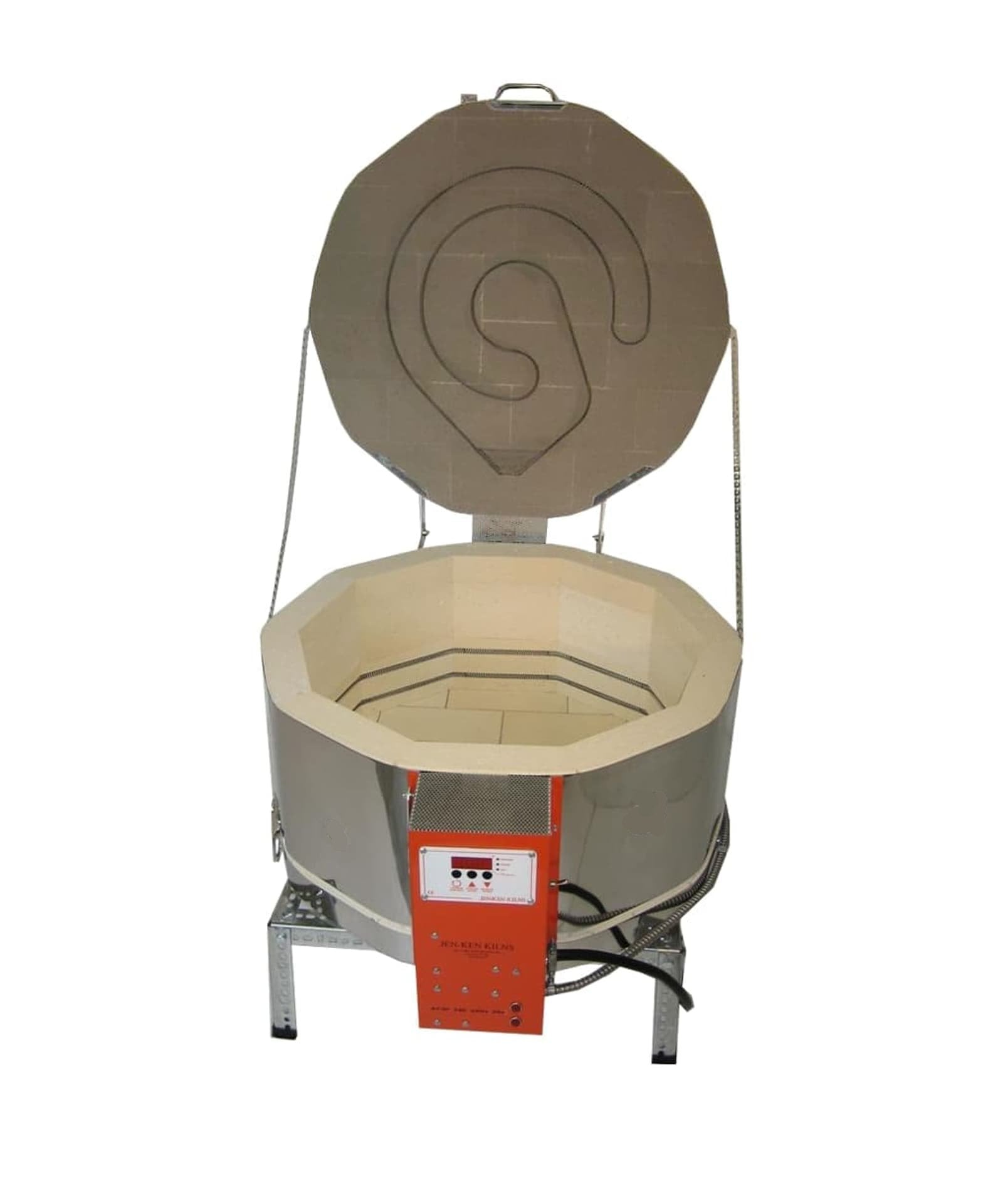

    Jen-Ken 24-E 15" Glass Kiln
    $3,439.00
    Call

    Overview

    Jen-Ken · Glass Kiln · AF3P Series Jen-Ken 24-E 15" Glass Kiln Model AF3P 24-E 15" · 240V · 24" x 15" chamber · 1,700°F The 24-E 15" is the tall one in the 24-inch family: the same 24-inch shelf and the same 20-inch round capacity as the standard 24-E, with fifteen inches of chamber height instead of eleven. Those four inches are the difference between fusing flat and slumping into a real bowl mould, or stacking a second shelf and doubling what a firing holds. Jen-Ken quotes circles up to 20 inches in diameter and squares up to 15" x 15". It fires top and side together for an even fuse across a wide shelf, ships with lid lifters so the lid is manageable one-handed, and runs on a 240V 33-amp circuit on a 50-amp receptacle.
    Max Temp1,700°F
    Chamber24" x 15"
    Capacity3.9 cu ft
    Power240V · 33A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3P 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-50PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Kiln standIncluded by Jen-Ken. It lifts the chamber off the floor for airflow and brings it to a workable loading height.
    Lid liftersOn Jen-Ken's included list for this model. They take most of the weight out of the lid, which on a 24-inch brick kiln is the difference between a two-handed job and a one-handed one.
    Instruction manualJen-Ken's printed manual, including firing guidance and their electrical requirements.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    15 inches of chamber heightThe reason to buy this over the standard 24-E. Room for deeper moulds and taller work on the same 24-inch footprint.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size24" x 15" — 3.9 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 1,700°F (927°C).
    Technical specifications
    ModelAF3P 24-E 15"
    Kiln functionGlass fusing, slumping
    Chamber dimensions24" x 15"
    Cubic feet3.9 cu ft
    Shelf / work sizeCircles to 20" diameter, squares to 15" x 15"
    Maximum temperature1,700°F (927°C)
    Voltage240V
    Amperage33A
    Wattage7,920W
    PhaseSingle phase
    ReceptacleNEMA 6-50R
    Breaker (fuse) size40A
    Circuit wire gauge#6
    Element placementTop and side
    LoadingTop-loading, with lid lifters
    ControllerOrton AutoFire AF3P
    Kiln weight200 lbs
    Estimated shipping weight300 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?240V single phase, a 33-amp draw and 7,920 watts — the arithmetic checks, since 240V × 33A is exactly 7,920W — on a NEMA 6-50R receptacle behind a 40-amp breaker with #6 copper. That is Jen-Ken's published set and the parts are compatible: #6 copper carries 65 amps at 75°C and a 6-50R is a 50-amp device, so both sit comfortably above a 40-amp breaker. One arithmetical note, in the interests of not hiding it: a kiln is a continuous load, and the 125% rule puts a 33-amp draw at 41.25 amps of breaker, marginally over the 40 Jen-Ken specifies. Their own wiring table runs the same way across the line — 45-amp models on a 50-amp fuse — so this is Jen-Ken's convention rather than a mistake, and the wire is already sized for more. Have a licensed electrician confirm it against your local code, and if they want to go to 50 amps the #6 wire and the 6-50R receptacle already support it.
    How big a piece will it take?Jen-Ken's own figures are circles up to 20 inches in diameter or squares up to 15" x 15", and the chamber is 15 inches deep. That is enough headroom for bowl moulds standing up, taller draping forms, or a second shelf on posts.
    How is this different from the standard 24-E?Depth. Same 24-inch shelf, same maximum piece size, same 1,700°F, same top-and-side elements. This one is 15 inches deep at 3.9 cubic feet and draws 33 amps on a 6-50R; the standard is 11 inches at 2.87 cubic feet and draws 26 amps on a 6-30R. This one also includes lid lifters. Buy the standard if all your work is flat; buy this if you slump, drape or want to stack.
    Will it fire clay?No. 1,700°F is a glass ceiling. For clay as well as glass, look at the Glass/Casting builds or the Ceram-a-Glass line — Jen-Ken rates those to 2,150°F and above and lists ceramics as a function.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Not sure whether you need the extra four inches? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
