Jen-Ken 1815 Glass/Casting Kiln

Jen-KenGlass KilnSKU JENKEN-1815-GC
$2,589.00Regular price$2,665.00
Save $76.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

1815 Ceram-a-Glass is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken 1815 Glass/Castin...
    $2,589.00
    Call

    Overview

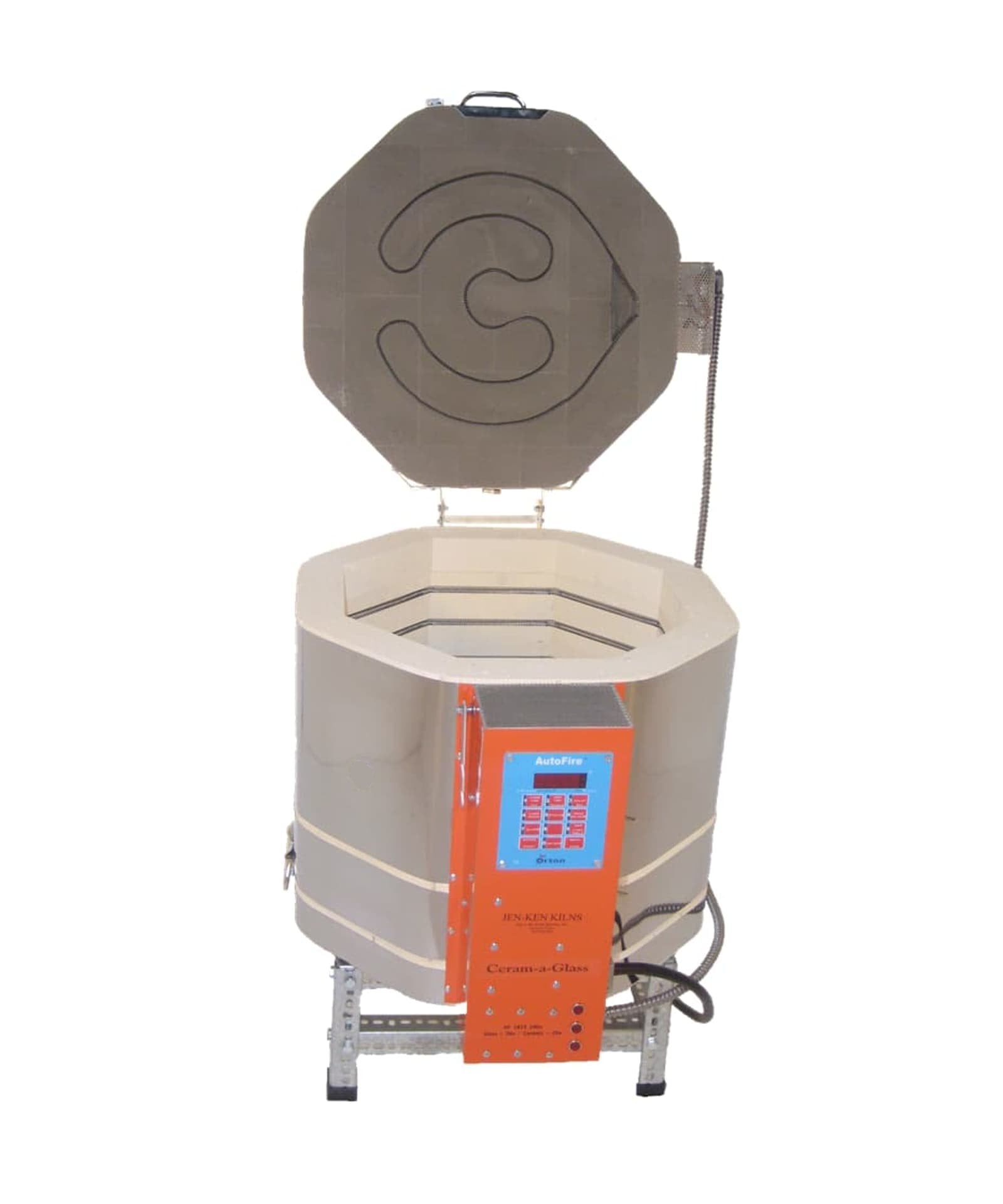

    Jen-Ken · Glass Kiln · Glass/Casting Jen-Ken 1815 Glass/Casting Kiln Model 1815 Glass/Casting · 240V · 18" x 15" chamber · 1,700°F glass / 2,150°F ceramics The 1815 Glass/Casting is the size most people settle on: an 18-inch shelf with 15 inches of height above it, firing top-and-side for fusing at 1,700°F or side-only for casting and low-fire clay at 2,150°F. The height is what separates it from a fusing-only kiln — there is room for a casting mould, a slump form or a second shelf, rather than a single flat layer. It draws 20 amps at 240V, which is a light circuit for a 1.61 cubic foot chamber, and at 150 lbs it stays put once it is sited.
    FiresGlass, casting, low-fire clay
    Max Temp1,700°F / 2,150°F
    Chamber18" x 15"
    Power240V · 20A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.

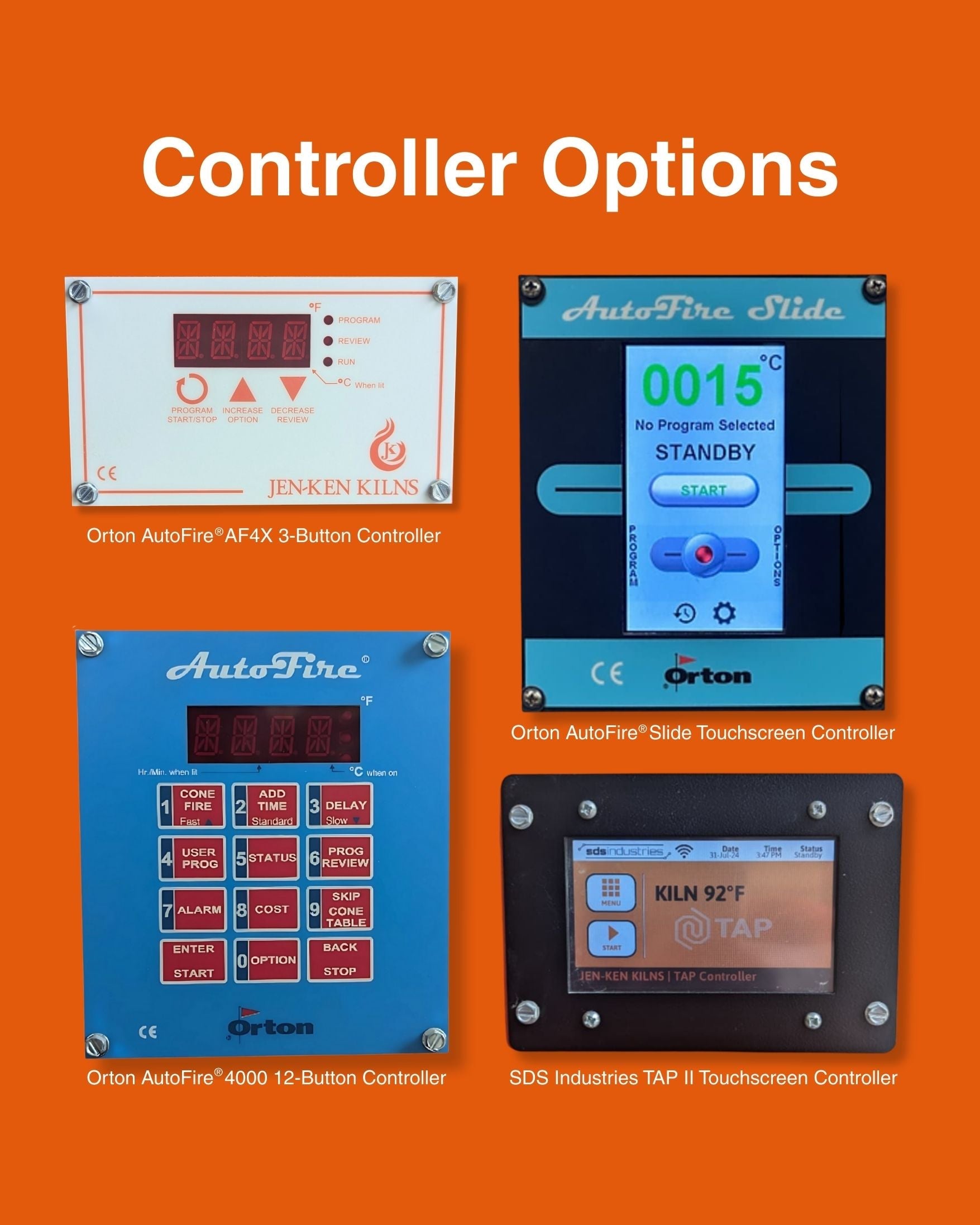

    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3P 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-30PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — Jen-Ken does not publish a breaker size or wire gauge for this model, so have a licensed electrician size the circuit to the draw in the specifications below.
    Instruction manualJen-Ken's printed manual, with firing schedules and the electrical requirements for this model.
    2-year limited warrantyJen-Ken's brick-kiln warranty, direct from the factory to the original purchaser.
    Not included — kiln furnitureNo shelves, posts or kiln wash in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    Selectable top/side and side firingThe feature that makes it two kilns: top and side together for fusing, side alone for casting and clay.
    15 inches of chamber heightRoom for a real casting mould or a deep slump form on an 18-inch shelf.
    Built to order in FloridaAssembled in Jen-Ken's own Lakeland shop rather than drop-shipped from a distributor.
    Chamber size18" x 15" — 1.61 cu ft. That is the space you actually have to load.
    Technical specifications
    Model1815 Glass/Casting
    Kiln functionGlass casting, fusing, slumping, low-fire ceramics
    Chamber dimensions18" x 15"
    Cubic feet1.61 cu ft
    Maximum temperature — glass1,700°F (927°C)
    Maximum temperature — ceramics2,150°F (1,177°C)
    Firing modesTop/side together for glass, side only for casting and clay
    Voltage240V
    Amperage20A
    Wattage4,800W
    PhaseSingle phase
    ReceptacleNEMA 6-30R
    Circuit wire gauge#10
    Element placementTop/side and side — selectable
    ControllerOrton AutoFire AF3P 3-button
    Kiln weight150 lbs
    Estimated shipping weight220 lbs
    Shipping dimensions42" x 46" x 42"
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P 3-button as standard. Other AutoFire controllers are a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What does "Glass/Casting" actually mean?Two firing modes in one kiln. For fusing and slumping the elements fire from the top and the sides together, which washes a wide shelf in even heat — that is what flat glass wants, and the ceiling there is 1,700°F. For casting, the side elements do the work on their own and the kiln will go to 2,150°F, which is the range a casting mould and a long ramp need. You select the mode; it is one kiln with two ways of heating, not a compromise between them.
    What electrical circuit does it need?240V single phase, a 20-amp draw, 4,800 watts, a NEMA 6-30R receptacle and #10 copper. You will notice there is no breaker size in the table above: Jen-Ken's spec sheet for this model simply has no breaker row, and we are not going to invent one or borrow it from a similar kiln. Everything else is published and consistent. Give the number to a licensed electrician — a 20-amp continuous load on #10 wire is a straightforward job — and call us if you want us to get the factory's figure first.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, this one included, and we have not worked one out from the temperature. What is published is the two ceilings — 1,700°F in glass mode and 2,150°F in casting mode — and those are in the table above. Treat 2,150°F as low-fire clay and glaze territory.
    Will it fire clay?Low-fire clay and glaze, yes — Jen-Ken lists low-fire ceramics among this kiln's functions and 2,150°F is in that range. What it will not do is mid-fire or high-fire stoneware: cone 6 is out of reach, let alone cone 10. If pottery is the main event, buy a ceramic kiln and keep this one for glass. If you fire glass most of the time and want the option of a low-fire load, this is exactly the kiln for it.
    How does it compare with the 18-E 15"?Same 18" x 15" chamber, quite different kiln. The 18-E is glass only at 1,700°F and draws 26 amps. This one adds the selectable side-firing mode and a 2,150°F ceiling for casting and low-fire clay, and does it on a lighter 20-amp circuit. If you will never cast, the 18-E is the cheaper buy; if you might, the extra here pays for itself the first time.
    What actually comes in the crate?The section at the top of this page is that list, and it comes from Jen-Ken’s own dealer price sheet for this model rather than from a guess. Kiln furniture is the thing most people assume is in the crate and is not — Jen-Ken prices the shelves and posts as a separate kit. Call or email us if you want the crate confirmed against your build before you order.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory warranty applies exactly as it would buying direct. Jen-Ken gives brick kilns two years. Keep your proof of purchase.
    One kiln for glass and low-fire clay? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
