Jen-Ken 18-E 11" Glass Kiln

Jen-KenGlass KilnSKU JENKEN-18E-11
$2,049.00Regular price$2,183.00
Save $134.00

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
Furniture kit

1815 Ceram-a-Glass is the size our records hold for this kiln. Change it here if your chamber is a different size, or call us and we will check it with you.

  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Jen-Ken 18-E 11" Glass Kiln
    $2,049.00
    Call

    Overview

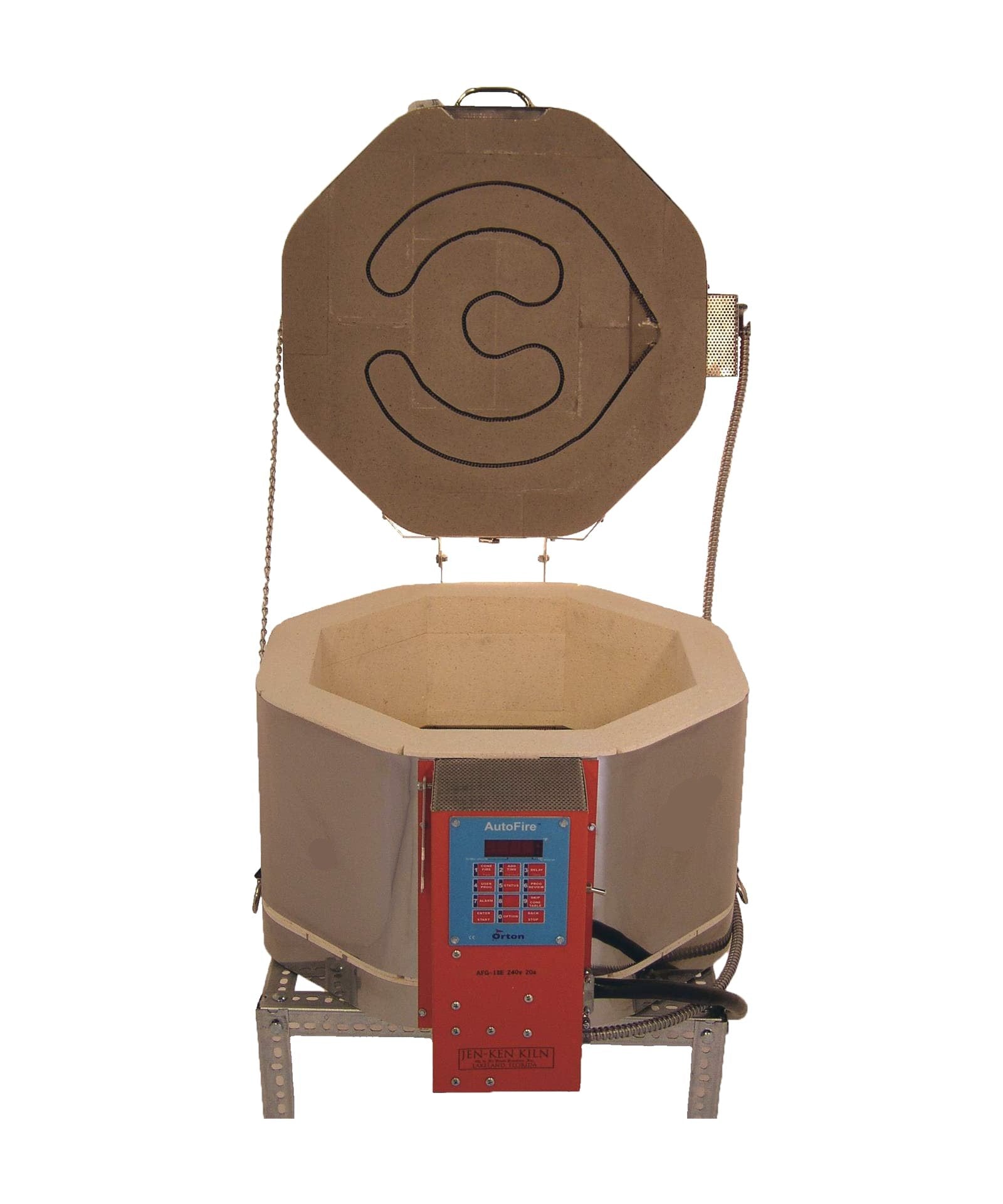

    Jen-Ken · Glass Kiln · AFG Series Jen-Ken 18-E 11" Glass Kiln Model AFG 18-E · 240V · 18" x 11" chamber · 1,700°F The 18-E has been in Jen-Ken's catalogue since the 1970s and it is still the kiln most warm-glass people start a real studio with. The chamber is 18 inches across and 11 inches deep — a 15-inch round shelf, or flat work up to 10.5 inches square, which covers most plates, panels and tile runs. Elements sit in the top and the sides rather than one plane, so a wide shelf fuses evenly instead of ringing hot at the edge. At 110 lbs on a 240V 20-amp circuit it is the smallest of the E-series and the cheapest way into a proper 240V glass kiln. If you slump into deep moulds or want to stack a second shelf, the 18-E 15" is the same footprint with four more inches of headroom.
    Max Temp1,700°F
    Chamber18" x 11"
    Capacity1.61 cu ft
    Power240V · 20A
    What’s included
    The kiln, built and wiredCase, elements, thermocouple, switch box and wiring are all fitted and tested at the factory. It ships crated on a pallet by motor freight.
    The controller you orderJen-Ken fits the controller you pick when the order goes in — the AF3P 3-button, the AutoFire 12-button, the AutoFire Slide touchscreen or the TAP touchscreen. Each one is a different price, so the controller that ships is the one on your order rather than a fixed model.
    Cord and plug — NEMA 6-30PJen-Ken wires the cord and plug at the factory. You supply the matching receptacle on its own circuit — the breaker size and wire gauge for this model are in the specifications below.
    Kiln standJen-Ken lists the stand with this kiln. It lifts the chamber off the floor for airflow and brings it to a workable loading height.
    Kiln washA starter supply of shelf primer is on Jen-Ken's included list, which matters because glass welds itself to an unprimed shelf.
    Instruction manualJen-Ken's printed manual, including firing guidance and their electrical requirements.
    2-year limited warrantyTwo years, direct from the Jen-Ken factory to the original purchaser and honoured through us as the dealer. Keep your proof of purchase.
    Not included — kiln furnitureNo shelves or posts in the crate. Jen-Ken prices a furniture kit for this model as a separate line, and we stock the pieces on our accessories pages. Solid-state relays are a paid upgrade rather than standard.
    Key features
    Top and side elementsElements above and around the work rather than in one plane only, which is what gives a wide shelf an even fuse.
    Built to order in Lakeland, FloridaJen-Ken builds each kiln to order in their own Lakeland shop rather than pulling it from distributor stock. Allow build time before it ships.
    Chamber size18" x 11" — 1.61 cu ft. That is the space you actually have to load.
    Maximum temperatureRated to 1,700°F (927°C).
    Technical specifications
    ModelAFG 18-E
    Kiln functionGlass fusing, slumping
    Chamber dimensions18" x 11"
    Cubic feet1.61 cu ft
    Shelf / work size15" round shelf, or pieces up to 10.5" square
    Maximum temperature1,700°F (927°C)
    Voltage240V
    Amperage20A
    Wattage4,800W
    PhaseSingle phase
    ReceptacleNEMA 6-30R
    Breaker (fuse) size25A
    Circuit wire gauge#10
    Element placementTop and side
    ControllerOrton AutoFire AF3P 3-button
    Kiln weight110 lbs
    Estimated shipping weight200 lbs
    Shipping methodMotor freight
    Warranty2-year limited (Jen-Ken)
    Warranty: Two-year limited warranty from Jen-Ken Kilns to the original purchaser on brick kilns, covering defects in materials and workmanship and limited to repair or replacement of defective items. Elements and thermocouples carry their own two-year coverage; thermocouples are not warranted against breakage. The Orton controller is covered by Orton's own warranty. Keep your proof of purchase. Peach State Pottery is an authorized Jen-Ken dealer.
    Optional accessories
    Kiln shelves, posts and a furniture kitGlass wants a flat, primed shelf and fibre paper; casting wants posts and headroom. Jen-Ken's own shelves and posts are sized to this chamber and we stock them alongside the kiln. Tell us your shelf size and we will match it.
    Kiln wash and shelf primerGlass will weld itself to an unprimed shelf. Most glass workers go through primer steadily, so it is worth adding to a first order.
    Slumping moulds and fibre paperMoulds and fibre paper are the other half of a warm-glass setup. Tell us the shelf size you are working to and we will point you at what fits.
    Controller upgradeJen-Ken fits the Orton AutoFire AF3P 3-button as standard and offers the Orton AutoFire Slide touchscreen and the SDS TAP II in its place. It is a factory option rather than a checkout add-on — call us and we will quote it.
    Common questions
    What electrical circuit does it need?240V single phase, a 20-amp draw and 4,800 watts — the arithmetic checks out, since 240V × 20A is exactly 4,800W — on a NEMA 6-30R receptacle behind a 25-amp breaker with #10 copper. That set is internally consistent: 20 amps continuous needs 25 amps of breaker at the 125% rule, #10 copper is good for 30 amps, and a 6-30R is a 30-amp device, so nothing in the chain is undersized. It is the cleanest electrical spec in Jen-Ken's glass line. It still wants a dedicated run — have a licensed electrician confirm it against local code before delivery.
    How big a piece will it take?Jen-Ken's own figures are a 15-inch round shelf or work up to 10.5 inches square. The chamber is 11 inches deep, so flat fusing and shallow slumps are comfortable and tall moulds are not. Tell us what you are making and we will check it against the shelf before you order.
    How is this different from the 18-E 15"?Height, and only height. This one is 18" x 11" at 1.61 cubic feet; the 15" is 18" x 15" at 2.3. Same 18-inch shelf, same 1,700°F, same top-and-side elements. Buy this one if your work is flat and you want to spend less; buy the 15" if you slump into moulds or want the headroom to stack.
    Will it fire clay?No. 1,700°F is a glass ceiling, not a ceramic one — it will not reach even low-fire bisque. If you want one kiln for both, look at the Glass/Casting builds or the Ceram-a-Glass line, which are rated to 2,150°F and higher and which Jen-Ken lists for clay.
    What cone will it reach?Jen-Ken publishes no cone rating for any kiln in their glass line, and we have not invented one. What is published is the maximum temperature, which is in the table above. Cone numbers are a ceramics measure; for glass work the temperature and the firing schedule are what matter.
    How long until it ships?Jen-Ken builds to order in Lakeland, Florida. Their own guidance is that kilns can take several weeks to months depending on the production queue. Call us and we will get you the current estimate before you commit.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Jen-Ken dealer, so the factory two-year warranty applies exactly as it would buying direct. Keep your proof of purchase.
    Not sure whether to take the 11" or the 15"? We are authorized Jen-Ken dealers based in Georgia. Tell us what you are making and what power you have available, and we will tell you straight whether this is the right kiln — including when a cheaper one would do.
