Evenheat Kiln Bottoms

EvenheatKiln FurnitureSKU EVH-08160.000
$239.40

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Sides 6 sided
Model Series RM II and Classic
    Evenheat Kiln Bottoms
    $239.40
    Call

    Overview

    Evenheat · Replacement Parts · Bottoms Evenheat Kiln Bottoms Five shapes · Two model series · Factory replacement The bottom takes the weight of every load and the worst of the glaze drips, so it wears out. Pick the number of sides your kiln has and the series it belongs to. Count the flat faces of the shell rather than guessing from the model number, and check the data plate for the series — a High Fire bottom is a different part from an RM II bottom of the same shape.
    Models and prices
    SidesSeriesPricePart number

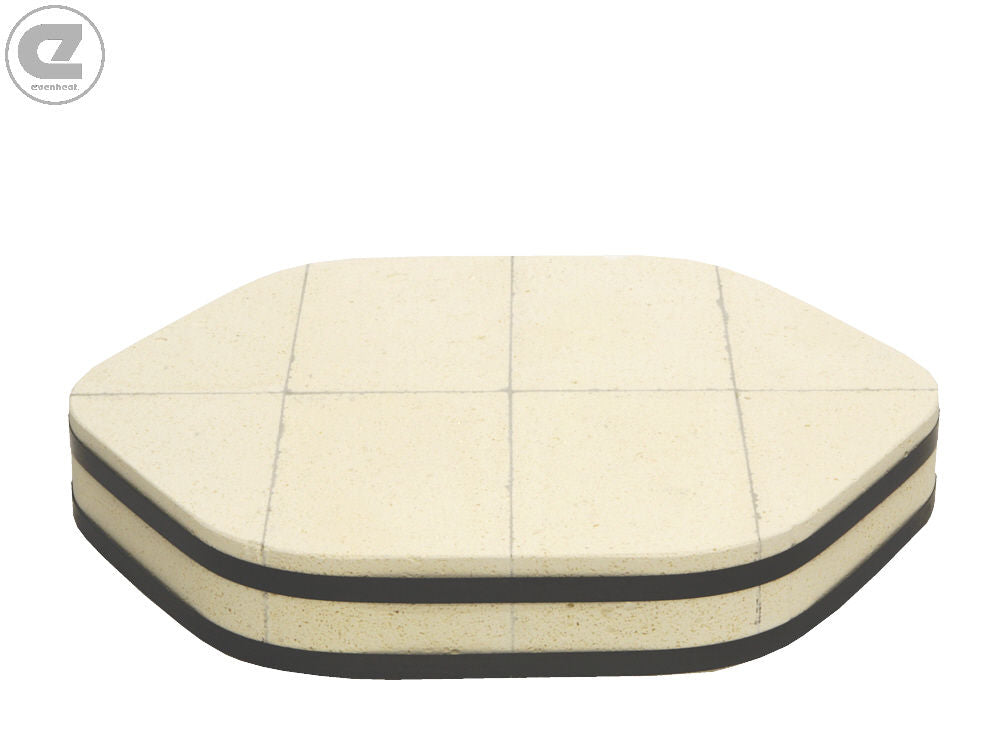

    6RM II and Classic$228.0008160.000
    6High Fire (HF)$268.0008160.100
    7RM II and Classic$260.0008166.000
    7High Fire (HF)$300.0008166.100

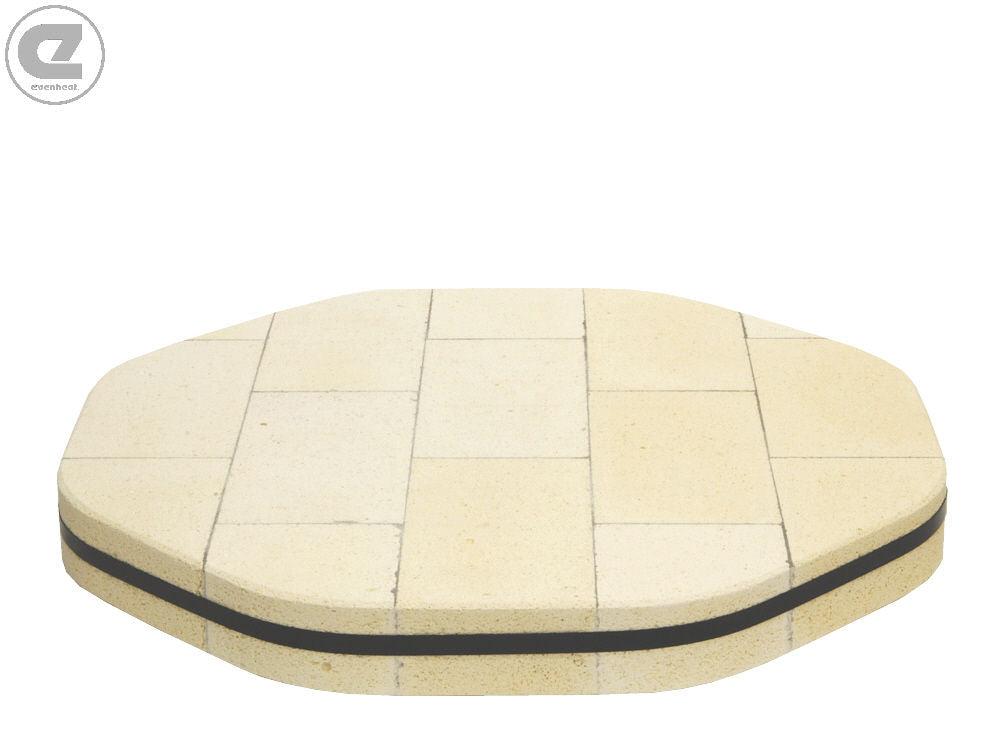

    8RM II and Classic$336.0008180.000
    8High Fire (HF)$368.0008180.100

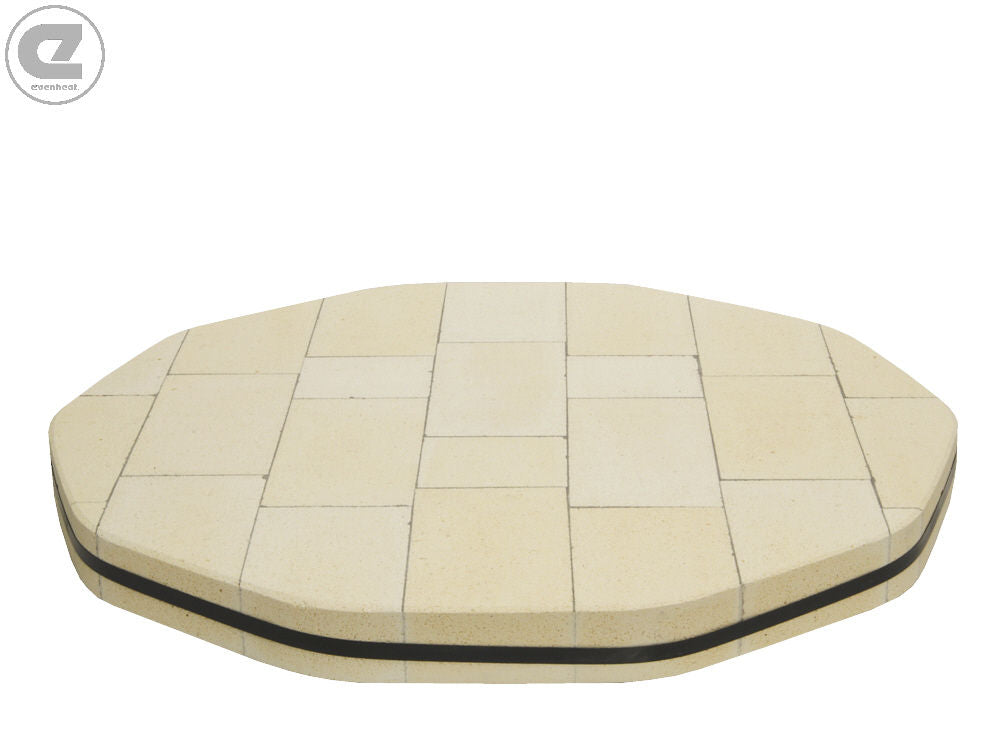

    10RM II and Classic$460.0008205.000
    10High Fire (HF)$508.0008205.100

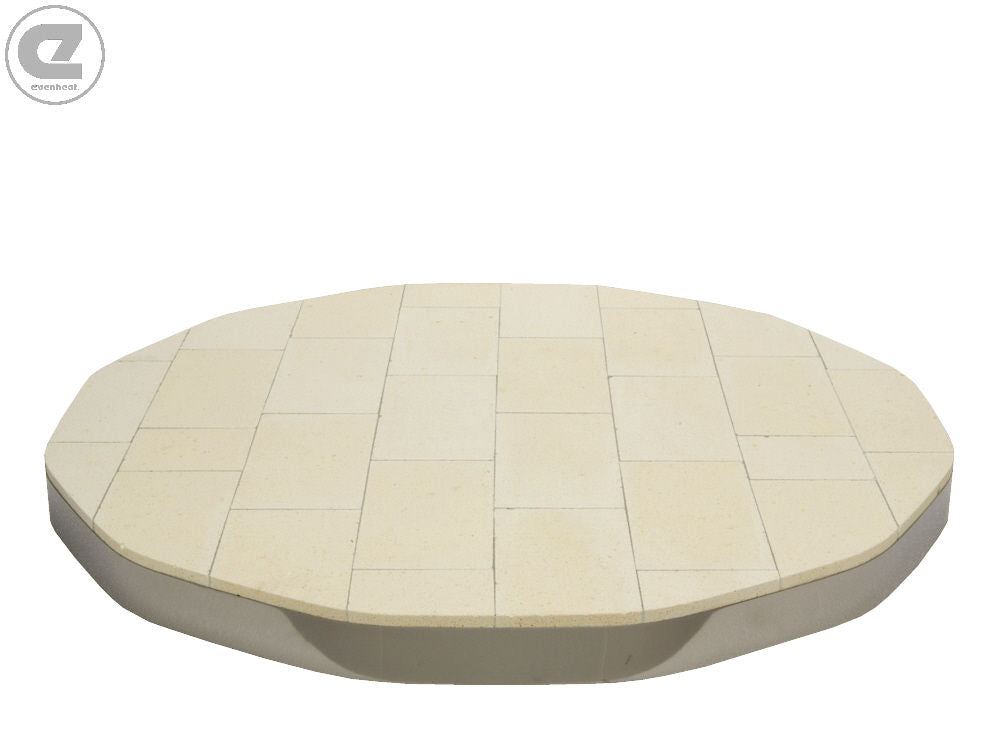

    12RM II and Classic$564.0008225.000
    12High Fire (HF)$632.0008225.100
    There is no Deluxe bottom in Evenheat’s list — Deluxe kilns take the lid variant but share a bottom with the series above. If your data plate says Deluxe, ask us before ordering and we will confirm the part with the factory.
    What’s included
    One kiln bottomThe bare bottom slab in the shape and series you select, from Evenheat.
    No stand, shelves or hardwareNo kiln stand, no shelves or posts, no elements. This is the firebrick bottom only.
    Technical specifications
    Shapes available6, 7, 8, 10 and 12 sided
    Series availableRM II and Classic · High Fire (HF)
    Supplied asBare firebrick bottom
    ShippingFreight, rated by weight
    ManufacturerEvenheat Kiln, Caseville, Michigan
    Common questions
    Do I need a new bottom, or just kiln wash?Surface pitting and glaze marks are cosmetic — grind the high spots, re-wash and keep firing. Replace the bottom when it has cracked right through, when a corner has broken away, or when it has sagged enough that shelves no longer sit level. A bottom that is merely ugly is still a working bottom.
    How do I count the sides?Look at the kiln from above and count the flat faces of the shell. Evenheat’s round-looking kilns are polygons. Send us the model number if you would rather we confirmed it.
    Will a bottom fix my uneven firing?Rarely. Uneven firing is usually elements that have aged at different rates, a tired thermocouple, or a lid that no longer seals. A cracked bottom can leak heat, but check the other three first — they are cheaper.
    Can I replace lid and bottom at once?Yes, and if both are going it is often the sensible move while the kiln is stripped down. Be honest about the total though: lid plus bottom plus a set of elements starts to approach the cost of a rebuild. Tell us what you have and we will do the arithmetic with you.
    Not sure which bottom your kiln takes? Send us the model number off the data plate, or a photo from above. We will confirm the side count and the series before anything ships.
    Talk to an expert →
