Cress Thermocouples and Lead Wire
by Cress

Cress Thermocouples and Lead Wire

SKU CRS-TC81
$55.00
Talk to an Expert Secure Checkout 30-Day Returns No Sales Tax Outside GA
Better price? Request a wire discount Schools, studios & bulk orders: get a quote Military & veteran discounts available
Part

Notify me when back in stock

Not sure this is the right fit? Power, size, firing needs: talk it through with a real person before you order. Call or text (470) 264-3563

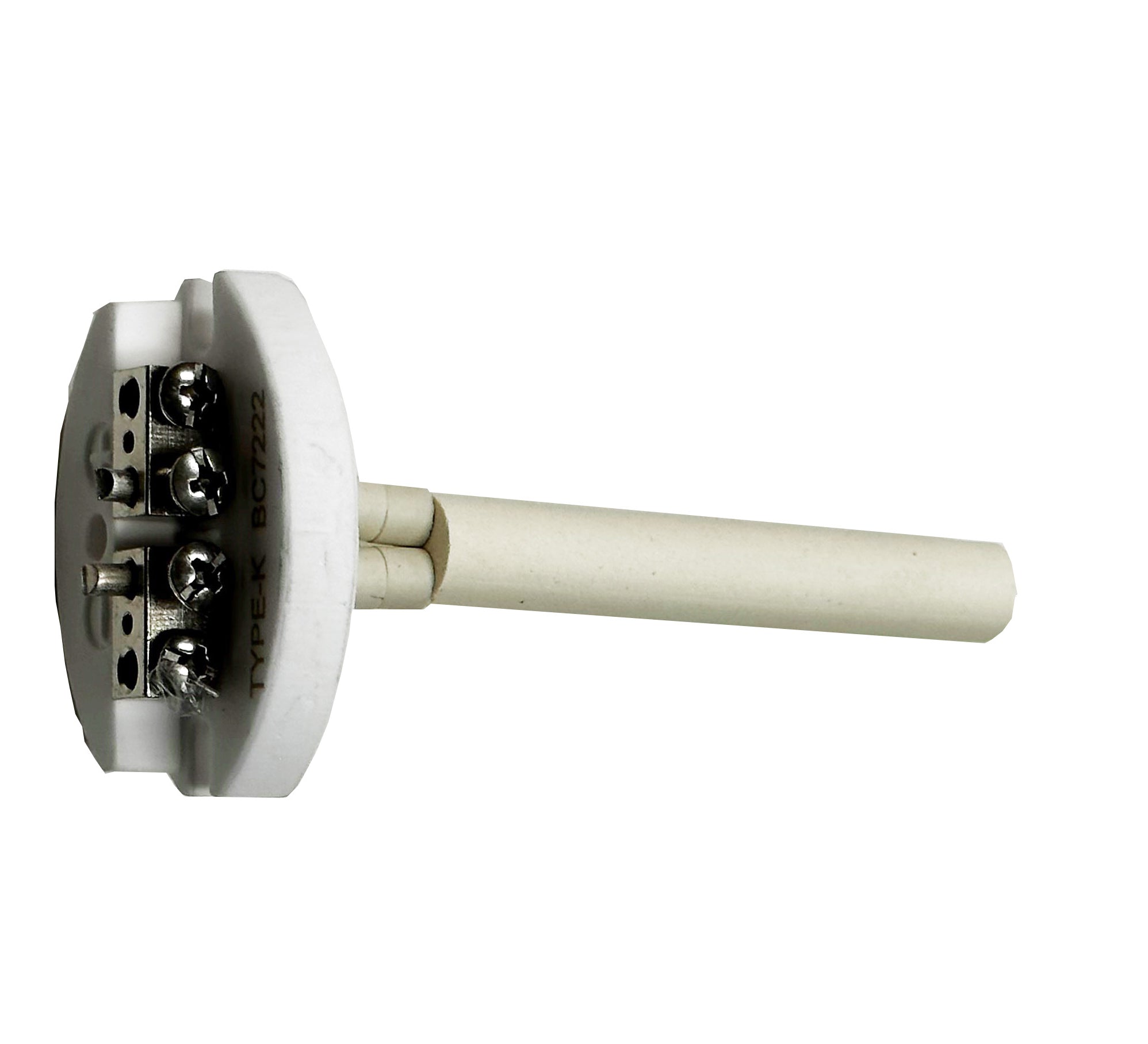

Cress · Parts · ThermocouplesType K thermocouples for Cress kilns, each supplied with its mounting block, plus the lead wire that runs from the thermocouple back to the controller. The thermocouple is the sensor that tells the controller how hot the chamber is — when one drifts or fails, the kiln under-fires or over-fires without anything looking wrong.
Probe lengths and prices
PartPriceCress part no.
Thermocouple with block — 3" probeType K thermocouple supplied with its mounting block.$55.00TC81
Thermocouple with block — 5" probeType K, 5" probe, with block.$55.00TC81.5
Thermocouple with block — 7" probeType K, 7" probe, with block.$55.00TC82
Thermocouple with block — 8" probeType K, 8" probe, with block.$55.00TC82.5
Thermocouple with block — 10" probeType K, 10" probe, with block.$58.00TC83
Thermocouple with block — 12" probeType K, 12" probe, with block.$58.00TC84

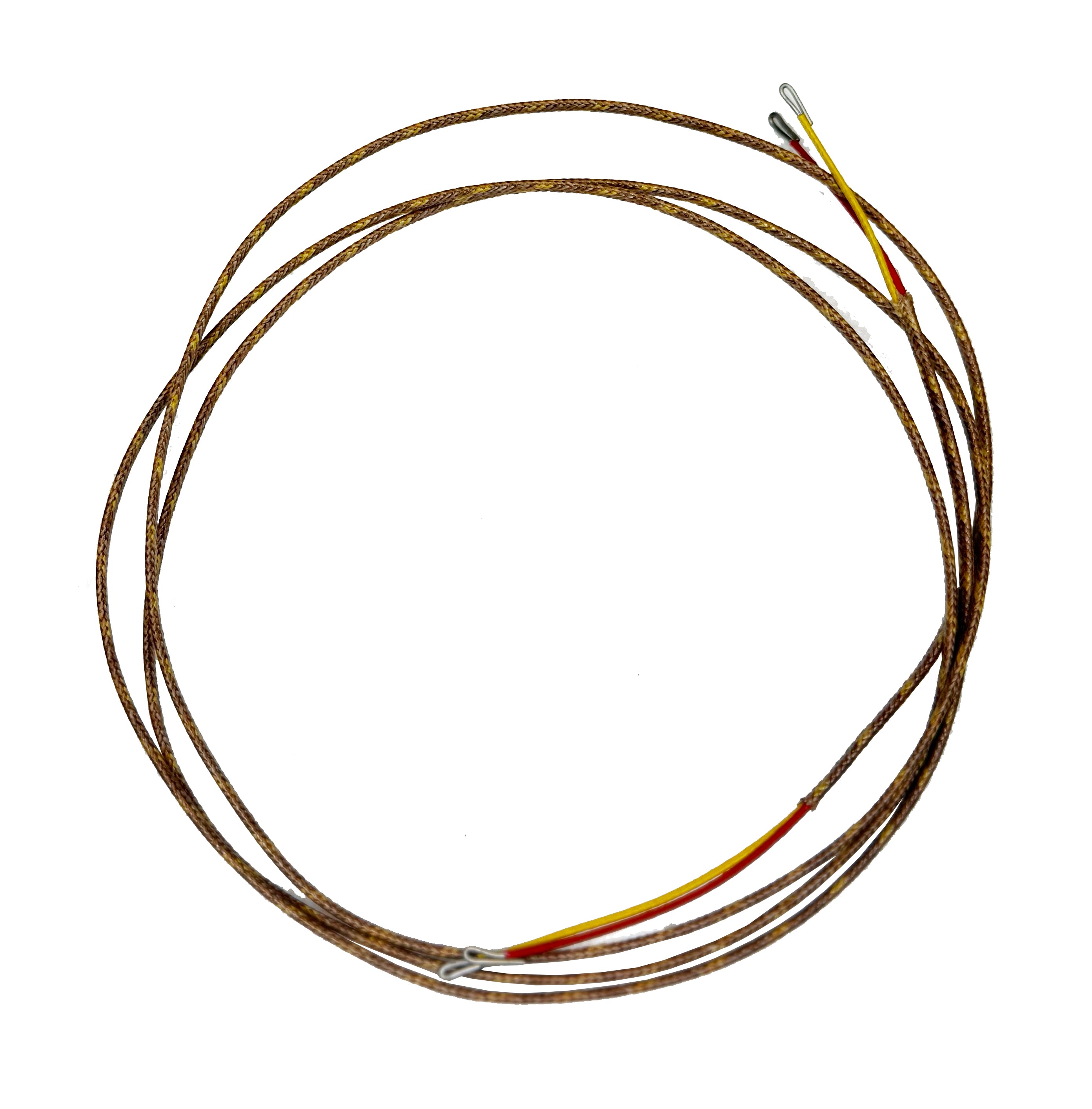

Thermocouple lead wire — 4 ft, with connectorsCress prints THERMOCOUPLE LEAD WIRE, 4 FEET WITH CONNECTORS (CAN SUPPLY CUSTOM LENGTHS). Tell us in the order notes if 4 feet is not the length you need.$55.00ESTCLW4
Probe length is what you are choosing: the probe has to reach into the chamber the same distance the old one did. Measure the probe you are replacing, from the mounting block to the tip, rather than ordering by kiln size.
What’s included
Thermocouple and blockEach thermocouple option is supplied with its mounting block.
Lead wire listed separatelyThe 4 ft lead wire with connectors is the last option on this page. Cress can supply custom lengths — tell us what you need.
Nothing elseNo controller and no wiring harness.
Measure the probe firstOrder by the probe length you are replacing, measured from the block to the tip.
Technical specifications
Part typeType K thermocouple, genuine Cress
Probe lengths3", 5", 7", 8", 10", 12"
Supplied withMounting block
Lead wire4 ft with connectors as standard; custom lengths available
QuantitySold individually
Supplied byCress Manufacturing, Carson City, Nevada
Common questions
How do I know the thermocouple is the problem?The classic sign is a kiln that reads right but fires wrong — cones bending a cone or two away from the setpoint, repeatably. Thermocouples drift as they age rather than failing outright. If it reads wildly wrong or not at all, suspect the lead wire or a connection first.
Which probe length do I need?The one you are taking out. Measure from the mounting block to the tip. A probe that is too short sits in the wall rather than the chamber and will read low.
Can I use a Type K from another brand?Type K is a standard, but the block, the sheath diameter and the mounting are not. These are the Cress parts and they fit Cress kilns without modification.
How do I know this is the right part for my kiln?Send us the model and serial number off the kiln's data plate, at sales@peachstatepottery.com or (470) 264-3563. Cress built kilns for decades and their part lists use a shorthand that does not always map cleanly onto a model name, so we check it by hand rather than letting you guess.
Are these genuine Cress parts?Yes. We are an authorized Cress dealer and everything here is ordered from Cress in Carson City, Nevada, against their current parts list.
What if Cress no longer makes the part I need?Tell us the part anyway. Cress is still manufacturing, and where a part has been superseded they usually have a current equivalent — we would rather find it for you than let you buy the wrong thing.
Send us your model and serial numberCress part lists use a shorthand that does not always map onto a model name, and several parts are built per kiln. Read the model and serial off the data plate, send it over, and we will confirm the right part before you pay.
