Cress EOT203023 Oval Electric Kiln

CressElectric KilnSKU CRESS-EOT203023
$3,848.45Regular price$4,051.00
Save $202.55

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563
  • Orton VentMaster Kiln Vent SystemFan assembly, Collection cup, High-temperature hose, Drill bit, Stud, Printed manual, Orton...

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Cress EOT203023 Oval Elec...
    $3,848.45
    Call

    Overview

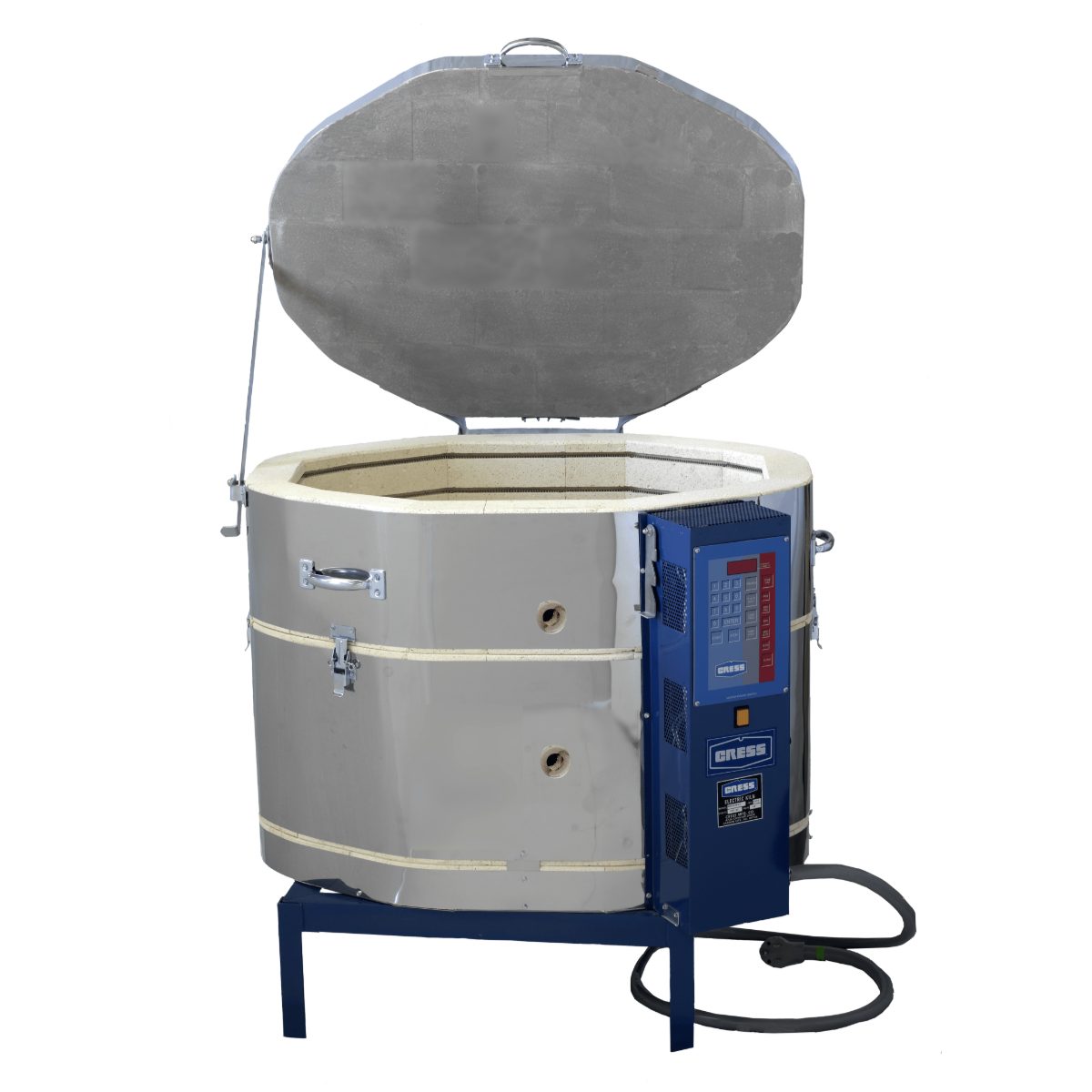

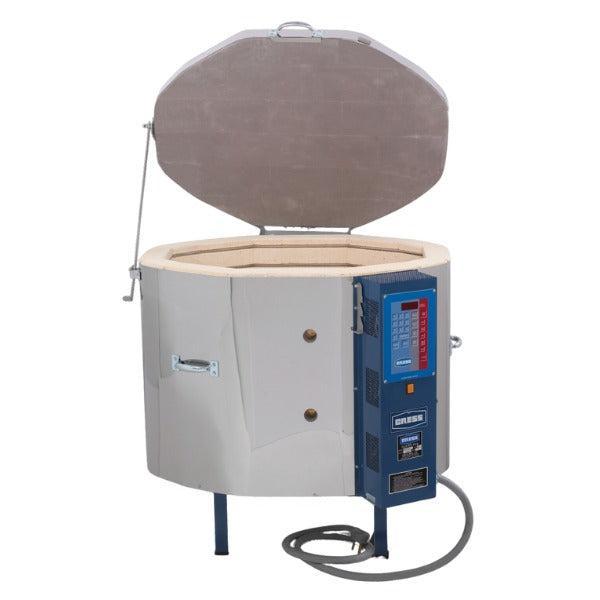

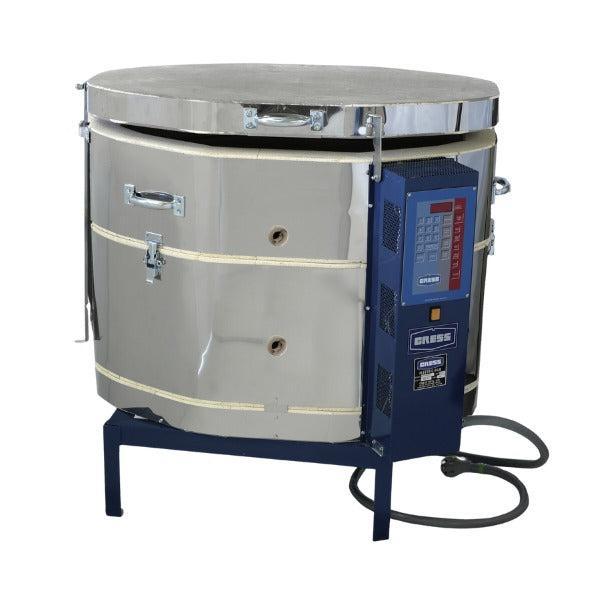

    Cress · Oval Electric Kiln · ET-Series Oval Cress EOT203023 Oval Electric Kiln Model CRESS-EOT203023 · 240V · 20" x 30" oval x 22.5" deep · Cone 10 The Cress EOT203023 is an oval top-loading kiln with a 20" x 30" chamber, 22.5" deep (about 6.6 cu ft), with 3" firebrick walls and a Cone 10 (2350°F) rating. The oval shape takes long platters, tiles and sculpture that won't fit a round kiln of the same footprint, while still loading from the top. Built in Carson City, Nevada.
    Max TempCone 10 (2350°F)
    Chamber20" x 30" oval x 22.5"
    Voltage240V
    Insulation3" firebrick
    What’s included
    Heat-reflective metal stand Cress supplies the stand and its mounting screws, and the manual is explicit that the kiln must be fired on it. Current E and ET kilns ship with Cress's heat-reflective stand, which cuts the floor temperature under the kiln.
    Cress Electronic Control, installed The digital control board is fitted and wired at the factory — five preset firing speeds plus full custom programming. This is a programmed kiln, not a kiln sitter.
    Type K thermocouple Installed at the factory and already calibrated to the control.
    Two-position lid prop For venting the early part of a firing. Cress supplies a prop, not a spring-assisted lifter — no Cress kiln has an assisted lid lift, whatever you may read elsewhere.
    Firebrick peephole plugs Tapered plugs for the peepholes. Cress does not publish how many ship with each model, so we do not quote a number.
    Factory power cord and plug On cord-equipped configurations. Some Cress kilns are built wired-direct with no cord at all. Tell us your service and we will confirm which one you are getting before the order goes in.
    Three-year Cress warranty Three years from the date of purchase to the original buyer. Cress handles warranty work through the dealer you bought from — so you call us, not a factory line.
    Not included Shelves, posts and kiln wash are separate; Cress builds a furniture kit per model. The Clean Air Vent System is an option and does not fit every kiln.
    Key features
    Built in Carson City, NevadaCress Manufacturing has designed and built its kilns in Carson City, Nevada since 1973.
    3" Firebrick WallsET models use 3" brick that holds heat better than the 2.5" brick of E models, without shrinking the interior.
    Electronic ControlCress E-Series electronic control with 5 preset firing speeds (rather than the usual 3) plus custom programming. The control is 3-zone capable but wired for one zone from the factory, so it runs on a single thermocouple for lower maintenance; 3-zone control can be ordered at extra cost.
    Heat-Reflective StandCress was the first to include heat-reflective stands, which greatly reduce floor temperature under the kiln while it fires.
    Electronic Limit TimerAn electronic limit timer backs up the controller as a safety shut-off.
    Oval ChamberA 20" x 30" oval floor fits long platters, tiles and sculpture that won't fit a round kiln.
    Technical specifications
    ModelEOT203023
    SKUCRESS-EOT203023
    Chamber opening20" x 30" oval
    Chamber depth22.5"
    Cubic feet6.6 cu ft
    Maximum temperature2350°F (1288°C) / Cone 10
    Voltage240V
    Amperage48A
    Kilowatts11.5 kW
    Plug / connectionNEMA 6-50P
    Breaker (fuse) size60A
    Insulation3" firebrick
    Exterior dimensions41.5" W x 28.5" D x 37.5" H
    ControllerCress E-Series electronic control with 5 preset firing speeds (rather than the usual 3) plus custom programming.
    Estimated shipping weight350 lbs
    Warranty3-year limited (Cress Mfg.)
    Warranty: Three-year limited warranty from Cress Manufacturing, from the date of purchase to the original purchaser, covering defects in materials and workmanship. Element coverage is limited to one replacement set during the three years. Keep your proof of purchase. Peach State Pottery is an authorized Cress dealer.
    Optional accessories
    Kiln shelves and postsShelves and posts sized to this chamber. Call us and we will quote the right set.
    Cress Clean Air Vent SystemDraws fumes out of the kiln and vents them outside. It cannot be used with every kiln, so ask us to confirm fit.
    Kiln washCoats shelves so glaze drips don't bond permanently.
    Pyrometric conesWitness cones to verify heatwork in the load.
    Factory options
    3-Zone Temperature ControlFactory option
    The controller is 3-zone capable. Ordered with 3-zone control, the kiln gets three thermocouples for top, middle and bottom balancing.
    • Order at time of purchase
    • Three thermocouples
    • Better top-to-bottom uniformity
    • Extra cost
    Common questions
    What electrical circuit does it need?The EOT203023 runs on 240V and draws 48A. Connection: NEMA 6-50P. Cress lists the breaker (fuse) size as 60A. A kiln is a continuous load, so have a licensed electrician size the breaker and wire to your local code before delivery.
    What is the difference between Cress E and ET kilns?Brick thickness. E models use 2.5" firebrick; ET models use 3" brick. Cress builds the ET interior full size, so the chamber doesn't shrink; the extra brick holds heat better and cools more slowly, which helps glazes and reduces energy use.
    How long until it ships?Cress kilns are built to order in Carson City, Nevada and ship directly from the factory. Lead time varies with Cress's production schedule, so call us for the current estimate before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Cress dealer. Cress warrants its kilns for three years from the date of purchase to the original purchaser; keep your proof of purchase.
    Not sure if the CRESS-EOT203023 is right for you? We’re authorized Cress dealers based in Atlanta. Call, email, or chat — we’ll give you a straight answer about specs, sizing, wiring, and accessories before you spend a dollar.
