Cress EC32FHL Front-Loading Electric Kiln

CressElectric KilnSKU CRESS-EC32FHL
$16,080.75Regular price$16,567.00
Save $486.25

  • 15-day returns
  • No sales tax outside Georgia
  • Made in USA
Configure your kiln Not sure? Call 470-264-3563

    Shipping is chosen at checkout: free curbside freight, or Freight + Liftgate Delivery for $139.

    Freight is free and curbside, without a liftgate: plan on a loading dock, a forklift or 2 or more helpers. Or choose Freight + Liftgate Delivery at checkout, $139.

    Cress EC32FHL Front-Loadi...
    $16,080.75
    Call

    Overview

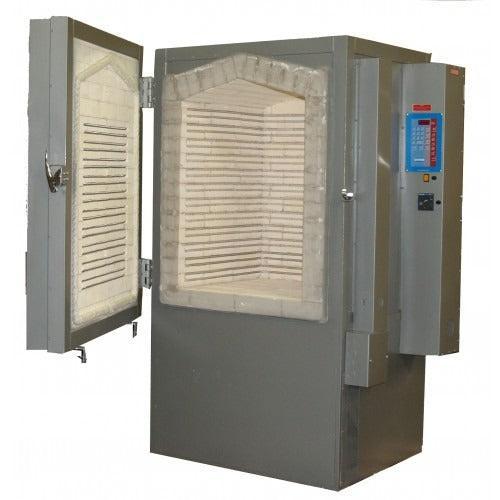

    Cress · Front-Loading Electric Kiln · EC Front-Loading Cress EC32FHL Front-Loading Electric Kiln Model CRESS-EC32FHL · 230V · 28" W x 32" H x 26" deep · Cone 10 The Cress EC32FHL is a front-loading production kiln with a 28" wide x 32" high opening, 26" deep (13.4 cu ft), built from heavy angle-frame steel with 3" firebrick plus 1.5" block insulation under a vaulted ceiling. This is the Cone 10 (2350°F) version with standard elements; the EC32FH is the Cone 12 version with PM elements. Made for large loads of porcelain, sculpture and production pottery.
    Max TempCone 10 (2350°F)
    Chamber28" W x 32" H x 26"
    Voltage230V
    Insulation4.5" multi-bank
    What’s included
    Welded angle-steel frame and steel base plate These are floor-standing kilns: there is no separate stand because the frame is part of the kiln. Cress includes a steel base plate for strength and safety.
    Factory-installed control Cress's 2026 price list shows electronic control on the EC242431FH, EC32FH and EC32FHL, and a control with a timer on the EC30FH and EC36FH. Cress publishes no controller model name for this line, so we do not print one.
    Type K thermocouple Installed at the factory and already calibrated to the control.
    Three-year Cress warranty Three years from the date of purchase to the original buyer. Cress handles warranty work through the dealer you bought from — so you call us, not a factory line.
    Electrical connection At 9 to 18 kW these are almost certainly hard-wired rather than cord-and-plug, but Cress does not publish it per model. We confirm the connection type with the factory before your order ships.
    Not included Shelves, posts, kiln wash and venting are all separate items.
    Key features
    Front-Loading DoorLoad large, heavy or fragile work at standing height instead of lowering it into a top-loader.
    Vaulted CeilingThe arched brick ceiling is self-supporting and stronger than a flat roof over a chamber this wide.
    4.5" Multi-Bank Insulation3" firebrick plus 1.5" block insulation for slow cooling and efficiency.
    Heavy Angle-Frame SteelWelded angle-frame steel and sheet-metal case built for production use.
    Cone 10 RatedRated to 2350°F for stoneware and porcelain; the EC32FH is the Cone 12 version.

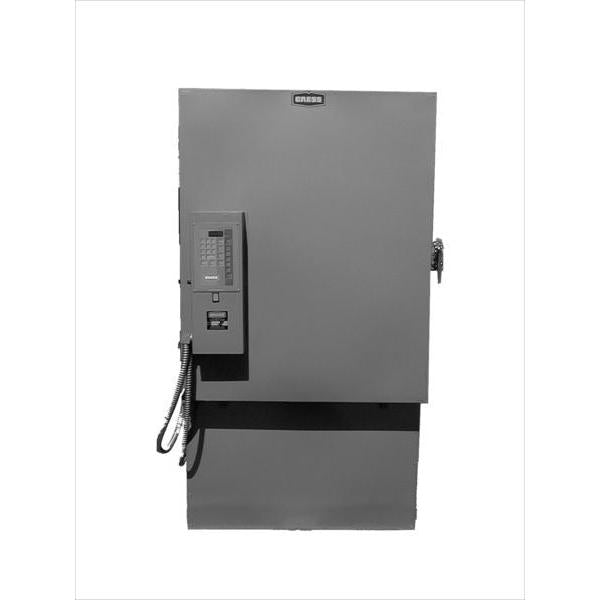

    Electronic ControlCress E-Series electronic control with 5 preset firing speeds (rather than the usual 3) plus custom programming. The control is 3-zone capable but wired for one zone from the factory, so it runs on a single thermocouple for lower maintenance; 3-zone control can be ordered at extra cost.
    Technical specifications
    ModelEC32FHL
    SKUCRESS-EC32FHL
    Chamber opening28" W x 32" H
    Chamber depth26"
    Cubic feet13.4 cu ft
    Maximum temperature2350°F (1288°C) / Cone 10
    Voltage230V (208V and 3-phase available)
    Amperage74A (86A at 208V)
    Kilowatts17 kW
    Plug / connectionHardwired
    Breaker (fuse) sizeSized by your electrician to local code
    Insulation3" firebrick + 1.5" block (4.5" total)
    Exterior dimensions47" W x 44" D x 70" H
    ControllerCress E-Series electronic control with 5 preset firing speeds (rather than the usual 3) plus custom programming.
    Estimated shipping weight1,200 lbs
    Warranty3-year limited (Cress Mfg.)
    Warranty: Three-year limited warranty from Cress Manufacturing, from the date of purchase to the original purchaser, covering defects in materials and workmanship. Element coverage is limited to one replacement set during the three years. Keep your proof of purchase. Peach State Pottery is an authorized Cress dealer.
    Optional accessories
    Kiln shelves and postsShelves and posts sized to this chamber. Call us and we will quote the right set.
    Cress Clean Air Vent SystemDraws fumes out of the kiln and vents them outside. It cannot be used with every kiln, so ask us to confirm fit.
    Kiln washCoats shelves so glaze drips don't bond permanently.
    Pyrometric conesWitness cones to verify heatwork in the load.
    Factory options
    3-Zone Temperature ControlFactory option
    The controller is 3-zone capable. Ordered with 3-zone control, the kiln gets three thermocouples for top, middle and bottom balancing.
    • Order at time of purchase
    • Three thermocouples
    • Better top-to-bottom uniformity
    • Extra cost
    208V or 3-Phase WiringFactory option
    Built for 208V single phase or three phase to match commercial and school electrical service; three-phase cuts amperage per leg.
    • 208V single phase
    • 3-phase available
    • Order at time of purchase
    • Confirm with your electrician
    Exhaust Vent SystemFactory option
    Front-loaders can be ordered with an exhaust vent system to pull fumes out of the chamber.
    • Vents to outside
    • Order with the kiln
    • Cleaner studio air
    • Call for pricing
    Common questions
    What electrical circuit does it need?The EC32FHL runs on 230V (208V and 3-phase available) and draws 74A (86A at 208V). Connection: hardwired. Circuit protection is sized by your electrician to local code. A kiln is a continuous load, so have a licensed electrician size the breaker and wire to your local code before delivery.
    How is a kiln this large delivered and installed?By freight truck with liftgate service when the delivery requires it. It ships at about 1,200 lb, so plan for equipment to move it into place, and have the hardwired circuit ready before it arrives.
    How long until it ships?Cress kilns are built to order in Carson City, Nevada and ship directly from the factory. Lead time varies with Cress's production schedule, so call us for the current estimate before you order.
    Does buying from Peach State Pottery affect my warranty?No. We are an authorized Cress dealer. Cress warrants its kilns for three years from the date of purchase to the original purchaser; keep your proof of purchase.
