Cress EC30FH Front-Loading Electric Kiln
$24,240.00Regular price$24,846.00
Save $606.00- 15-day returns
- No sales tax outside Georgia
- Made in USA
Ways to save
Choose your build
Built to order.
Already built, not made to order, so there is nothing else to configure. We confirm the lead time in writing before you are charged.
Lead time is confirmed in writing before you are charged.
Configure your kiln
Not sure? Call 470-264-3563
Cress EC30FH Front-Loadin...
$24,240.00
Overview
Cress · Front-Loading Electric Kiln · EC Thick-Wall Front-Loading

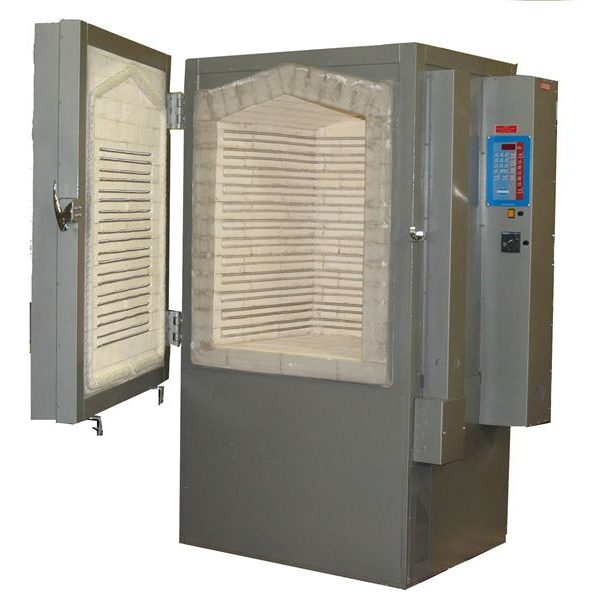

Cress EC30FH Front-Loading Electric Kiln
The Cress EC30FH is a thick-wall front-loading production kiln: a 24" square opening, 30" deep (10 cu ft), surrounded by up to 6.5" of multi-layer insulation under a vaulted ceiling. It is built for large loads of porcelain, sculpture and hand-built work, and the heavy insulation gives the slow, even cooling that handmade pieces need. With the door swung fully open (270°) it fits through a 32" doorway.
Max TempCone 10 (2350°F)
Chamber24" W x 24" H (square) x 30"
Voltage240V
Insulation6.5" multi-bank
What’s included
Welded angle-steel frame and steel base plate
These are floor-standing kilns: there is no separate stand because the frame is part of the kiln. Cress includes a steel base plate for strength and safety.
Factory-installed control
Cress's 2026 price list shows electronic control on the EC242431FH, EC32FH and EC32FHL, and a control with a timer on the EC30FH and EC36FH. Cress publishes no controller model name for this line, so we do not print one.
Type K thermocouple
Installed at the factory and already calibrated to the control.
Three-year Cress warranty
Three years from the date of purchase to the original buyer. Cress handles warranty work through the dealer you bought from — so you call us, not a factory line.
Electrical connection
At 9 to 18 kW these are almost certainly hard-wired rather than cord-and-plug, but Cress does not publish it per model. We confirm the connection type with the factory before your order ships.
Not included
Shelves, posts, kiln wash and venting are all separate items.
Key features
Front-Loading DoorLoad large, heavy or fragile work at standing height instead of lowering it into a top-loader.
Vaulted CeilingThe arched brick ceiling is self-supporting and stronger than a flat roof over a chamber this wide.
Up to 6.5" InsulationMulti-bank insulation gives very slow, even cooling for thick and handmade work.
Heavy Angle-Frame SteelWelded angle-frame steel and sheet-metal case built for production use.
Controls IncludedCress electronic control with an electronic high-limit controller, plus a Dawson kiln sitter and limit timer included in the price.
Fits a 32" DoorwayWith the door open 270°, the kiln passes through a 32" wide opening. Cress can build it up to 6 ft deep inside at extra cost.
Technical specifications
ModelEC30FH
SKUCRESS-EC30FH
Chamber opening24" W x 24" H (square)
Chamber depth30"
Cubic feet10 cu ft
Maximum temperature2350°F (1288°C) / Cone 10
Voltage240V (208V available; 3-phase on request)
Amperage61A (68A at 208V)
Kilowatts14 kW
Plug / connectionHardwired
Breaker (fuse) size70A (per Cress)
Insulation6.5" multi-layer insulation
Exterior dimensions52" W x 40" D x 70" H
ControllerCress electronic control with an electronic high-limit controller, plus a Dawson kiln sitter and limit timer included in the price.
Estimated shipping weight1,400 lbs
Warranty3-year limited (Cress Mfg.)
Optional accessories
Kiln shelves and postsShelves and posts sized to this chamber. Call us and we will quote the right set.
Cress Clean Air Vent SystemDraws fumes out of the kiln and vents them outside. It cannot be used with every kiln, so ask us to confirm fit.
Kiln washCoats shelves so glaze drips don't bond permanently.
Pyrometric conesWitness cones to verify heatwork in the load.
Factory options
208V or 3-Phase WiringFactory option
Built for 208V single phase or three phase to match commercial and school electrical service; three-phase cuts amperage per leg.
- 208V single phase
- 3-phase available
- Order at time of purchase
- Confirm with your electrician
Exhaust Vent SystemFactory option
Front-loaders can be ordered with an exhaust vent system to pull fumes out of the chamber.
- Vents to outside
- Order with the kiln
- Cleaner studio air
- Call for pricing
Common questions
What electrical circuit does it need?The EC30FH runs on 240V (208V available; 3-phase on request) and draws 61A (68A at 208V). Connection: hardwired. Cress lists the breaker (fuse) size as 70A. A kiln is a continuous load, so have a licensed electrician size the breaker and wire to your local code before delivery.
How is a kiln this large delivered and installed?By freight truck with liftgate service when the delivery requires it. It ships at about 1,400 lb, so plan for equipment to move it into place, and have the hardwired circuit ready before it arrives.
How long until it ships?Cress kilns are built to order in Carson City, Nevada and ship directly from the factory. Lead time varies with Cress's production schedule, so call us for the current estimate before you order.
Does buying from Peach State Pottery affect my warranty?No. We are an authorized Cress dealer. Cress warrants its kilns for three years from the date of purchase to the original purchaser; keep your proof of purchase.
Not sure if the CRESS-EC30FH is right for you?
We’re authorized Cress dealers based in Atlanta. Call, email, or chat — we’ll give you a straight answer about specs, sizing, wiring, and accessories before you spend a dollar.
