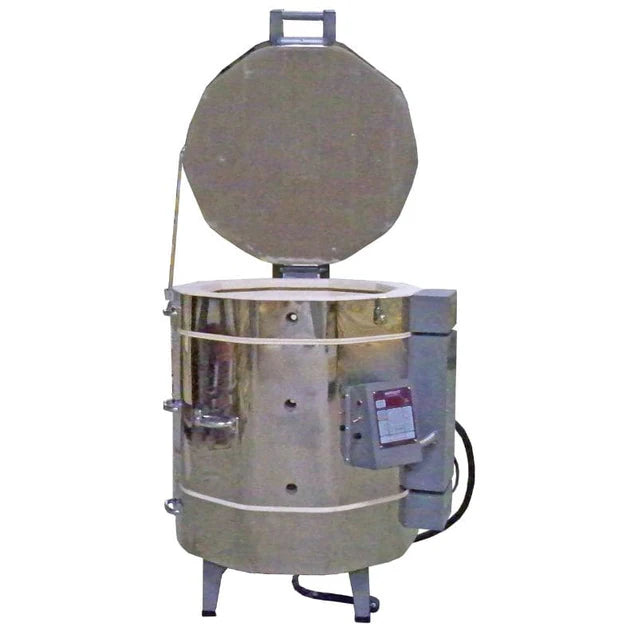

Olympic Kilns 2327HE electric kiln with lid open showing large round firing chamber and control box

Olympic Kilns 2327HE Electric Kiln

by Olympic Kilns
Save $424.00
$5,025.00
$4,601.00
🚚
Free Freight Delivery Included
✓ No sales tax outside GA ✓ Liftgate included free ✓ Authorized dealer
🔨
Made to Order: Kilns are built after ordering to your exact specifications. Current estimate is 8–12 weeks.
⚡
Need it sooner? Quick-Ship models ship in 2–3 weeks
View Quick-Ship
Questions? Call or text us at (470) 264-3563

Notify me when back in stock

★
Best for
Serious hobbyists, home studio potters, and small production studios who need a reliable, high-fire American-made kiln with full manufacturer support and room to grow.
🔨 Lead time
8–12 weeks
Made to order — built to your exact voltage and controller selections after ordering.
✓ Warranty
Manufacturer warranty
Full manufacturer coverage included. We are here if anything goes wrong.
✓ Why buy from Peach State Pottery?
★ Authorized Olympic Kilns Dealer
★ No sales tax outside Georgia
★ Free shipping included
★ Real support before & after order
★ Military discount for veterans
★ We are here if anything goes wrong
Call or text us:✆ (470) 264-3563
⏱
Production batches fill quickly
Olympic kilns are made to order. Placing your order now secures your spot in the current production batch and locks in today's pricing. Lead times can extend during busy periods.
Have questions before you order?
Call or text us at (470) 264-3563 — we will help confirm the right setup for your studio.
✆ Call or text us ✉ Save 3% with wire transfer
Olympic Kilns · Electric Kiln · Stackable Top-Loading Olympic 2327HE Electric Kiln Model 2327HE · 240V or 208V · 23.375″ W × 27″ H · 7 Cubic Feet · Cone 10 / 2350°F The Olympic 2327HE is a 7-cubic-foot stackable electric kiln designed for studios requiring high-fire capacity up to Cone 10. With a 23.375-inch wide chamber and 27-inch firing height, this kiln handles larger-scale wheel work, sculpture, and production runs while maintaining the flexibility of Olympic's modular ring system. The 240V model draws 48 amps and ships with the KilnStar digital controller, 3-inch firebrick, and stainless steel jacket.
Maximum TemperatureCone 10 / 2350°F
Firing Chamber7 cubic feet
Electrical240V, 48A, 11,520W
Breaker Required60-amp circuit
What’s included

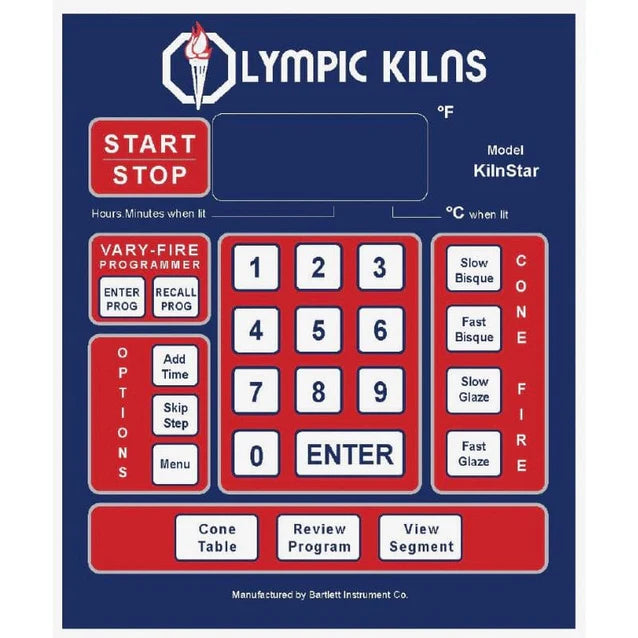

KilnStar Digital Controller8-segment programmable controller with pre-set firing schedules for bisque and glaze, programmable Hold function, and alarm notification at cycle completion
3-Inch Firebrick ConstructionHigh-quality 2600°F firebrick provides superior heat retention and energy efficiency for extended kiln life and consistent firing results
Stainless Steel JacketRust-resistant stainless steel outer jacket with powder-coated finish protects internal components and provides professional appearance
Balanced Element DesignPremium Kanthal A-1 heating elements positioned throughout chamber walls for even heat distribution from top to bottom
Stackable Ring SystemModular ring construction allows for future height adjustments by adding or removing sections to customize firing chamber size
Metal Stand with Pilot LightSturdy metal stand elevates kiln to comfortable working height and includes pilot light for power-on indication
Technical specifications
Model Number2327HE
Firing Chamber Dimensions23.375″ W × 27″ H
Firing Chamber Capacity7 cubic feet
Firebrick Thickness3 inches
Maximum TemperatureCone 10 / 2350°F
Voltage Options240V or 208V (single phase)
Amperage at 240V48 amps
Wattage at 240V11,520 watts
Recommended Breaker60-amp circuit breaker
Plug ConfigurationNEMA 6-50P (hardwire recommended for 60A)
Wire Size Recommended6 AWG copper
Shipping WeightApproximately 650 lbs
Controller IncludedKilnStar Digital Controller
Element TypeKanthal A-1 heating elements
Warranty: One-year limited kiln warranty from Olympic Kilns. Must be registered within 30 days of delivery. Valid only through authorized dealers.
Optional accessories
Solid State Relay (SSR) UpgradeReplaces mechanical contactors with silent solid-state relays for quiet operation, extended component life, and smoother power delivery to elements
Kiln Furniture KitComplete shelf and post kit custom-sized for the 2327HE chamber, including full shelves, half shelves, and assorted post heights for flexible stacking configurations

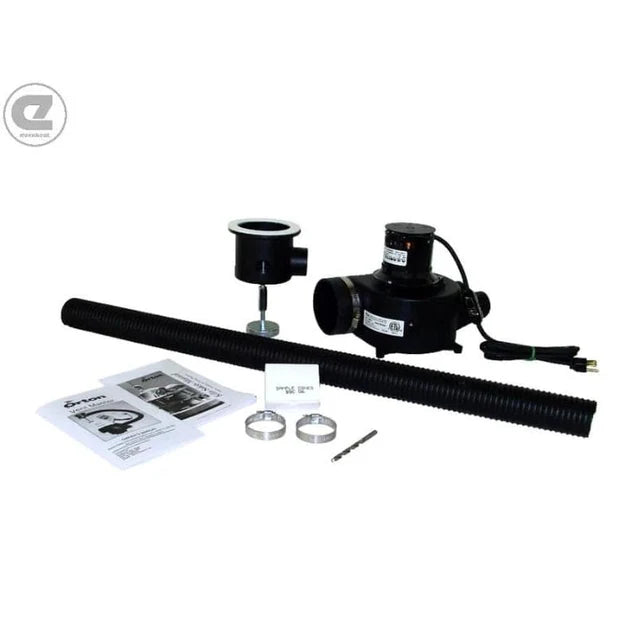

Orton Kiln Vent SystemDowndraft ventilation system removes fumes, improves firing atmosphere, extends element life, and maintains cleaner studio air quality during firing cycles
Lid Lift MechanismSpring-assisted lid counterbalance system reduces physical effort required to open kiln and holds lid in open position for safer loading and unloading
Rolling Stand UpgradeHeavy-duty rolling stand with locking casters for improved mobility and studio layout flexibility while maintaining stable firing platform
Power Interrupt Safety DeviceAutomatically shuts off kiln power when lid is opened during firing cycle to prevent accidental burns and protect controller from heat damage
Dual Media LidReversible lid with ceramic fiber on one side and standard brick on the other for both high-fire ceramic and lower-temperature glass fusing applications
Multi-Zone Control UpgradeIndependent top and bottom zone control for precise heat management in tall firing chambers, improving uniformity and allowing zone-specific adjustments
Emergency Parts KitReplacement thermocouple, element connectors, and critical hardware for quick repairs and minimal downtime during equipment failures
Type S Thermocouple UpgradeHigher-accuracy Type S thermocouple for improved temperature sensing and longer sensor life in high-fire Cone 8-10 applications
Controller upgrade

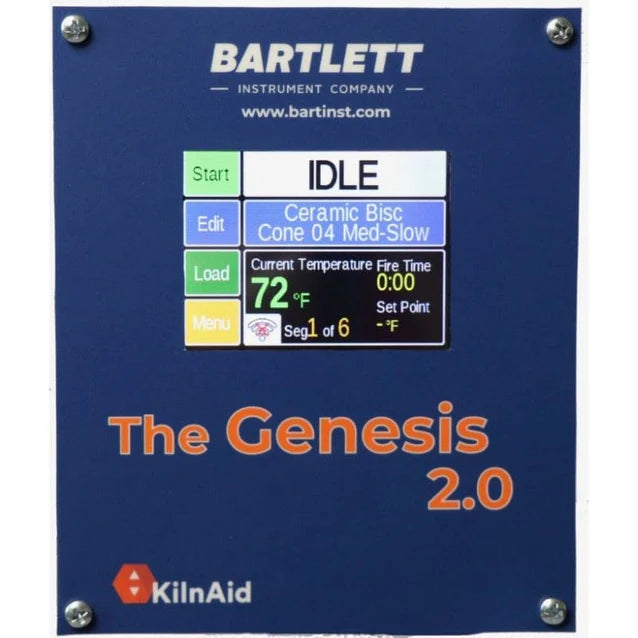

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis controller by Bartlett Instruments is a full-color touchscreen system that replaces the standard KilnStar controller with advanced programming, real-time cone firing visualization, and integrated diagnostic tools for precision firing control.
  • Full-color 4.3-inch touchscreen interface with intuitive menu navigation and graphical firing progress display
  • Store up to 50 custom firing programs with 32 segments each for complete control over complex schedules
  • Cone Fire Mode calculates heating rates automatically based on target cone number and ware type selection
  • Real-time firing graphs show temperature curves, segment transitions, and estimated time to completion during active firings
  • Built-in troubleshooting diagnostics with error code explanations and element resistance testing protocols
  • USB port for firmware updates and program backup/transfer between Genesis controllers
Common questions
What electrical work is required to install the 2327HE?
The 240V model requires a dedicated 60-amp circuit with 6 AWG copper wiring. This is not a standard household circuit and requires professional electrician installation. Hardwiring is recommended over a plug connection at this amperage. The kiln ships with an 8-foot power cord. Installation costs typically range from $400–$1,200 depending on distance from breaker panel and local electrical rates. A 208V option is available for facilities with three-phase power.
Does this kiln include kiln furniture or do I need to purchase it separately?
Kiln furniture (shelves and posts) is sold separately. For the 23.375-inch chamber, you'll need full round or square shelves designed for this diameter. A typical furniture kit includes 4–6 full shelves, 2–4 half shelves, and an assortment of 1-inch, 3-inch, and 6-inch posts. Budget approximately $400–$600 for a complete furniture set depending on shelf material (cordierite or high-alumina).
Can I add or remove sections from this kiln later?
Yes. The 2327HE uses Olympic's stackable ring system, which allows you to add 9-inch ring sections to increase firing height or remove sections to reduce chamber size. Each modification requires corresponding element replacement and may affect electrical specifications. Contact Olympic or Peach State Pottery before modifying to ensure proper element sets and controller compatibility.
How do I activate the Olympic kiln warranty?
Register your kiln with Olympic Kilns within 30 days of delivery to activate the one-year limited warranty. Registration is completed online at Olympic's website using your serial number and proof of purchase. Warranty is valid only on kilns purchased through authorized dealers like Peach State Pottery. Warranty covers manufacturing defects but does not cover wear items like elements, thermocouples, or firebrick, which degrade with normal use.
What is the difference between the standard KilnStar controller and the Genesis upgrade?
The KilnStar controller included with the kiln offers 8-segment programming and basic pre-set schedules, suitable for most studio firing needs. The Genesis touchscreen upgrade provides 32-segment programming, graphical firing displays, USB connectivity, Cone Fire automatic calculation mode, and advanced diagnostic tools. Genesis is recommended for artists firing complex schedules, those wanting real-time visual feedback, or studios running production workflows requiring detailed firing documentation.
Not sure if the 2327HE is the right kiln for your space? Our team can help you evaluate electrical requirements, compare models, and coordinate delivery to your Atlanta-area studio.
Talk to an expert →
Description
Olympic Kilns · Electric Kiln · Stackable Top-Loading Olympic 2327HE Electric Kiln Model 2327HE · 240V or 208V · 23.375″ W × 27″ H · 7 Cubic Feet · Cone 10 / 2350°F The Olympic 2327HE is a 7-cubic-foot stackable electric kiln designed for studios requiring high-fire capacity up to Cone 10. With a 23.375-inch wide chamber and 27-inch firing height, this kiln handles larger-scale wheel work, sculpture, and production runs while maintaining the flexibility of Olympic's modular ring system. The 240V model draws 48 amps and ships with the KilnStar digital controller, 3-inch firebrick, and stainless steel jacket. Maximum TemperatureCone 10 / 2350°F Firing Chamber7 cubic feet Electrical240V, 48A, 11,520W Breaker Required60-amp circuit What’s included KilnStar Digital Controller8-segment programmable controller with pre-set firing schedules for bisque and glaze, programmable Hold function, and alarm notification at cycle completion 3-Inch Firebrick ConstructionHigh-quality 2600°F firebrick provides superior heat retention and energy efficiency for extended kiln life and consistent firing results Stainless Steel JacketRust-resistant stainless steel outer jacket with powder-coated finish protects internal components and provides professional appearance Balanced Element DesignPremium Kanthal A-1 heating elements positioned throughout chamber walls for even heat distribution from top to bottom Stackable Ring SystemModular ring construction allows for future height adjustments by adding or removing sections to customize firing chamber size Metal Stand with Pilot LightSturdy metal stand elevates kiln to comfortable working height and includes pilot light for power-on indication Technical specifications Model Number2327HE Firing Chamber Dimensions23.375″ W × 27″ H Firing Chamber Capacity7 cubic feet Firebrick Thickness3 inches Maximum TemperatureCone 10 / 2350°F Voltage Options240V or 208V (single phase) Amperage at 240V48 amps Wattage at 240V11,520 watts Recommended Breaker60-amp circuit breaker Plug ConfigurationNEMA 6-50P (hardwire recommended for 60A) Wire Size Recommended6 AWG copper Shipping WeightApproximately 650 lbs Controller IncludedKilnStar Digital Controller Element TypeKanthal A-1 heating elements Warranty: One-year limited kiln warranty from Olympic Kilns. Must be registered within 30 days of delivery. Valid only through authorized dealers. Optional accessories Solid State Relay (SSR) UpgradeReplaces mechanical contactors with silent solid-state relays for quiet operation, extended component life, and smoother power delivery to elements Kiln Furniture KitComplete shelf and post kit custom-sized for the 2327HE chamber, including full shelves, half shelves, and assorted post heights for flexible stacking configurations Orton Kiln Vent SystemDowndraft ventilation system removes fumes, improves firing atmosphere, extends element life, and maintains cleaner studio air quality during firing cycles Lid Lift MechanismSpring-assisted lid counterbalance system reduces physical effort required to open kiln and holds lid in open position for safer loading and unloading Rolling Stand UpgradeHeavy-duty rolling stand with locking casters for improved mobility and studio layout flexibility while maintaining stable firing platform Power Interrupt Safety DeviceAutomatically shuts off kiln power when lid is opened during firing cycle to prevent accidental burns and protect controller from heat damage Dual Media LidReversible lid with ceramic fiber on one side and standard brick on the other for both high-fire ceramic and lower-temperature glass fusing applications Multi-Zone Control UpgradeIndependent top and bottom zone control for precise heat management in tall firing chambers, improving uniformity and allowing zone-specific adjustments Emergency Parts KitReplacement thermocouple, element connectors, and critical hardware for quick repairs and minimal downtime during equipment failures Type S Thermocouple UpgradeHigher-accuracy Type S thermocouple for improved temperature sensing and longer sensor life in high-fire Cone 8-10 applications Controller upgrade Genesis Touchscreen — Bartlett InstrumentsRecommended The Genesis controller by Bartlett Instruments is a full-color touchscreen system that replaces the standard KilnStar controller with advanced programming, real-time cone firing visualization, and integrated diagnostic tools for precision firing control.
  • Full-color 4.3-inch touchscreen interface with intuitive menu navigation and graphical firing progress display
  • Store up to 50 custom firing programs with 32 segments each for complete control over complex schedules
  • Cone Fire Mode calculates heating rates automatically based on target cone number and ware type selection
  • Real-time firing graphs show temperature curves, segment transitions, and estimated time to completion during active firings
  • Built-in troubleshooting diagnostics with error code explanations and element resistance testing protocols
  • USB port for firmware updates and program backup/transfer between Genesis controllers
 Common questions What electrical work is required to install the 2327HE? The 240V model requires a dedicated 60-amp circuit with 6 AWG copper wiring. This is not a standard household circuit and requires professional electrician installation. Hardwiring is recommended over a plug connection at this amperage. The kiln ships with an 8-foot power cord. Installation costs typically range from $400–$1,200 depending on distance from breaker panel and local electrical rates. A 208V option is available for facilities with three-phase power. Does this kiln include kiln furniture or do I need to purchase it separately? Kiln furniture (shelves and posts) is sold separately. For the 23.375-inch chamber, you'll need full round or square shelves designed for this diameter. A typical furniture kit includes 4–6 full shelves, 2–4 half shelves, and an assortment of 1-inch, 3-inch, and 6-inch posts. Budget approximately $400–$600 for a complete furniture set depending on shelf material (cordierite or high-alumina). Can I add or remove sections from this kiln later? Yes. The 2327HE uses Olympic's stackable ring system, which allows you to add 9-inch ring sections to increase firing height or remove sections to reduce chamber size. Each modification requires corresponding element replacement and may affect electrical specifications. Contact Olympic or Peach State Pottery before modifying to ensure proper element sets and controller compatibility. How do I activate the Olympic kiln warranty? Register your kiln with Olympic Kilns within 30 days of delivery to activate the one-year limited warranty. Registration is completed online at Olympic's website using your serial number and proof of purchase. Warranty is valid only on kilns purchased through authorized dealers like Peach State Pottery. Warranty covers manufacturing defects but does not cover wear items like elements, thermocouples, or firebrick, which degrade with normal use. What is the difference between the standard KilnStar controller and the Genesis upgrade? The KilnStar controller included with the kiln offers 8-segment programming and basic pre-set schedules, suitable for most studio firing needs. The Genesis touchscreen upgrade provides 32-segment programming, graphical firing displays, USB connectivity, Cone Fire automatic calculation mode, and advanced diagnostic tools. Genesis is recommended for artists firing complex schedules, those wanting real-time visual feedback, or studios running production workflows requiring detailed firing documentation. Not sure if the 2327HE is the right kiln for your space? Our team can help you evaluate electrical requirements, compare models, and coordinate delivery to your Atlanta-area studio. Talk to an expert →
